i.MX 8M Plus: Integrated ISP and NPU for Edge‑Optimized Vision and AI

Discover how NXP’s i.MX 8M Plus application processor delivers turnkey vision processing and machine‑learning acceleration for edge‑centric systems.

Modern industrial and consumer devices increasingly rely on edge computing and vision‑based AI to deliver instant, privacy‑preserving insights. Designing these solutions typically demands a patchwork of SoCs, dedicated image signal processors (ISPs) and neural processing units (NPUs). NXP has streamlined this complexity by combining an ISP, an NPU and a powerful multi‑core processor into the i.MX 8M Plus.

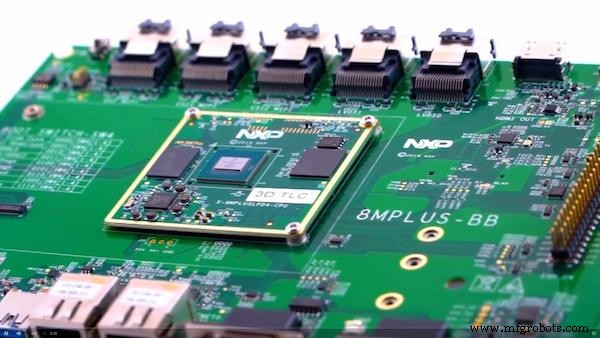

Figure 1. i.MX 8M Plus application processor.

Edge Computing vs. Cloud Computing

Understanding the edge advantage is key to appreciating the i.MX 8M Plus’s value proposition. Cloud computing offers virtually unlimited resources but introduces latency, bandwidth costs and potential privacy risks. Edge computing brings computation closer to the data source, filtering and pre‑processing information before any transmission, and in some cases performing the entire inference locally.

When the cloud is unavailable or network latency is unacceptable—common in factory automation, autonomous vehicles or remote monitoring—edge devices must operate independently, without compromising performance.

Why Edge Is Worth the Extra Power

Deploying AI locally yields several tangible benefits:

• Reduced bandwidth usage and lower operational costs.
• Enhanced reliability; applications continue to function offline.
• Lower latency for real‑time decisions, critical in safety‑sensitive environments.
• Improved data privacy by keeping sensitive data on‑premises.

Measuring Machine‑Learning Demands

In edge scenarios, performance is often expressed in TOPS (trillion operations per second). Typical requirements include:

• Full‑voice recognition: 1–2 TOPS.
• Real‑time object detection (e.g., YOLOv3 at 60 fps): 2–3 TOPS.

To meet these demands, NXP integrated an NPU capable of 2.3 TOPS directly into the i.MX 8M Plus, enabling sophisticated inference without external accelerators.

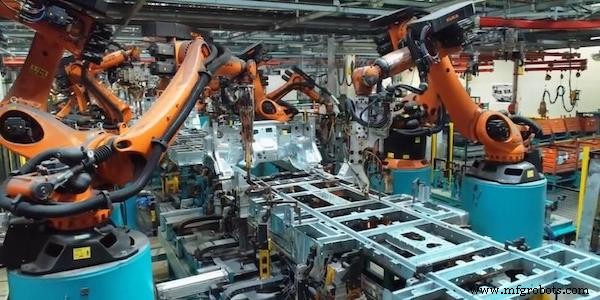

Figure 2. i.MX 8M Plus delivers 2.3 TOPS of AI performance for industrial edge applications.

Built‑In ISP for High‑Resolution Vision

Vision systems—whether automated inspection on a production line or consumer cameras—require reliable image capture and processing. External ISPs add cost, power consumption and integration effort, especially when handling resolutions above 2 MP.

The i.MX 8M Plus houses a fully featured ISP, supporting up to 4 MP input streams with real‑time color correction, noise reduction and lens‑correction modules. The ISP output feeds directly into the NPU, freeing the CPU for other tasks and simplifying firmware development.

Key Technical Highlights

• Quad‑core Cortex‑A53 + dual‑core Cortex‑M4 for high‑throughput computing.
• 2.3 TOPS NPU for rapid inference.
• Integrated ISP supporting 1080p/4K video streams.
• Time‑Sensitive Networking (TSN) Ethernet controller for deterministic communication.
• ECC‑enabled DRAM controller for mission‑critical reliability.

Conclusion

The i.MX 8M Plus empowers designers to deliver robust, low‑latency vision and AI solutions without sacrificing power efficiency or system simplicity. From smart home hubs to industrial automation, this processor is a cornerstone for next‑generation edge devices.
