How Data Visualisation Drives Efficiency for Machine Builders

Data visualisation is the bridge between raw machine telemetry and actionable business insights. For machine builders, translating vast volumes of sensor data into clear, real‑time dashboards unlocks efficiency, predictive maintenance and new revenue streams.

Why Visualisation Matters

Industrial equipment operates within tight tolerances; a single deviation can affect quality or downtime. Raw numbers alone are opaque. Visual dashboards turn those numbers into patterns that operators, engineers and managers can act upon instantly.

Without visualisation, identifying anomalies, forecasting failures or justifying process changes would require manual spreadsheet crunching—time‑consuming and error‑prone.

What Is Data Visualisation?

Data visualisation turns large datasets—often called “big data”—into charts, graphs and interactive views. Two common strategies:

• Edge filtering: Reduce data at the source by keeping only key metrics (e.g., min/max/average) before transmission.
• Analytics dashboards: Use built‑in or third‑party tools to display real‑time trends, outliers and performance indicators.

Because humans recognize patterns visually, dashboards enable rapid detection of deviations and support data‑driven decision making.

Visual Management on the Shop Floor

Lean manufacturing thrives on Andon systems—visual cues that surface problems instantly. By embedding dashboards directly on the line, operators can spot bottlenecks, shift resources, and maintain flow without lengthy reporting.

Benefits for Machine Builders

Machine manufacturers possess deeper insight into design, control logic and typical fault conditions. Visualisation empowers them to:

• Track error codes from PLCs, servo drives and converters to pinpoint recurring issues.
• Identify why equipment is not running at 100 % capacity—raw material shortages, safety interlocks, or operator habits.
• Measure efficiency across production batches and use that data to refine future machine designs.

New Business Models Enabled by Visualisation

Remote diagnostics and performance monitoring open pathways to services such as:

• Predictive maintenance subscriptions.
• Performance‑based SLAs that report uptime, scrap rates and cost savings.
• Tiered support packages with regular analytics reviews.

These models align the interests of both manufacturer and customer, turning data into a tangible value proposition.

Key Dashboards Every Builder Should Deploy

Metrics that translate directly into operational value include:

• Delivery performance
• Downtime & mean time to repair
• Material cost per unit
• Production output
• Quality yield & scrap rate
• Safety incidents
• Sales performance

By combining these KPIs in a single dashboard, you provide a comprehensive view that supports continuous improvement and competitive differentiation.

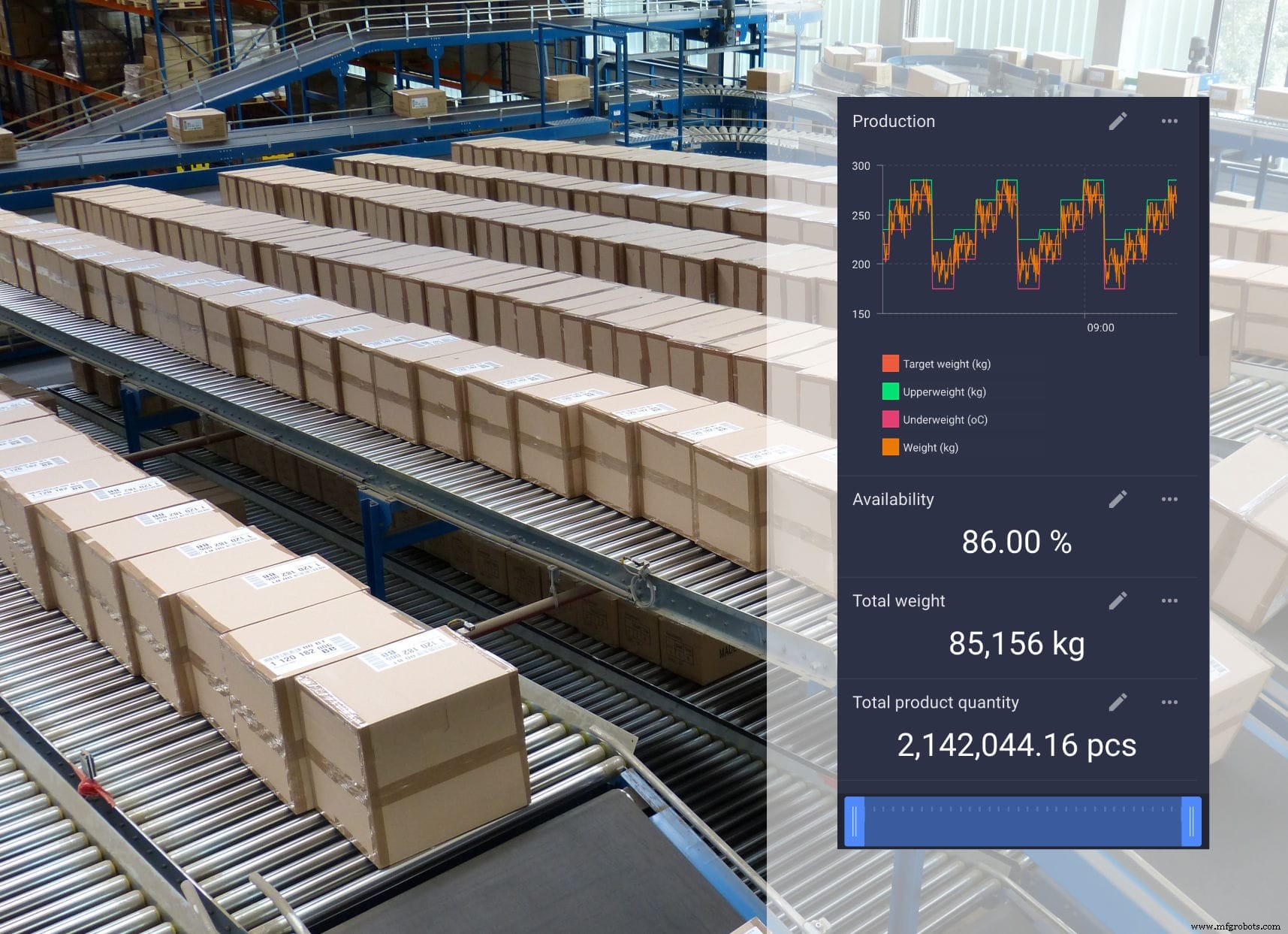

How IXON Cloud Brings Visualisation to Life

Once your data is logged in IXON Cloud, creating dashboards is as simple as dragging and dropping widgets—no coding required.

Build separate views for engineers, plant managers and customers, each populated with the relevant tags. Instant, real‑time insights surface with every new data point.

Why IXON Cloud is the Right Choice for Machine Builders

• Built‑in ISO 27001‑level security and network isolation.
• Real‑time and historical analytics.
• Zero‑code implementation and rapid ROI.
• Unlimited, cloud‑scale data storage.
• Role‑based access control and shareable dashboards.
• Mobile‑friendly access via smartphone.
• Open API for seamless export to external analytics platforms.
• Full ownership of your data.
• Remote access via VPN.
• White‑label options for hardware, apps and the platform itself.
• Designed with manufacturers by manufacturers.

Want to see how it works? Take a free product tour or request an evaluation kit. For more information, contact us.
