Integrating Lean and Industry 4.0: Value‑Stream Thinking as the Key

In my previous post I examined why lean manufacturing and Industry 4.0 don’t automatically complement each other in practice, and outlined the conditions that enable a powerful partnership.

Those conditions are:

1. Production systems are first designed to a high level of maturity before introducing Industry 4.0 tools.
2. IT specialists understand the intricacies of manufacturing processes and can provide relevant guidance.

Bosch plants that have advanced along the Bosch Production System (BPS) road conduct Value Stream Mapping (VSM) and Value Stream Design (VSD) every quarter to continuously assess their operations and systematically exploit improvement opportunities. This disciplined approach ensures that Industry 4.0 initiatives are applied strategically and effectively.

Value‑Stream Thinking as the Common Denominator

What is Value‑Stream Planning?

Value‑Stream Planning is a core element of optimizing order fulfillment. It provides a clear, documented view of all material and information flows that a product traverses, using standardized symbols (see BPS Handbook, 2015). For Industry 4.0 solutions to be truly transformative, software engineers must think end‑to‑end— from suppliers to customers—just as manufacturing engineers do. This shared perspective allows them to collaborate with manufacturing experts and develop targeted, high‑impact solutions. For example, a mobile app can empower planners and quality managers during on‑the‑floor walks by delivering real‑time KPIs.

Value‑Stream Mapping for Industry 4.0

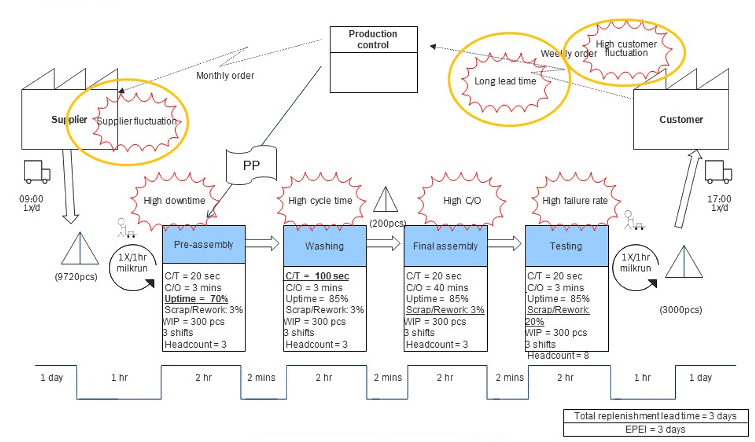

Successful Industry 4.0 projects hinge on identifying the moments that yield the greatest impact. Our consulting framework uses VSM and VSD to kick‑off workshops that pinpoint where digital initiatives can deliver the most value. The approach is illustrated by CIP flashes—hotspots that flag problems in the value stream. Production planners and IT experts jointly identify these hotspots during VSM sessions, covering issues such as supplier variability, high downtime, long cycle times, and more.

Typical next steps involve collecting data from affected processes, visualizing it for easier monitoring, and implementing continuous software‑based surveillance. Data analytics can then surface root causes and, where appropriate, trigger automated corrective actions—always under the supervision of on‑site experts.

Value‑Stream Design to Uncover Industry 4.0 Opportunities

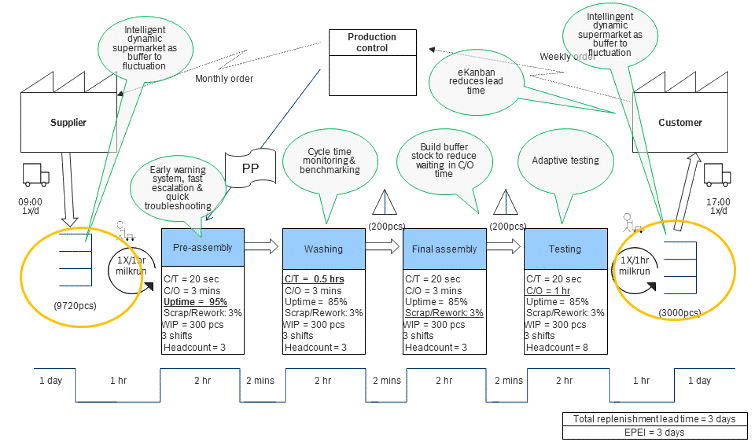

The VSD that builds on the VSM identifies specific solutions for each CIP hotspot, often supported by software:

• Supplier fluctuation: introduce an intelligent dynamic supermarket buffer.
• High downtime: deploy an early‑warning system with rapid escalation and troubleshooting workflows.
• High cycle time: implement cycle‑time monitoring with benchmarking capabilities.
• High change‑over time: create a buffer stock to minimize waiting.
• High failure rate: shift to intelligent adaptive testing.
• High customer fluctuation: use software‑managed dynamic supermarket buffers.
• Long lead time: leverage software‑based Kanban to accelerate flow.

These interventions are then integrated into continuous improvement cycles, steadily advancing facilities toward full Industry 4.0 readiness.

How have you applied Value‑Stream Mapping and Design in your own Industry 4.0 projects?
