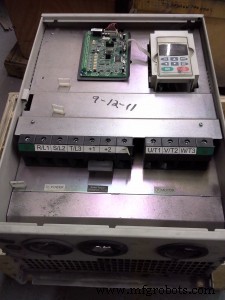

Preventing VFD Failures: 4 Common Causes & Proven Solutions

Are you getting over voltage faults from your VFD? Erratic operation? Hearing strange noises? VFD failure? Chances are you may need to change your use and maintenance routines for your VFD and probably other equipment too.  As a rule, VFDs are reliable as hell. But like most things, they have their critical needs, and sadly, their breaking points.

A variable frequency drive (VFD) controls the speed, torque, and direction of an AC motor. This sounds pretty basic, but the electronic guts of the operation are actually complicated and need consistent maintenance by qualified operators.

We’ve produced a helpful bullet list of common causes of VFD failures, along with maintenance and repair tips. If there’s ONE takeaway, it’s this:  avoid what we call the  Electronic Axis of Evil: Dirt, Heat, and Moisture like they are the plague.  A potentially costly plague.

Are you having problems with a VFD? For a
no cost no obligation repair evaluation,
CLICK HERE

Top Reasons for VFD Failure and Tips to Identify and Prevent Costly Problems:

1) Buildup

Mainly this means “gunk” made up of dust combined with typical plant air which usually contains oil, moisture, and metallic particles.  This buildup is probably the number one cause of VFD failure!  And it’s not the actual dirt itself. It’s that the dirt/dust buildup attracts moisture and prevents good airflow. This  results in excess heat, and the metallic particles can create stray current paths on your circuit boards. A triple play by the bad guys! The result? At a minimum, you will get diminished performance from your drive and at worst, catastrophic failure – bang! Prevention tips:

• Clean regularly – everything. And have a solid maintenance schedule so cleaning doesn’t get overlooked. You can regularly spray air through the heat sink and fan, and compressed air in the VFD. Avoid spraying contaminated plant air by using a dedicated air supply that is non-static generating (you don’t want to add electro static discharge problems.)
• Use the correct VFD for your plant environment. Some have side vents for cooling airflow but these can be more prone to dust contamination. Others drives are in a sealed, dust-free housing.

2) Excess Heat

Usually caused by buildup, as discussed above.  But excess heat can also be caused when the current exceeds the drives rated level and/or by loose connections.  You can check the connections visually but it may require a temperature probe or handheld digital pyrometer.  The connections should never be hotter than the connecting wires.  Also check the temps of the drive and at the motor.  Overheating can result in blown capacitors and other components.  It can also cause shorts which may not be enough to blow a fuse or trip an overload but just enough to shut down the controller and have you wondering why production came to a stand-still.  Here’s how to prevent this problem:

• Use a temperature probe to check on the connections, the drive and the motor to make sure they meet the OEM’s requirements.
• Maintain a clean, well ventilated environment
• Regularly check the fans for any sign of bearing failure or foreign objects. This is usually a noisy problem and easy to track down.
• Look for bulging or leaking capacitors. Having either of these means you should shut down the drive immediately and get it repaired ! The risk is an expensive cascade of component damage.

3) Moisture/Condensation

A common problem in many plants.  Excess moisture can cause corrosion damaging the circuit boards in your electronics.  A VFD that operates 24/7 usually creates enough heat from the heatsink to prevent internal condensation.  If you run yours less often, you will need to take steps to prevent condensation.  What can you do about this?

• Dehumidifiers can help but make sure they are not dripping near electronic equipment. There are many dehumidifier choices so get help making the best choice for your environment.
• If you operate a food processing facility you need to call in the experts on this subject.
• Choose a VFD with a sealed housing if possible.
• Regularly fire up any stored backup VFDs to make sure they are operating at peak performance and store them in a clean, dry, protected area. Having a VFD down and no decent backup will cost you in multiple ways.

4) Loose Connections/Component Damage

If you are having erratic performance from your VFD, loose connections and bad/aging components are likely causes.  Vibration and heat cycles are typical causes of loose connections which can then lead to dangerous arcing.  Arcing at the output can damage other components and cause over-current faults.  What can you do?

• As a part of your PM cycle regularly inspect the components looking for bulging or leaking capacitors, date codes on the capacitors (caps need to be replaced after about 5-10 years), damaged fans, problematic heat sinks, corrosion and/or damaged traces on circuit boards.
• Take voltage measurements preferably with the VFD in operation. The OEM will have measurement guidelines for this. Voltage problems can indicate bad capacitors, a bad diode bridge, and/or transistor leakage. You can check for voltage drop across the connection if you are powered up or resistance through a connection if you are powered down. Isolate the connection to get a reliable reading.
• Do not just automatically “re-torque” screws as a way of checking the tightness which can result in more harm than good. Check your manual as this often requires an infra-red check with a digital pyrometer.
• Do not exceed the operating limit. This means getting the proper training and/or familiarizing yourself with the OEM’s recommendations.
• Do not connect the input power to the output motor terminals. This actually happens and it can destroy the power module and possibly cause catastrophic damage. Not all VFDs are set up the same way so check carefully.
• Re-educate yourself if you buy a VFD from a different manufacturer than what you are used to. Don’t assume the operation or maintenance is the same. The OEM’s maintenance guidelines do vary.
