Precision Sharp Edge Rounding Using Okuma G76 G‑Code
Okuma G76 Rounding
Okuma G76 G Code is used for Rounding the sharp edge.
- G76 is effective only in the G01 mode.
- G76 is non-modal and active only in the commanded block.
Okuma G76 Programming
G76 X Z L
Parameters
| Parameter | Description |
|---|---|
| X, Z | Intersection point coordinates |
| L | Radius of rounding circle.The sign is determined by the direction of axis movement; “+” when the Z-axis (X-axis) moves in the positive direction after the X-axis (Z-axis) motion. “-” when the Z-axis (X-axis) moves in the negative direction after the X-axis (Z-axis) motion. |
Okuma G76 Example Program

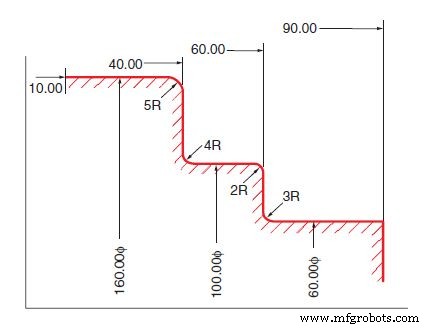

: : N101 G01 X60 Z92 F0.1 N102 G76 Z60 F0.05 L3 N103 G76 X100 L-2 N104 G76 Z40 L4 N105 G76 X160 L-5 N106 Z10 : :
