Precision CNC Lathe Machining Using G73/G76 Cycles for High-Quality Components
Submit by: Vikram
Summary
Write a part program for a FANUC controlled CNC Lathe for the given component using canned cycle. Take the depth of cut 0.5mm & speed 1200rpm. Assume suitable cutting conditions and cutting tools.

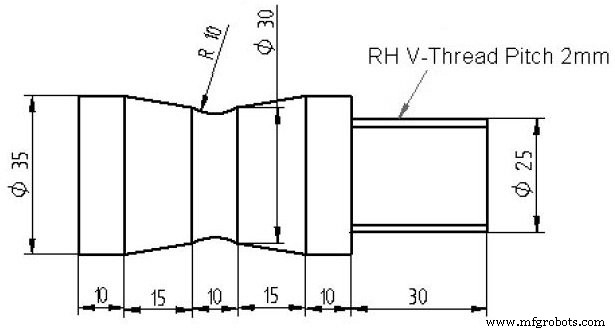

Drawing/Image
CNC Program
To determine U= (Max. Dia of wp- min dia of profile)/2 = (35-25)/2 = 5 N0 G90 F0.2 S1200 T0101 M04 N10 G00 X38 Z2 N30 G73 U5 R10 N40 G73 P50 Q120 U0.05 W0.05 N50 G01 X25 Z0 N60 G01 X25 Z-30 N70 G01 X35 Z-30 N80 G01 X35 Z-40 N90 G01 X30 Z-55 N100 G02 X30 Z-65 R10 N110 G01 X35 Z-80 N120 G01 X35 Z-90 N130 G01 X38 Z2 N140 G28 U0 W0 N150 S400 T0202 M06 N160 G00 X26 Z0 N170 G76 P010160 Q5 N180 G76 X22.6 Z-30 P1200 Q200 F2 N190 G28 U0 W0 N200 M05 M30
