Osai UGS (UCG) Command: Configure Graphic Scale for Machine Plot & 3D Graphics

Osai UGS (UCG) – Use Graphic Scale (Machine plot)

Osai 10 Series UGS command initialises the graphic display and establishes the limits and the orientation of the graphic display.

(UGS [,ax-orient],abs-axis,val1,val2,ord-axis,val3,val4 [,third-axis])

Parameter	Description

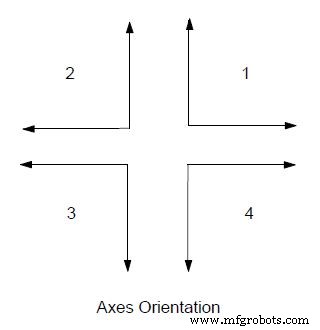

ax-orient	Is a number (from 1 to 4) that selects the type of axis orientation (see figure). The default value is 1
abs-axis	Is the name of the abscissa on the display
val1	Is the lower limit of the abscissa
val2	Is the upper limit of the abscissa
ord-axis	Is a name of the ordinate on the display
val3	Is the lower limit of the ordinate
val4	Is the upper limit of the ordinate
third-axis	Is the name of the third axis (generally a spindle axis).

(UGS,1,X,100,150,Y,50,250,Z)

The graphic display shows movements between X100 and X150 on the abscissa and between Y50 and Y250 on the ordinate referred to the current origin.

(UGS ,5,axis1,val1,val2,axis2,val3,val4,axis3,val5,val6 [ , ])

Parameter	Description
5	Selects 3D graphic scale
axis1,axis2,axis3	Are the names of the three axes to be displayed
val1,val2	Lower and upper limit of the first axis
val3,val4	Is the upper limit of the abscissa
α	α angular parameter It is the rotation angle to be applied to the horizontal plane during the 3D the display. The typical horizontal plane is XY.
β	β angular parameter. It is the rotation angle to be applied to the vertical plane during 3D display. Typical vertical planes are XY or XZ.

α and β parameters are optional. If they are omitted ,the system will take by default:

α = 30°
β = 30°
