Top 20 CNC Programming Mistakes & How to Avoid Them

In the high‑stakes world of CNC machining, even seasoned programmers fall victim to recurring errors. By mastering these 20 common pitfalls—ranging from coordinate mishaps and tooling slips to cutting‑parameter blunders and structural missteps—you can slash scrap, prevent crashes, and cut machine downtime.

Introduction: Learning from the Mistakes of Others

Every CNC programmer remembers the day a missing decimal point sent the spindle whizzing an inch instead of a thousandth, or when the wrong work offset displaced an entire feature. These blunders are not signs of incompetence; they’re natural consequences of the complexity inherent in CNC programming. The real difference between novice and expert lies in systematic error detection and prevention, not in an error‑free record.

Category 1: Coordinate and Positioning Errors

Mistake #1: Wrong Work Offset (G54‑G59 Selection)

Problem: The program calls G55 while the part is set up using G54, resulting in machining features in the wrong location—sometimes off the part entirely.

Why It Happens: The CAM post‑processor defaults to G54, and the programmer forgets to change it, or the setup sheet specifies a different offset than the program calls.

Consequence: Parts are out of position; fixture crashes are common.

Prevention: Use clear setup sheets that document each offset, include the offset call in the program header, and run a checklist for complex setups.

Mistake #2: Absolute vs. Incremental Mode Confusion (G90/G91)

Problem: The programmer assumes absolute mode (G90) is active, but the control is actually in incremental mode (G91). A move intended to go to X1.0 instead moves 1.0 inches from the current position.

Why It Happens: Controls vary in their default state at power‑up; some start in G90, others in G91. Without an explicit mode set at program start, behavior is unpredictable.

Consequence: Unexpected machine motion; potential crashes.

Prevention: Always include G90 in the safety line at the beginning of every program. Never assume defaults.

Mistake #3: Incorrect Workpiece Zero Location

Problem: The part is programmed with zero at one corner, but the setup person uses the opposite corner.

Why It Happens: Communication failure between programming and setup; incomplete setup documentation.

Consequence: Features shift relative to part geometry and may be machined off the part.

Prevention: Adopt standard zero locations across similar parts, and document the zero location on setup sheets and in program comments.

Mistake #4: Decimal Point Omission

Problem: The programmer writes X1 intending X1.0, but the control interprets X1 as X0.0001 depending on its settings.

Why It Happens: Typing speed; habit from other programming environments; assumption that the control defaults to inch values.

Consequence: Catastrophic: the machine moves 0.0001″ when 1.0″ was intended, or rapidly traverses the machine when a small move was intended.

Prevention: Enable decimal‑point programming if your control supports it, or develop the discipline of always including decimal points: X1.0 not X1. Some shops require decimal points as a programming standard. Critical: Verify your control’s behavior; X1 and X1.0 can be treated differently.

Category 2: Tooling and Offset Errors

Mistake #5: Tool Number and Offset Number Mismatch

Problem: The program calls T03 but uses H02 for length compensation, causing a mismatch between tool and offset.

Why It Happens: CAM post‑processor configuration error or manual oversight.

Consequence: Incorrect tool length or diameter offset, resulting in wrong part dimensions or potential crashes.

Prevention: CAM post‑processors should automatically pair T and H/D calls. For manual programming, use a checklist that verifies each tool call matches its offsets.

Mistake #6: Missing G43 (Tool Length Compensation Call)

Problem: The program includes the H offset call but forgets G43, so the offset is never activated.

Why It Happens: CAM post‑processor omission or manual oversight.

Consequence: The machine moves to the programmed Z positions without applying tool length offset, risking crashes into the part or air‑touching the machine.

Prevention: Follow this sequence after a tool change:
T02 M06
G00 G90 G54 X0 Y0 S5000 M03
G43 H02 Z1.0 M08
Never separate G43 from the first positioning move.

Mistake #7: Wrong Diameter Offset Selection (G41/G42)

Problem: The program uses G41 (left) when G42 (right) is needed, or vice versa.

Why It Happens: Confusion about climb vs. conventional milling and compensation direction.

Consequence: Walls are machined oversized or undersized, causing out‑of‑tolerance parts.

Prevention: Let CAM software generate cutter compensation automatically. If programming manually, test with a small tool and measure before running the actual part.

Mistake #8: G41/G42 Applied on an Arc Block

Problem: Applying cutter compensation on a block containing G02 or G03 (arc move).

Why It Happens: Lack of understanding that compensation must be applied on a linear move.

Consequence: Control alarm; compensation not applied correctly.

Prevention: Always apply G41/G42 on a linear move (G00 or G01) with the tool positioned away from the part.

Category 3: Cutting Parameter Errors

Mistake #9: Missing Feed Rate (F Code)

Problem: The programmer forgets to specify a feed rate before a cutting move.

Why It Happens: CAM post‑processor omission or manual oversight.

Consequence: The control uses the previously specified feed rate, which may be inappropriate. If no feed rate has been specified, some controls alarm; others may default to a value that is far too high or low.

Prevention: Always specify F on the first G01/G02/G03 block after a tool change. Use CAM post‑processors that force feed rate output.

Mistake #10: Excessive Feed Rate for Tool/Material

Problem: Calculated feed rates based on chip load are applied without accounting for machine rigidity, tool stick‑out, or part geometry.

Why It Happens: Reliance on default CAM feed libraries without verification; assumption that calculated values will work in practice.

Consequence: Tool breakage; poor surface finish; machine overload; part deflection.

Prevention: Start with conservative feed rates (50‑70% of the calculated value) and increase incrementally after verifying performance.

Mistake #11: Plunge Feed Rate Not Specified

Problem: The program contains a plunge move (Z‑axis cut) but no separate plunge feed rate is specified.

Why It Happens: CAM post‑processor may use the same feed for plunge as for XY cutting unless specifically configured.

Consequence: The tool plunges at the XY feed rate, typically much higher than appropriate for plunging, leading to tool overload or breakage.

Prevention: Always specify plunge feed rates separately. In CAM, verify that the post‑processor outputs G01 Z moves with appropriate F values.

Category 4: Program Structure and Logic Errors

Mistake #12: Missing G40 (Cutter Compensation Cancel)

Problem: The program activates cutter compensation (G41/G42) but never cancels it with G40.

Why It Happens: Programmer oversight; CAM post‑processor omission.

Consequence: Subsequent moves may be unexpectedly offset; tool may crash on retract.

Prevention: Pair every G41/G42 with a G40 before tool changes or program end. Most CAM post‑processors handle this automatically—verify yours does.

Mistake #13: Missing G80 (Canned Cycle Cancel)

Problem: The program uses a canned cycle (G81‑G89) but never cancels it with G80.

Why It Happens: Oversight; assumption that G00 or G01 cancels the cycle.

Consequence: Subsequent G00/G01 moves may be interpreted as part of the canned cycle, causing unexpected motion.

Prevention: Include G80 before any positioning moves after a canned cycle.

Mistake #14: Subprogram Calling Errors (M98/M99)

Problem: The main program calls a subprogram (M98 P1000) but the subprogram is numbered incorrectly (O2000), or the subprogram uses M99 to return but the return location is incorrect.

Why It Happens: Numbering mismatch; missing M99.

Consequence: Program stops; machine may continue into unexpected blocks.

Prevention: Use consistent numbering conventions and document subprogram numbers in program headers.

Category 5: Post‑Processor and CAM‑Specific Errors

Mistake #15: Incorrect Arc Plane Selection (G17/G18/G19)

Problem: The program contains an arc move (G02/G03) but the active plane (G17 XY, G18 XZ, G19 YZ) does not match the arc’s orientation.

Why It Happens: CAM post‑processor configuration error or manual oversight.

Consequence: Control alarms on the arc block; program stops.

Prevention: Verify post‑processor outputs the correct plane selection for each operation.

Mistake #16: Out‑of‑Range Arc Radius

Problem: The programmed start point, end point, and radius (R) or center (I,J,K) do not form a geometrically possible arc.

Why It Happens: Calculation error; rounding in CAM output; tolerance mismatch between CAM and control.

Consequence: Control alarms; program stops.

Prevention: Use I,J,K format (center coordinates) rather than R format when possible, as it provides a more precise arc definition. Set CAM output tolerance to match control expectations.

Mistake #17: Missing H and D Offsets for CAM‑Generated Code

Problem: The CAM post‑processor outputs G41/G42 but no D offset, or G43 but no H offset.

Why It Happens: Post‑processor configuration error.

Consequence: No compensation applied; part dimensions wrong.

Prevention: Verify post‑processor outputs H and D calls. Test with a sample program before production.

Category 6: Setup and Documentation Errors

Mistake #18: Using Wrong Tool Offsets

Problem: The tool in the machine is set using tool offset #2, but the program calls H03.

Why It Happens: Setup documentation incomplete; communication failure between setup and programming.

Consequence: Incorrect tool length; potential crash.

Prevention: Standardize tool offset numbers by tool type, document offset assignments clearly, and use tool presetters with data transfer to load offsets directly into the control.

Mistake #19: Outdated G‑Code on Controller

Problem: The operator loads an older version of a program while a newer version exists on the server.

Why It Happens: Poor file management; multiple copies of programs in different locations.

Consequence: Parts machined with outdated toolpaths; scrap.

Prevention: Implement a single source of truth for program files. Use DNC systems that force loading from the server rather than local copies.

Mistake #20: Missing Program Comments

Problem: The program lacks comments explaining tool assignments, work offsets, or special considerations.

Why It Happens: Time pressure; assumption that the program is self‑explanatory.

Consequence: Setup errors when a different operator runs the program; difficulty troubleshooting later.

Prevention: Include header comments for every program:

• Part number and revision
• Program date and author
• Machine required
• Work offsets used
• Tool list with pocket numbers and offset numbers
• Special setup instructions

Building Your Mistake‑Prevention System

The Pre‑Run Checklist

Before running any program—new or revised—verify:

• G90/G91 mode correctly set
• Work offset (G54‑G59) matches setup
• Tool numbers match offset numbers (T02 matches H02, D02)
• G43 (length compensation) active before first Z cut
• Feed rates specified and appropriate
• Decimal points present on all coordinate and F values
• G40, G80 cancel where needed
• Program ends correctly (M30 or M02)

The Simulation Requirement

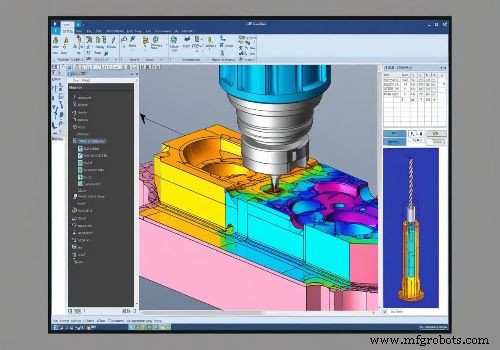

Never run a new or modified program on the machine without first simulating it. Use CAM simulation, G‑code back‑plotting, or the machine’s graphics mode. Simulation catches errors before they cause damage.

The Dry‑Run Protocol

For critical or high‑risk programs:

1. Run with no tool or workpiece (or with the tool retracted)
2. Run in single‑block mode for the first cycle
3. Run with feed override at 10% for first material engagement

The Peer Review Practice

For complex or costly parts, have another programmer review the code before machining. A second set of eyes catches errors the original programmer missed.

Conclusion: Error Prevention as a Discipline

These 20 CNC programming mistakes are not random; they cluster in predictable categories, each with a clear root cause. Understanding these patterns turns error prevention from guesswork into a systematic discipline. The most effective programmers don’t simply make fewer mistakes—they detect them early and eliminate them before the machine starts.

Every documented and analyzed error is an opportunity to strengthen the prevention system. Over time, the frequency of mistakes decreases because the process becomes inherently error‑resistant—not because programmers become superhuman.
