Which DATRON CNC Machine Is the Right Fit for Your Production Needs

A Comprehensive Comparison

Choosing the correct CNC machine is a strategic decision that balances performance, budget, space, and future growth. DATRON’s high‑speed machining centers are fully configurable at purchase and can be upgraded on‑site, ensuring you invest in a solution that evolves with your manufacturing demands.

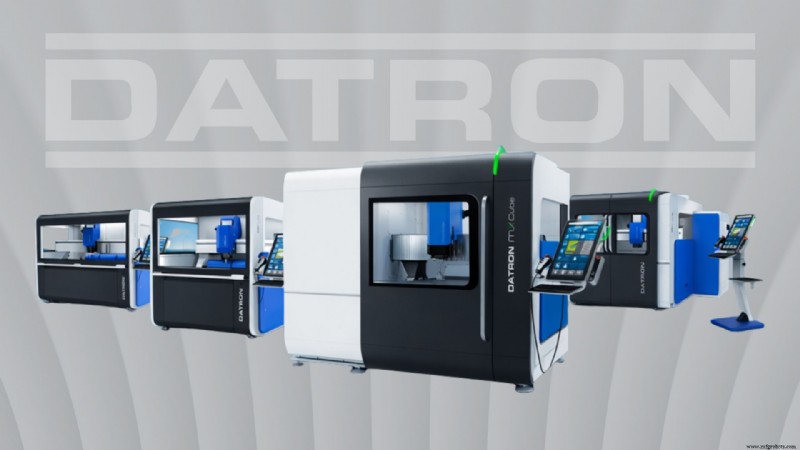

This guide walks you through the DATRON lineup and matches each model to its ideal applications. Every DATRON machine runs on the intuitive DATRON next control platform, designed to bring advanced machining to operators of all experience levels.

The User Interface: The Industry’s Easiest Control Software

Built on the principle of simplicity, DATRON next replaces traditional keypads and cluttered screens with a clean, icon‑driven touchscreen interface that requires no keyboard. With minimal training, even non‑machinists can start producing quality parts within minutes.

As the skilled machinist workforce shrinks, DATRON’s human‑centric design expands access to advanced machining for industrial, laboratory, and office settings worldwide.

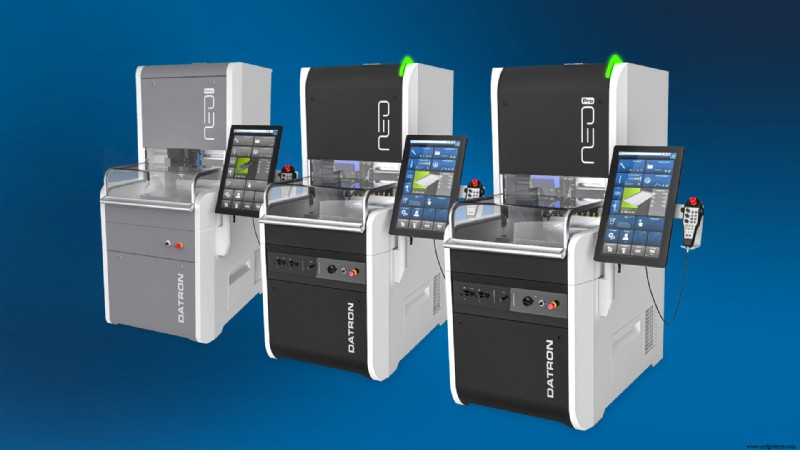

The DATRON neo Family: Compact, Affordable, and Versatile

Available in three tiers—neo Entry, neo, and neo Pro—these machines excel in small‑part manufacturing where floor space or power is limited.

Shared Features of All neo Models

• Cast polymer concrete construction
• Aluminum table
• Work area: 19.5” x 16” x 7”
• 24” touchscreen with DATRON next
• Footprint: 32” x 57” x 75”
• 230V single‑phase power
• Approx. 1,600 lbs weight

Their compact footprint allows installation in tight industrial spaces, labs, R&D facilities, and even upper‑floor offices with freight elevators.

Depending on configuration, the neo family supports light prototyping to industrial production.

neo Entry – The Economical Choice

Designed for educational institutions, maker spaces, R&D labs, and light‑duty production, the neo Entry targets small non‑ferrous parts such as aluminum and plastics for limited daily run times.

Key Specifications

• 27,000 RPM, 1 kW spindle
• 12‑tool capacity
• 2.5‑liter ethanol mist system
• Feed rates up to 12 m/min
• Positional accuracy ±0.0006”

While it cannot be upgraded to a 4th axis or advanced accessories, it outperforms hobby machines and remains highly cost‑effective.

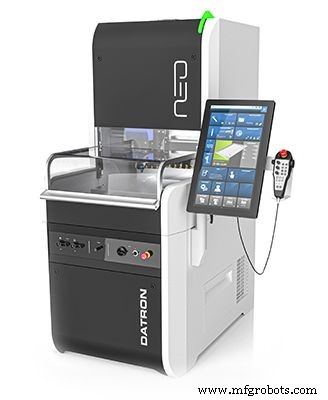

Standard neo – Production‑Ready

Shares the same footprint but incorporates significant mechanical, software, and accessory upgrades for steady production environments.

Key Enhancements

• 40,000 RPM, 2 kW spindle with refrigerated chiller
• 24‑tool automatic tool changer
• Automatic tool length measurement
• Integrated camera and XYZ touch probe
• 5‑liter coolant tank (10‑liter optional)
• Rapid speeds up to 28 m/min
• Positional accuracy ±0.0006”

The camera system lets operators drag a live image onto the touchscreen for intuitive part alignment. Optional upgrades include smartphone remote monitoring and protected machining zones.

Ideal for small‑part production in aluminum, composites, and carbon fiber where space is limited.

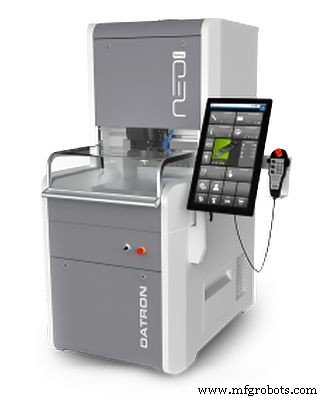

neo Pro – Precision at the Highest Level

Builds on the standard neo with linear scales on X, Y, and Z axes that provide real‑time position feedback and micron‑level accuracy.

• Positional accuracy ±0.0003” (X and Y)

Best suited for tight‑tolerance applications such as RF waveguides, aerospace components, and medical parts.

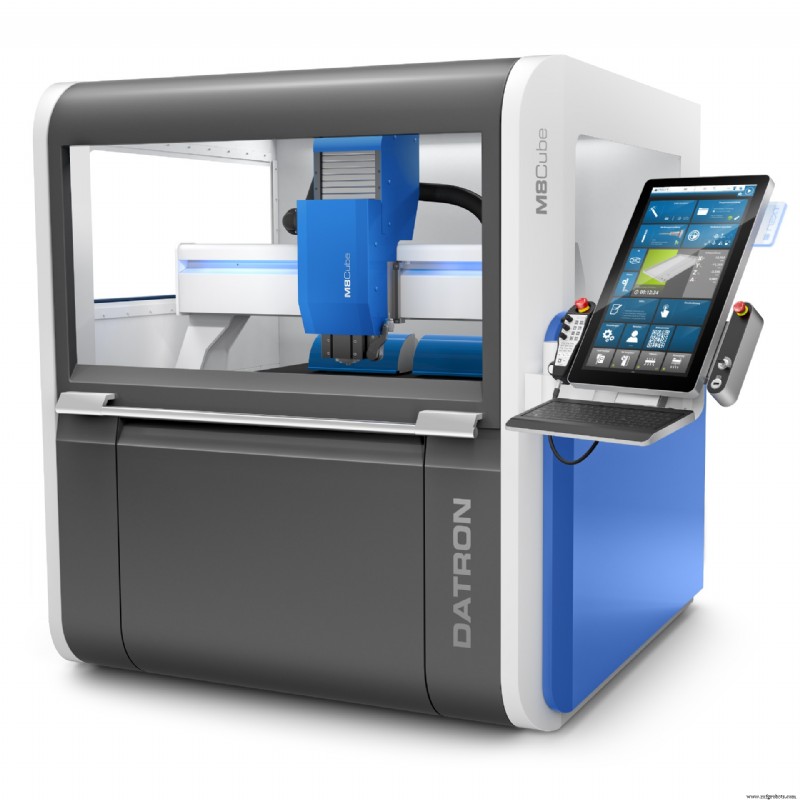

M8Cube – Mid‑Size, High‑Capacity

Offers a generous 40” x 33” travel with a 69” x 69” footprint, enabling larger components and multi‑part nesting.

• Travel: 40” x 33”
• Footprint: 69” x 69”
• Spindle: 2 kW–4 kW, up to 60,000 RPM, HSK‑25 interface
• Tool capacity up to 143 tools
• Large‑capacity chip cart
• Optional 4th/5th axis trunnion
• Positional accuracy ±0.0006” (linear scales optional)

Requires 3‑phase power and is engineered for industrial production, excelling in sheet‑based aluminum and plastic machining. It supports lights‑out operation and is robot‑ready.

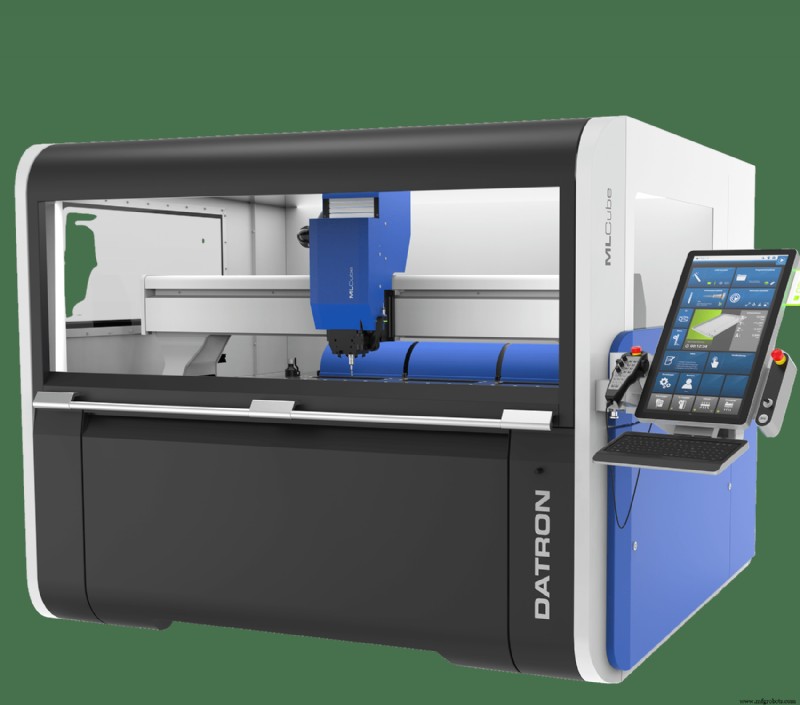

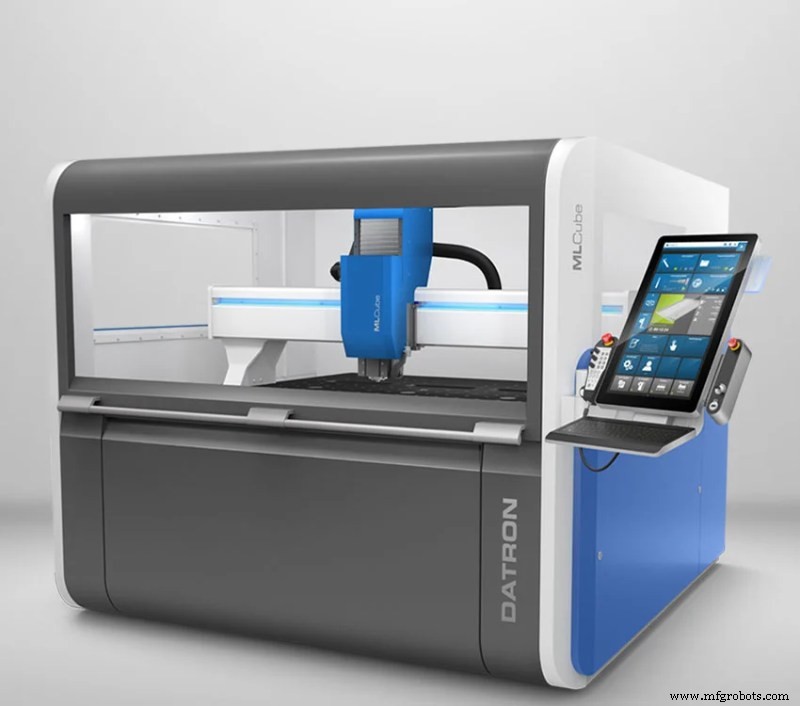

MLCube – Expanded Workspace

Nearly doubles the working area of the M8Cube:

• Travel: 60” x 45”
• Footprint: 95” x 90”
• Standard positional accuracy ±0.0015”
• Linear scales optional: ±0.0006”
• Same spindle and axis options as M8Cube

Increases nesting and unattended run capability for larger parts.

MLCube Pro – Automation‑Ready

Shares the core architecture of the MLCube but is engineered for automated production:

• Programmable motorized sliding door
• Open‑top enclosure for crane loading
• Automated chip conveyor system
• Robot‑ready configuration

Best for high‑volume aluminum component and mold production.

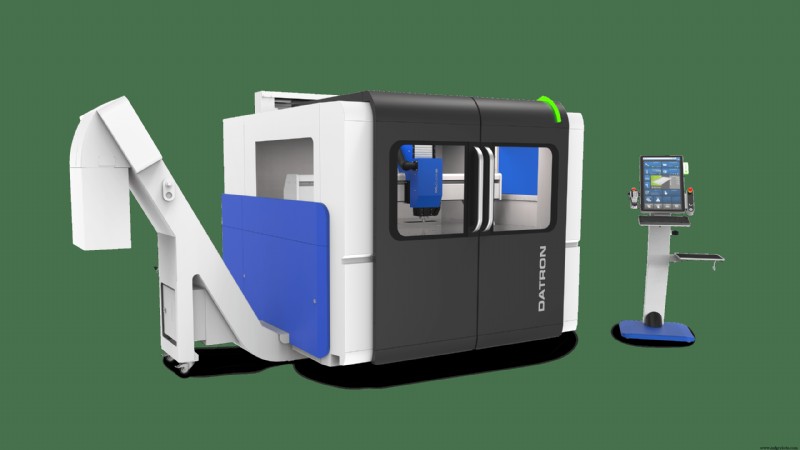

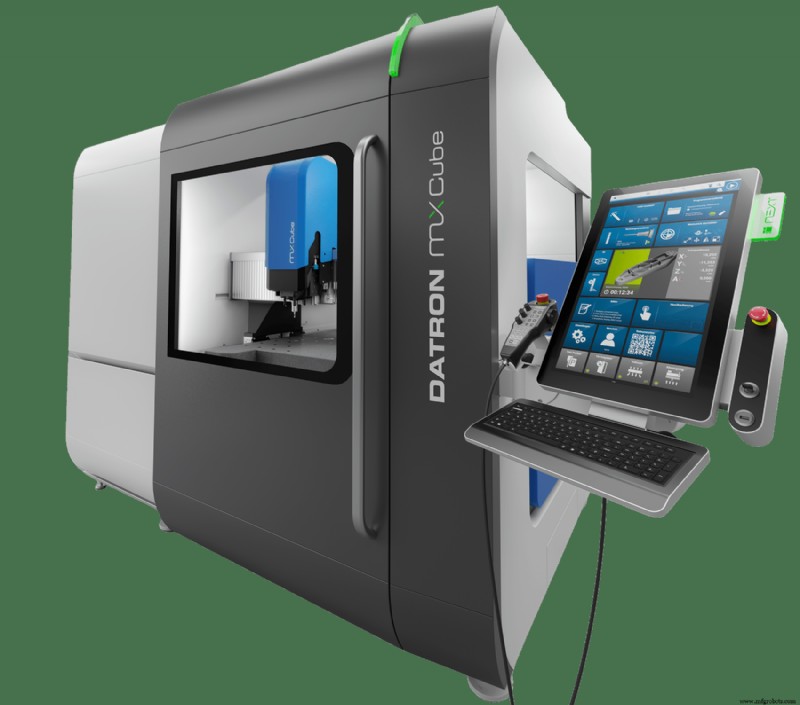

mxCube – Precision Engineered for Aerospace and Medical

Offers the most advanced precision in the DATRON line:

• Travel: 39” x 27.5”
• Footprint: 106” x 73”
• Standard linear scales
• Positional accuracy ±0.0002” (X and Y)
• Rapid speeds up to 1,500 in/min with high acceleration
• Spindle options:
  • 4 kW (up to 40,000 RPM) – HSK‑25 collets
  • 8 kW (up to 34,000 RPM) – HSK‑32 collets
• Tool capacity up to 143 tools
• Automation features: motorized door, open‑top crane access, automated chip evacuation

Ideal for ultra‑high‑precision aerospace and medical parts, RF components, and large aluminum molds requiring superior surface finishes.

Wrap‑Up

DATRON machines are engineered for speed, precision, and efficiency. High‑speed spindles cut cycle times, while lightweight, rigid construction delivers rapid acceleration for complex toolpaths. Their vacuum table design speeds up setup for flat sheet materials, making them a natural fit for aluminum, composites, and advanced materials.

Whether you need a compact prototype system or a fully automated, high‑volume production solution, DATRON offers a machine that aligns with your application.

Find Your Perfect DATRON Machine

Not sure which model fits your needs? Our experts will guide you through material selection, production requirements, and budget considerations. Contact us today to start the conversation.

Recommended Products

520 × 420 × 220 mm (20” × 16.5” × 9”) – 2 kW liquid‑chilled spindle up to 40,000 RPM – approx. 700 kg (1,543 lbs.) – Compact CNC system for precision prototyping and small‑part production.

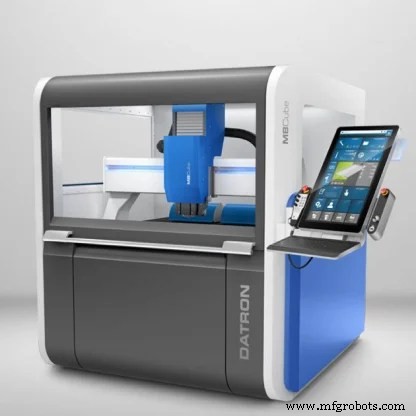

1,020 × 830 × 245 mm (40” × 33” × 10”) – Up to 60,000 RPM spindle – approx. 1,300 kg (2,866 lbs.) – Built for faster manufacturing and higher efficiency.
