Vertical Mills: Rugged Design for Reliable, Operator-Friendly Performance
FULLY FEATURED. RUGGED DESIGN. Built With The Operator In Mind.
Engineered for excellence with fine, detailed workmanship, quality materials, and impressive specifications • Designed for years of trouble-free operation • Controls are centrally located for ease of operation

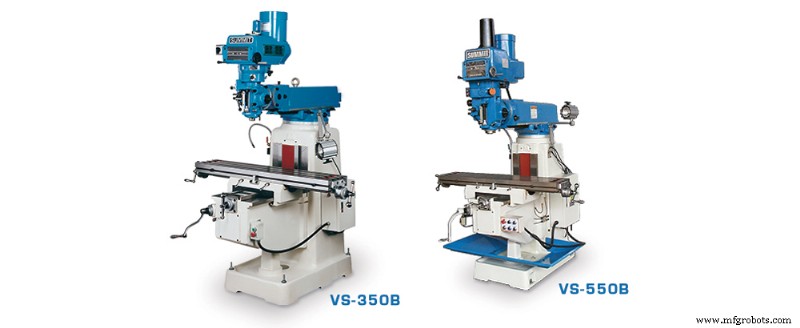

VS Series Knee Mills
- Heavy Mehanite Cast Iron Construction For Excellent Damping
- Turcite-B Guideways For Extended Machine Life
- Huge, Heavy-Duty Boxed Ways For Those Big Cuts
- Complete Electrics With Low Voltage Controls For Safer Machine Operation
- All Models In Stock
| Specifications | VS-350B | VS-550B |
| Motor size (2 speeds) | 3 HP | 5 HP |
| Spindle speeds – number | Inf. variable | Inf. variable |
| Spindle speeds – range | 60-4200 RPM | 80-3500 RPM |
| Spindle taper | R-8 | 40 taper |
| Spindle travel | 5″ | 5.5″ |
| Table size (WxLxH) | 10″x50″x3-1/8″ | 11″x52″x3-1/8″ |
Learn More About The VS Series Mills >

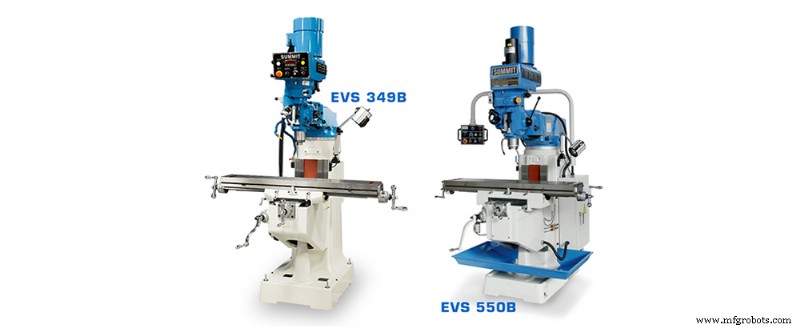

EVS Series Knee Mills
- Electronic Variable Speed Spindle Motors
- Heavy Mehanite Cast Iron Construction For Excellent Damping
- Turcite-B Guideways For Extended Machine Life
- Huge, Heavy-Duty Boxed Ways For Those Big Cuts
- Complete Electrics With Low Voltage Controls For Safer Machine Operation
- All Models In Stock
| Specifications | EVS-349B | EVS-350B | EVS-550B |
| Motor size (2 speeds) | 3 HP | 3 HP | 5 HP |
| Spindle speeds – number | Inf. variable | Inf. variable | Inf. variable |
| Spindle speeds – range | 0-4300 RPM | 0-4300 RPM | 0-3650 RPM |
| Spindle taper | R-8 | R-8 | #40 |
| Spindle travel | 5″ | 5″ | 5.5″ |
| Table size (WxLxH) | 9″x49″x3-1/8″ | 10″x50″x3-1/8″ | 11″x52″x3-1/8″ |
Learn More About The EVS Series Mills >
