North Ridge Pumps Solves Seawater Cooling Reliability with a Duplex Stainless Self‑Priming Pump

In this case study, North Ridge Pumps details how a duplex stainless self‑priming pump eliminated recurring reliability issues in a coastal seawater cooling system.

Seawater Abstraction for Industrial Cooling

Seawater abstraction—drawing ocean water for large‑scale cooling—offers a stable, naturally cold heat sink that improves energy efficiency and cuts operating costs compared with closed‑loop or evaporative systems. UK coastal plants increasingly rely on seawater cooling to meet stringent environmental and cost targets.

While many installations use submersible pumps, corrosive marine environments can accelerate wear, raise maintenance demands, and extend downtime.

Original Installation and Its Challenges

The client’s system comprised three seawater intake pumps mounted on a pier, each submerged 6–7 m in the sea. Two units operated in duty‑and‑standby, the third as backup. An inverter regulated flow to meet cooling loads, and seawater was lifted vertically to the pier before being routed several hundred metres to the plant.

Despite adequate hydraulic design, the submersible pumps suffered frequent seal failure, motor corrosion, and lengthy outages due to part unavailability.

Seal Failure and Motor Reliability

Saline conditions accelerate corrosion at both pump and motor seals. When the seals fail, water ingress compromises motor windings, forcing costly downtime for draining, rewinding, and refilling oil‑filled casings.

Cable Gland Entry Vulnerabilities

The cable gland—often routed through a mild‑steel outer casing—presents a critical ingress point. Corrosion widens clearances, undermining the seal and exposing the motor to moisture. Re‑sealing typically requires full motor disassembly.

Excessive Wear from Sediment and Marine Activity

Submersible pumps on seabeds are bombarded by tidal sediment, ship thrusters, and debris. Sand, stones, and bio‑fouling can erode casings, damage mechanical seals, and induce cavitation, eroding reliability and increasing life‑cycle costs.

Spare Parts Availability

Many submersible designs depend on proprietary components supplied only by the original manufacturer, lengthening repair times. In contrast, industrial centrifugal pumps often use globally sourced standardised motors and couplings, reducing critical downtime.

Sacrificial Anodes and Maintenance Burden

To protect mild‑steel casings, the system employed zinc or aluminium anodes. However, anodes require replacement every three months, necessitating removal of the pump from the pier and adding labor, cost, and operational disruption.

Specified Solution: Duplex Stainless Steel Self‑Priming Pump

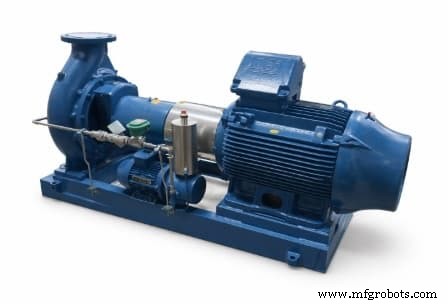

North Ridge selected an electric, high‑flow self‑priming pump built from duplex stainless steel—an alloy that balances austenite and ferrite phases, delivering superior mechanical strength and chloride‑resistant corrosion protection. The pump’s design allows a 5–6 m suction lift and a flow exceeding 240 m³/h, primed via a baseplate‑mounted unit.

To guard against salt spray, the pump received a C5 marine coating (ISO 12944‑classified) suitable for high‑salinity coastal environments. Unlike submerged systems, the self‑priming configuration eliminates underwater motor casings, mitigates cable‑gland ingress, and simplifies maintenance.

Reliable Seawater Cooling for UK Industry

Choosing the right pump technology and construction material is critical for seawater cooling systems. Factors such as corrosion resistance, maintainability, spare‑part availability, and total life‑cycle cost should guide the specification stage.

With over 25 years of experience, North Ridge Pumps offers tailored, cost‑effective solutions for each application, ensuring long‑term reliability and reduced downtime.
