Replacing 40‑Year‑Old Economiser Pumps Boosts Offshore Platform Reliability

We recently completed a project for a marine‑sector client operating a floating offshore platform. The platform’s boiler system incorporates an economiser driven by two hot‑water circulation pumps that had served for over four decades. As their operational life neared its end, replacement was necessary, and we were tasked with delivering a modern, high‑reliability solution.

What is an economiser and how does it improve boiler efficiency?

An economiser is a heat exchanger that recovers waste heat from flue or exhaust gases to pre‑heat boiler feedwater or fresh air, boosting system efficiency while cutting fuel consumption, operating costs, and emissions. Hot gases flow through a tube bank, transferring heat to incoming water and re‑using energy that would otherwise be lost. Because high‑temperature boiler pumps are prone to mechanical‑seal failure, gland packing is often employed. These heat‑resistant soft rings—made from graphite, aramid, or PTFE—are chosen based on operating temperature, pressure, and chemical exposure.

Which pumps did we select?

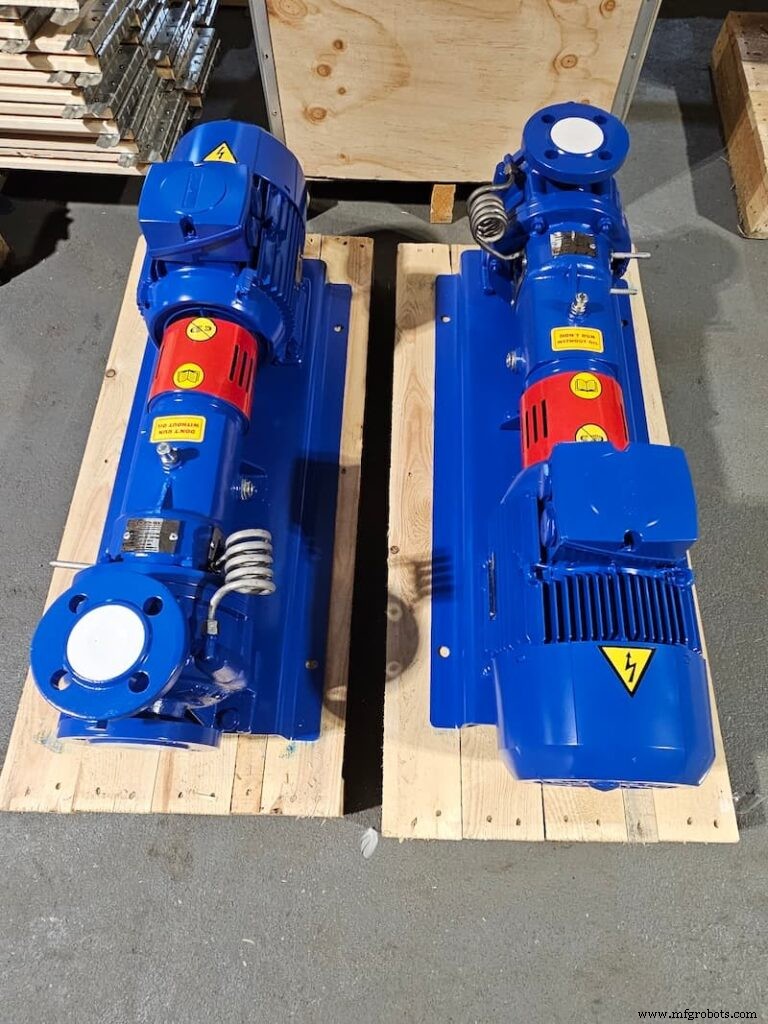

We installed two hot‑water circulation economiser pumps from our XCP line. Designed to ISO 2858 standards, XCP pumps are large, heavy‑duty, close‑coupled centrifugal units that excel in demanding industrial and marine settings. They handle high flow and pressure, pumping low‑viscosity, clean or slightly contaminated fluids such as diesel, petrol, kerosene, fresh water and sea water.

Subscribe to PII and receive:

Our long‑established bi‑monthly digital magazine Process Industry Informer, featuring exclusive articles, news and updates across the Process Industries, plus commentary from our three industry experts:

Sean Moran

Gavin Smith

Dave Green

PLUS:

• Process Industry Update – our weekly e‑newsletter
• PII Podcast
• Special messages from our advertising partners

In this design, the centrifugal pump and motor are on separate shafts, meaning only the pump shaft needs replacement if it fails. Other less robust pumps combine the motor and shaft, so a shaft break forces a complete motor replacement.

The long‑coupled configuration prevents fluid ingress and provides easy pump‑head access for maintenance. The unit is engineered for continuous operation and longevity, featuring extra bearings in the pump head that relieve the motor of strain during service.

Each economiser feed‑water pump is fitted with a flushing connection to keep packing cool even at high temperatures. Centrifugal pumps can run at temperatures up to 65 °C, which can cause elastomer failure if not correctly specified.

Certified for use in explosive environments

The pumps function as hot‑water circulation units, delivering roughly 200 L min⁻¹ at 3 bar and handling water up to 170 °C continuously. To meet these conditions, the motors were specially rewound for 460 V, 50 Hz operation—a rare specification, as 460 V is typically paired with 60 Hz.

Dealing with high temperatures

These pumps feature a ductile‑iron casing and a 316‑grade stainless‑steel impeller, guaranteeing many years of uninterrupted service.

If you have a project that needs our expertise, please contact North Ridge Pumps.
