iCOMOX Open‑Source Platform Drives Predictive Maintenance in Industry 4.0

The Intelligent Condition Monitoring Box (iCOMOX) is an open‑source development platform that enables condition‑based monitoring of equipment, assets, and industrial facilities. By continuously measuring surface operating conditions, iCOMOX detects potential failures early, thereby reducing operational risks and maintenance costs. Extending equipment life while minimizing unplanned downtime, the platform embodies the Industry 4.0 vision of smarter, data‑driven production.

Predictive Maintenance for Industry 4.0

Predictive maintenance is a proven strategy that relies on intelligent IoT sensors and embedded control solutions to create new value for both manufacturers and their customers. Continuous monitoring of key equipment parameters, coupled with real‑time cloud‑based analytics, optimizes production flow and enhances safety. According to McKinsey & Co., effective implementation can cut downtime by up to 50 % and reduce maintenance spend by 10 %–40 %.

A comprehensive predictive‑maintenance ecosystem includes a platform for modeling, simulating, testing, and deploying solutions. Industrial data integration and advanced analytics detect patterns in machine data, while root‑cause analysis tools recommend the corrective actions needed.

Common indicators of equipment health include vibration, temperature, and pressure—parameters routinely monitored on critical assets such as compressors and pumps. Figure 1 illustrates how vibration frequency analysis reveals faults.

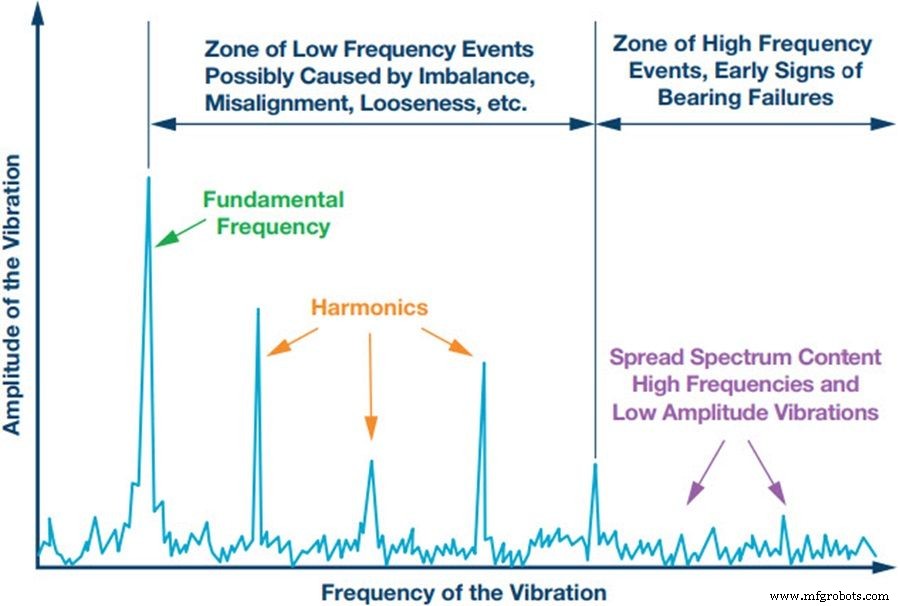

Figure 1: Vibration frequency analysis for fault detection (Image: Analog Devices)

Vibration is the most frequent symptom of imbalance, misalignment, and other anomalies, making it the cornerstone of predictive maintenance for rotating machinery. Temperature sensors track critical components to spot deviations in operating conditions, while oil‑particle sensors gauge lubrication contamination that signals wear. Current sensors monitor power consumption—an increase often indicates motor degradation.

Figure 2: Predictive maintenance (Image: Bosch)

Beyond sensors, a predictive‑maintenance model requires control technologies—typically production‑control software that routes data to PLCs via IO‑Link or other protocols, enabling intelligent management of current and future operations (see Figure 2). The iCOMOX board, developed in partnership with Arrow, exemplifies this integration.

Board Details

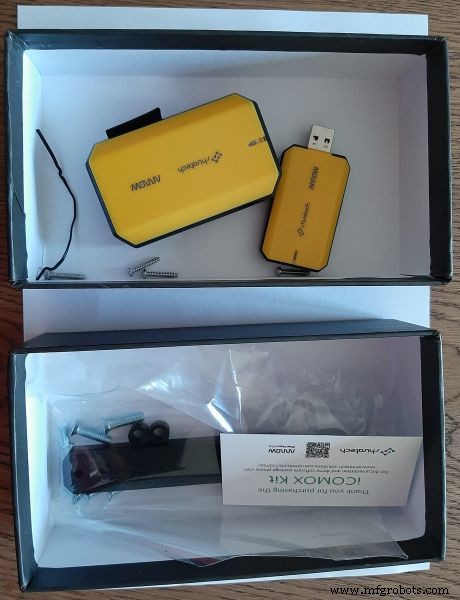

The iCOMOX kit comes in two units: the core board and a SmartMesh wireless dongle that serves as the control hub. Included are a firmware‑upgrade cable and a mounting bracket that ensure optimal installation (Figures 3 and 4).

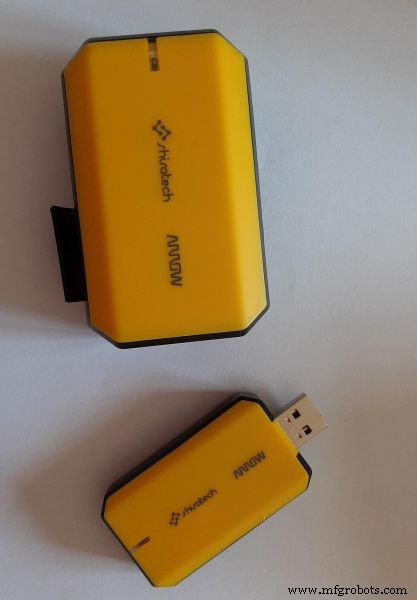

Figure 3: The iCOMOX kit (Image: EE Times Europe)

Figure 4: The card (top) and the wireless hub for SmartMesh control (Image: EE Times Europe)

The platform incorporates vibration, magnetic‑field, temperature, and audio sensors (Figure 5). It delivers a wide dynamic range and exceptional SNR for vibration analysis, while also detecting noise emission and performing current analysis to prevent motor overheating. SmartMesh provides low‑power wireless communication, and the board allows configuration of warning and alarm thresholds for each sensor. A compact form factor and CE/FCC certification complete the package.

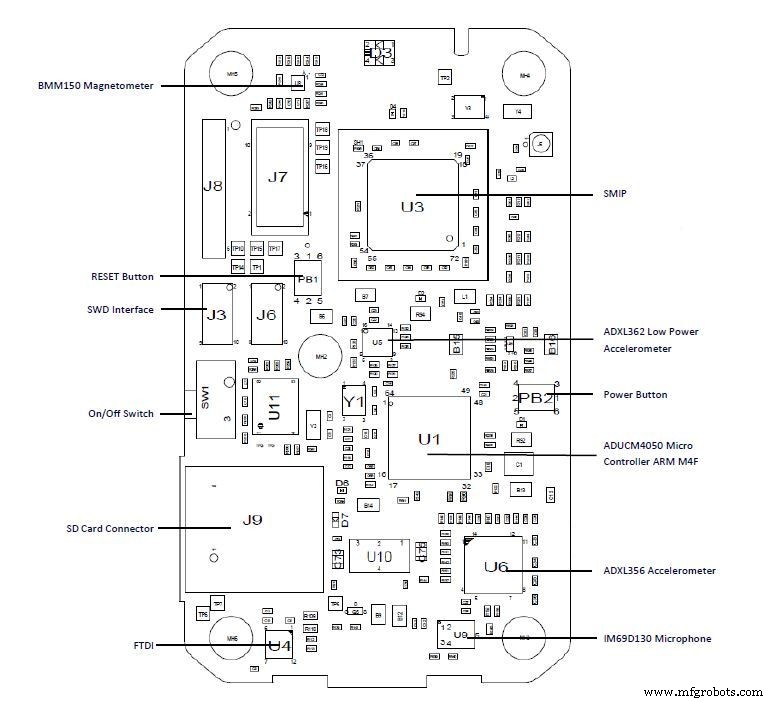

Figure 5: Arrangement of sensors and components on the iCOMOX board (Image: Shiratech)

At its core is the Analog Devices ADuCM4050 ultra‑low‑power Arm Cortex‑M4F processor. The MCU integrates power management via SensorStrobe, digital peripherals, 512 KB of flash with ECC, and a 12‑bit SAR ADC that supports up to 1.8 Msps across eight channels (Figure 6).

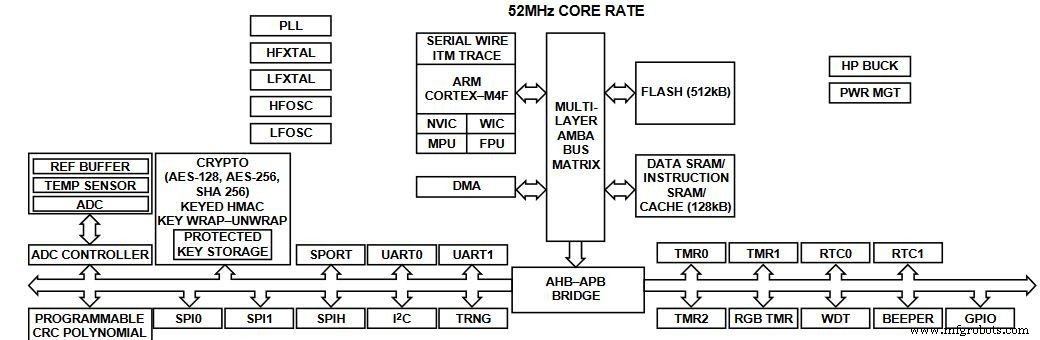

Figure 6: Block diagram of the ADuCM4050 (Image: Analog Devices)

The processor offers up to 52 MHz performance, 128 KB of SRAM with parity, and optional 4‑KB cache for low‑power operation. It includes cryptographic hardware supporting AES‑128/AES‑256, SHA‑256, and multiple encryption modes (ECB, CBC, CTR, CCM).

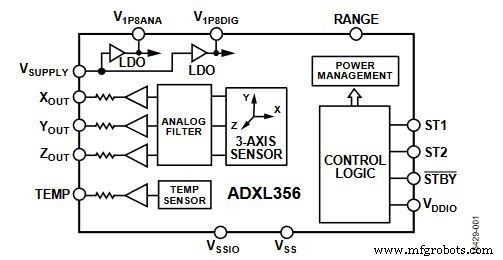

Figure 7: Block diagram of the ADXL356 vibration sensor (Image: Analog Devices)

The vibration sensor is an ADXL356 MEMS accelerometer with low noise and long‑term stability from –40 °C to 125 °C. Complementing it is a Bosch BMM150 three‑axis magnetic‑field sensor that delivers accurate spatial orientation and motion vectors.

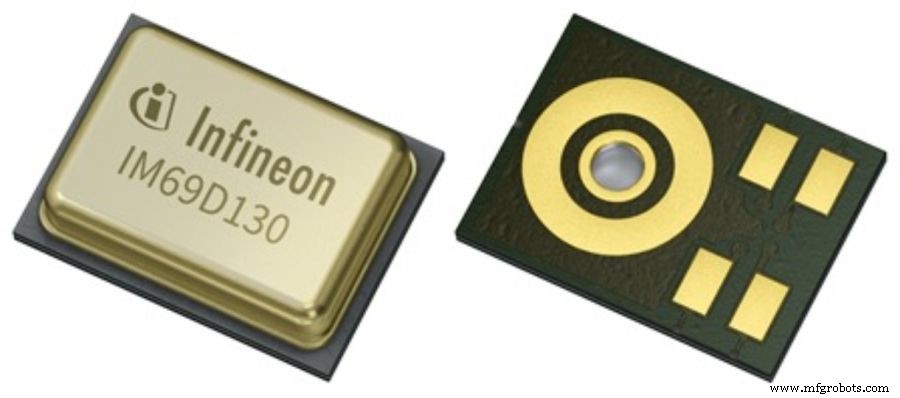

Infineon Technologies’ IM69D130 digital MEMS microphone, featuring Dual Backplate technology, offers a 105‑dB dynamic range and up to 130 dB SPL linearity (Figure 8). Its crystal‑clear audio capture spans soft whispers to loud concerts.

Figure 8: The IM69D130 digital microphone (Image: Infineon Technologies)

The platform’s temperature sensor is the ADT7410, offering ±0.5 °C accuracy and 16‑bit resolution across –55 °C to 150 °C.

Data sharing and management are enabled through SmartMesh networks, powered by the LTC5800‑IPM SoC. This low‑power radio integrates a 32‑bit Arm Cortex‑M3 processor, PA, and transceiver, requiring only a crystal, antenna, and matching circuits to form a complete wireless node.

>> Continue reading about supported connectivity and firmware in the complete article on our sister site, EE Times Europe.
