Seamless Wireless Commissioning for Smart Homes: From Unboxing to Secure Remote Setup

Wireless commissioning is the first, critical step in an IoT device’s lifecycle. It spans unboxing, configuration, connection, and secure provisioning.

For the end‑user, the ideal experience is frictionless: open the box, tap a button, and the device is ready to operate. Any complexity—long instructions or technical jargon—immediately erodes trust.

Figure 1: Smart home consumers expect a simple commissioning process. Source: Silicon Labs

Behind that simplicity lies a robust pairing workflow that configures wireless parameters (e.g., power levels, timing) and performs device provisioning—critical for protecting against counterfeit hardware and preventing network intrusion.

Thus, a successful commissioning cycle must be secure, seamless, and fast. The question becomes: which wireless technologies deliver this blend today?

The most intuitive method in widespread use is Near‑Field Communication (NFC).

Provisioning with NFC

With NFC, an inductive link between a reader and a tag enables a brief, close‑range exchange of identity data. A smartphone simply taps the device, and the tag’s unique identifier is verified—much like the familiar credit‑card swipe experience.

Figure 2: NFC is the most commonly available technology for wireless commissioning in smart home. Source: Silicon Labs

While NFC excels in user experience, it carries trade‑offs. The cost, although modest (≈10¢ per module), adds to the bill of materials, and the tag’s single‑use nature means it is not reused across a device’s lifetime. Moreover, NFC’s data payload is limited to a few kilobytes, insufficient for full network configuration or repeated provisioning.

These constraints become significant in larger deployments—such as commercial buildings—where thousands of nodes must be commissioned. A manual tap per device is impractical, and inaccessible devices (e.g., in HVAC ducts) cannot be reached with a phone.

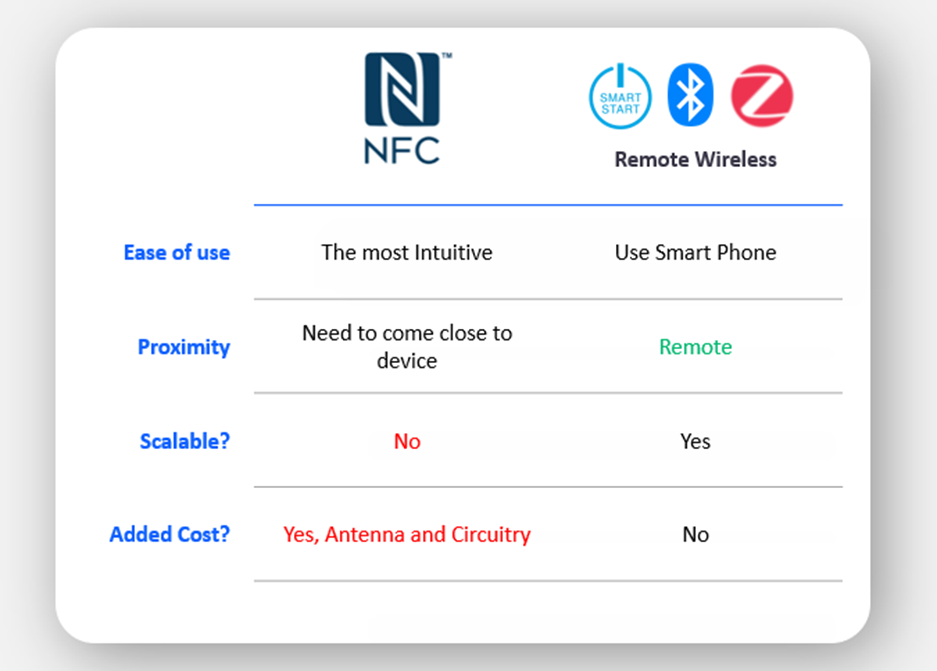

Figure 3: Several wireless technologies offer remote commissioning features for smart home settings. Source: Silicon Labs

Remote Commissioning Solutions

Emerging protocols—Bluetooth authentication, Z‑Wave Smart Start, and Zigbee Direct—enable remote, scalable, and cost‑effective commissioning without adding extra hardware. By leveraging the existing radio stack, manufacturers eliminate the need for dedicated provisioning chips.

These solutions also support ongoing device attestation. Because provisioning can be repeated over the air, each device’s identity can be re‑verified throughout its life, enhancing security against rogue devices and ensuring firmware integrity.

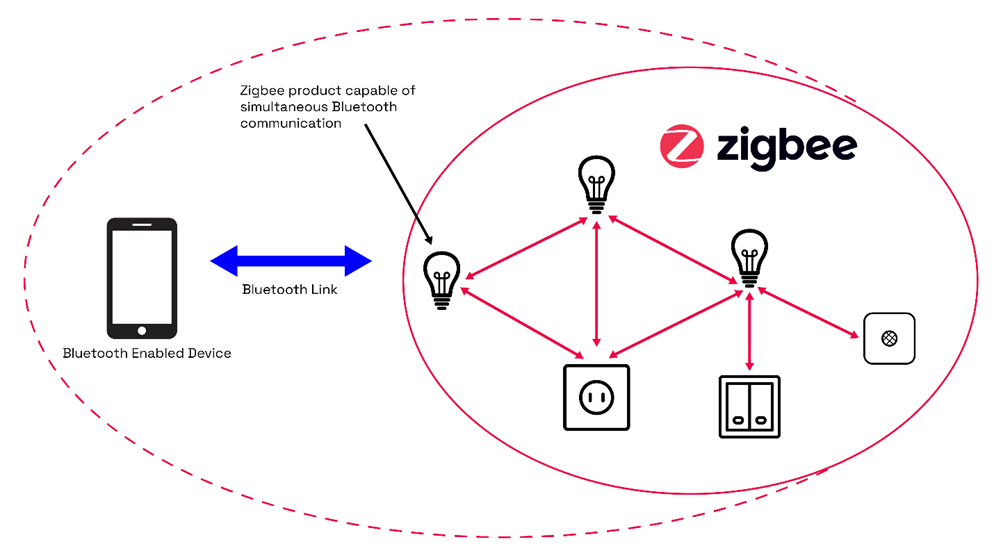

Figure 4: Zigbee Direct, a feature currently under development, allows users to seamlessly interact with their Zigbee networks using smartphones, tablets, and other Bluetooth‑enabled devices. That, in turn, simplifies and streamlines the commissioning process. Source: Silicon Labs

Bluetooth’s “Just Works” pairing is the simplest method but lacks authentication, leaving the network susceptible to man‑in‑the‑middle attacks. Numeric comparison pairing mitigates this risk but reintroduces a user step. The industry is actively pursuing a zero‑touch, secure commissioning flow that balances ease of use with robust protection.

—Asem Elshimi, Product Marketing Manager, Silicon Labs

>> This article was originally published on our sister site, EDN.
