mmWave Radar for Contactless Monitoring of Heart and Breath Rates

Vital signs—body temperature, blood pressure, breath rate, and heart rate—offer clinicians immediate insight into a patient’s health status and the trajectory of recovery or decline. These metrics vary with age, gender, weight, fitness, and current physical or mental activity. For example, during exercise, body temperature, breath rate, and heart rate naturally rise.

Millimeter‑wave (mmWave) radars transmit short‑wavelength radio waves that reflect off objects, allowing the system to deduce range, velocity, and angle with millimeter‑level precision. This capability makes mmWave an ideal, contact‑free platform for continuous vital‑sign monitoring, eliminating the need for adhesive sensors and reducing infection risk—particularly important during pandemics.

In this article we explore how mmWave radar can detect breath rate (BR) and heart rate (HR), the challenges involved, and the emerging healthcare applications.

What Do BR and HR Reveal?

Typical healthy ranges for BR and HR are summarized below (Table 1). Individual values differ by age, gender, fitness, and activity level, so a combined assessment of HR and BR helps clinicians gauge stress and overall well‑being.

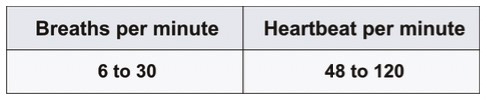

Table 1: Vitals of a Healthy Person

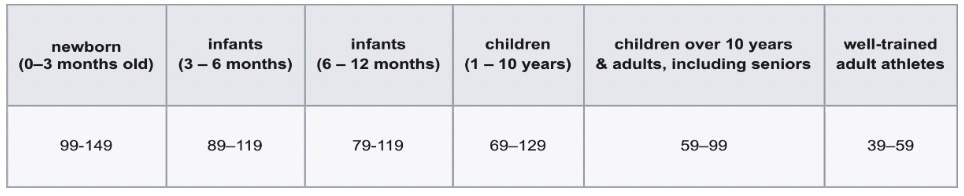

Age‑specific resting heart rates are detailed in Table 2 (source: Wikipedia).

Table 2: Age‑wise Resting Heart Rate

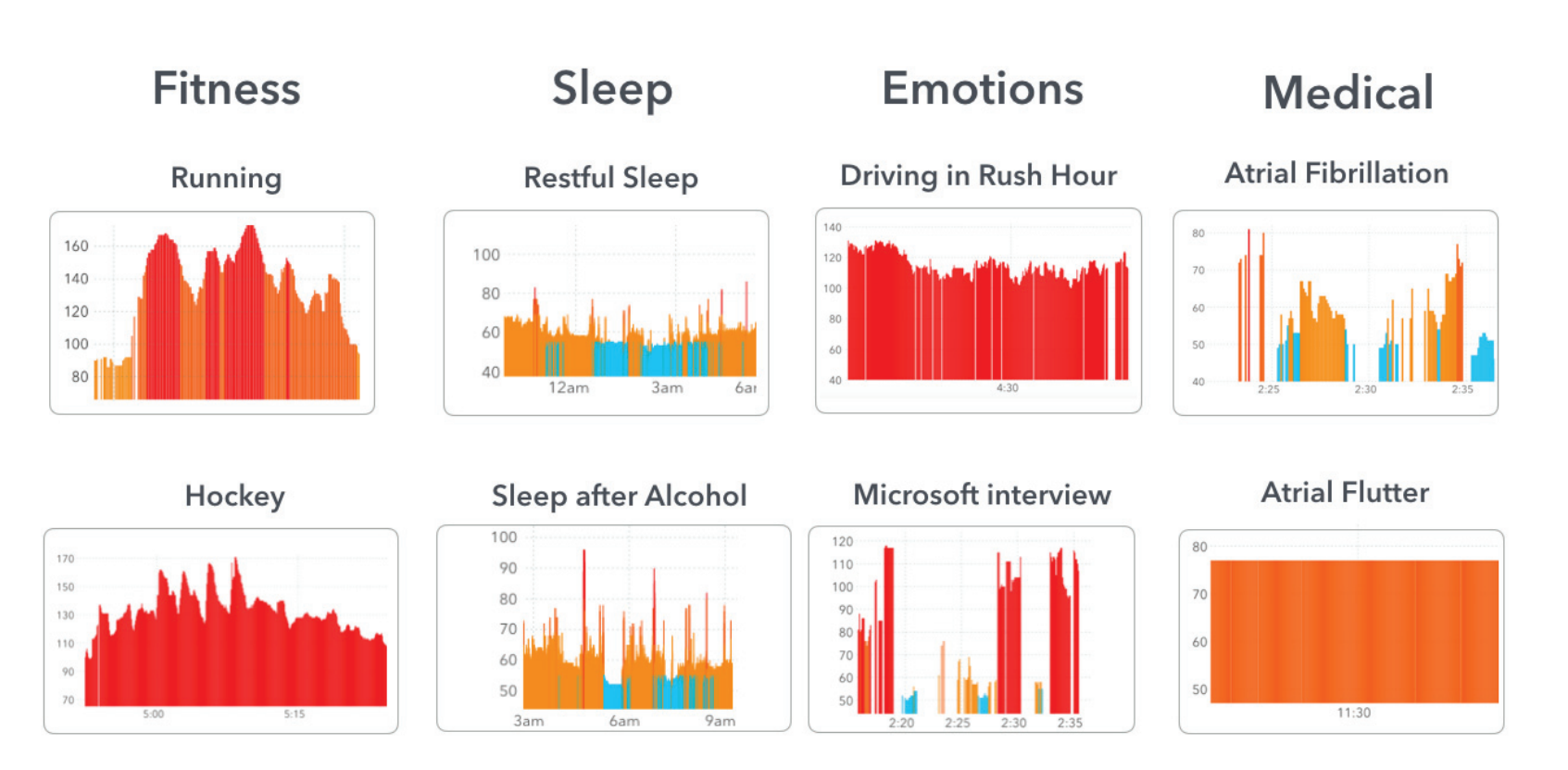

Figure 1 illustrates how HR fluctuates with fitness, stress, and medical conditions (source: AAAI 2018).

click for larger image

Figure 1: HR Variation by Fitness, Stress, and Medical State

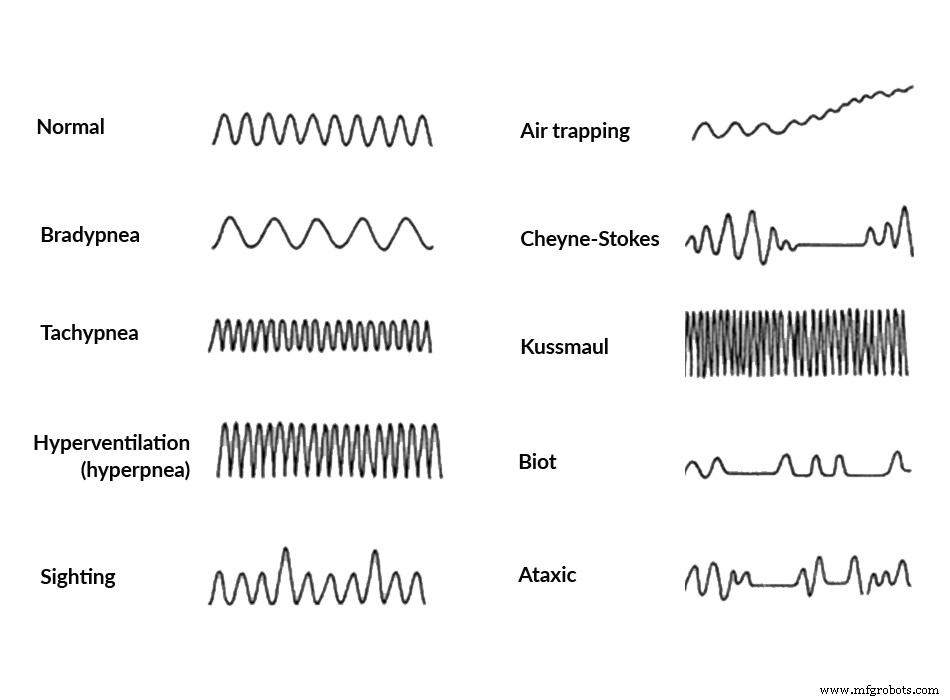

Abnormal BR and HR can signal life‑threatening conditions such as obstructive sleep apnea (OSA), sudden infant death syndrome (SIDS), dyspnea, and chronic obstructive pulmonary disease. Figure 2 shows characteristic breath patterns across these disorders (source: ClinicalGate).

click for larger image

Figure 2: Breath Pattern Across Conditions

High resting HR correlates with increased cardiovascular risk, while low resting HR may predict future pacemaker need. Continuous, non‑contact monitoring of BR and HR can thus be life‑saving for vulnerable patients.

Contact vs. Contact‑Free Monitoring

Traditional vital‑sign devices—such as ECG electrodes and pulse oximeters—require direct skin contact. For long‑term monitoring, this is inconvenient and increases cross‑contamination risk. Contact‑free sensors, especially mmWave radar, provide a safer alternative by measuring minute chest movements from a distance.

mmWave Radar Fundamentals

mmWave radars operate at 30–300 GHz, corresponding to wavelengths of 10–1 mm. Industrial allocations span 60–64 GHz, while automotive systems use 76–81 GHz. The short wavelength enables compact antennas and sub‑millimeter precision in range detection.

We focus on frequency‑modulated continuous‑wave (FMCW) radars. FMCW transmits a linear chirp—frequency increasing over time—and captures the reflected signal. The difference between transmitted and received frequencies yields distance; phase shifts reveal motion.

click for larger image

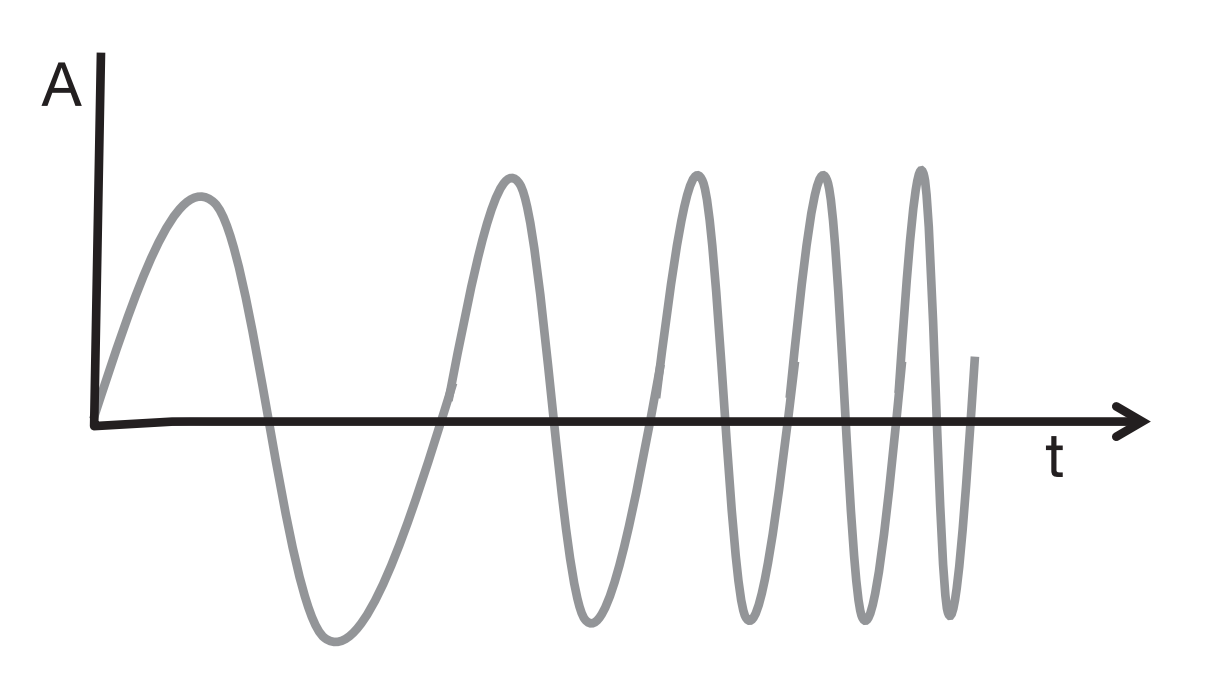

Figure 3: Chirp in Time Domain

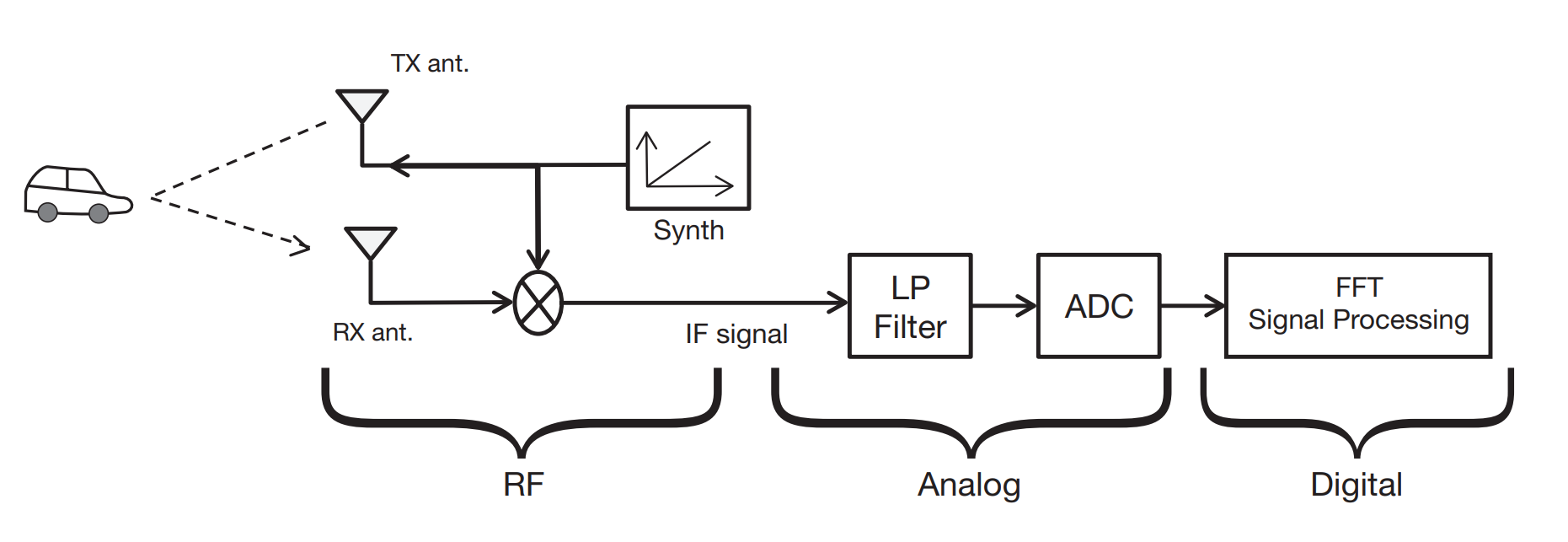

A typical FMCW radar block diagram is shown in Figure 4 (source: TI.com).

click for larger image

Figure 4: FMCW Radar Block Diagram

The mixer combines transmitted and received signals, producing an intermediate frequency (IF) that contains sum and difference components. A low‑pass filter isolates the difference component, which is then Fourier‑transformed to reveal peaks corresponding to object ranges.

click for larger image

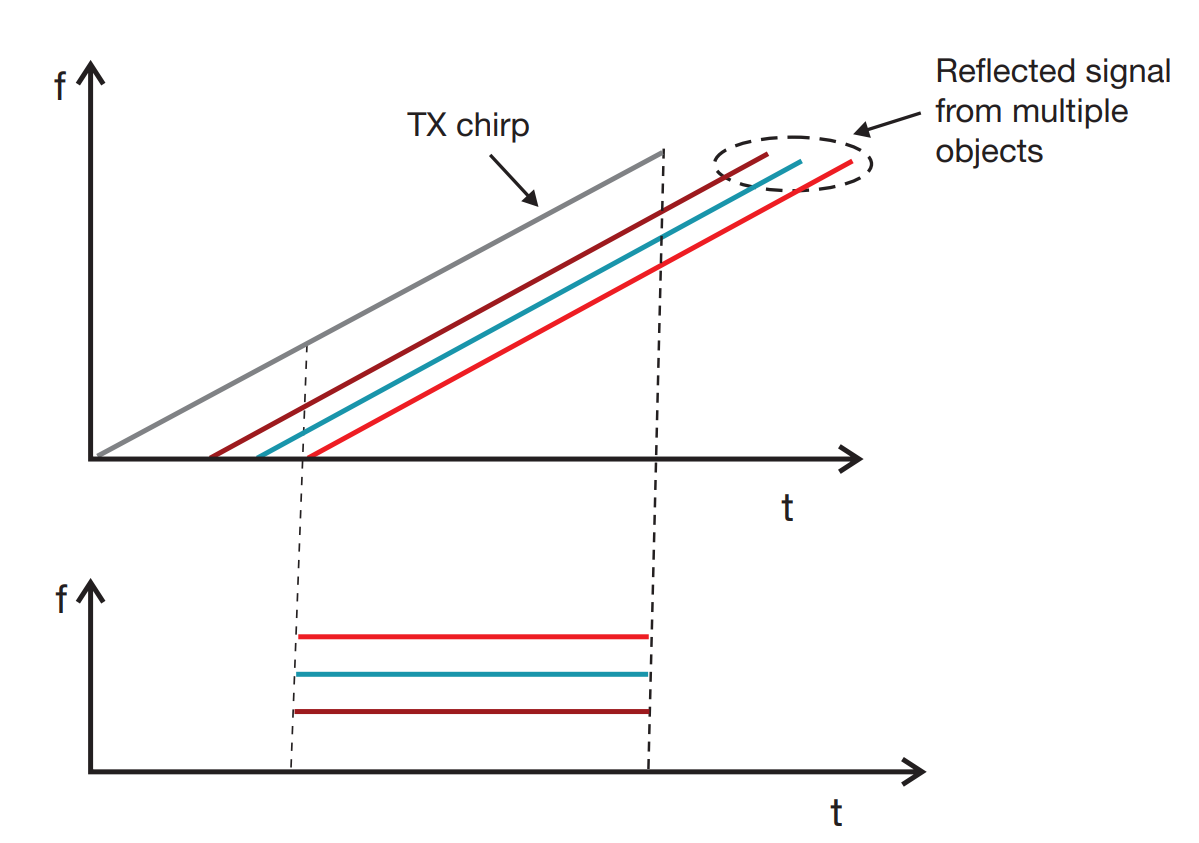

Figure 5: Frequency Domain Representation of TX/RX Chirps and IF Tones

Velocity is derived from phase differences between successive chirps, leveraging the Doppler effect. The short mmWave wavelength (≈ 3.5 mm) amplifies phase sensitivity, enabling detection of sub‑millimeter motions.

Detecting Heart and Breath Rates with mmWave

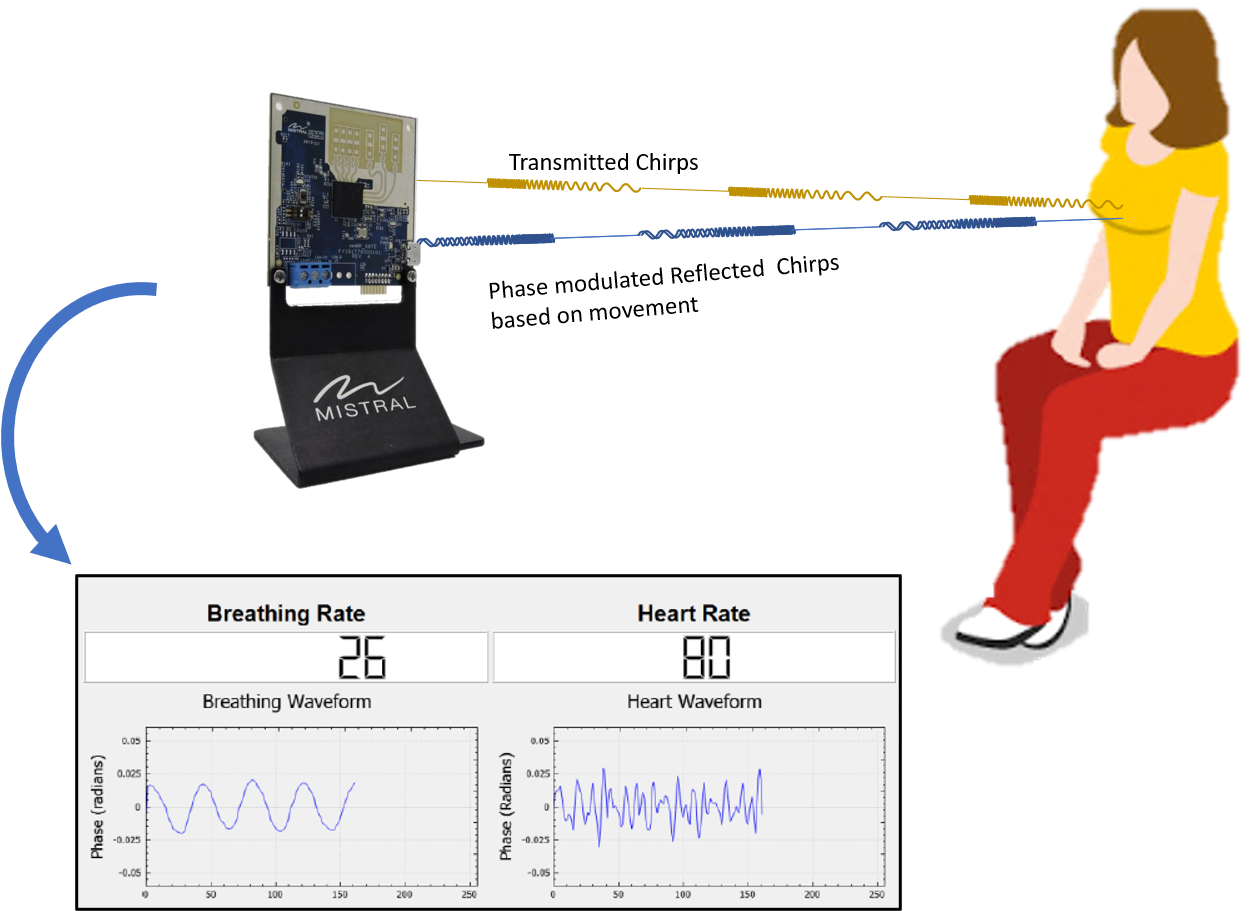

mmWave radars operating at 60 or 77 GHz can sense chest movements as small as a fraction of a millimeter. Figure 6 depicts the signal flow: chirps are transmitted toward the chest, the reflected signal is range‑FFT‑processed to isolate the chest bin, and the phase of that bin is tracked over time.

click for larger image

Figure 6: HR and BR Detection Setup

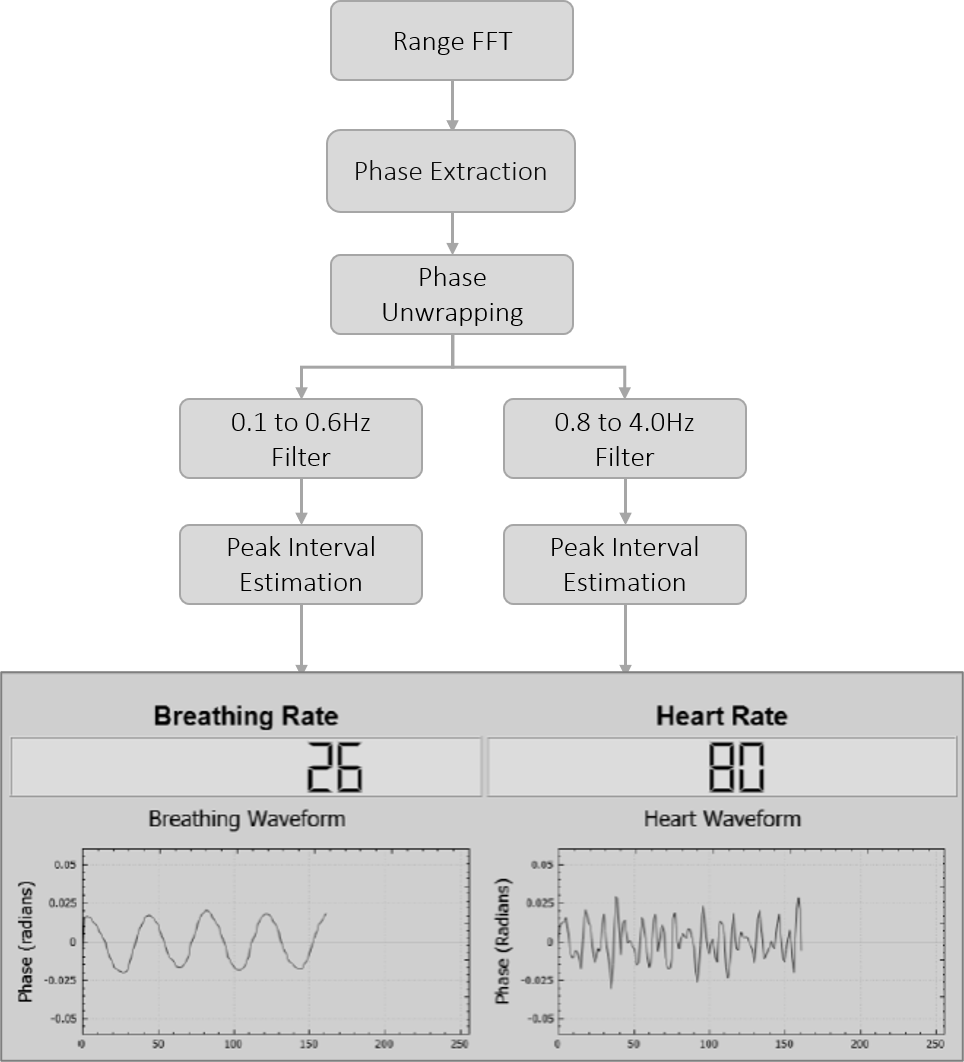

From the velocity time series, a Doppler FFT isolates frequency components corresponding to heartbeats (≈ 0.8–2 Hz) and breathing (≈ 0.1–0.5 Hz). Counting peaks in each one‑minute window yields HR and BR values. Figure 7 illustrates this algorithm.

click for larger image

Figure 7: HR and BR Detection Algorithm

Challenges and Future Directions

Signal reflection varies across individuals due to differences in skin type, tissue composition, and body water content. Ongoing research into these variabilities aims to refine calibration models and enhance measurement accuracy.

Conclusion

While mmWave radar has traditionally served defense, automotive, and industrial sectors, its evolving precision, rapid signal processing, and ultra‑compact form factor now unlock transformative healthcare applications—patient activity monitoring, vital‑sign surveillance, and even stress or drowsiness detection. These capabilities hold promise not only for clinical settings but also for intelligent driver‑monitoring systems.

References

1. Texas Instruments. "68xx Vital Signs."
2. "Remote Monitoring of Human Vital Signs Using mm‑Wave FMCW Radar."
3. DeepHeart: Semi‑Supervised Sequence Learning for Cardiovascular Risk Prediction.
