Forged Carbon Fiber: The Definitive Guide to Advanced Composite Materials

Welcome to the definitive guide to forged carbon—also called forged composites. In this article we explore what forged carbon is, how it differs from traditional woven carbon fiber, its manufacturing process, cost implications, and the real‑world applications that make it a game‑changer in high‑performance design.

Why trust this guide? Carbon Fiber Gear has been a leading authority in carbon‑fiber technology since 2007. While many newcomers associate carbon fiber with car parts or bicycles, we specialize in lifestyle products such as wallets, phone cases, and rings that showcase the full potential of forged carbon. If you’re passionate about carbon‑fiber materials and want to translate that passion into everyday products, you’ve come to the right place.

After reading this guide, you’ll speak the language of forged carbon and know exactly when and how to use it. Use the table of contents to jump directly to the section that interests you.

In This Article:

1. The Carbon Fiber You Already Know
2. What Is Forged Carbon (Forged Composite)?
3. How Is Forged Carbon Fiber Made?
4. When Is It Worth Using Forged Carbon?
5. What Are the Costs of Forged Carbon?
6. Is Forged Carbon Better?
7. The History of Forged Composites
8. Demand for Forged Carbon in Today’s Market

1. The Carbon Fiber You Already Know

Most people are familiar with the classic 2×2 twill or diagonal weave used in high‑performance carbon‑fiber parts. In this process, a dry woven fabric is placed in a mold, infused with resin, and cured into a rigid composite. The resulting part looks like this:

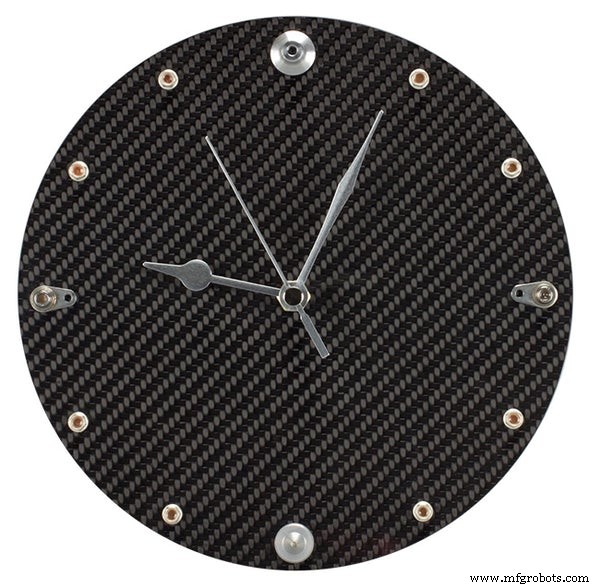

Another common weave is the 1×1 plain weave, often seen in precision instruments:

These woven fabrics are the backbone of everything from bicycle frames to Tesla dash panels. For more on weave patterns, see Carbon Fiber Like You’ve Never Seen Before.

2. What Is Forged Carbon (Forged Composite)?

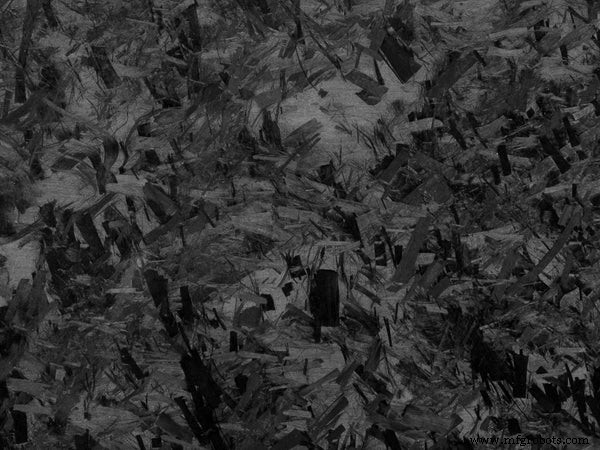

Forged carbon differs fundamentally from woven carbon fiber. Instead of a predictable weave, forged carbon is created from a random mix of chopped fibers or a carbon paste. This gives each part a unique marbled appearance, free of any discernible pattern:

3. How Is Forged Carbon Fiber Made?

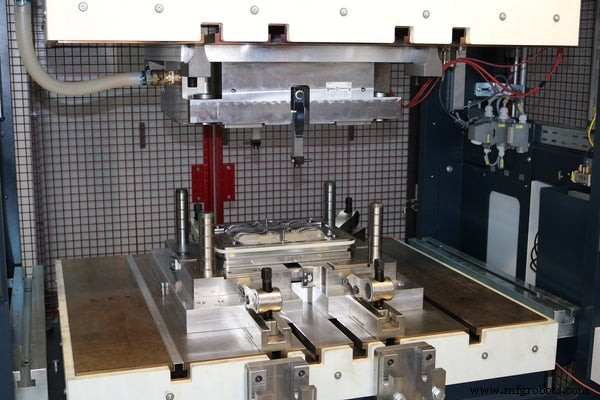

The hallmark of forged carbon is its compression‑molding process. Chopped fibers are packed into a mold, resin is infused, and the entire assembly is pressed under high pressure—much like forging metal. The result is a solid, high‑density composite. A typical setup uses hydraulic presses such as the Langzauner system:

Beyond full‑scale compression, there are several practical alternatives to achieve the forged look:

Forged Carbon Pre‑PREG

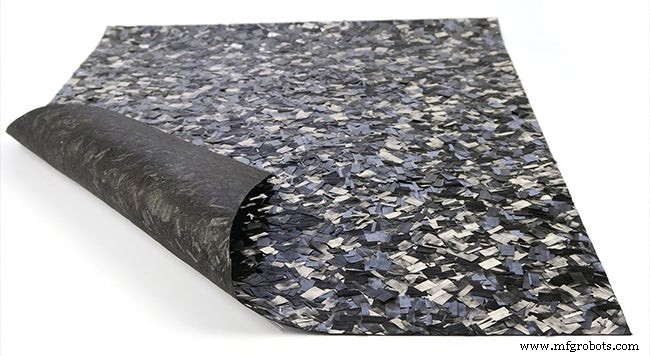

Pre‑preg is pre‑impregnated with epoxy at the optimal resin‑to‑fiber ratio. Chopped‑fiber pre‑preg arrives as a ready‑to‑use sheet that can be overlaid on existing products or used as an outer layer in a mold.

Forged Carbon Dry Fabric

Ulticarbon’s dry forged carbon fabric blends chopped fibers with a fine, non‑woven backing. After applying epoxy resin, the material yields the same marbled finish without the need for cold storage or an expiry date.

Hand‑Placed Chopped Fibers

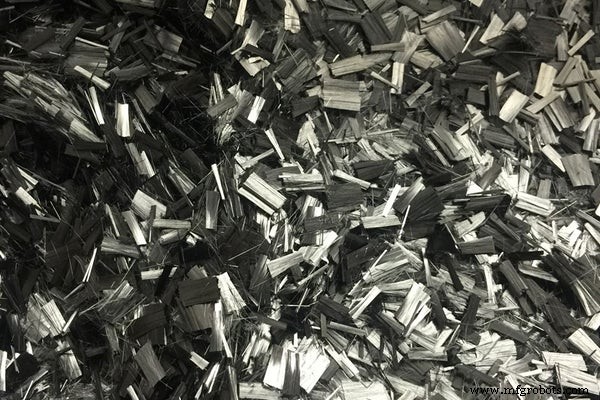

For the most cost‑effective approach, purchase chopped fibers by weight and length. Layer them by hand into a mold or onto an existing part to achieve the forged aesthetic. An example of hand‑placed fibers looks like this:

4. When Is It Worth Using Forged Carbon?

Forged carbon shines when shape flexibility and production speed are priorities:

• Shape: Woven fabrics struggle with sharp corners or complex geometries. Forged carbon can be molded into virtually any shape because the fibers are randomly oriented.
• Speed: Compression molding or hand‑placement dramatically reduces lay‑up time compared to weaving and resin impregnation.
• Machining: The resulting part can be machined further, providing a solid base for precision components.

5. What Are the Costs of Forged Carbon?

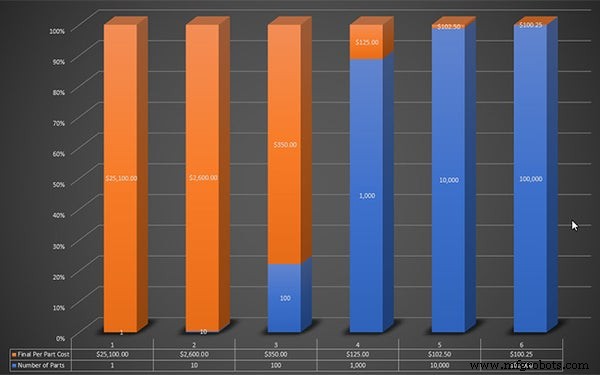

High‑volume production demands a compression mold, which incurs significant upfront costs. However, these costs are amortized across large runs, making forged carbon economical at scale. Consider this example:

• Mold cost: $25,000
• Part cost: $100 (including materials and labor)

If you produce one part, the total cost is $25,100. At 10,000 parts, the cost per part drops to $102.50—a 2.5% surcharge from the mold. This illustrates why forged carbon is ideal for mass production.

6. Is Forged Carbon Better?

Each composite method has strengths. Woven fibers offer directional strength control, making them ideal for load‑bearing structures. Forged carbon, with its isotropic fiber distribution, excels in aesthetics, complex shapes, and rapid prototyping. Choose based on:

• Aesthetics
• Strength requirements
• Production volume
• Geometric complexity
• Cost constraints
• Lead time

For detailed strength comparisons, see How Strong Is Carbon Fiber?.

7. The History of Forged Composites

Dr. Paolo Feraboli pioneered the technology while working on Boeing projects. In 2008, he collaborated with Callaway and Lamborghini to refine forged composites. The technology debuted in high‑performance products such as Callaway’s Diablo Octane driver and Lamborghini’s concept car, the Sesto Elemento, which showcased a forged‑carbon monocoque chassis. Today, Lamborghini uses forged composites in mainstream models like the Huracán Performante.

8. Demand for Forged Carbon in Today’s Market

Lamborghini’s high‑profile introduction of forged composites has driven widespread interest. From luxury automotive brands to lifestyle accessories, the demand for forged carbon continues to rise. Carbon Fiber Gear has seen increasing customer interest in forged‑fiber products, confirming the material’s growing popularity.
