Wire Connection Conventions in Electrical Schematics: A Clear Guide

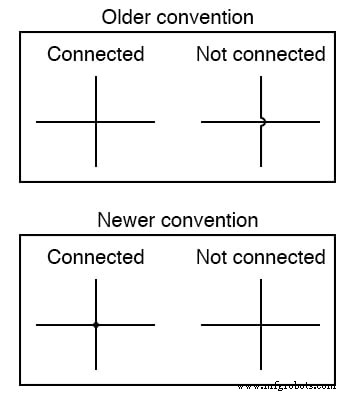

In electrical schematics, the way wires intersect communicates whether they are electrically connected or merely crossing. Historically, designers used a simple visual cue: a half‑circle mark over the crossing line to indicate a non‑connection, while a straight crossing implied a connection. This older convention, though once widespread, can be ambiguous because it relies on the absence of a dot to signal connectivity.

Modern industry standards, such as IEC 60617 and ANSI Y32.2, now prescribe a more explicit system. A dot placed at the intersection confirms a connection, whereas two wires that cross without a dot are understood to be non‑connected. This approach eliminates misinterpretation, especially in complex schematics where many lines intersect.

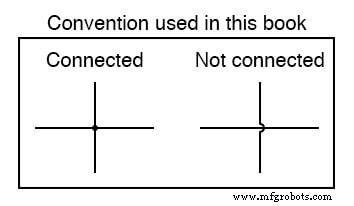

Despite the clarity of the newer standard, some engineers still employ the legacy style of crossing lines without a dot to represent connections. To avoid confusion in mixed‑convention documents, I recommend a hybrid method: use a dot to signify every genuine connection, and retain the half‑circle for non‑connecting crossings. This practice ensures that intent is unmistakable regardless of the viewer’s familiarity with older diagrams.

By adopting this hybrid convention, designers can guarantee that their schematics are readable and error‑free for anyone who consults them.
