Avoid Scrap: How to Diagnose and Fix Internal Gear Pump Failures

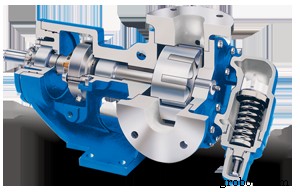

Internal gear pumps are versatile pieces of rotating equipment. They’re great for highly viscous fluids and have only two moving parts. A maintenance technician’s dream! But, one day, your internal gear pump stops performing its day-to-day function and all heck breaks loose! But before you trash it, understand the root cause of the failure so you can be sure the next pump doesn't meet the same demise.

All too often, blame is placed on the pump because it’s the pump itself that's noisy and vibrating. What you should remember is the pump may not be at fault. It's important to get all the facts, as system changes can have major effects on pump performance.

Develop a Clear, Concise, and Objective Statement of the Problem

When troubleshooting an internal gear pump (or any other pump for that matter), develop a clear, concise, and objective statement of the problem. Try to set preconceived ideas of what could be wrong aside and base your statement on facts that are accurate and unbiased.

Start by compiling all of the information you have about the pump, such as:

• Field Measurements

  • Pressure
  • Flow
  • Power draw
  • Temperature
  • Pump vibration levels
  • Performance curves
  • Instruction manuals


• Basic Pump Information
  • Model
  • Size
  • Serial number


Determine if the Problem is Hydraulic or Mechanical

Using the information you’ve collected, determine if your problem is hydraulic or mechanical.

A hydraulic problem has the following symptoms:

• No liquid delivered
• Insufficient capacity delivered
• Insufficient pressure delivered
• Intermittent flow

A mechanical problem exhibits these symptoms:

• Bearings have regular failures/run hot
• Higher than normal vibration levels
• Pump consumes excessive energy
• Short packing life
• Mechanical seals have high failure rate
• Wetted parts wear quickly

Investigate What May Be Causing Poor Pump Performance

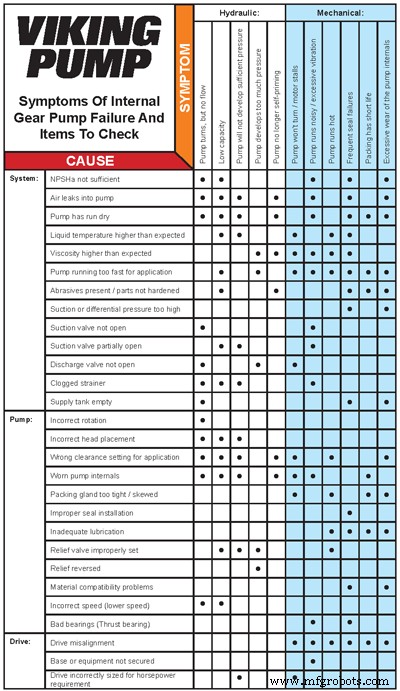

Once you’ve determined if your issue is mechanical or hydraulic, use the chart below to determine what could be causing your internal gear pump to perform poorly. You may just find that it wasn’t the pump’s fault after all.

Internal_Gear_Pump_Symptom_Checklist
