Digital-to-Analog Converters (DACs): Key Types and Their Applications

Types of DAC, Signals are generally classified into major groups, digital signal and analog signal. And for each call, there are different types of applications. For instance, analog electronics such as power switches and operational amplifiers use an analog signal. Contrarily, digital signals are in digital electronics like microprocessors, microcontrollers, flip-flops, logic gates, among a few.

For better functionality of both signals, there’s always a need to convert both signals from one form to another for better functionality of both signs. And so, we use either an Analog to Digital Converter (ADC) or Digital to Analog Converter.

Today, our focus is the digital to analog converter (DAC), also known as D/A or D2A.

What is DAC (Digital to Analog Converter)?

DAC (Digital to Analog Converter) is an IC that converts digital values, in the form of digital codes, to analog voltage/current. Often, computers use DAC to understand its analog operation by other digital devices like a cellphone.

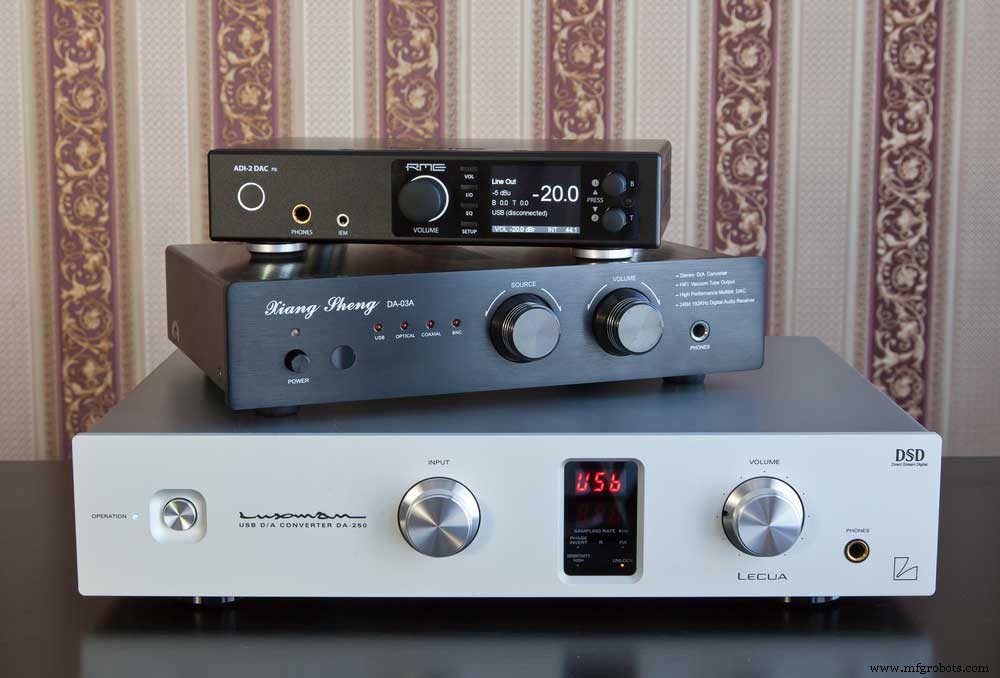

(multiple digital to analog converters)

How Does a DAC Work?

We’re going to a concept of using a microphone to record audio through a computer.

Under such a circumstance, the audio signal/speech is a physical variable that needs digital formatting before recording on the computer. Therefore, we’ll use Analog to Digital converters.

(microphone).

Later, if you wish to play the recorded audio through a speaker, you’ll employ a DAC. It’ll convert the digital signal to an analog signal.

Types of DAC

Binary Weighted Resistor D/A Converter Circuit

You’ll need a current source or resistor to convert each digital input bit in this DAC. The resistors have a connection across the summing point and inputs. And through a summing amplifier circuit, you’ll generate the output.

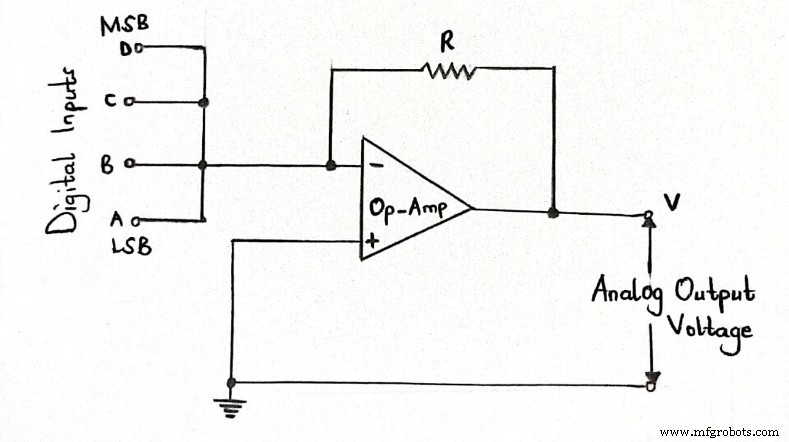

Circuit diagram of a binary-weighted DAC

From the diagram above, we can note the following;

• First, existing components include an operational amplifier, a feedback resistor, and four other resistors connected at the op-amp’s input terminal.
• The resistors at the op-amp’s terminal are variable resistors.

We will use the equation below to get an output voltage of the summing amplifier circuit.

V_o = –R (DR+ C2R +B4R+ A8R)

Therefore;

The letters D, C, B, and A are digital inputs with different values. A is at the LSB, whereas D is at MSB.

V = Output analog voltage

Binary ladder or R–2R ladder D/A Converter Circuit

A binary ladder DAC has two resistor values, 2R and R. However, its conversion speed often reduces because of parasitic capacitance.

Further on, the input bit controls the switch between the inverting input and ground of op-amp. After the binary information gets into the resistors (2R), you’ll obtain the output at the bottom of the binary ladder.

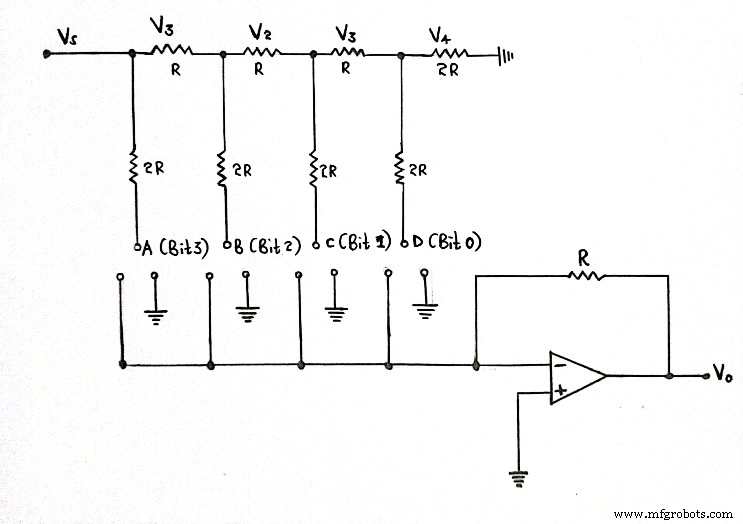

Circuit diagram of an R-2R Ladder  DAC

The formula for getting the output voltage of the binary ladder is as follows;

V_o = –R × (D2R+ C4R +B8R+ A16R)

Types of DAC– Segmented DAC

Segmented DAC is a type of DAC whose design bases its specifications on performance. It’s a combination of two or more DACs since it requires no architecture. For instance, you’ll combine thermometer-coded DAC with Binary weighted DAC, then separate the input binary code into two segments.

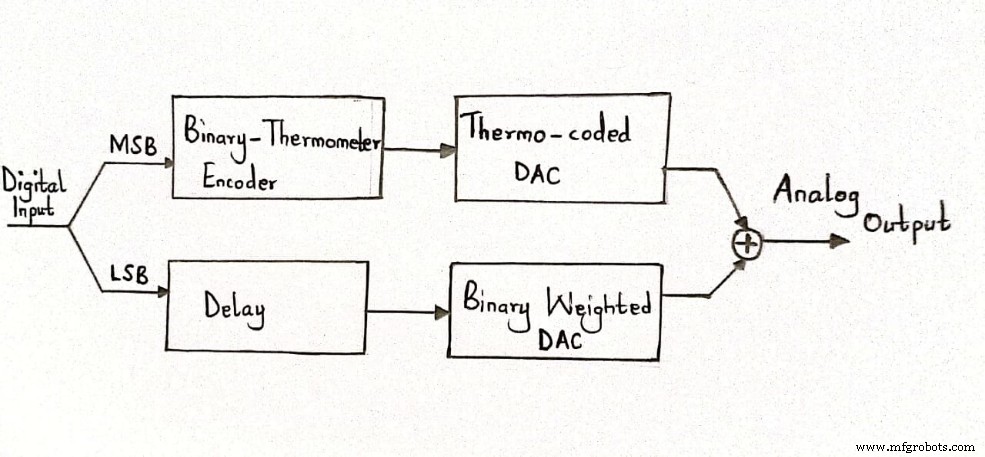

A segmented Digital to Analog Converter

The binary-weighted structure will work in LSB while thermometer-coded DAC applies in MSB. In that way, you’ll have a compact chip.

In addition, as the input bits increase, the encoder size grows. Therefore, you’ll need more interconnections and switches.

Types of DAC– Delta-Sigma DAC

A delta-sigma DAC is by far the most precise and fastest. It also comprises different blocks as listed below;

• Interpolation filter. It reduces the sampling time while increasing the sample rate, increasing the sampling frequency by four times. The filter data then gets to the modulator block as an input.
• Delta–sigma modulator. The modulator functions as a low-pass filter to the input signal and a high-pass filter to the quantization noise.
• 1–Bit DAC. Each bit is converted from digital samples to analog forms for added amplification.
• Analog output filter. Here, the block filters out DAC output and then produces the analog signals.

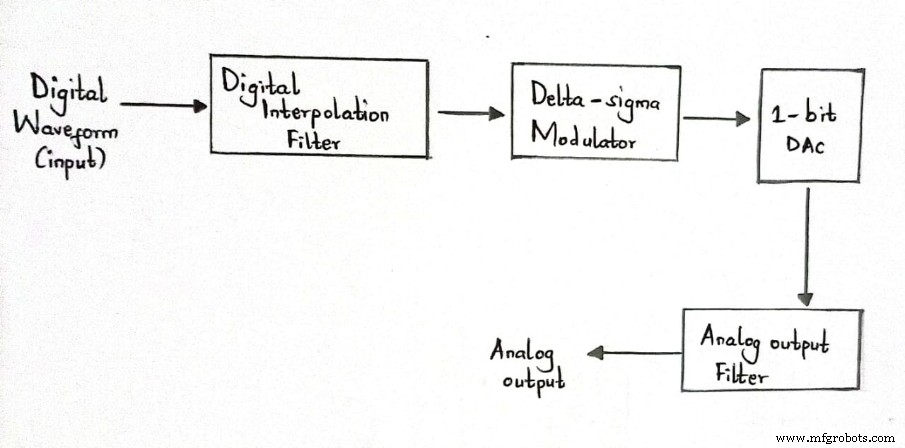

Delta-sigma DAC

Advantages and Disadvantages of DAC

Advantages

• First, you can achieve high accuracy and resolution with it.
• Then, you can implement it easily.
• Lastly, one of the DAC types, i.e., weighted resistor circuit, is a fast-converting circuit compared to other converting methods.

Types of DAC– Disadvantages

• The binary-weighted resistors emit a high-power dissipation.
• Secondly, resistors in the circuits can lead to non-linearity, offset error, and gain error.
• Some of the DAC circuit types may need a few other components, which is impractical. However, there are available discrete DAC chips that can use a microcontroller via I2C and SPI to communicate.
• Also, there’s a delay in R-2R ladder converters since the circuit requires switching depending on the inputs.
• Despite being accurate, it becomes impossible to produce continuous voltage values because the binary number determines the voltage steps.
• Finally, you must have the same voltage levels for each input in a weighted resistor DAC. That is to say, and you’ll need four resistors for a 4-bit converter.

Types of DAC– How to use a DAC?

You’ll often find DACs embedded into a microcontroller or used as separated integrated circuits, with the latter being more common. Common examples of IC DACs include DAC0808, DAC0832, DAC7715, among others.

For this segment, we will use MCP4725 DAC IC to comprehend better how to use a DAC. And since it works in conjunction with an Arduino, it’s easy to find its libraries and documentation.

Types of DAC–Features of MCP4725 DAC IC

• First and foremost, its packaging is available in a SOT23-6 package. The package compactness saves on storage space.
• It works well with the i2C communication interface. Therefore, it’ll use only two serial clocks and serial data pins. At the same time, speed can have a range between 100kHz and 3.4MHz.
• Further, you can change the i2C address pin by connecting it to GND or Vcc when using multiple devices.
• Last but not least, it’s got a 12-bit resolution which is better than Arduino’s 8-bit resolution. With a 5V supply voltage, each binary digit conversion to a 1.22mV voltage, i.e., 5V/ (212).

DAC Applications

You can use DAC in the following applications;

• Digital potentiometers,
• The Digital data acquisition systems,
• Digital signal processing like in audio editing, and
• Digital power supplies for microcontrollers.

Conclusion

To conclude, DACs are undoubtedly crucial components that link analog and digital signals. For that reason, they enable a connection between machines in general by converting binary count to a discrete voltage level.
