ABS Injection Molding: Process Overview & Key Considerations

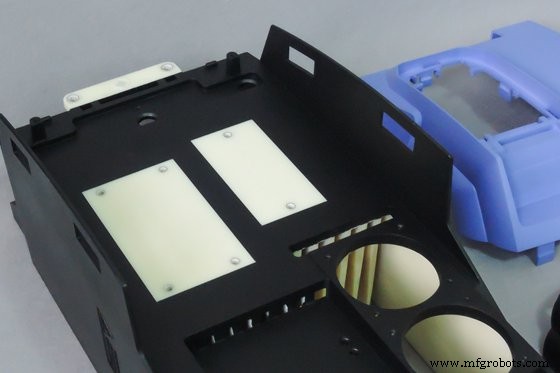

Injection molding is a common manufacturing process with different variants depending on the raw material used. One of such variants of the process is the ABS injection molding process. Just as the name implies, the raw material for this injection molding variant is ABS plastic.

What is ABS Plastic?

ABS stands for Acrylonitrile Butadiene Styrene. This plastic material comprises three monomers that make up its name. Each of these monomers contributes its properties to the polymer plastic to give it a wide range of properties.

The properties the plastic possesses include chemical resistance, hardness, and heat resistance contributed by acrylonitrile. Other properties include impact resistance and toughness (bestowed by butadiene) and strength and gloss contributed by styrene. Despite its wide range of features, it is relatively one of the cheapest plastics to purchase. Also, it is one of the easiest plastics to use in injection molding due to its ease of processability.

Despite its acclaimed strength and toughness, this strong plastic isn’t so impervious to UV light. Hence it has limited outdoor use. However, part manufacturers have found ways to manipulate the properties of this plastic to withstand UV light by using various additives and fillers such as acrylic, glass, and stainless steel fibers. These additives alter the properties of the plastic and further enhance its uses for various applications.

These properties and potential for manipulation make ABS the most widely used polymer in the injection molding process. Want to find out how this plastic is used for manufacturing various finished products? Then, the next section is a must-read.

ABS Injection Molding Process

This section highlights the various steps manufacturers must follow during the ABS plastic molding process. They include:

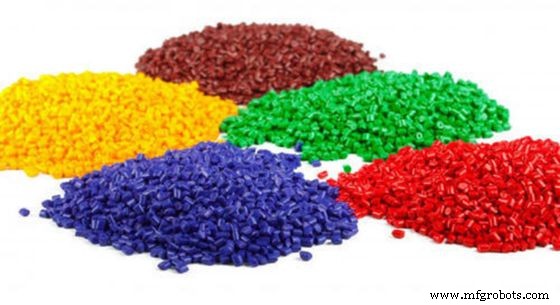

Material Pre-treatment

Before using a piece of ABS plastic for manufacturing, it needs proper drying. The drying temperature used is within the range of 80 – 85°C done for 2 – 4 hours. Another drying method involves using a drying hopper with a temperature of 80°C. However, the latter process only lasts for 1 – 2 hours.

Calibration of the Injection Molding Machine

After treating the material, the next step is to prepare the ABS molding machine for work. This will involve setting the parameters such as the compression ratio, clamping force, and injection molding pressure. The typical values for these parameters include a compression ratio greater than 2, a clamping force ranging from 4700 to 62000 tonnes per square meter (t/m²), and an injection molding pressure greater than 1500 bar.

Mold and Gate Design

The mold is quite vital in determining how the finished ABS product will turn out. Hence, the design of the mold and its gate is quite important in the process. The thickness of the ABS mold ranges between 0.025 – 0.05mm, while the gate length is set at less than 1mm. Also, the diameter of the channel through which the molten ABS flows is set at 3mm, while the vent hole width ranges from 4 – 6mm. Finally, the mold temperature used is always around a range of 60 – 65°C.

Injection Molding Temperature

The injection molding temperature used for a particular ABS injection molding process depends on the quality/grade of ABS used. Listed below are the examples of some grades of ABS plastic commonly used in ABS plastic molding and the optimum injection molding temperature used:

• Flame Resistant Grade: 200 – 240 °C, the optimum temperature within 220°C – 230°C.
• Electroplating Grade: 250 – 275°C, with the optimum temperature at 270°C.
• Glass Fiber Reinforced Grade: 230°C – 270°C.
• High Impact Grade: 220°C – 260°C, optimum temperature at 250°C.
• Heat-Resistant Grade: 240°C – 280°C, optimum temperature at 265°C – 270°C.

Injection Molding Speed

The injection molding speed depends on the grade of the ABS plastic and the finished product requirements. For example, flame-resistant ABS plastics can only use slow injection molding speeds. Also, products that require precision surface finishing could require multi-stage, high injection molding speeds.

Residence Time

The residence time is the time it takes for a plastic pellet to move from the injection molding barrel to the injection mold. For ABS plastics, the residence time is usually between 5 – 6 minutes at a temperature lower than 265°C. However, for flame-retardants grade ABS plastic, the residence time is shorter, and the temperature is way lower.

Backpressure

It is advisable to keep the backpressure of the ABS injection molding process as low as possible to prevent wear. The acceptable pressure is usually around 5 bar.

Other Operations

Other activities carried out during ABS molding processes include decorated moldings using laser marking or hot stamping, ultrasonic welding, etc.

Cleanup

Some ABS grades tend to stick to the mold screw after removing the part. So the best way to clean this up is to wait a little bit for the residue to wear off, then clean the compartments of the injection molding machine thoroughly using polystyrene.

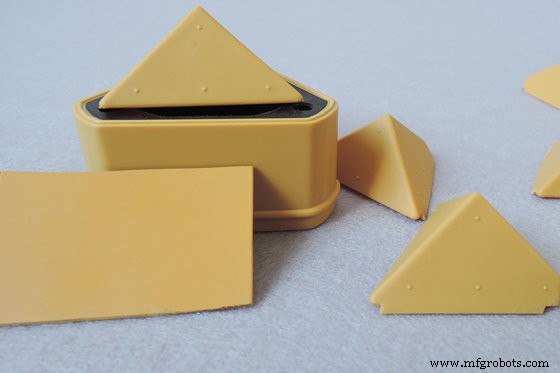

Advantages of ABS Injection Molding

There are many reasons why ABS injection molding is one of the most popular forms of plastic molding. Some of the advantages include:

Accurate Reproducibility

Due to the processability of ABS, it is the most suitable material to use in making complex parts. Its processability makes it easy to reproduce complex and functional parts using the plastic. Apart from the parts being accurately produced, they still maintain functional integrity even when used in extreme conditions, thanks to the hardness of the plastic.

High Tensile Strength

ABS molded parts are suitable for use in applications that require supporting heavy loads because of their high tensile strength. Their ability to withstand heavy mechanical impacts makes this plastic a good budget option for high tension applications.

Recyclability

The recyclability of ABS makes it a perfect material for use in reusable applications. Recycling plants can easily shred the plastic parts and mix them up with fresh ABS to use for new parts production.

Disadvantages of ABS Injection Molding

Despite its numerous advantages, ABS has its shortcomings too. Some of these disadvantages include:

Poor Fatigue Resistance

While ABS parts usually have high tensile strength, they can’t withstand heavy loads for long periods because of their poor fatigue resistance. The ABS plastic part might degrade easily if constantly exposed to high-stress environments.

Subpar UV Resistance

One of ABS plastic’s major shortcomings is its poor sunlight performance. The material tends to degrade upon constant exposure to sunlight. However, part manufacturers enhance its performance in sunlight by adding additives to the ABS plastic during molding.

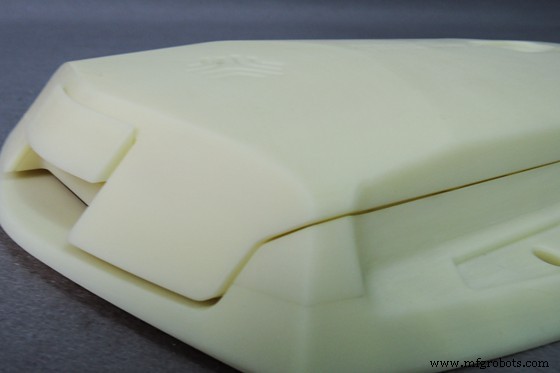

Factors to Consider During ABS Injection Molding

When trying to start an ABS injection molding batch, a few factors must be in place. These factors are vital to having successfully molded parts. They include:

Moisture in Material before Molding

ABS plastic has some hygroscopic properties (it can absorb moisture from the air) and also absorb water around it. However, the presence of water in any molded ABS plastic could cause structural defects in the plastic. Hence, ensuring the ABS plastic used is properly dried is essential. There are two parameter types for drying the plastic: either dry at 80 – 95°C for 3 – 4 hours or use a dry hopper at 80°C for 1 – 2 hours.

Temperature Control

Controlling the temperature is crucial during ABS injection molding as overheating the plastic could lead to thermal degradation. This thermal degradation is due to the chemical bonds in the plastic breaking, which could cause brown granules on the finished part.

Working with an injection molding machine with good temperature control is essential as this process still requires a lot of heat. For example, when the ABS parts in production contain a high level of gloss, the temperature used in production is higher than normal. However, it is important to note that the higher the temperature used for the injection process, the shorter the exposure time should be.

Part and Mold Design

Designing the parts before the injection molding process makes it possible to determine if producing the part is actually possible. Here are some general principles that work with ABS parts design:

• The thickness of the part’s walls should be uniform. If there were to be any variation, it shouldn’t be more than 25% of each other. This is important because uniform walls help prevent stress on the deficient wall.
• Also, the wall thickness should determine the radius size. The ratio of the radius to the wall thickness should not be less than 0.3. The golden rule here is that the bigger the radius, the less the stress. However, the radius must stay within reasonable limits as a large radius causes sink marks on the part.
• For the mold, the thickness should range from 0.025 to 0.05mm. Also, the gate length should be around 1mm, the flow channel diameter should be around 3mm, and the vent hole width should range from 4 to 6mm.

Finally, the injection mold cooling process needs an optimal design to prevent problems with shrinkage.

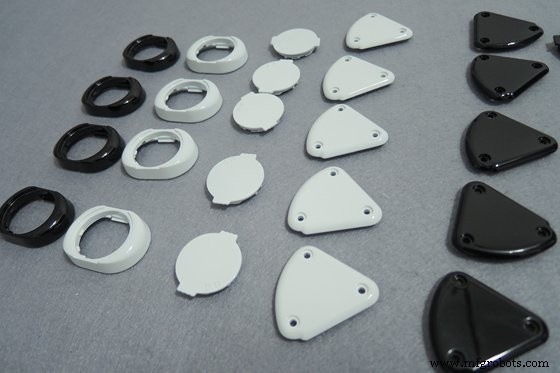

Applications of ABS Injection Molding

ABS plastic has uses in different industries due to various reasons. Due to its ease of molding, the low cost of production, and resistance to physical and chemical changes, this polymer has become a manufacturer’s favorite. Here are some examples of industries where ABS plastic parts have found use:

• Construction Industry: Due to its resistance to physical and chemical cand heavy impacts, manufacturers use ABS plastics to make pipes and fittings used in buildings.
• Automotive Industry: ABS plastic is a common raw material for lightweight car parts. Examples of car parts made out of ABS plastic include seat belt parts, door loners, pillar trims, dashboard components, etc.
• Consumer Industry: ABS plastics are found in many home appliances such as food processors, vacuum cleaners, refrigerator liners, etc.

Other applications include the health, sports, and electrical industries.

The Cost of ABS Injection Molding Process

If you’re trying to produce some parts using injection molding, it is only right you find out about the cost of the whole process before going ahead. To estimate the costs involved, you need to factor in different costs. Examples of the various costs involved include:

Equipment Costs

You’ll most likely outsource your production to companies with the necessary equipment. These companies will charge you a separate fee for the equipment used. However, if you plan to get the equipment, you’ll have to dole a sum within the $50,000 – $200,000 range. Apart from buying the equipment, you’ll also have to maintain the equipment, which could cost you a fortune. The cost-effective option will be to outsource the production.

Mold Costs

This is also known as the tooling costs. This drives up the cost of the ABS injection molding process. There are three different methods used in making injection molds. They include CNC machining, 3D printing, and electrical discharge machining (EDM). These methods can range as low as $100 for low-volume simple 3D-printed molds. The price could also go as high as $100,000 for huge production runs or molds with complex designs.

Material Costs

This is the cost of buying the material (in this case, ABS). You’ll be able to find the material for a cost ranging from $1 to $5 per kg.

Service Costs

The costs here are responsible for the remuneration of the personnel carrying out the tasks and for the setup and maintenance of the machines. Examples of parameters factored in here include:

• Monitoring Costs: This goes to the operators running the machines.
• Setup Costs: This goes to the time taken to set up the mold and produce the finished part.
• Repair Costs: Repair costs will cover the maintenance of parts with defects and tools used to maintain the equipment.
• While there’s no fixed price for ABS molding, the general rule is that the larger the number of parts, the smaller the price per part.

Conclusion

ABS injection molding is a process that seems pretty easy to achieve. However, its technicalities that only experts understand. This is why it is important to outsource your ABS molding to companies that actually understand the practical principles of the manufacturing process.

At WayKen, with advanced manufacturing technologies and resources, we can provide our customers with professional rapid prototyping services ., including CNC machining, rapid injection molding, vacuum casting, etc. So, get a quote today, and you can be sure to get high-quality injection molded parts at a competitive price.

FAQ

At what temperature does ABS plastic melt?

ABS is amorphous, so it has no true melting temperature.  However, its transition temperature is about 105°C (221°F).

How toxic is ABS Plastic?

ABS is harmless and non-toxic. This is one of many reasons it is a popular plastic material in manufacturing. However, it is not encouraged to use in medical implants.

How do I solve the problem of flame-retardant ABS injection molding?

To prevent the out-gassing that comes from the flame-retardant ABS plastic absorbing moisture, you need to ensure the material is fully dried. Also, you need to ensure good temperature and residence time control during the injection molding process to prevent thermal degradation of the ABS plastic.
