High‑Efficiency DC‑DC Converters for Space‑Critical Power Systems

Power system designers face the challenge of delivering compact, reliable, and efficient solutions while keeping design‑to‑manufacture cycles on schedule.

In today’s fast‑paced electronics landscape, high power‑density modules are in demand across mobile telecoms, industrial automation, transportation, and embedded computing. Their sealed packages and robust thermal performance give designers confidence in long‑term reliability—even in the harshest industrial environments.

Consumers now expect products that are minimal in size, high in performance, and cost‑effective. Selecting an inexpensive board‑mounted power solution is only the first step; the module must also integrate seamlessly, meet stringent safety standards, and maintain peak efficiency.

DC‑DC Converters: The Plug‑and‑Play Power Solution

DC‑DC converters are versatile voltage supply modules that can be dropped into a circuit with minimal integration effort. They deliver high‑efficiency output across a wide range of space‑critical applications, from consumer electronics and mobile devices to battery chargers, gaming consoles, LCD panels, lighting systems, and point‑of‑sale (POS) terminals.

DC‑DC converters are broadly divided into two types:

1. Transformers that convert one DC voltage to another, producing a load‑independent output.
2. Transformers that incorporate a DC‑DC isolation barrier, electrically separating the input and output circuits.

Unregulated converters typically achieve 70‑90% efficiency, while regulated units can reach up to 85%.

Their exceptional efficiency has made DC‑DC converters a cornerstone of modern power electronics. Two key drivers fuel market growth: large‑scale adoption in computing and telecommunications, and the design flexibility that allows engineers to craft custom topologies that meet system‑level requirements.

Benefits of DC‑DC Converters

Integrating DC‑DC converters into computing and telecom systems reduces PCB complexity and size, enabling faster time‑to‑market without compromising performance. OEMs can maximize limited board space, adding attractive features while keeping form factor tight—a capability traditional DC‑DC converters often lack.

MINMAX MD DC‑DC Converter Modules

The MINMAX MD family delivers up to 63.5 W/in³ of power density, ideal for space‑constrained designs. With a footprint of 0.94” × 0.54” and a height of 0.31”, each module weighs just 6.1 g and supports 6‑10 W outputs.

Its advanced power‑regulation technology and compact package design enable high power density while operating reliably up to 90 °C. Engineers can reduce board footprint and weight by up to 50% when swapping equivalent‑rated modules.

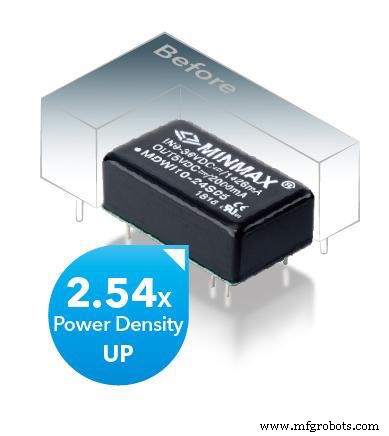

Figure 1. The MINMAX MD family offers high power density in a small form factor.

MINMAX has streamlined integration with a shielded metal case and insulated baseplate, delivering excellent EMC performance. The MD modules meet EN 55032 Class A and EN 61000‑4‑2/3/6/8 standards without the need for external components. Additional compliance with EN 61000‑4‑4/5 and EN 55022 Class B requires only minimal external parts.

With 1.5 kV isolation, the modules protect sensitive circuitry from noise, making them suitable for safety‑critical applications. Typical peak efficiency reaches 88% at maximum load, with no‑load consumption as low as 0.1 W. Line regulation is ±0.2%, and load regulation is ±0.5%. The modules operate with no minimum load requirement and remain stable even at light loads. A 20 ms start‑up time mitigates timing‑failure risks.

Figure 2. Voltage regulation performance of the MD DC‑DC converter modules.

MD Converters for Limited PCB Space

As products shrink and feature density rises, designers must extract every square inch of PCB real estate. Traditional AC‑DC converters lack the flexibility needed for custom layouts. The MINMAX MD’s DIP‑16 package is the smallest in its class, allowing designers to embed advanced performance features while delivering a guaranteed 6‑10 W output—double the capacity of mainstream converters of similar size.

Choosing MINMAX MD DC‑DC converters delivers higher efficiency and superior power density, essential for space‑critical applications.
