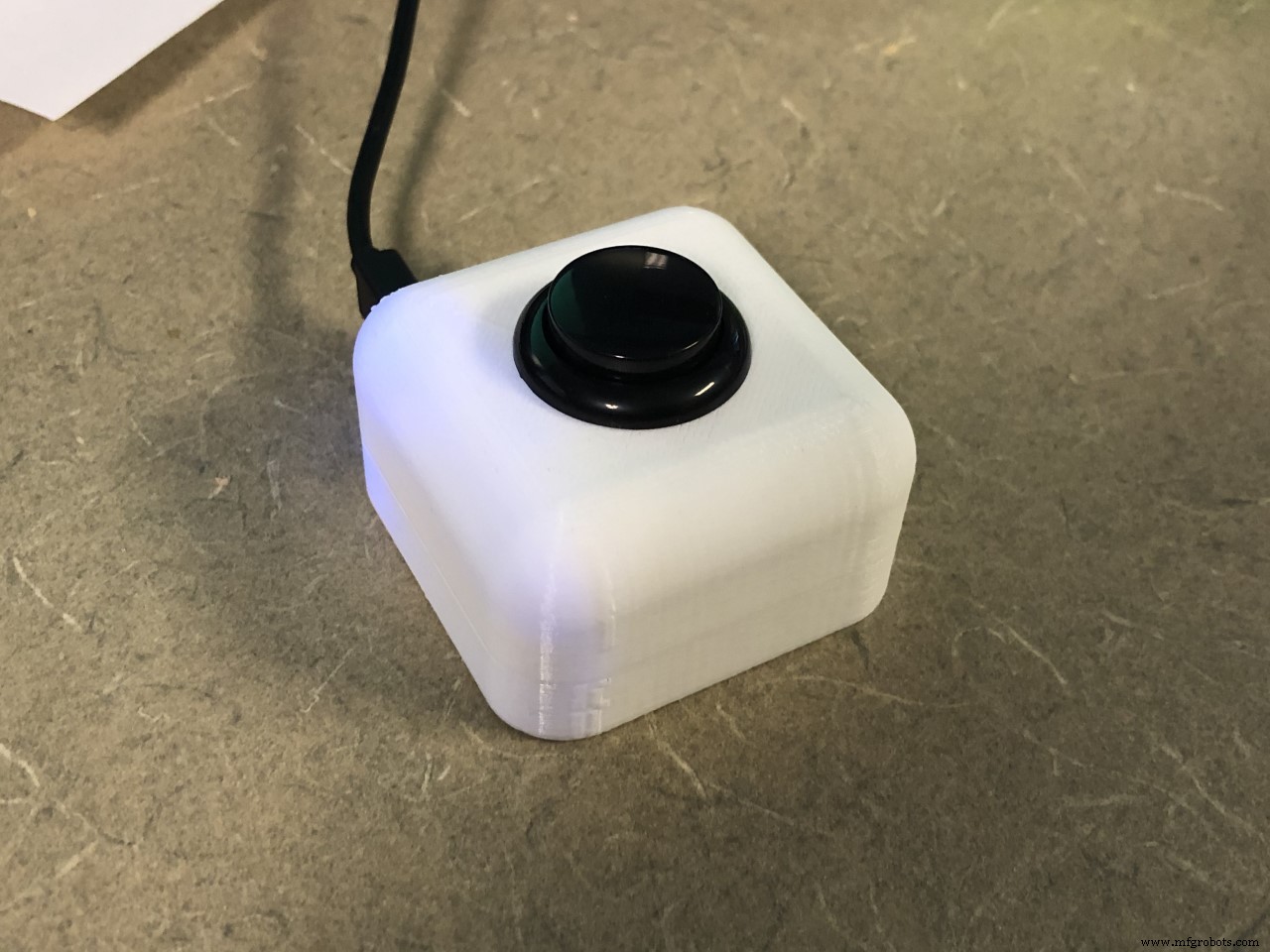

Custom Mute Button for Microsoft Teams – Simplify Virtual Meetings

Components and supplies

Button

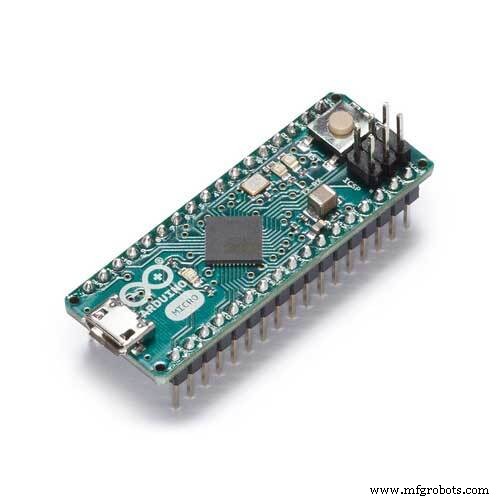

Arduino Micro

Make sure to get it without headers

Necessary tools and machines

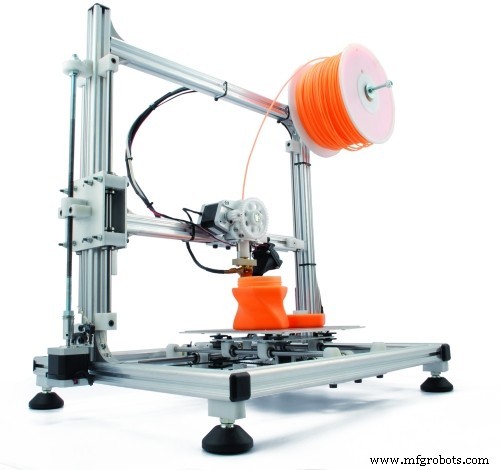

3D Printer (generic)

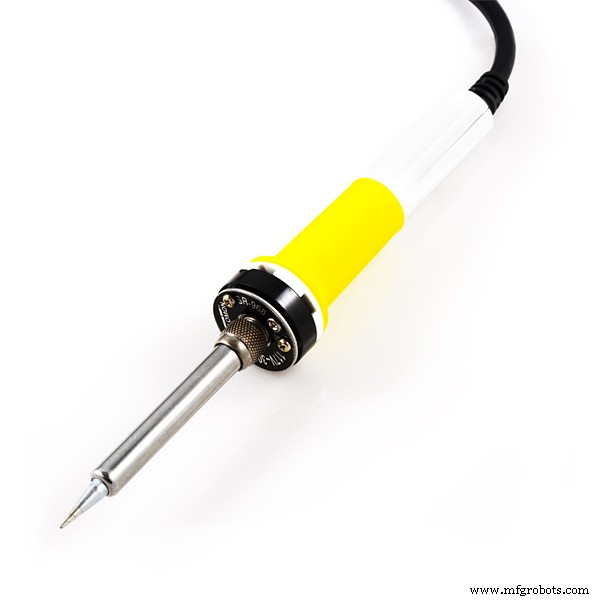

Soldering iron (generic)

About this project

All my meetings are now virtual, and I found it irritating fumbling to unmute myself to speak.

So I created my own button to toggle the mute. My code is specifically for MS Teams, because that's what we use at work.

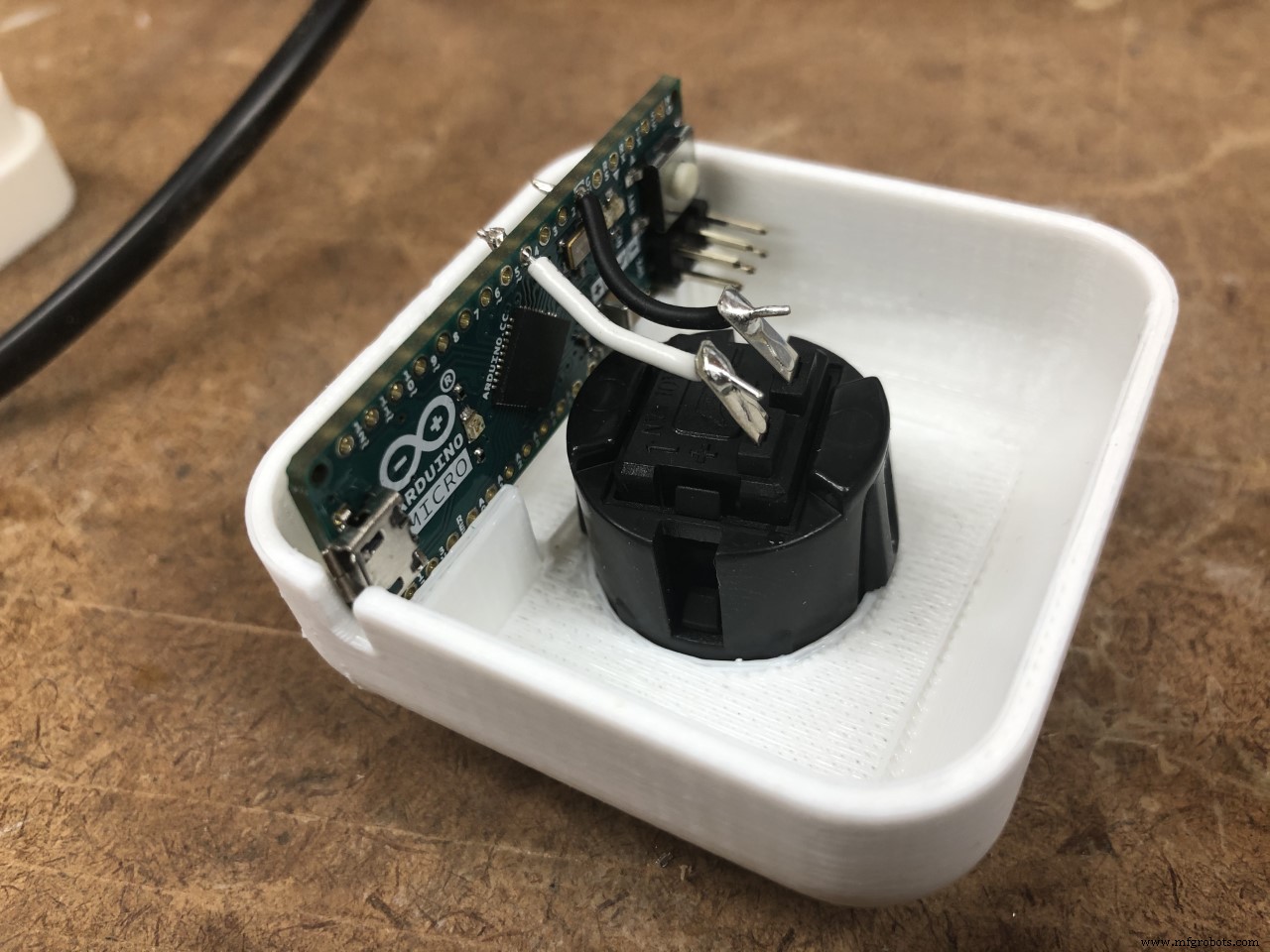

I wanted to use a digispark, because they're small and cheap, but those appear to be unavailable. So my second choice was an Arduino Micro which has native USB support to emulate a keyboard.

Code

AutoHotKey Macro

AutoHotKey MacroAutoHotKey

1) Install AutoHotkey
2) Create a text file "teams_mute.ahk" with contents below
3) Open the file with autohotkey
4) Ctrl-Alt-M should send mute command to teams window, then switch back to the active window
5) Optional: add to startup applications:
a) Window-R and type: shell:startup
b) It will bring up the folder with your startup apps
c) create a shortcut to the script and place it here

#UseHook
; Ctrl-Alt-M
^!M::
WinGet, active_id, ID, A
SetTitleMatchMode, 2
;DetectHiddenWindows, On
WinGet, fensterID, List, ahk_exe Teams.exe
WinActivate, % "ahk_id " fensterID1
Send ^+m
SoundBeep, 200, 100
WinActivate, ahk_id %active_id%
Return

mute_button

Sketch

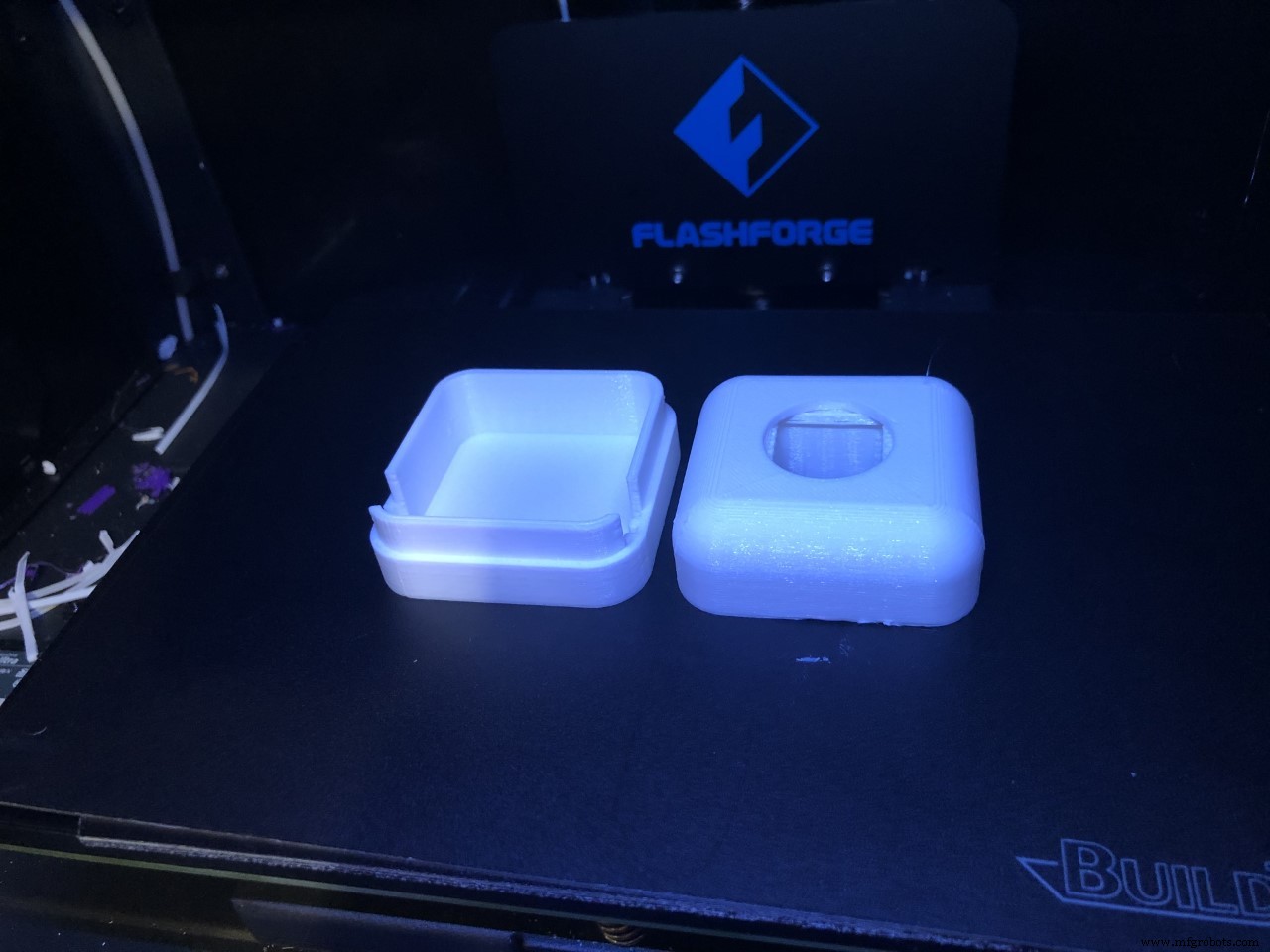

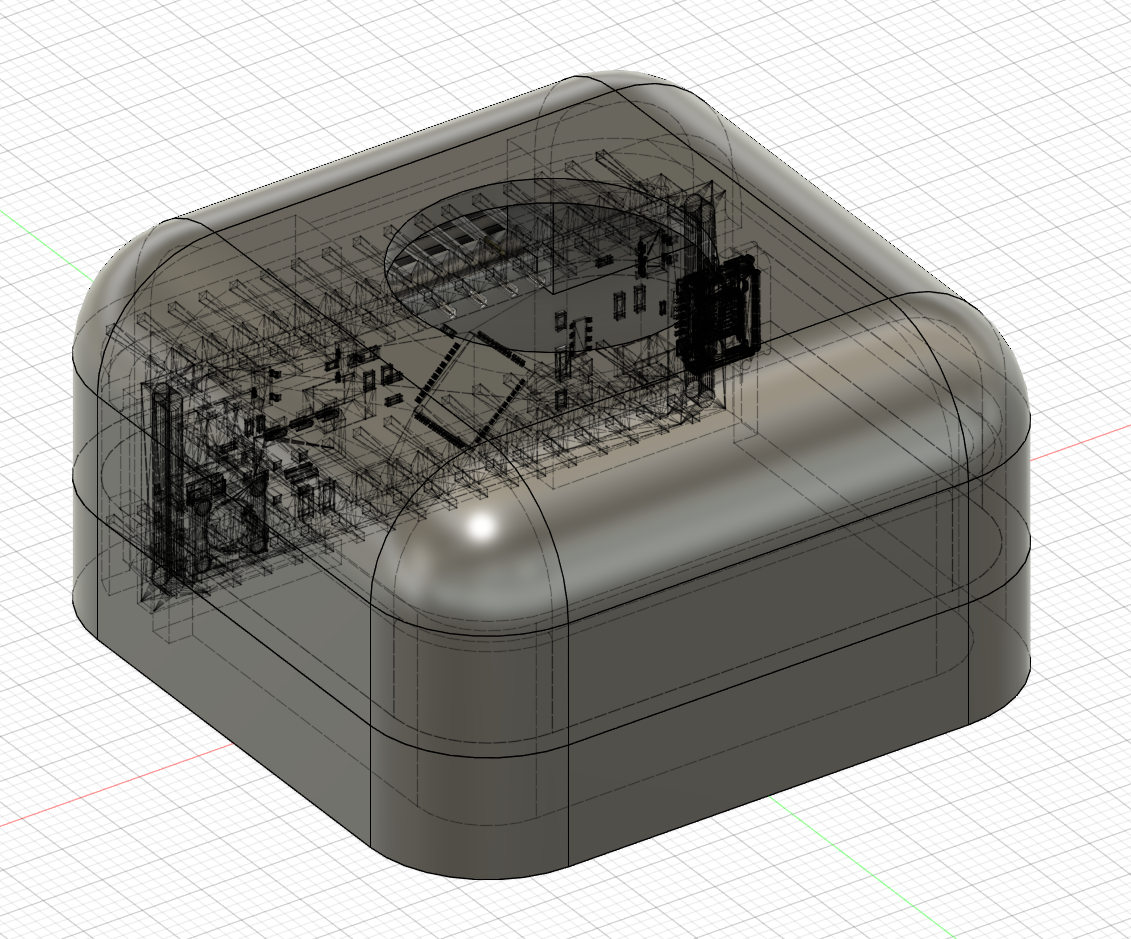

Custom parts and enclosures

Print it on your printerPrint it on your printer

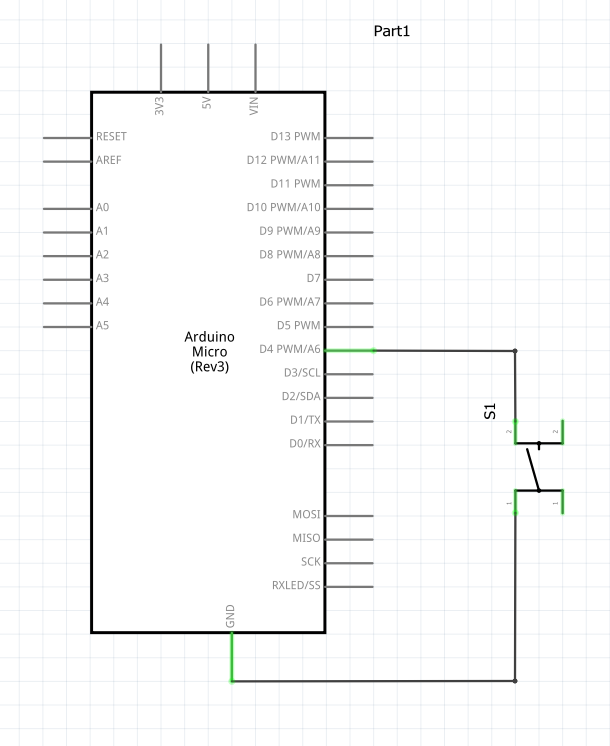

Schematics

Arduino 101: Build a Pedometer with DHT11 Sensor & LCD Display Smart Gesture-to-Text Hand Glove for Sign Language

Manufacturing process

3D printing
