DIY Arduino Claw Machine – Build Your Own Arcade Toy

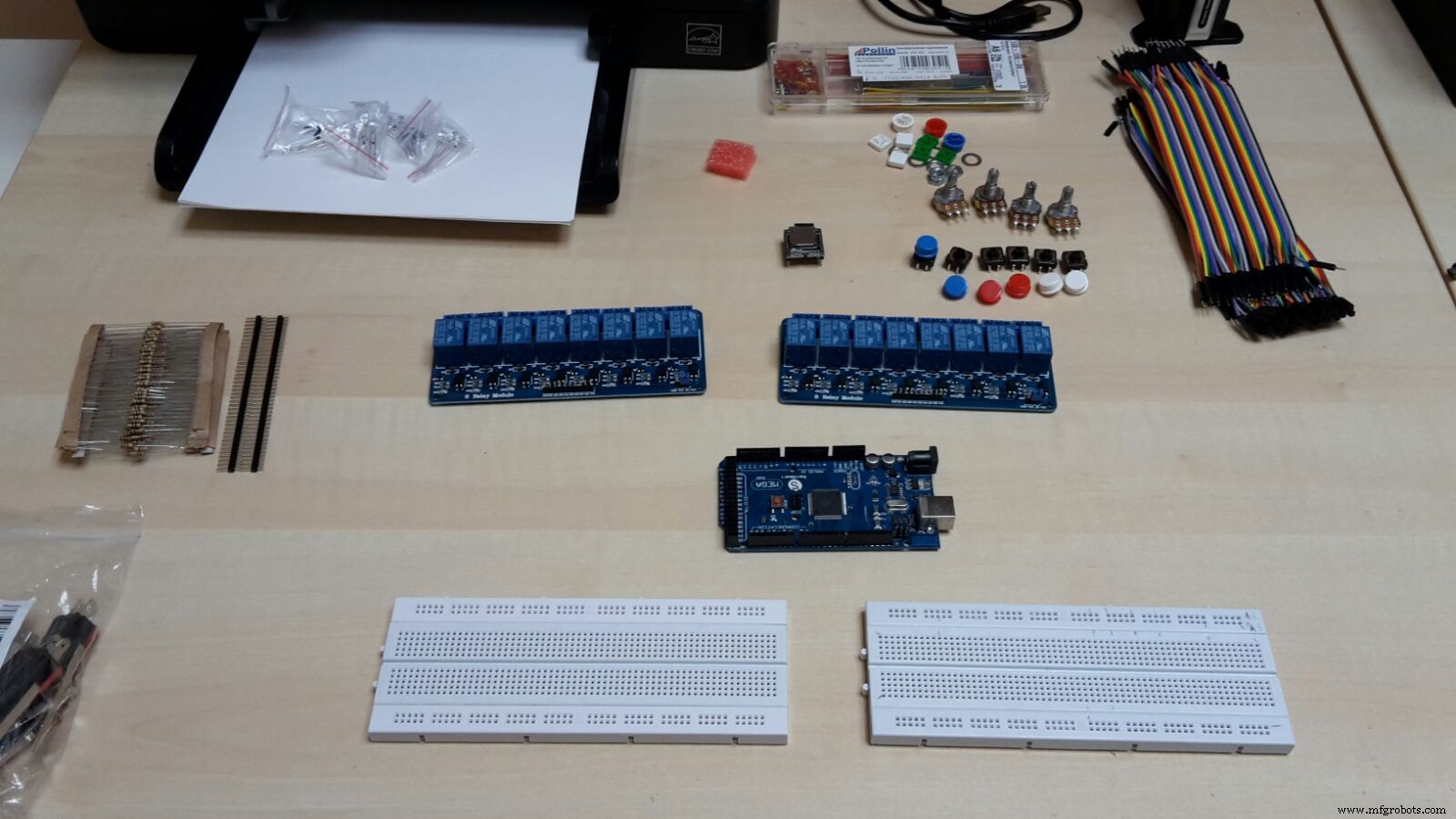

Components and supplies

DIY Arduino Claw Machine – Build Your Own Arcade Toy
Arduino Mega 2560
×1
Mini Mp3 Module
Used for Music
×1
8 Relays Shield
Used to control Lights and Motors
×2
Limit switches
×1
Button with LED
×1
Arcade Joystick
×1

Apps and online services

DIY Arduino Claw Machine – Build Your Own Arcade Toy
Arduino IDE

About this project

DIY Arduino Claw Machine – Build Your Own Arcade Toy

Here it is: The final version of my own homemade claw cachine!

It workes with an arduino which controls the motors. Lots of people already tried out playing with the machine, it was a lot of fun for all of them!

If you are interested in detailed information about the single build-steps, just take a look at the first two tutorials V1 and V2.

As German is my native language, excuse me for spelling/language mistakes. It might also be that some descriptions in my schematics are german, just use Google Translator and you know what I am talking about. :D

Step 1: The Cabinet

DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy

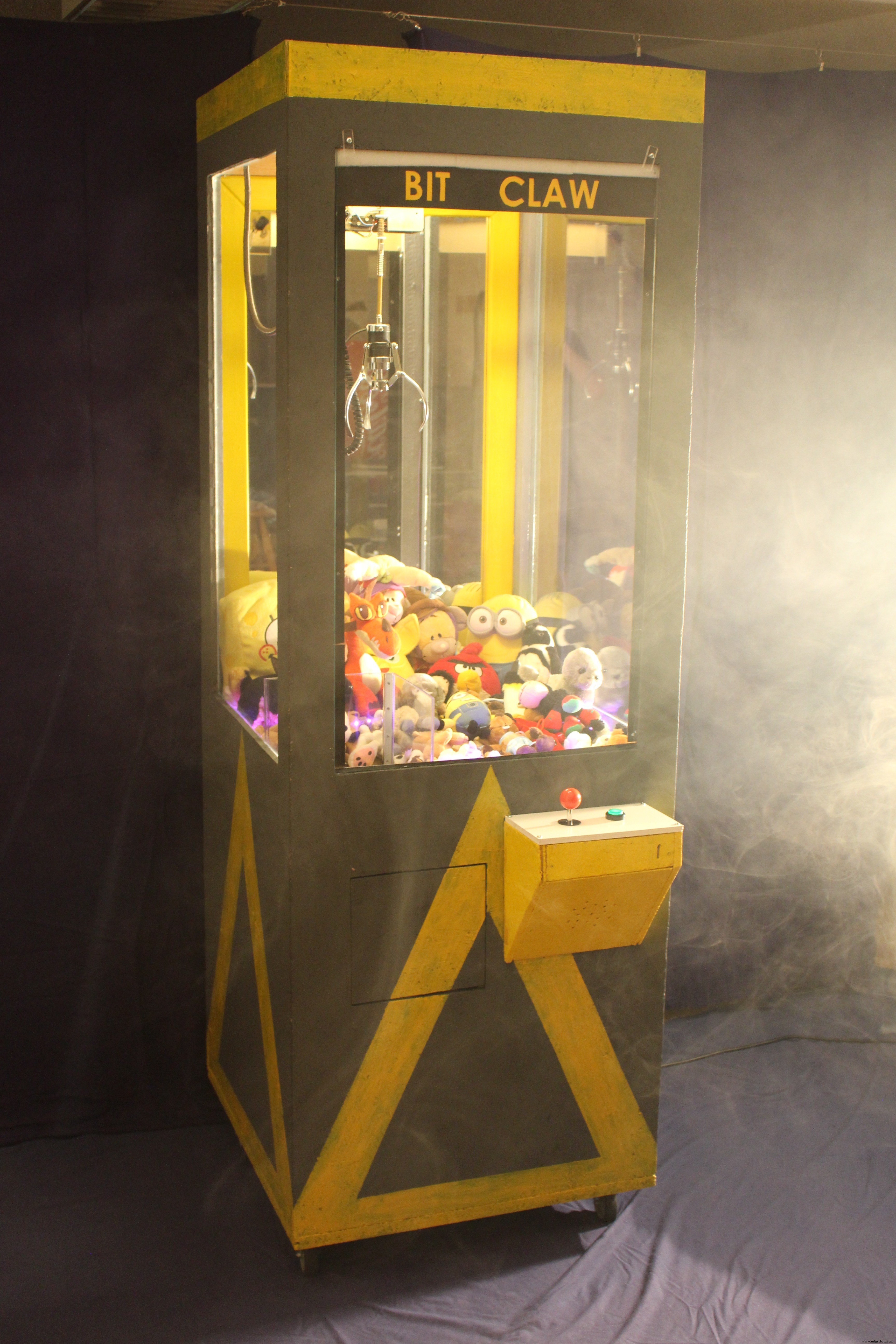

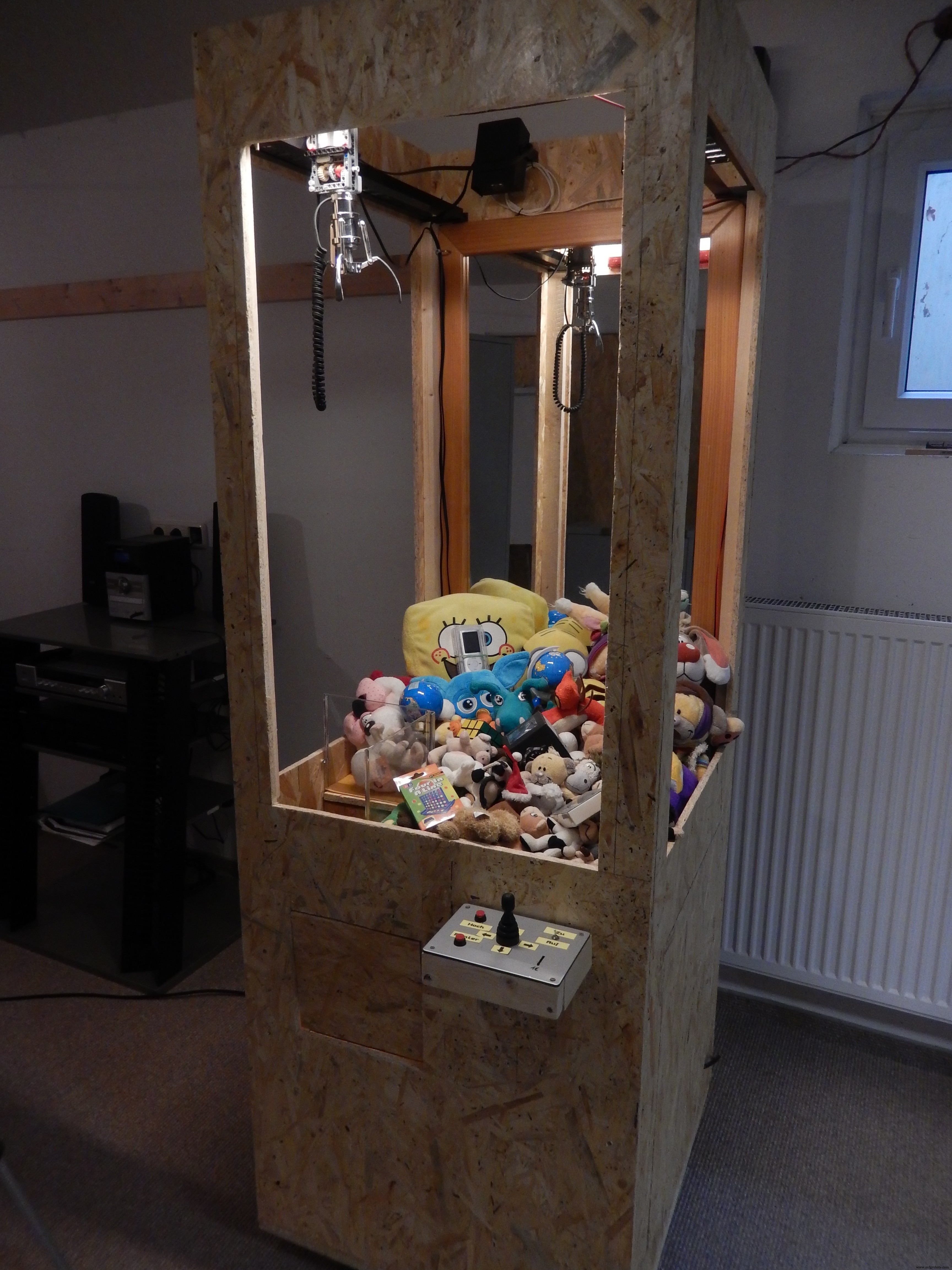

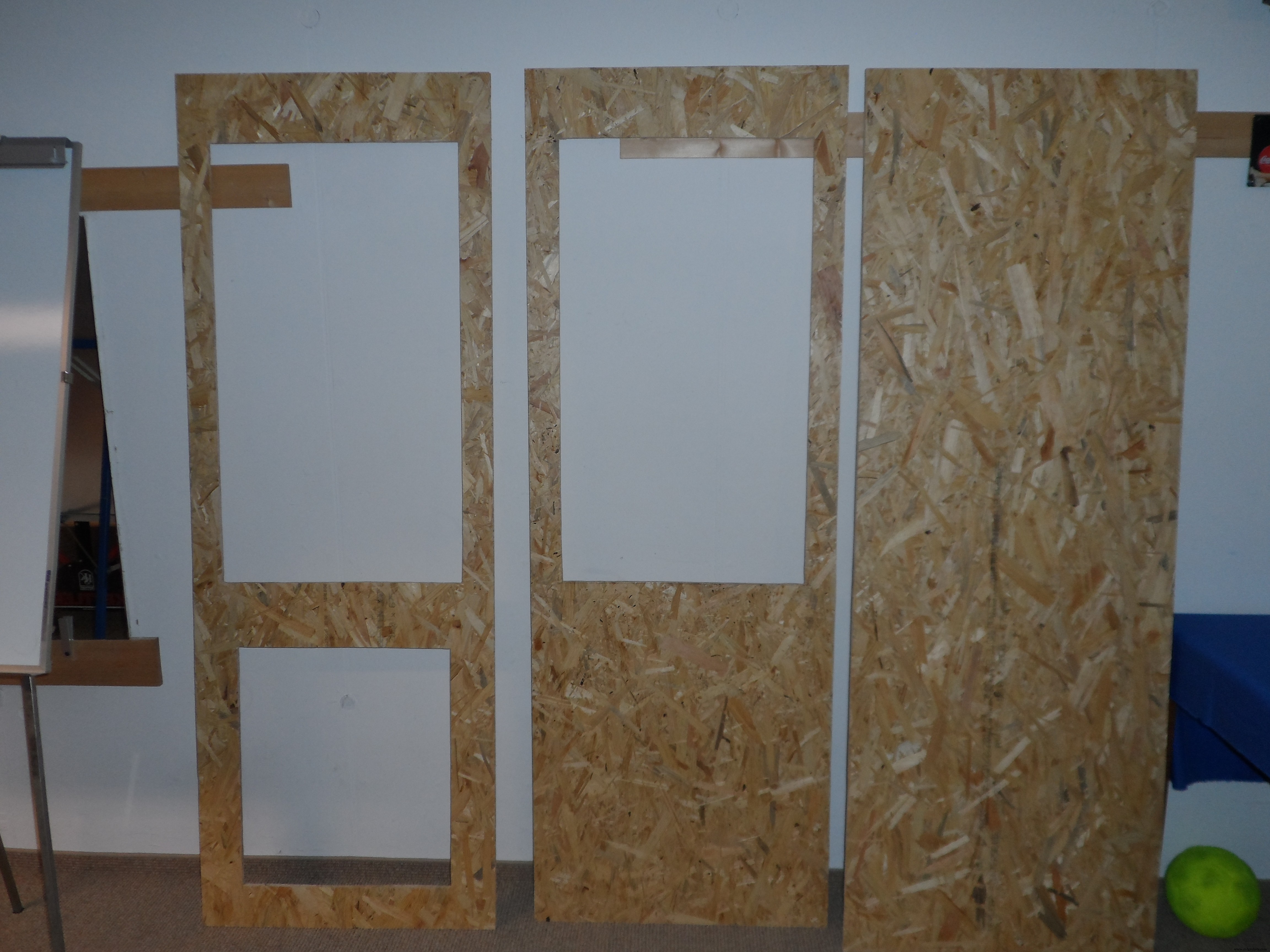

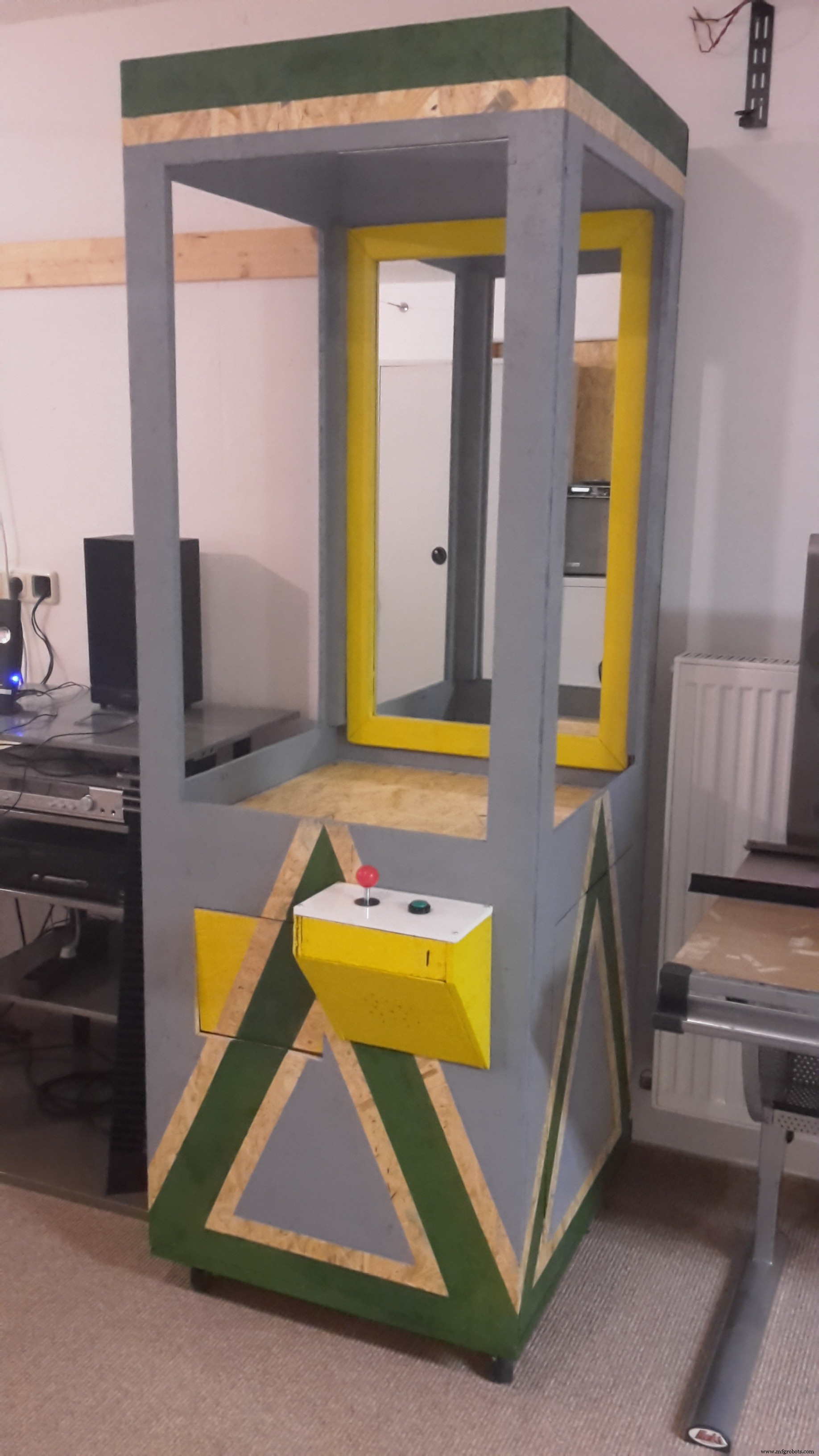

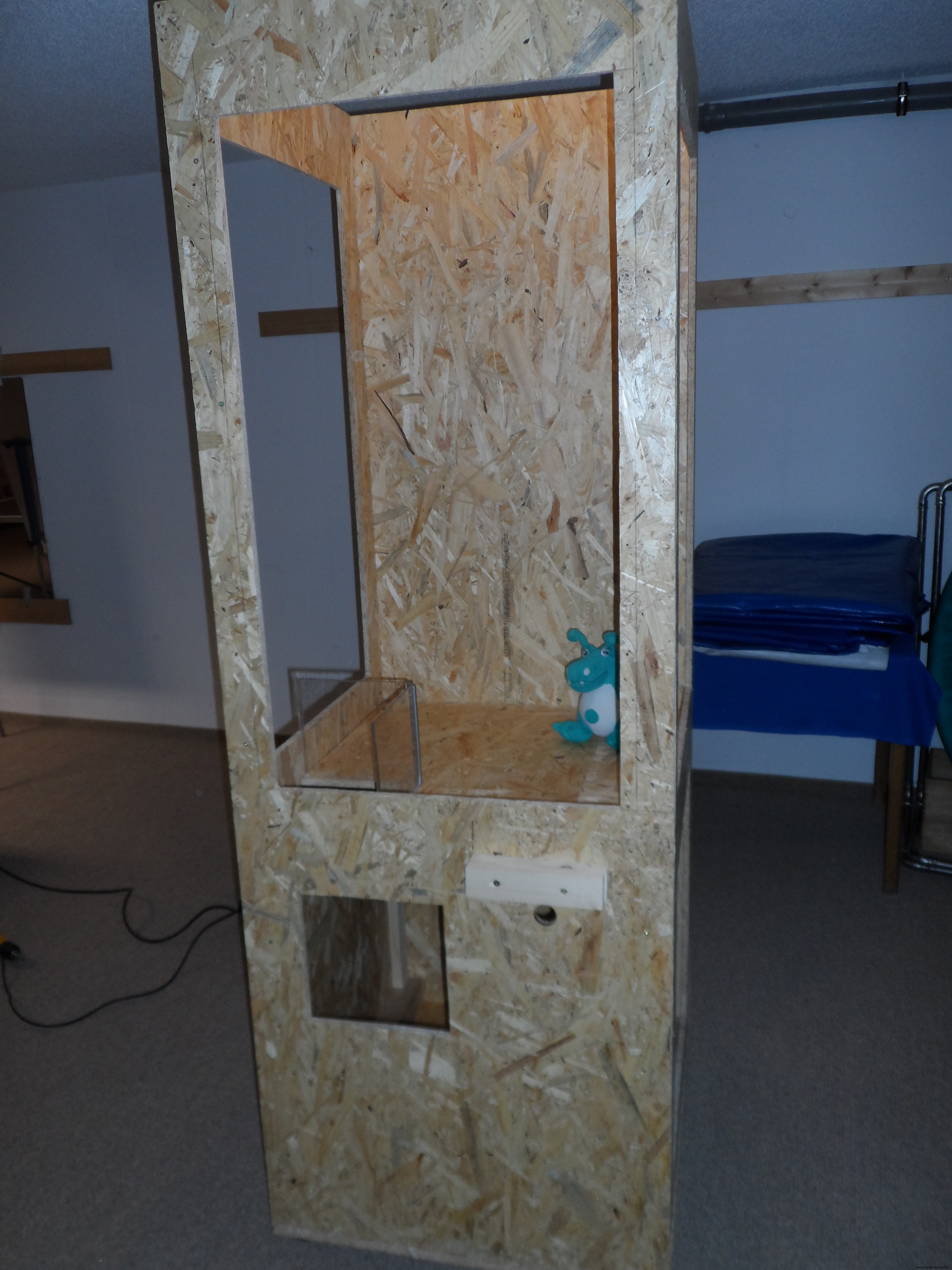

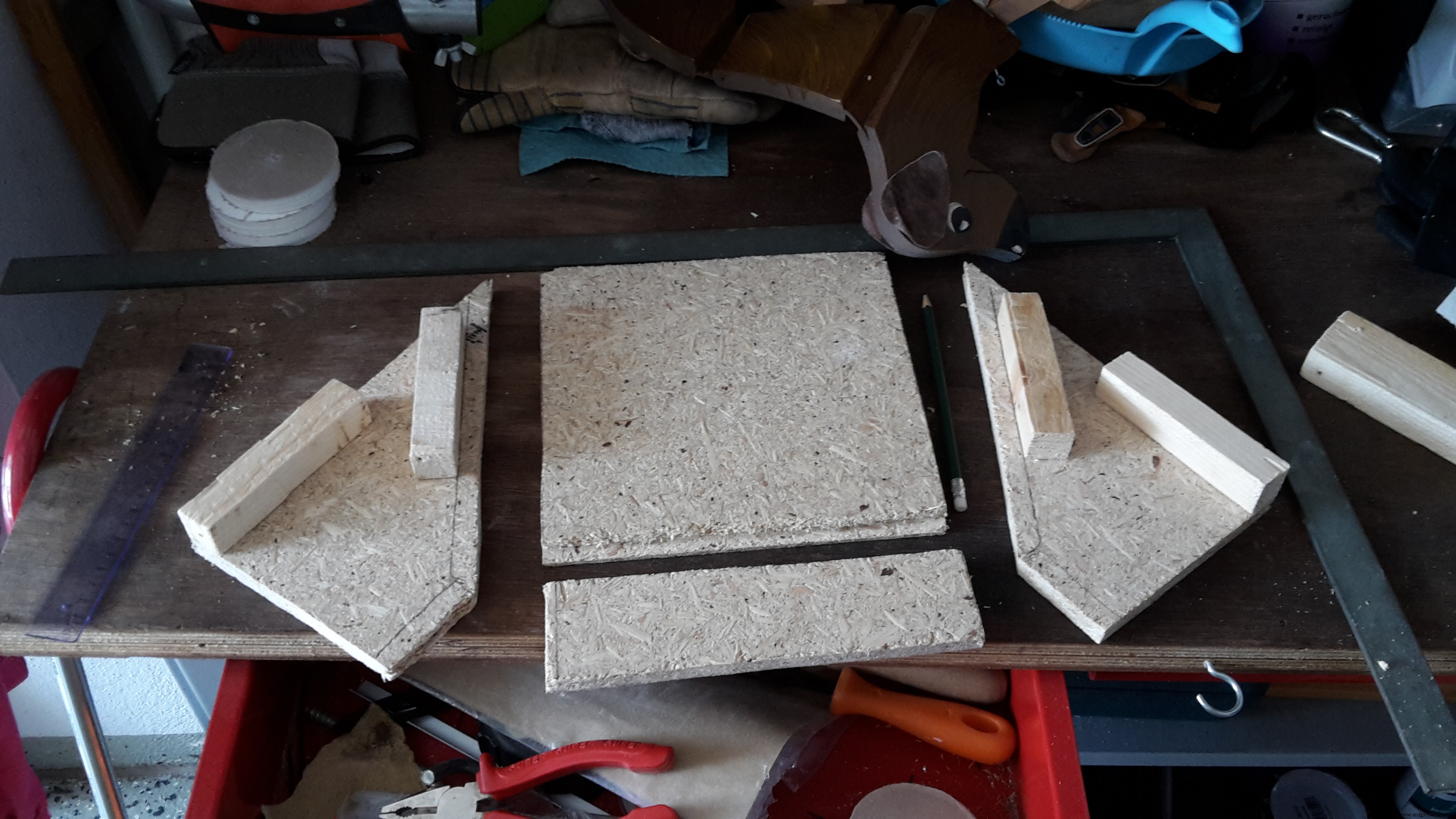

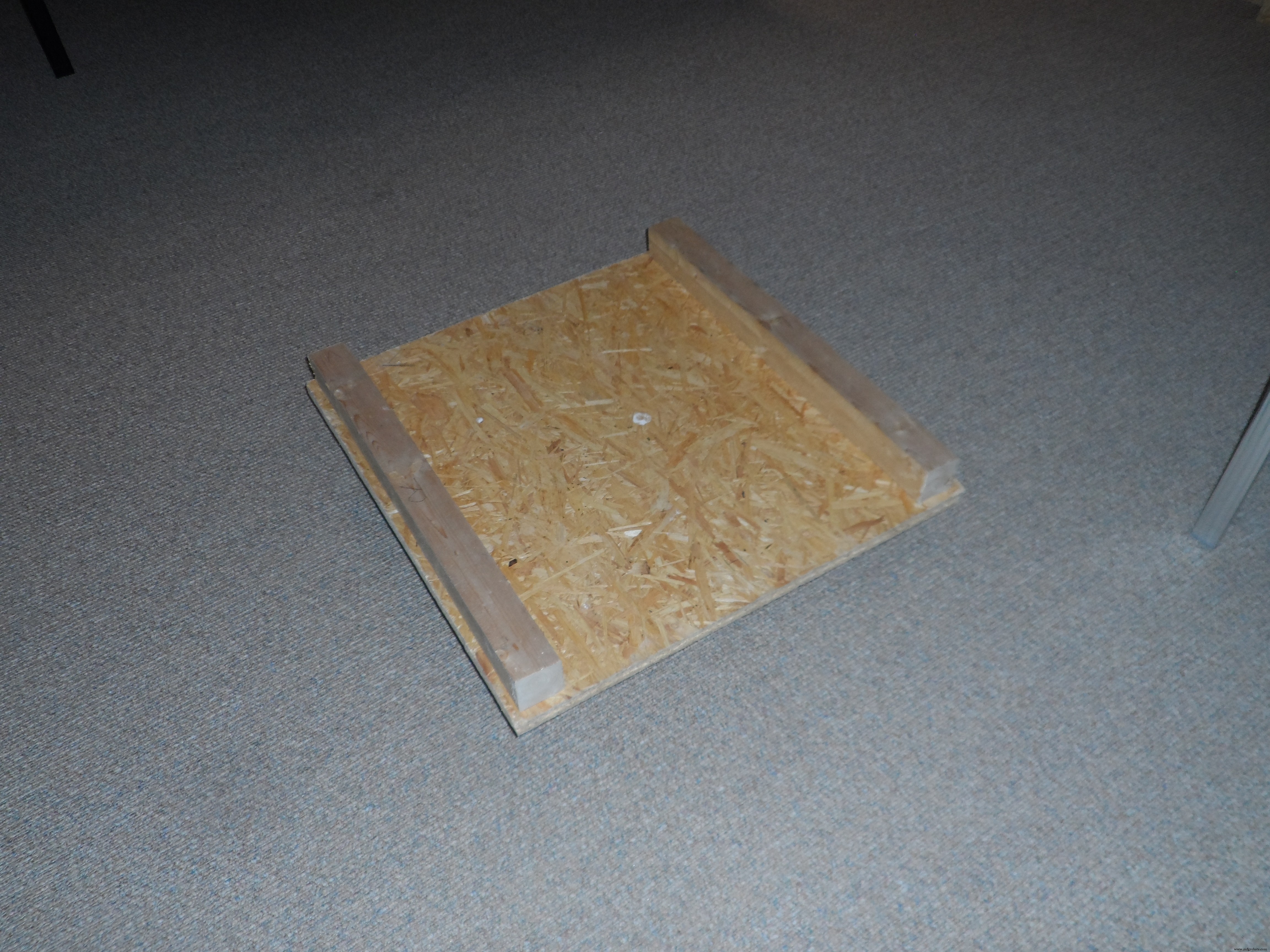

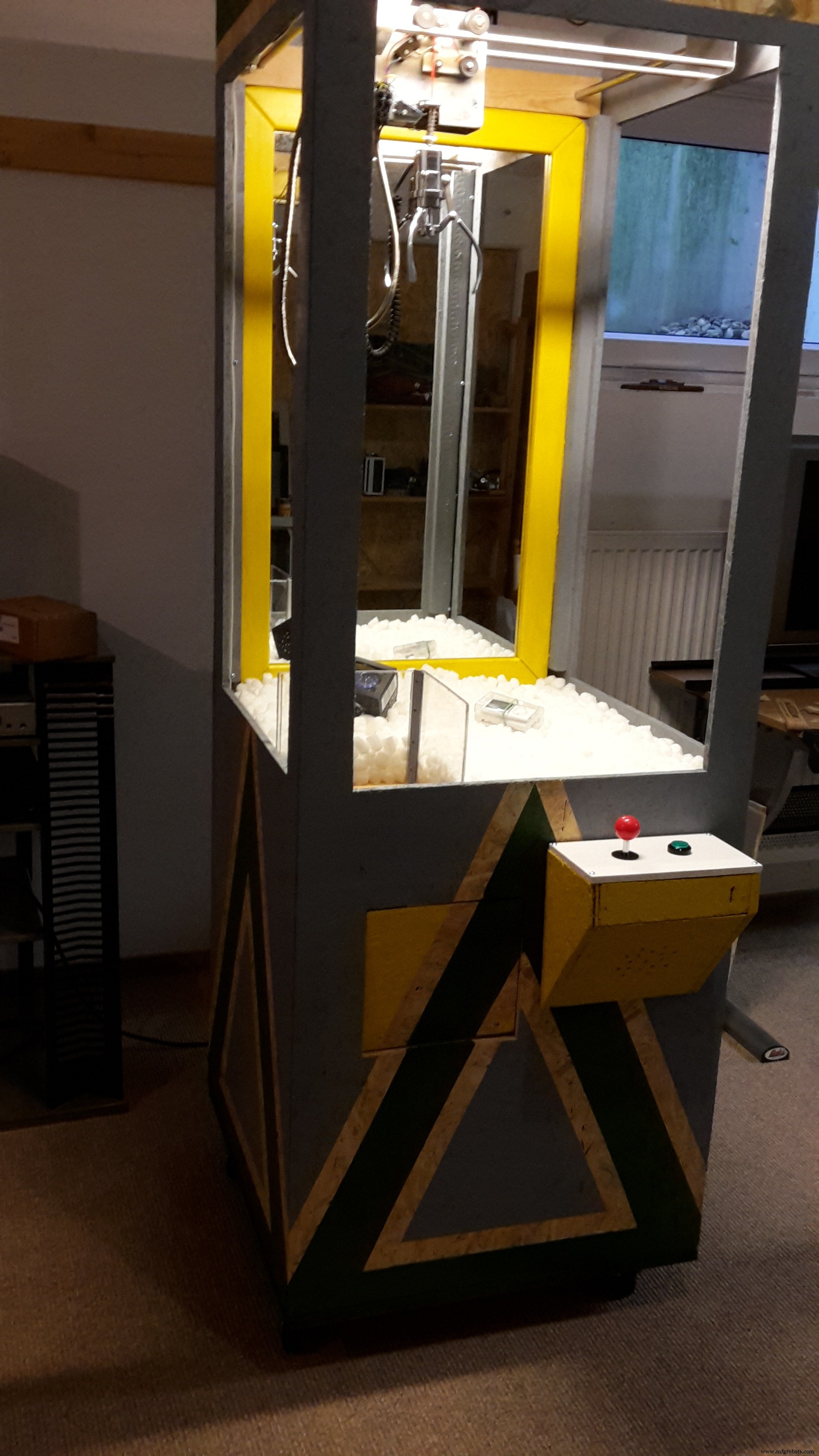

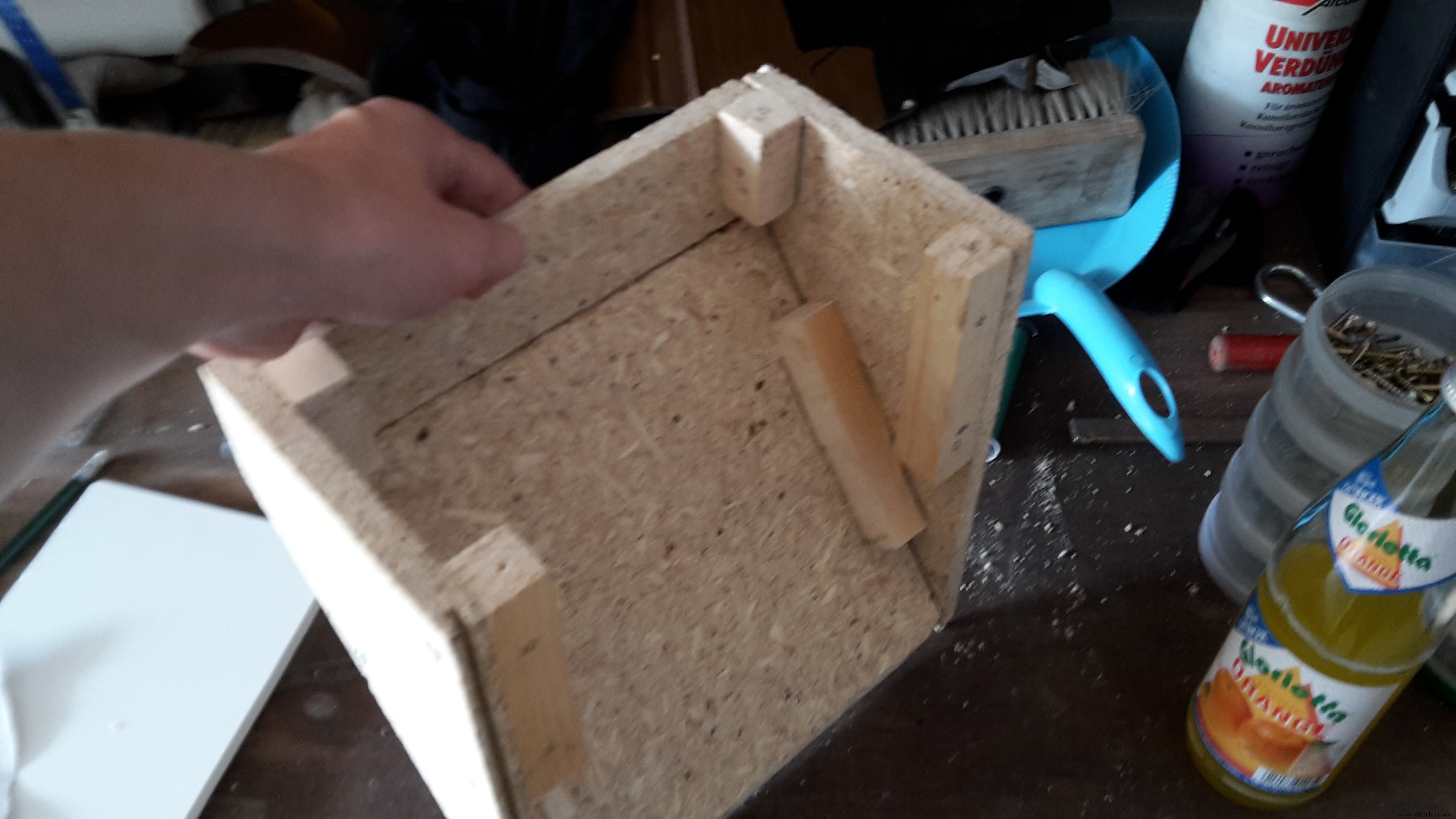

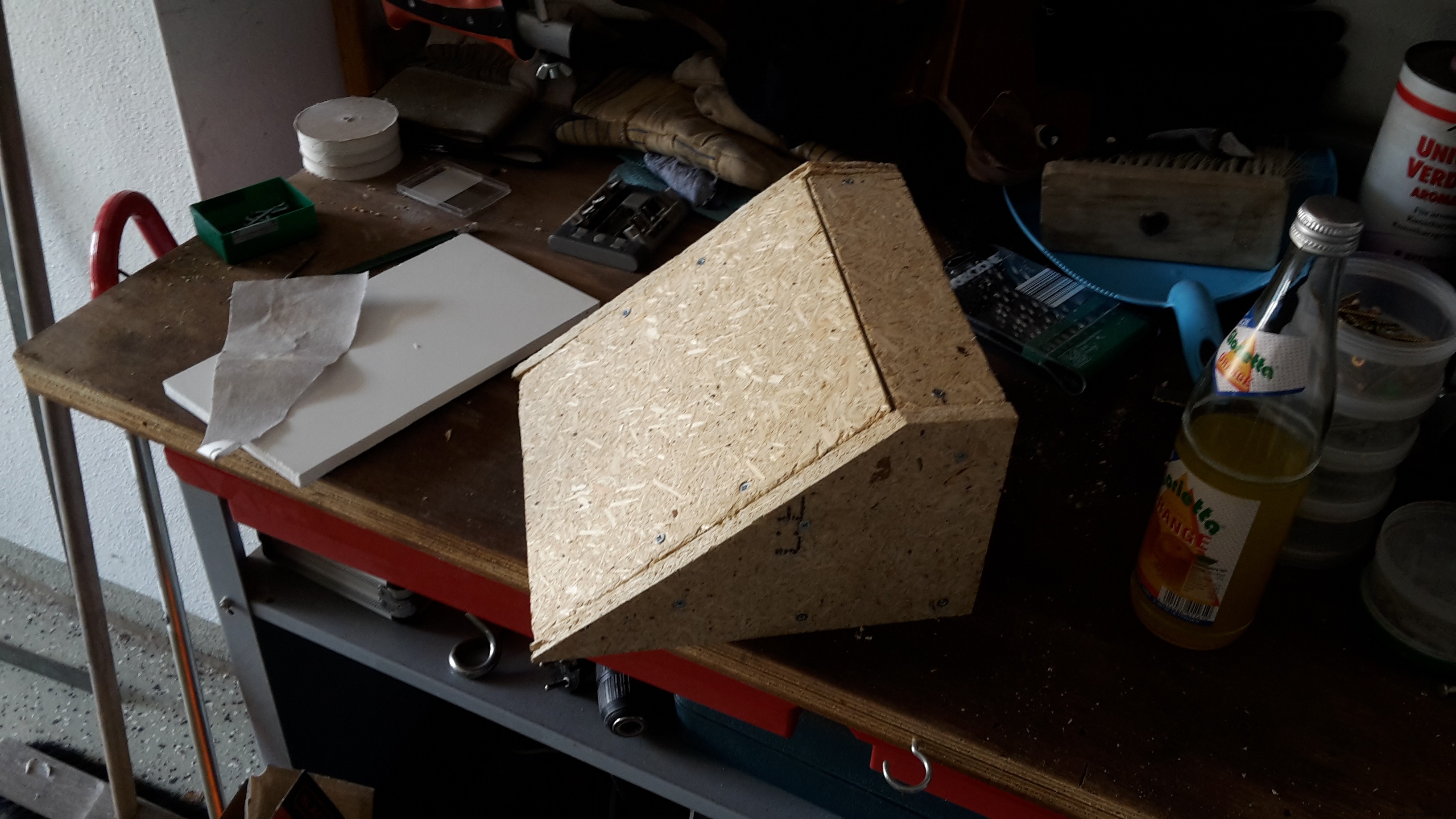

In 2015, I started building a wooden cabinet for the claw machine. I always updated it until today: I added a color design, lights and glass panes.

Step 2: The Electronics

DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy

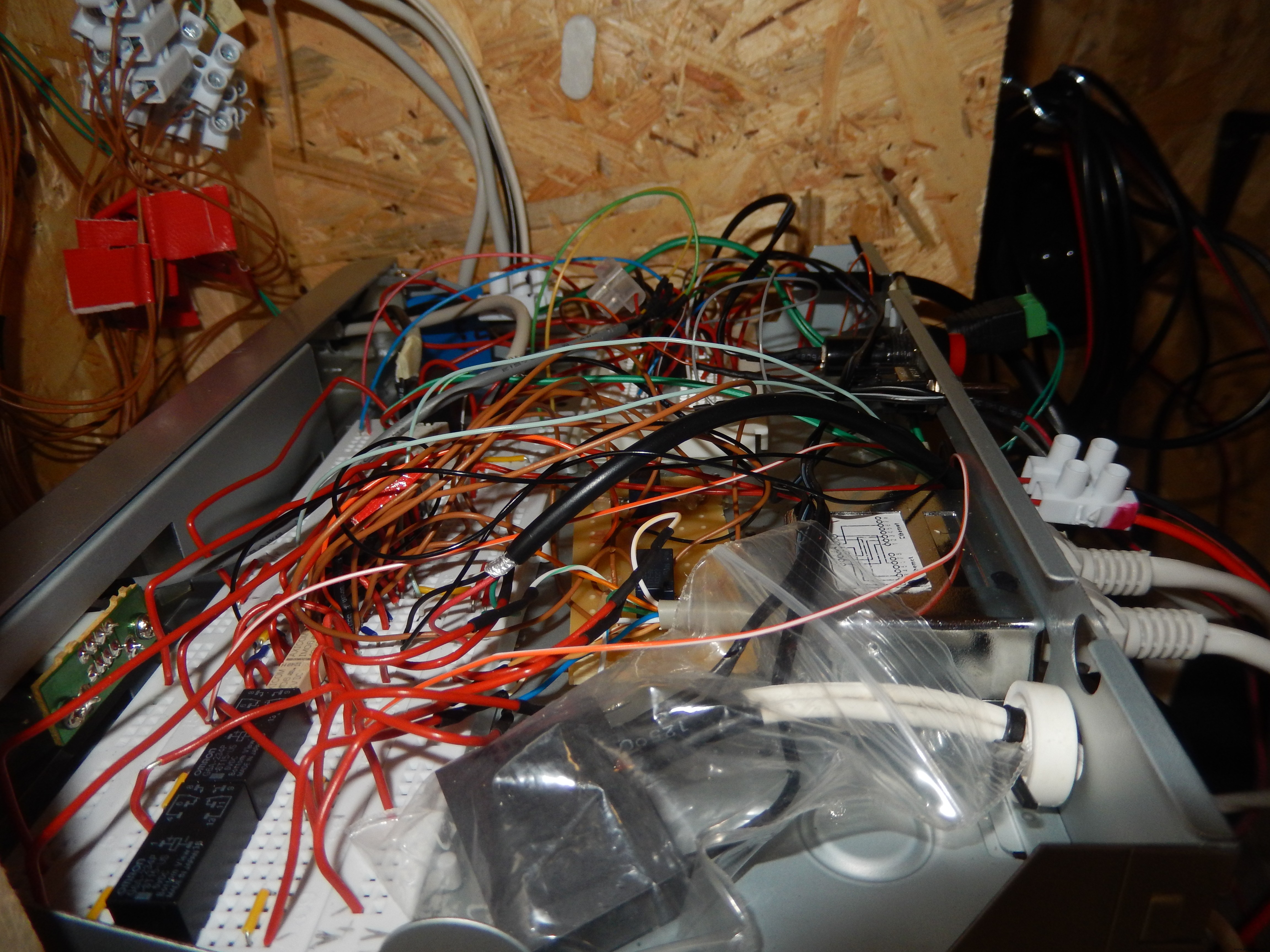

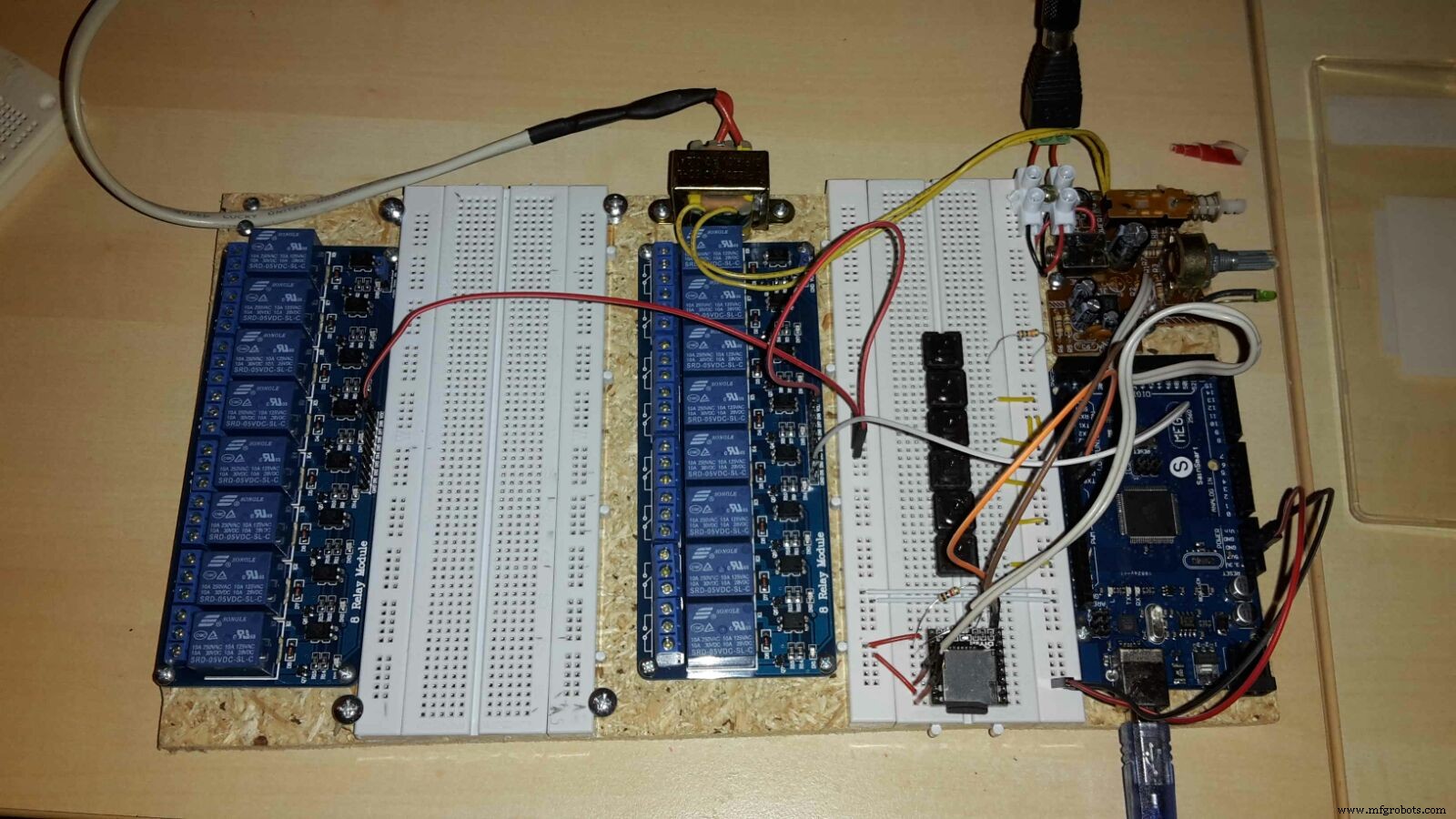

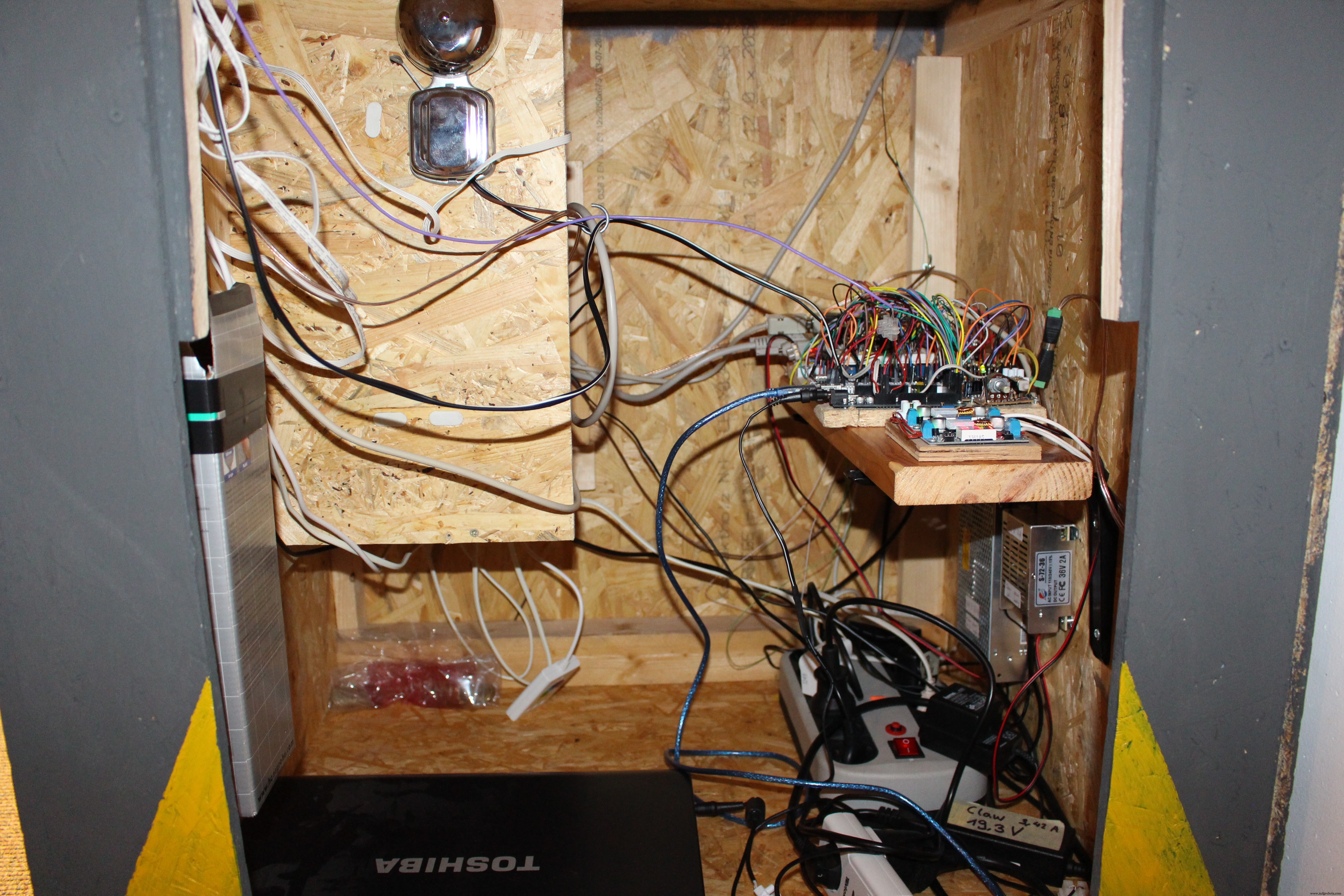

The most difficult and complicated part of the whole project: The electronics. I am working on the perfection of them until today.

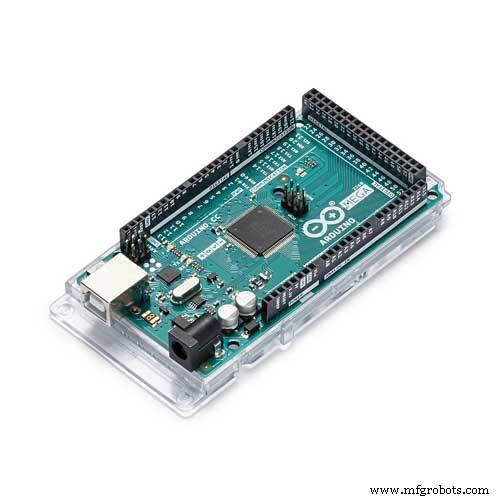

The "brain" of the machine is an arduino MEGA 2560, as it has enough in/outputs for all the motors, etc.

The programming is very similar to real claw machines, even with a rigged mode. Then the claw loses strength when it moved up again.

You can download the zip file containing the current version of the code for the claw machine!

Step 3: Accessoires

DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy

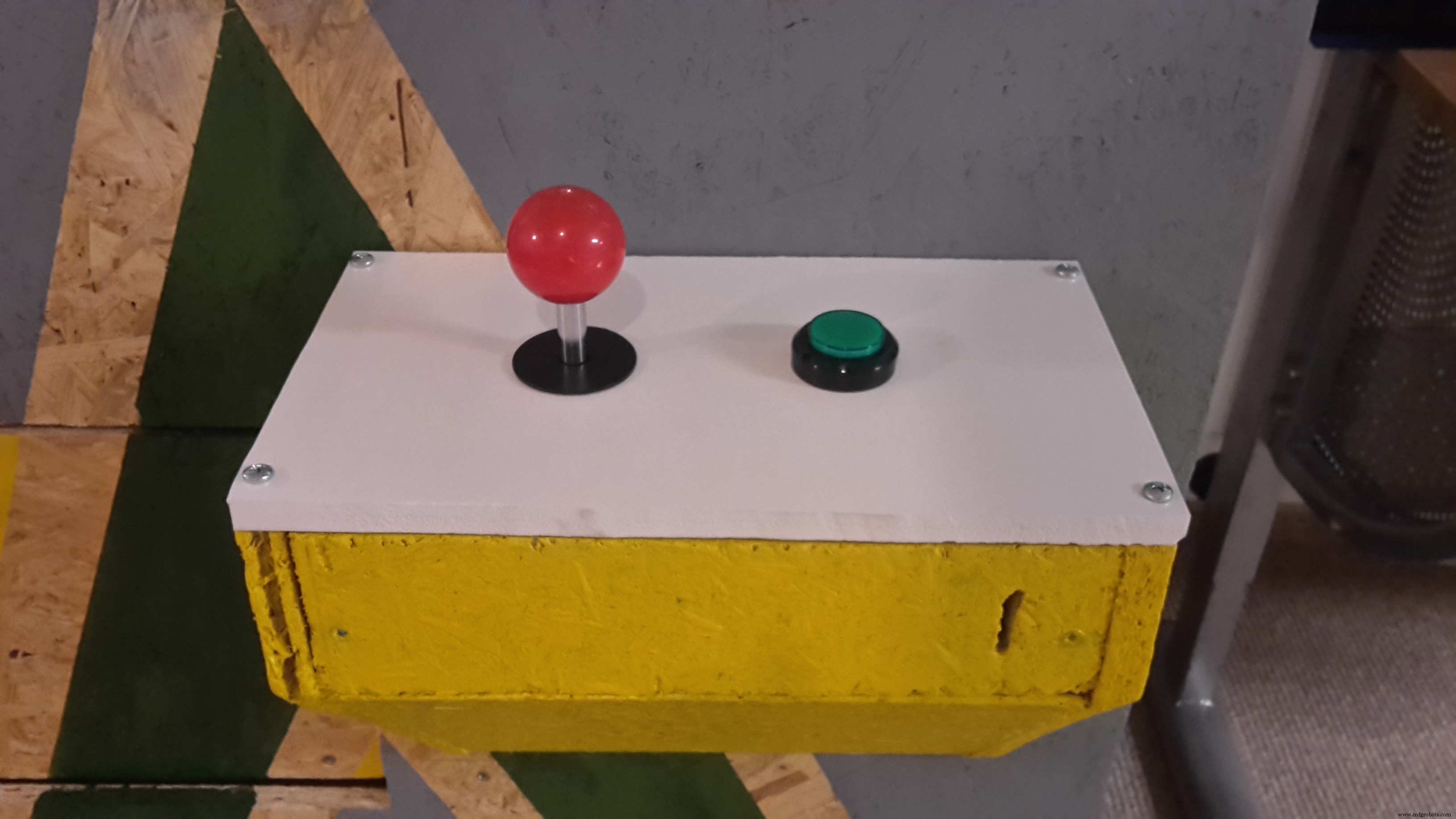

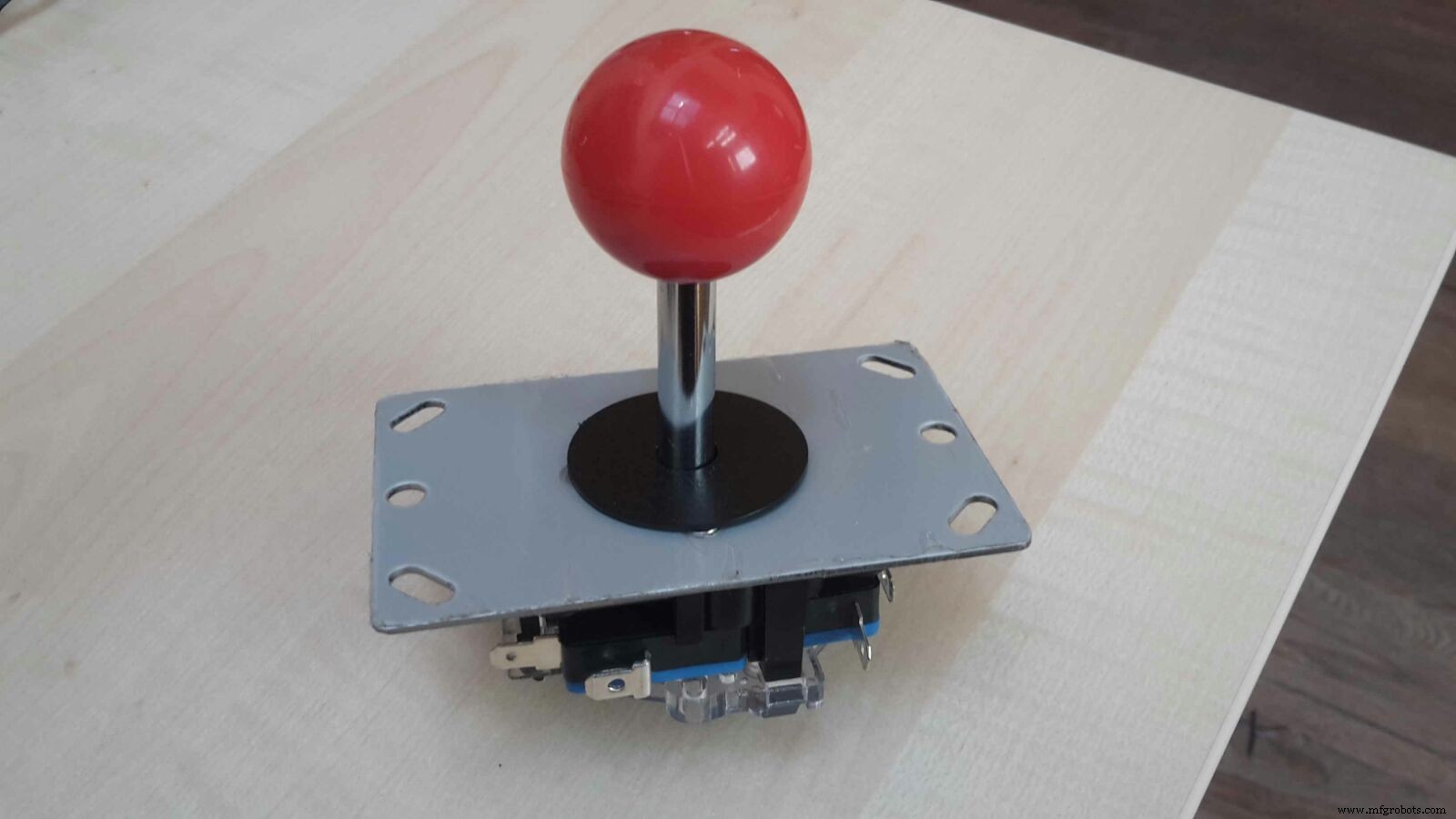

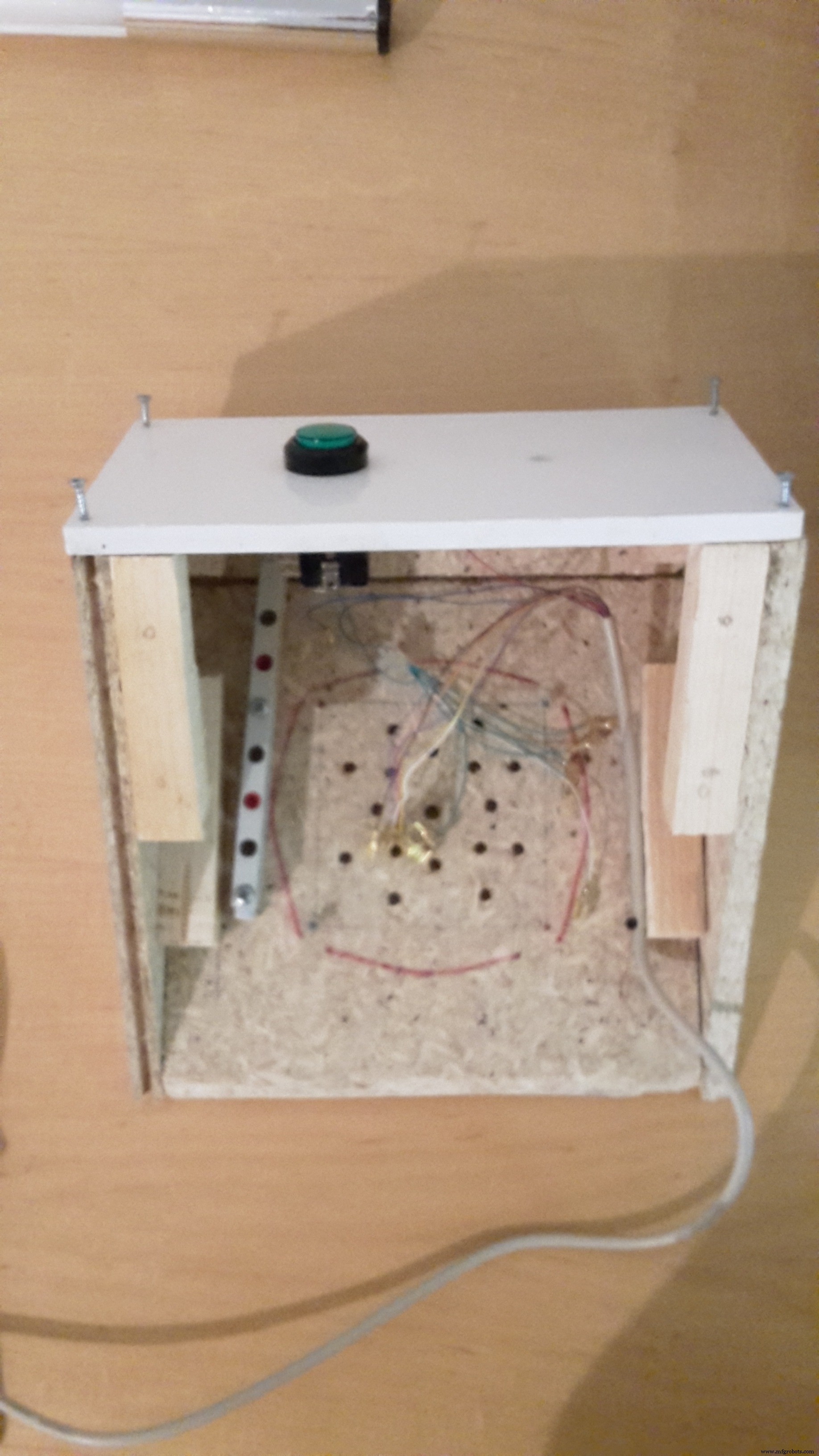

Of course the machine needs some "accessoires" like the keypad and some LED lights.

Step 4: The Gantry Assembly

DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy

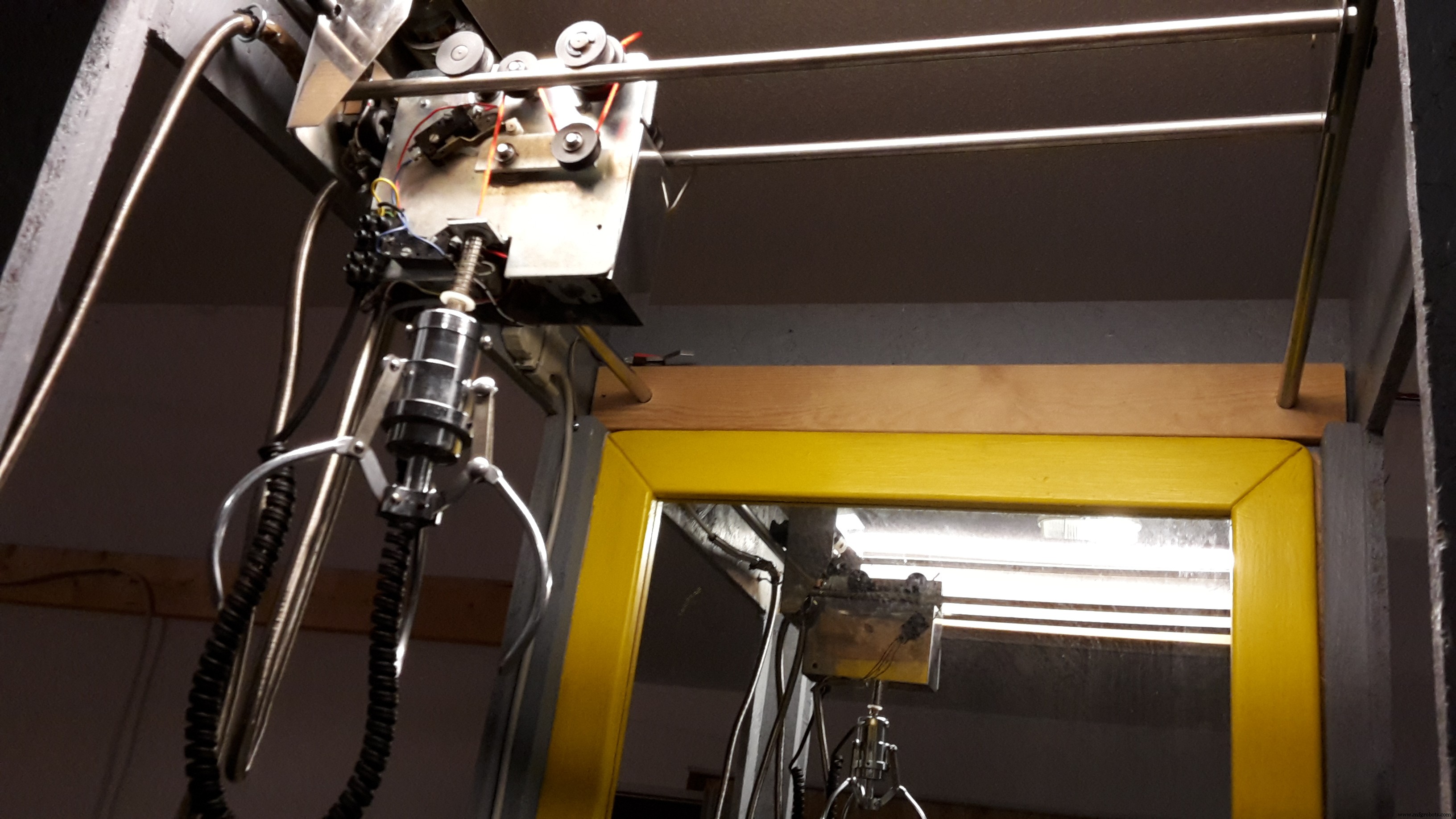

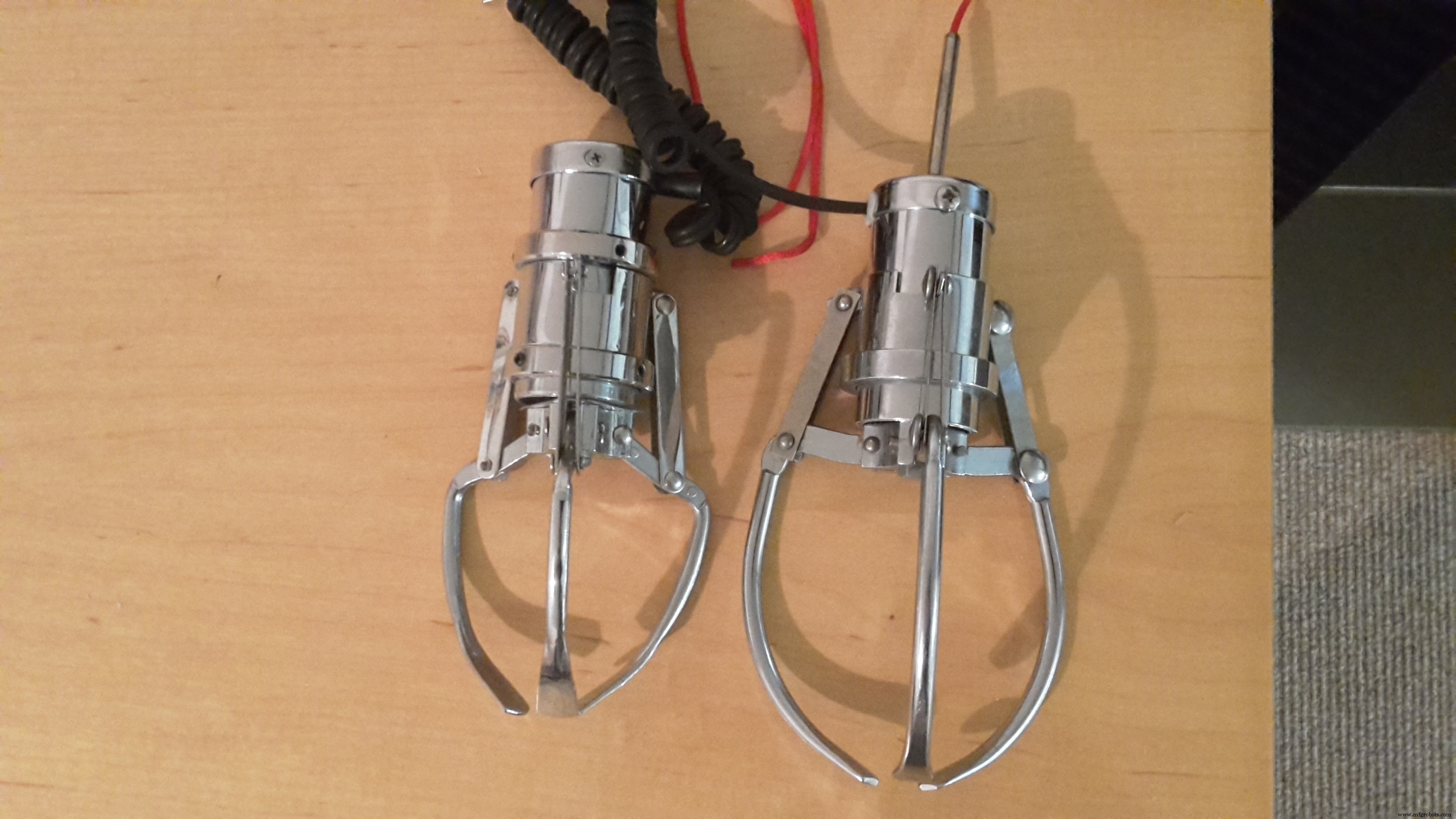

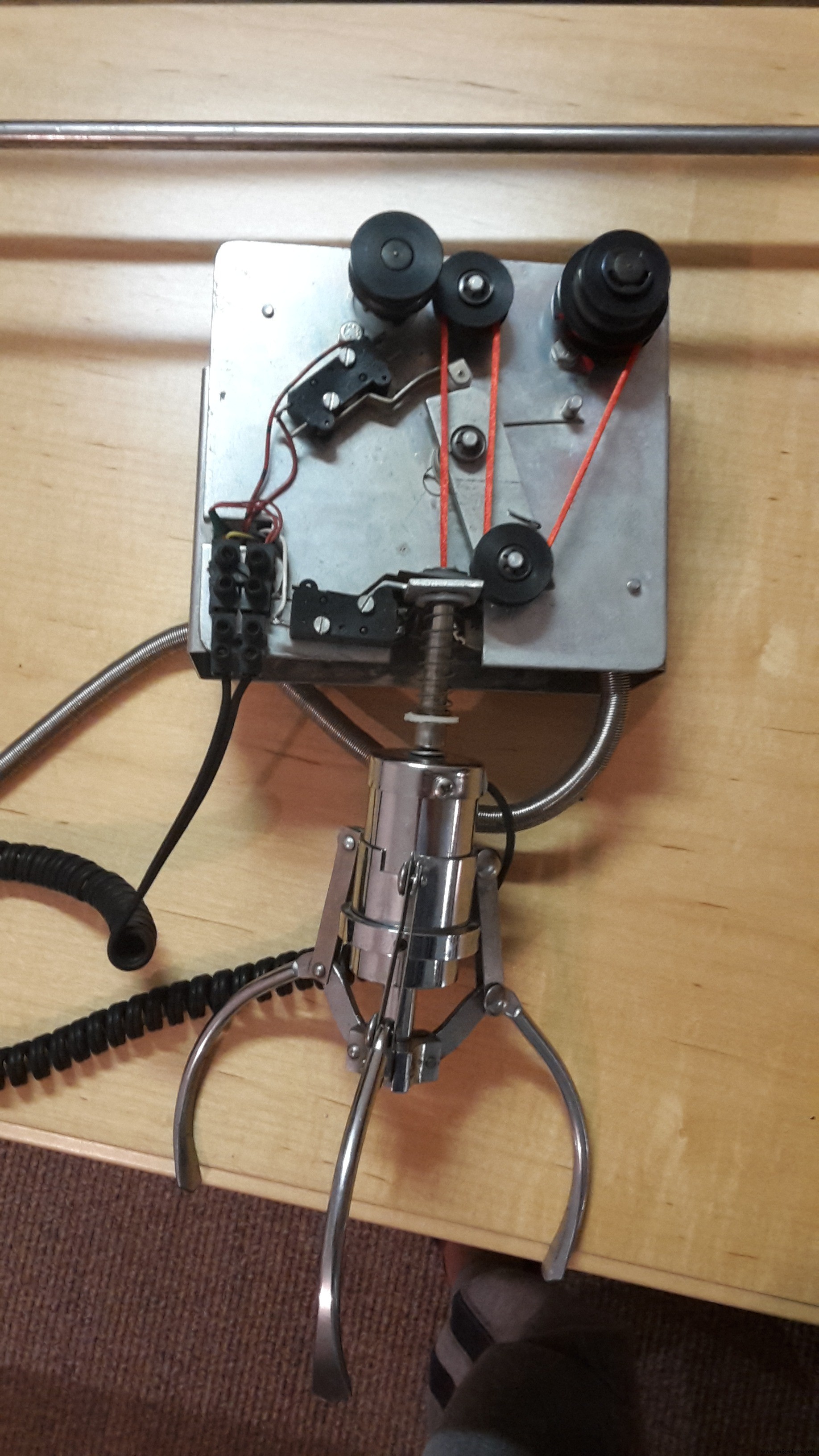

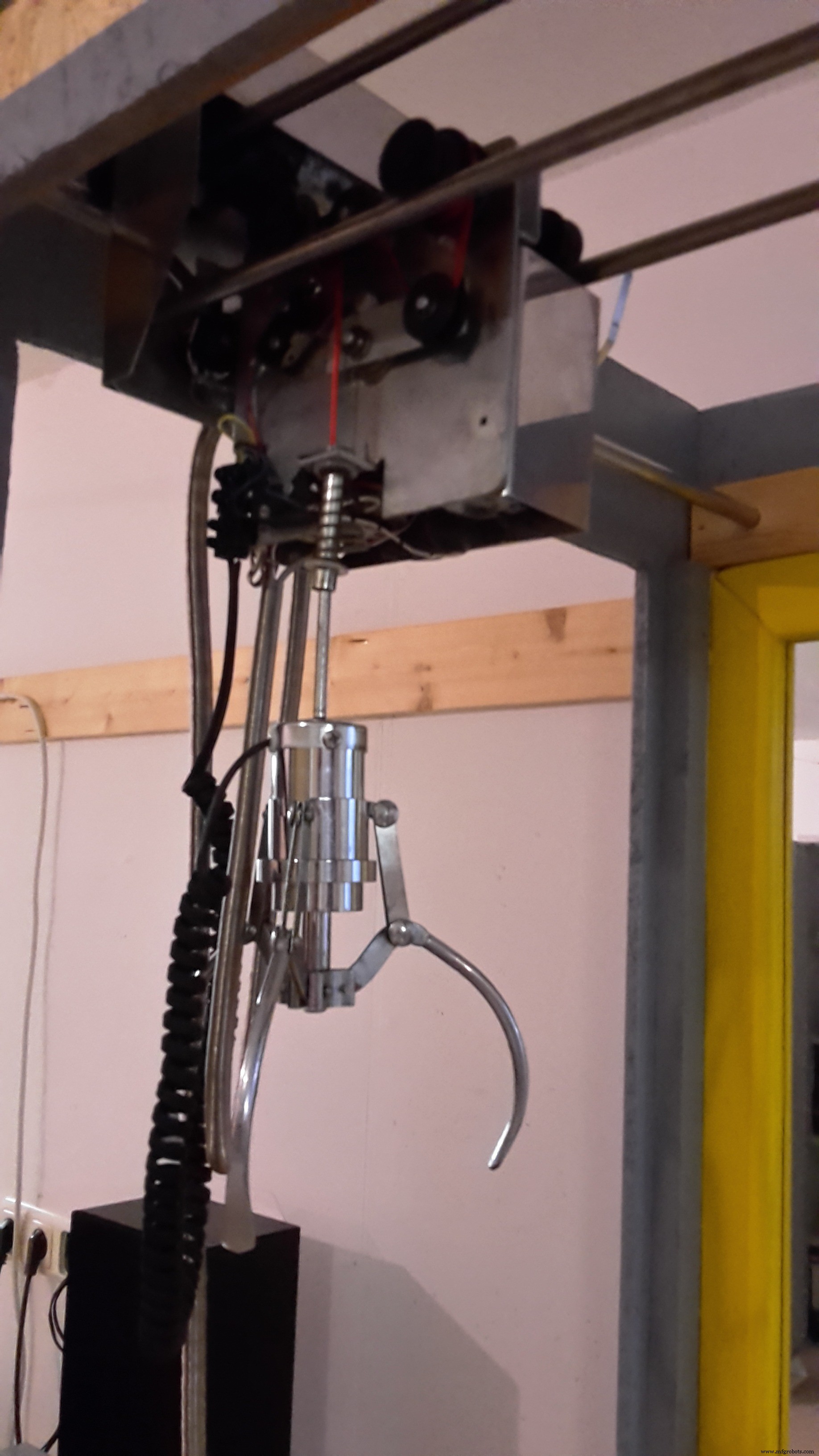

It is the most important part of the whole machine: The motors and the claw itself! I bought the assembly online, as it would be very complicated to build it yourself. Then I just rewired the whole thing and added some limit switches.

Step 5: The History of My Claw Machine

DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy
DIY Arduino Claw Machine – Build Your Own Arcade Toy

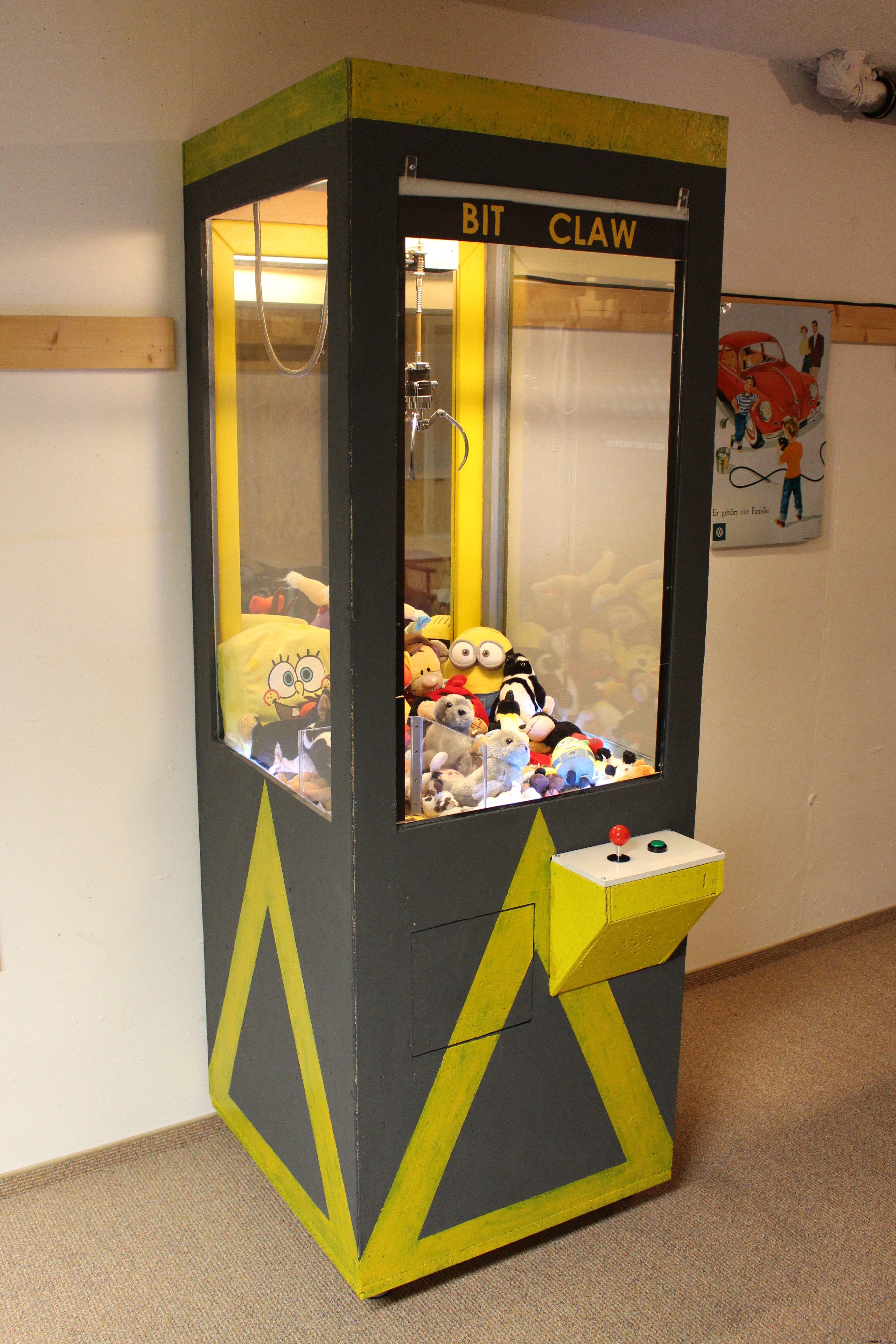

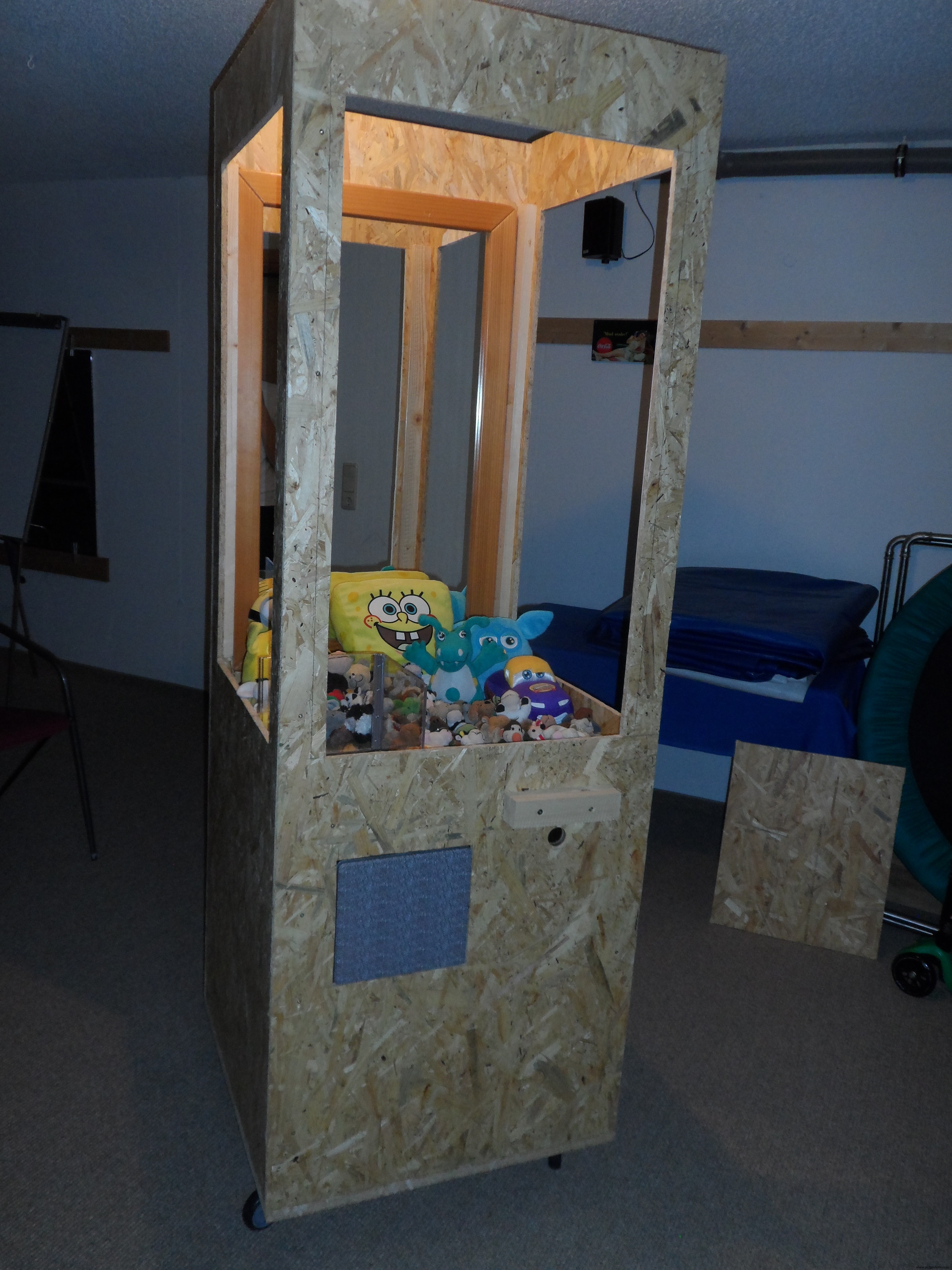

A few pictures of the very first version of 2015 until the latest and final version of 2018 of my awesome claw machine.

Here are two video with gameplay:

Thank you for your interest on my tutorial! Have a nice day!

Code

  • Claw Machine Code V3005
Claw Machine Code V3005C/C++
This is the complete Code of my Claw Machine!
No preview (download only).

Custom parts and enclosures

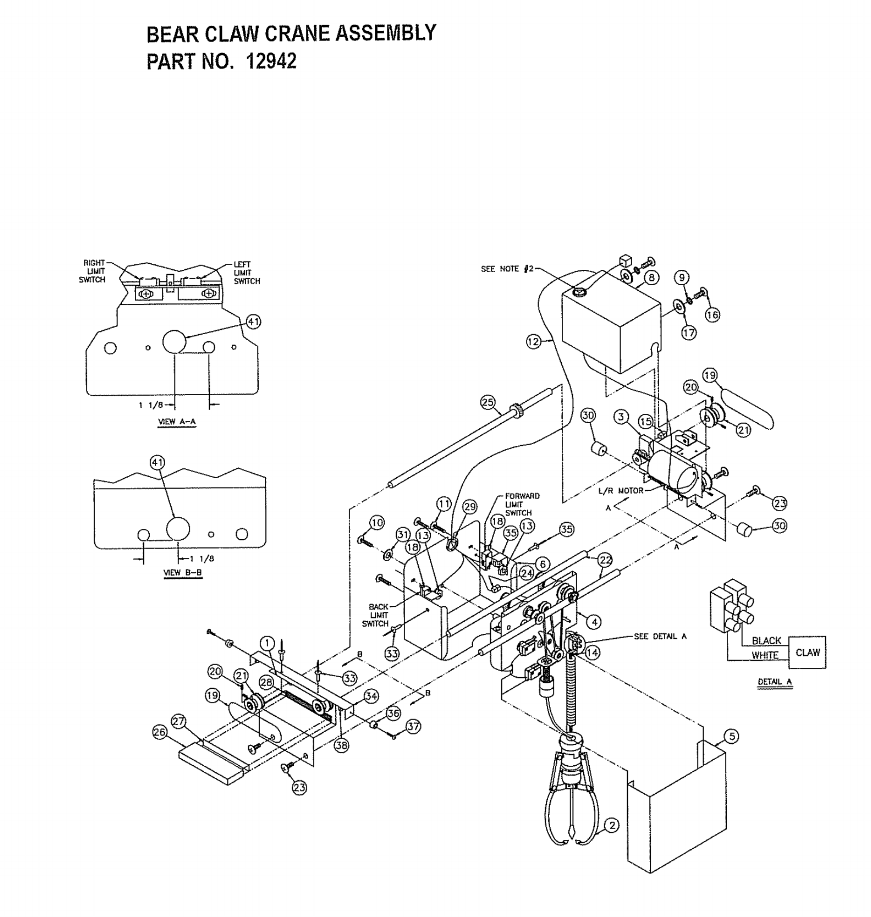

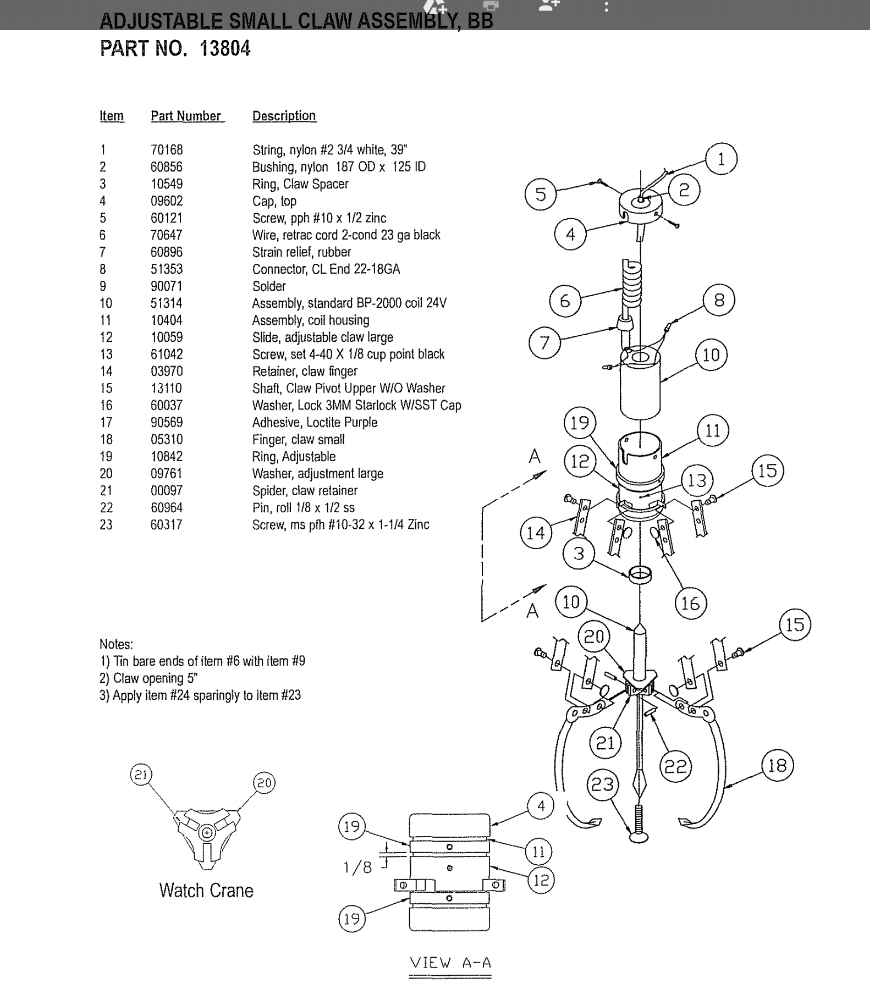

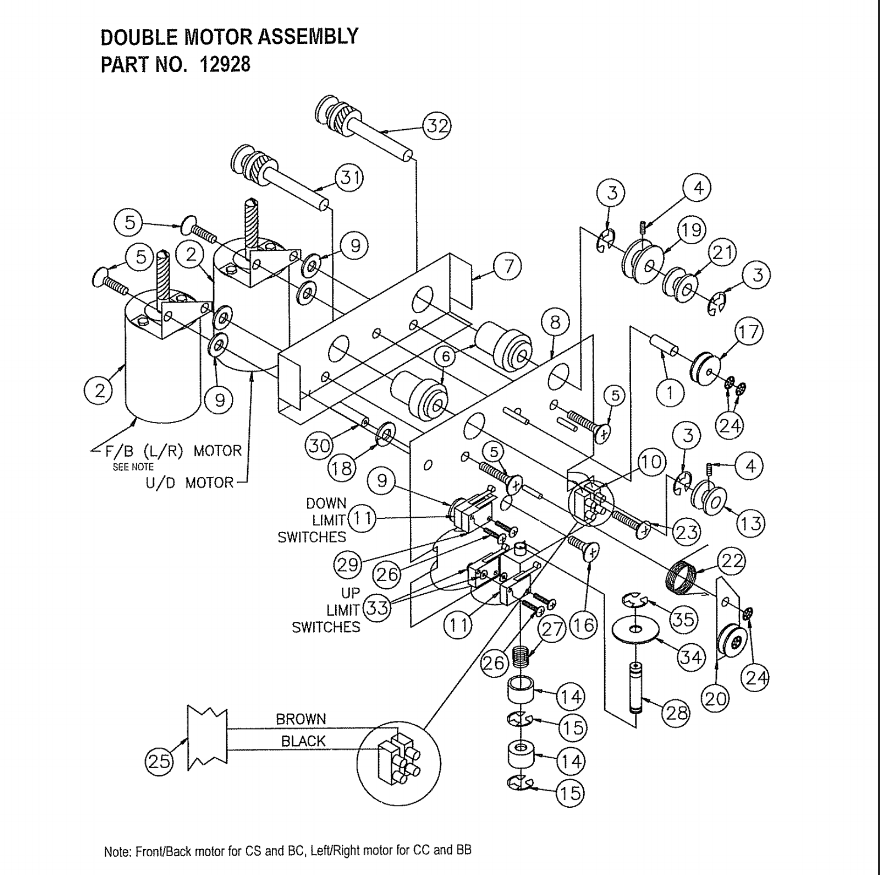

I found this in a Manual of a real Claw Machine.DIY Arduino Claw Machine – Build Your Own Arcade ToyI found this in a Manual of a real Claw Machine.DIY Arduino Claw Machine – Build Your Own Arcade ToyI found this in a Manual of a real Claw Machine.DIY Arduino Claw Machine – Build Your Own Arcade Toy

Schematics

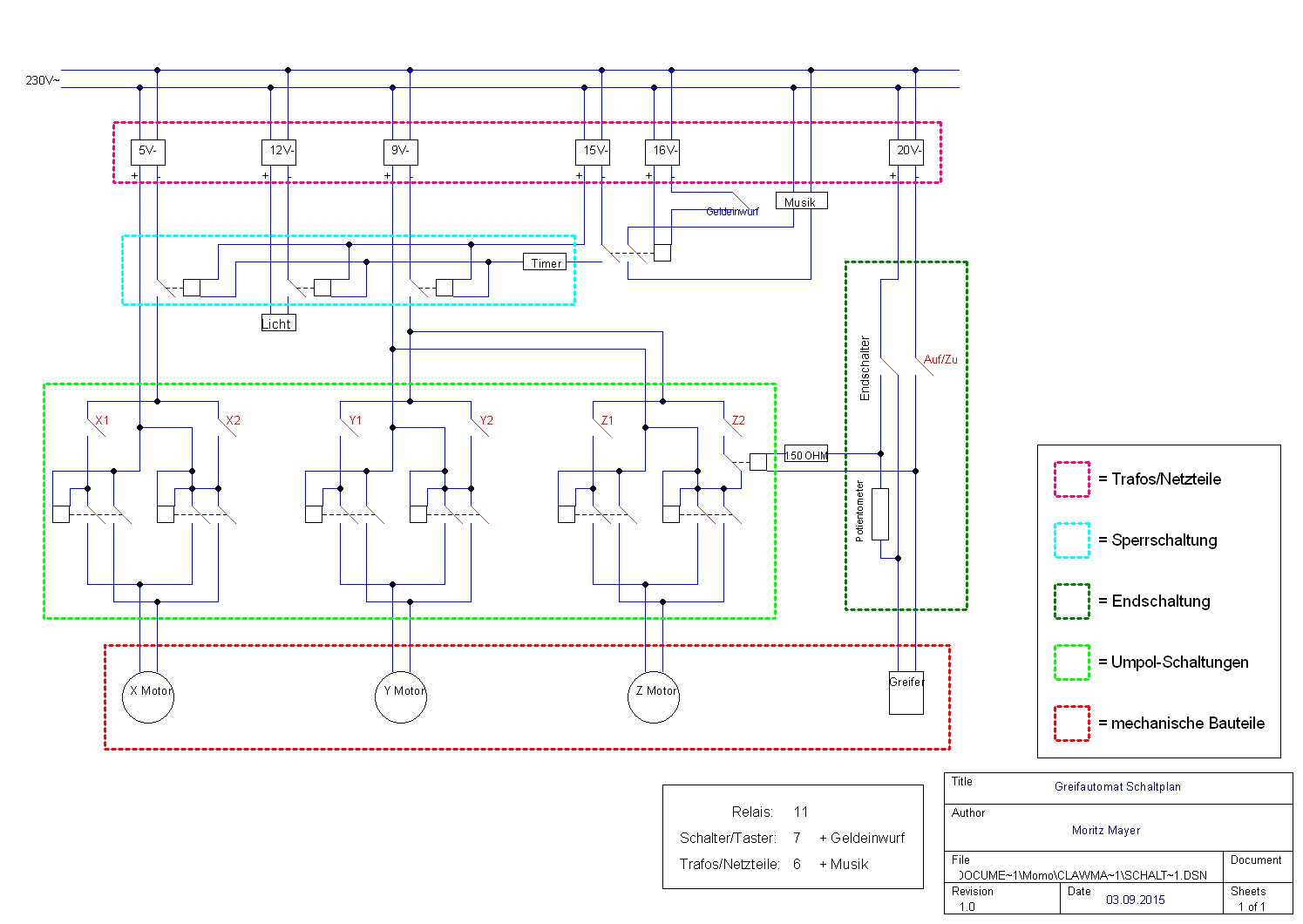

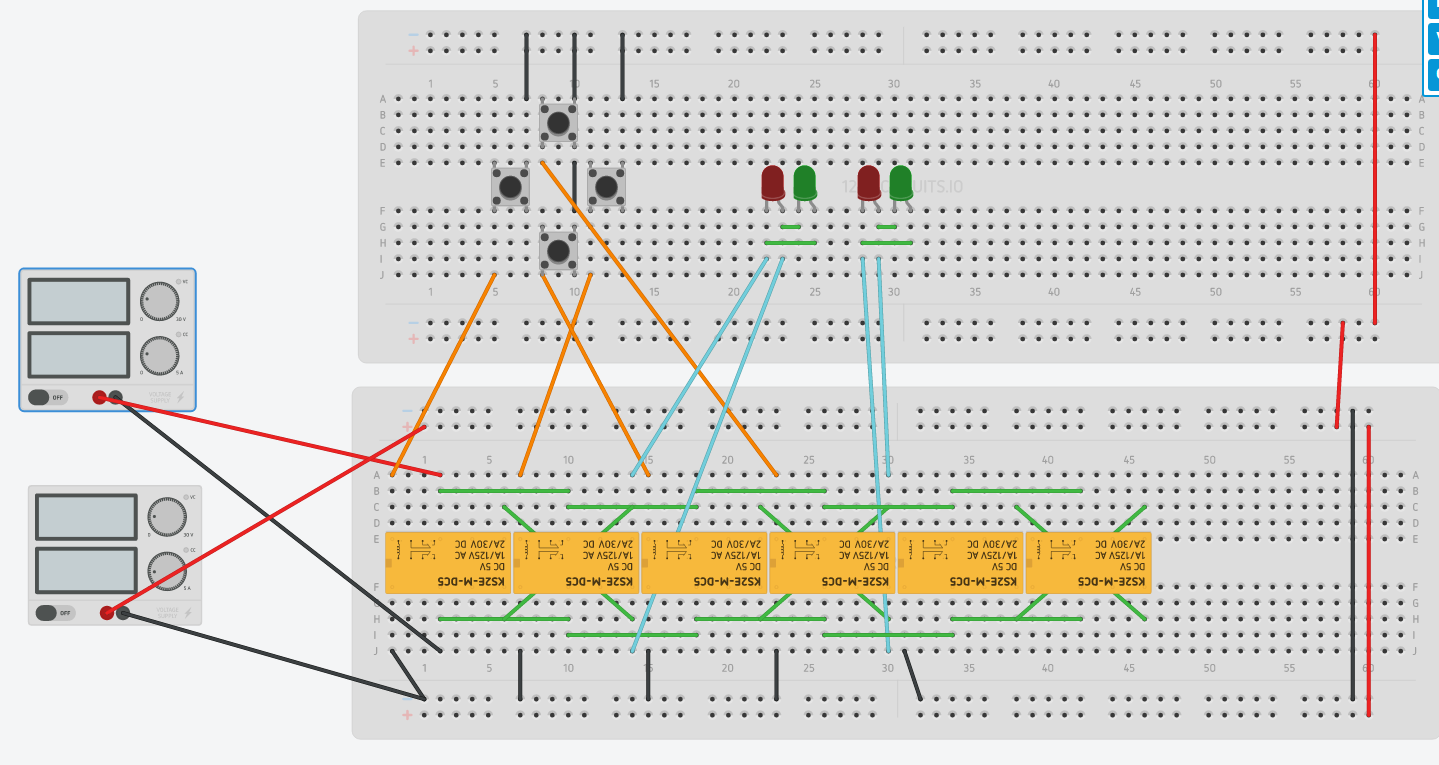

Logic Schematic of Claw Machine ProgramCircuit to invert the polarity of the Motors, so they can change their spinning direction.DIY Arduino Claw Machine – Build Your Own Arcade ToySchematic of what inputs are going to what pinsOld Schematic of analog Claw Machine without ArduinoDIY Arduino Claw Machine – Build Your Own Arcade Toy
