Arduino Hand Hygiene Timer – Promote Proper Handwashing for Kids

Necessary tools and machines

Tape, Double Sided

Apps and online services

Arduino IDE

About this project

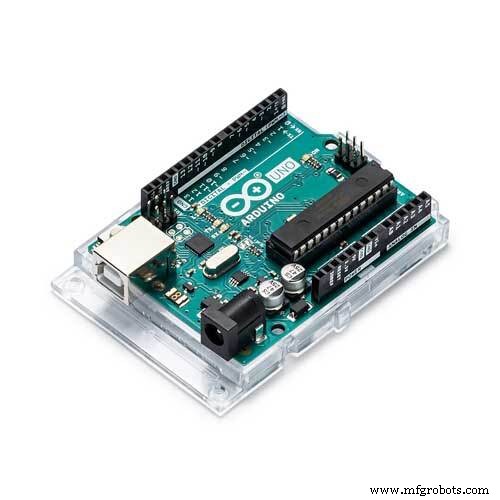

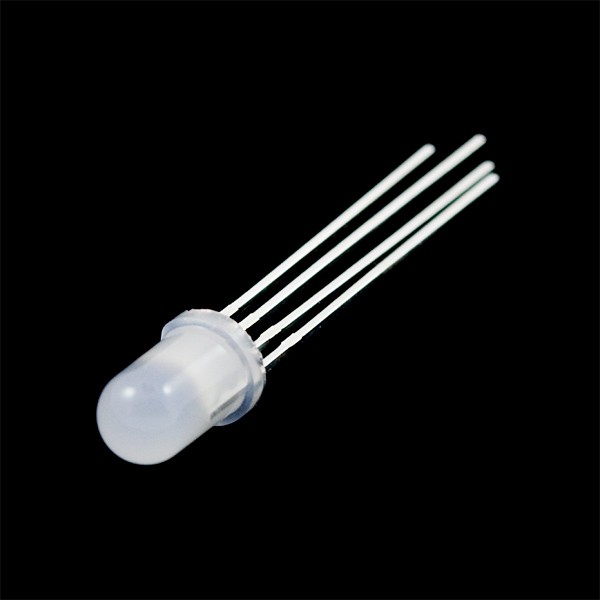

This is a great project to teach your kids the importance of cleanliness & washing hands properly in the current times. This project turns the LED red when you start washing hands & will turn green once twenty seconds are complete thus reminding you to wash hands for twenty seconds & do not keep the water running while washing hands. Remember, in the midst of one global crisis, let's not worsen another.Maker : @devd_31 The circuit is made out of @arduino.cc uno board, an infrared sensor & a RGB led.

Thanks UTSOURCE.net to offer electronic components for our projects.

Follow Us on instagram : https://www.instagram.com/random_stuff_we_make/

Code

• Code

CodeArduino

/* The following code is developed by members of Random Stuff Community.
   for further information or ideas, please keep following "Random Stuff We Make" on instagram
*/

void setup()
{
pinMode(2,OUTPUT); //RED
pinMode(3,OUTPUT); //GREEN
pinMode(4,OUTPUT); //BLUE
pinMode(5,INPUT);  //IR sensor
Serial.begin(9600);
}

void loop()
{
  int a= digitalRead(5);
  Serial.println(a);
  delay(100);

  digitalWrite(2,LOW); //RED off
  digitalWrite(3,HIGH); //GREEN on by default
  digitalWrite(4,LOW); //BLUE off

  if(a==1)
  {
    digitalWrite(3,LOW);
    digitalWrite(4,LOW);

       for(int i=0; i<20; i++)
         {
            digitalWrite(2,HIGH);
            delay(1000);
         }
     digitalWrite(2,LOW);
  }
}

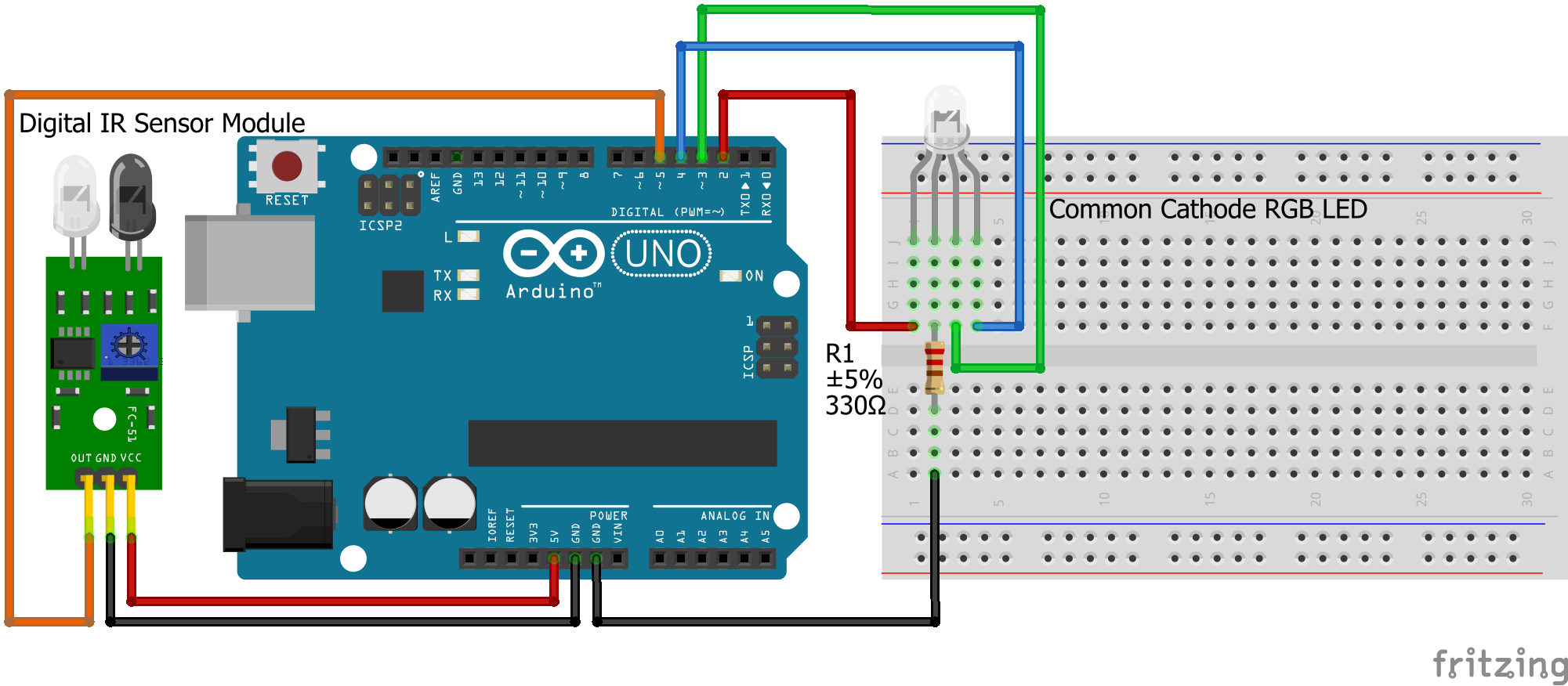

Schematics
