Advanced Indoor Air Quality Monitoring System with Arduino & IoT

Apps and online services

Thinger.io Platform

About this project

Introduction

Indoor air pollution has been consistently ranked by the US Environmental Protection Agency (EPA) and its Science Advisory Board to be among the top five environmental public health risks. Average person spends an estimated 90% of their time indoors so that poor indoor air quality (IAQ) poses a substantial risk to public health. Poor air quality may cause increased short-term health problems such as fatigue and nausea as well as chronic respiratory diseases, heart disease, and lung cancer. It is estimated that annual costs and productivity losses in US is $10 to $20 billion related to sick building syndrome, which is defined to describe acute health and discomfort effects that appear to be linked to poor indoor air quality and the time spent in a building.

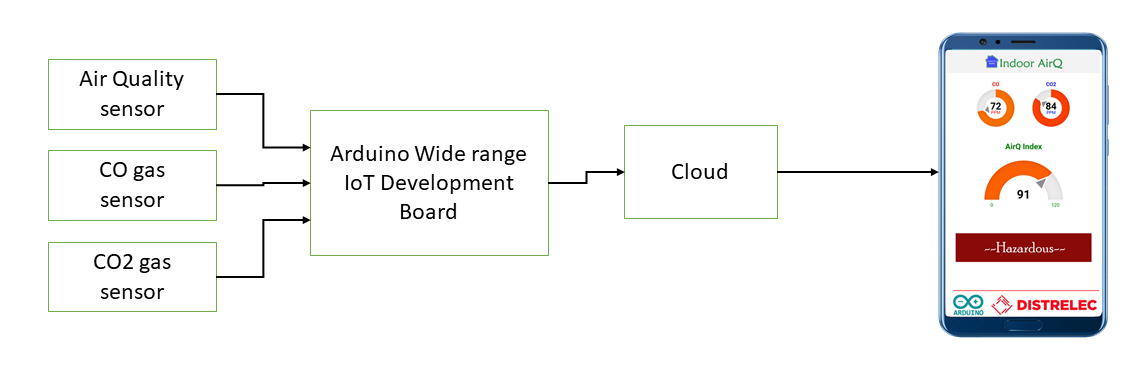

In this project, we are going to present an indoor air quality monitoring system. Our system is connected to the Internet, and as a result, anyone can remotely visualize the air quality index form anywhere.

Possible Application Domain of This System

• Homes and offices

• Industries

• Remote sensing for firefighters

• Research and agriculture

• Hospital and clinic

• ICU unit

Things

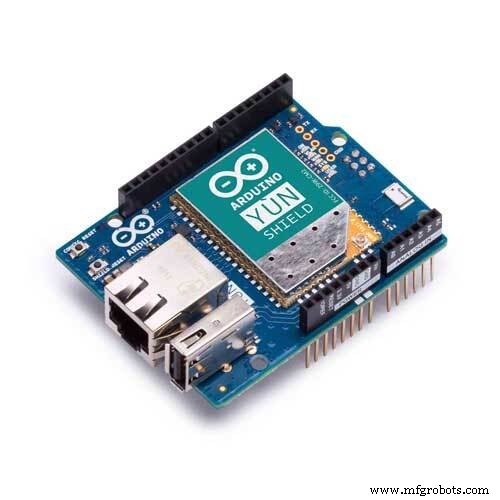

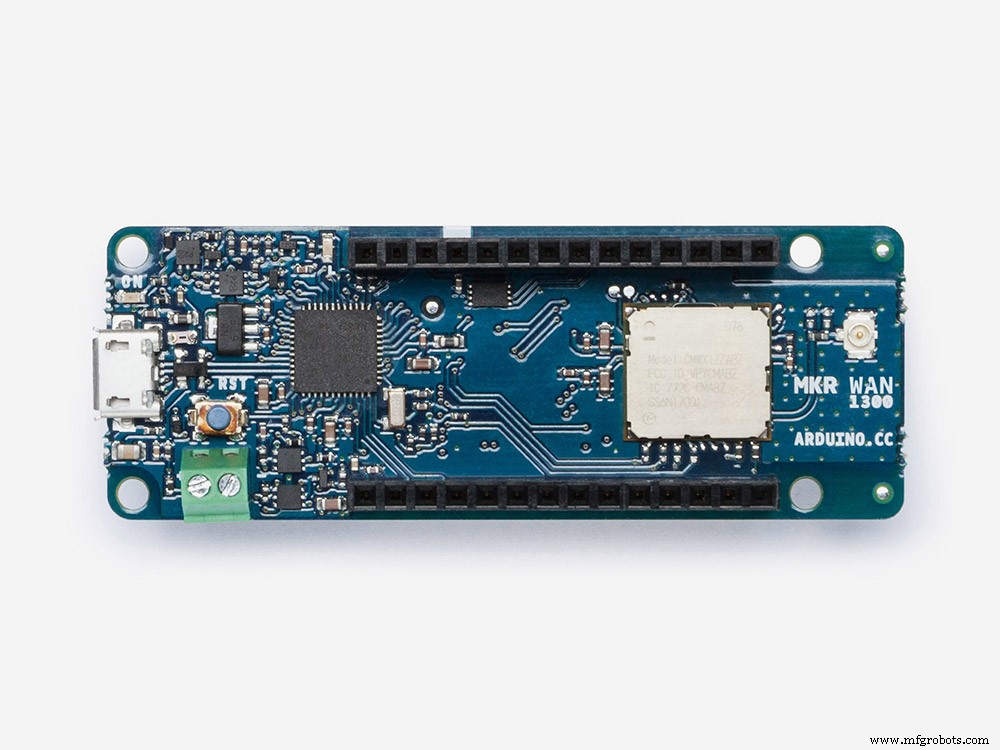

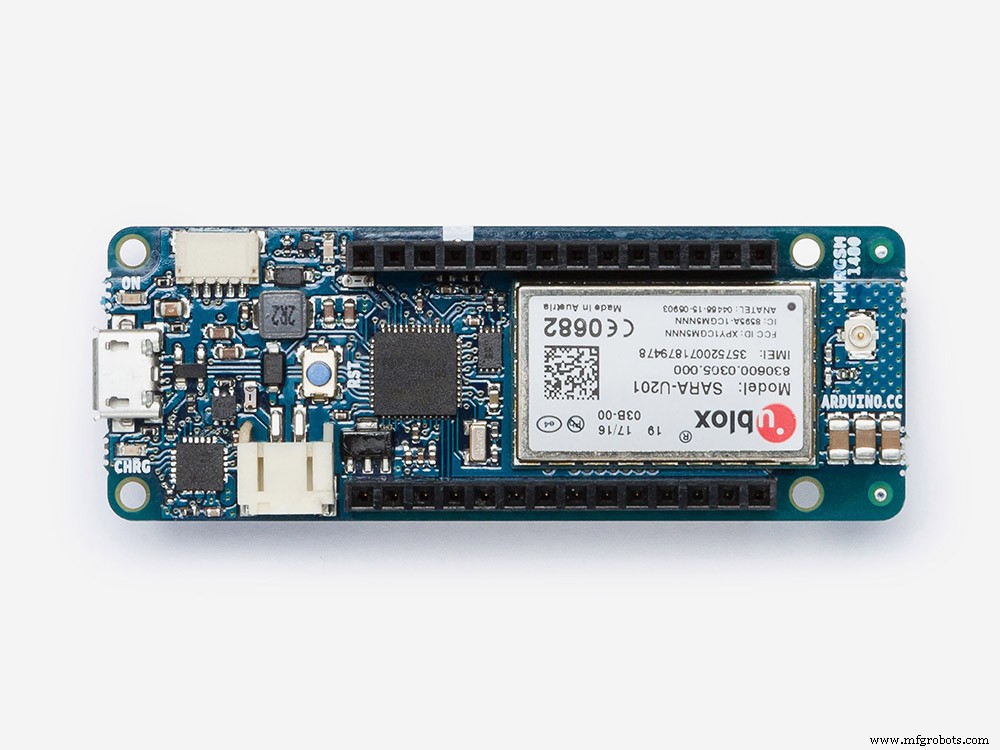

• Wide range of IoT boards with WiFi (MKR1000 and Yún Rev2) and GSM/narrowband connectivity (MKR FOX 1200, MKR WAN 1300, and MKR GSM 1400). [For prototyping this project I used Arduino Leonardo with Yun shield]

• Gas sensors (MQ-2, 3, 7)

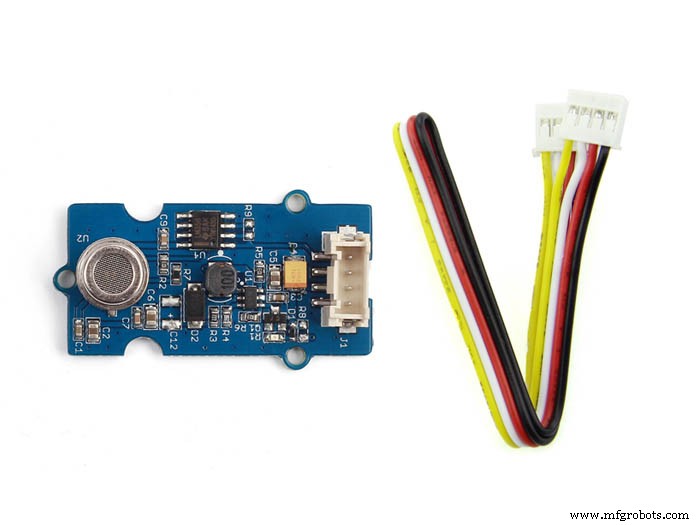

• Air quality sensor (MQ-135)

• Android device

• Mobile application development platform

• IoT-cloud

• Jumper wires

• Programming skills

• Arduino IDE/Arduino Web IDE

• Solar panel for green power source

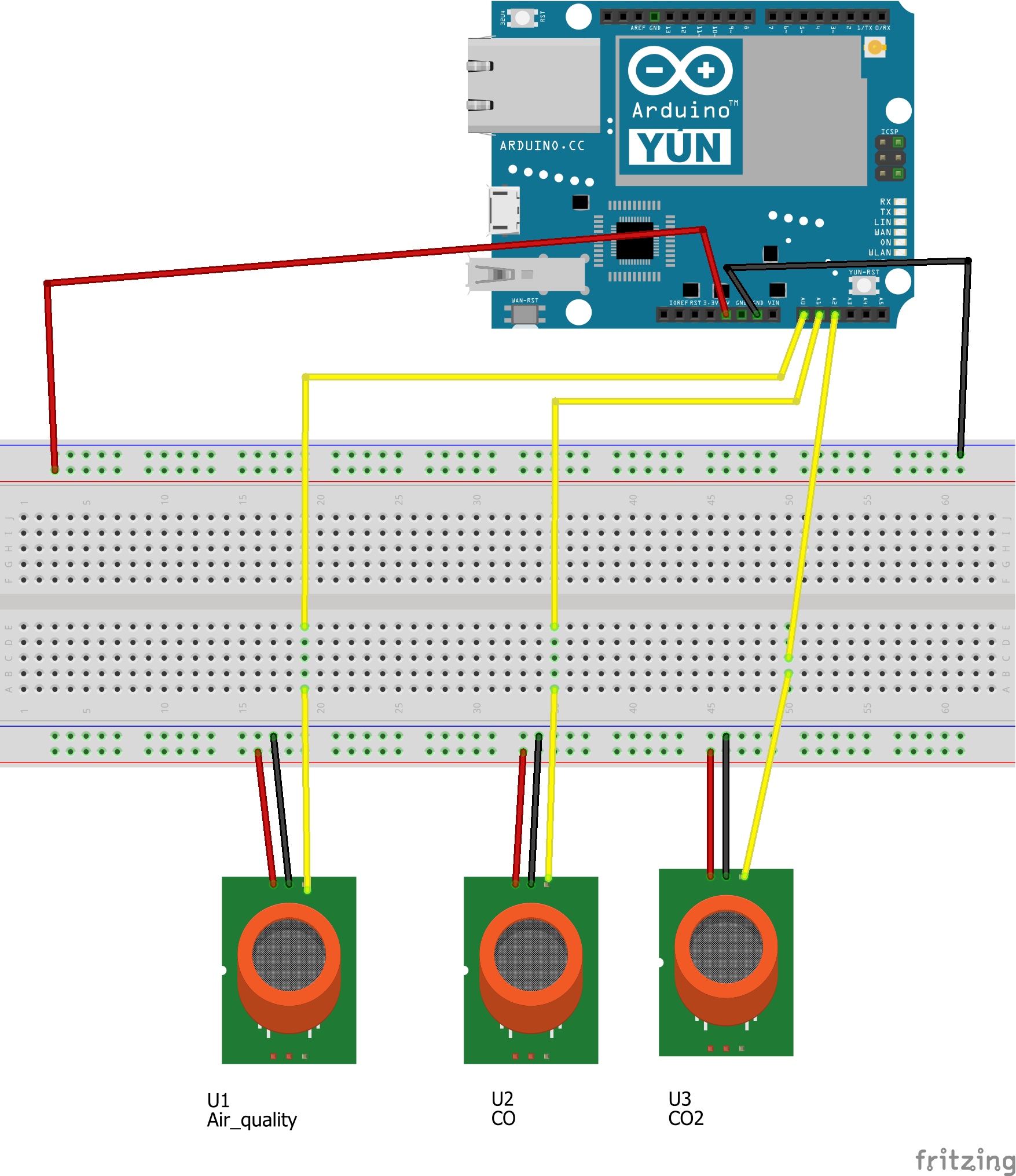

Circuit Diagram

Air Quality Sensor
VCC    to     5V pin of Arduino
GND    to     GND pin of Arduino
SIG    to     A3 pin of Arduino

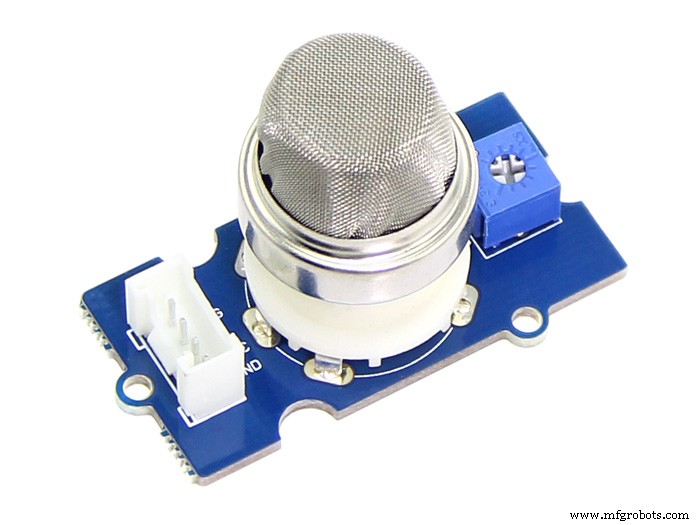

MQ-2 gas sensor
VCC    to     5V pin of Arduino
GND    to     GND pin of Arduino
SIG    to     A2 pin of Arduino
MQ-3 gas sensor
VCC    to     5V pin of Arduino
GND    to     GND pin of Arduino
SIG    to     A1 pin of Arduino

Upload the Firmware

Download the firmware (source code) and upload it to the Arduino board. Before uploading make sure that, you have include all the libraries. Please refer this tutorials for connecting the Arduino Yun with Internet.

The git repository

https://github.com/Mohammadsalahuddin/indoor_air_quality_monitoring.git

Cloud Connectivity

Please refer the documentation section of thinger.io for cloud connectivity http://docs.thinger.io/arduino

***Attention***

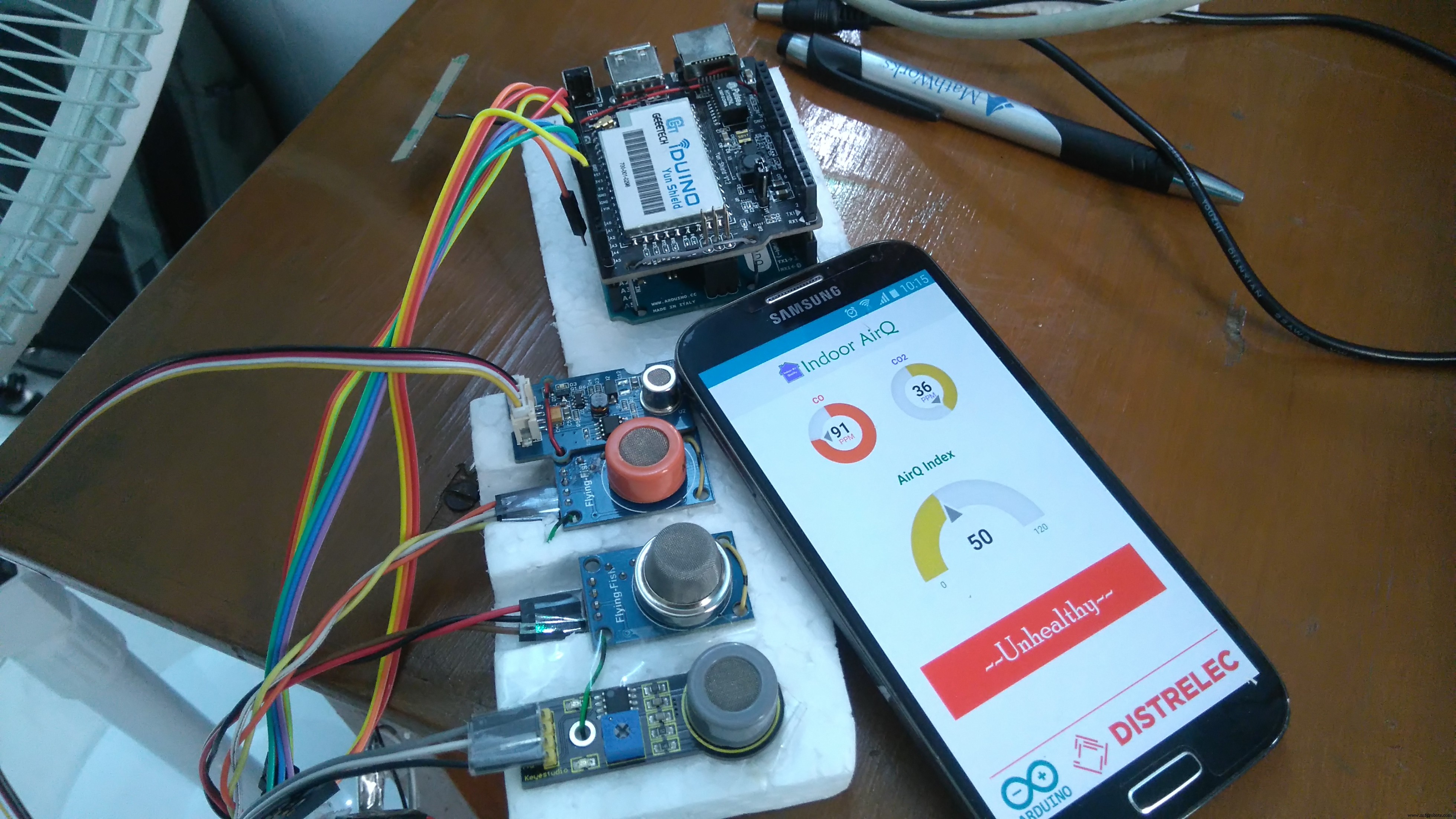

Demo

Future Plan

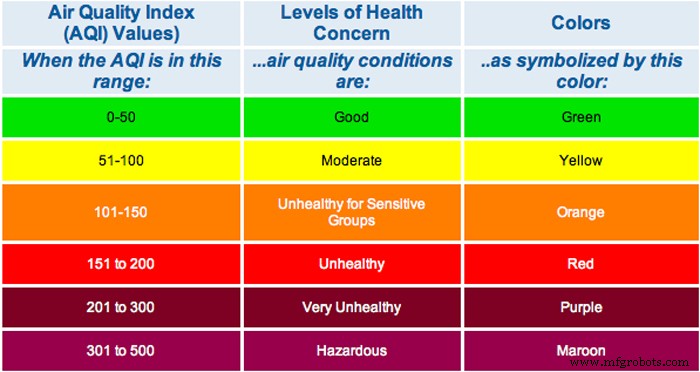

• Onboard indicator should be added for indicating the air quality index.

• Buzzer-based alarm while highly pollution is detected.

• Push notification for notifying the users during hazardous situation.

Reference

• US Environmental Protection Agency (USEPA). Indoor air quality tools for schools Communications guide. Available at http://www.epa.gov.

• H.S. Brightman and N. Moss. Sick building syndrome studies and the compilation of normative and comparative values. Indoor Air Quality Handbook. Editors: J. D. Spengler, J. F. McCarthy, and J. M. Samet, New York: McGraw-Hill, 2001.

• J.-J. Kim, S.K. Jung, and J.T. Kim.Wireless monitoring of indoor air quality by a sensor network. Indoor and Built Environment, 19:1:145-150, 2010.

• thinger.io

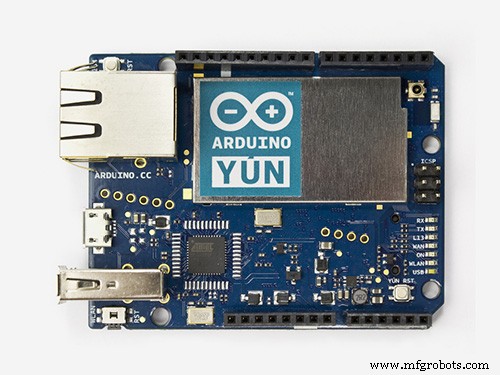

• Arduino Yun

• Arduino.cc

• Grove- air quality sensor

• Grove gas sensor

Code

• Arduino source code

Arduino source codeArduino

// Air Quality monitoring
#include <YunClient.h>
#include <ThingerYun.h>

// The Thinger.io cloud
#define USERNAME "YOUR_USER_NAME"
#define DEVICE_ID "YOUR_DEVICE_ID"
#define DEVICE_CREDENTIAL "YOUR_CREDENTIAL"

ThingerYun thing(USERNAME, DEVICE_ID, DEVICE_CREDENTIAL);


void setup() {
  pinMode(A0, INPUT);
  pinMode(A1, INPUT);
  pinMode(A2, INPUT);
  pinMode(A3, INPUT);

  // initialize bridge
  Bridge.begin();


  // resource output example (i.e. reading a sensor value, a variable, etc)
  thing["LPG"] >> outputValue(analogRead(A0)); // optional
  thing["CO2"] >> outputValue(analogRead(A1));
  thing["CO"] >> outputValue(analogRead(A2));
  thing["AIRQ"] >> outputValue(analogRead(A3));

  // more details at http://docs.thinger.io/arduino/
}

void loop() {
  thing.handle();
}

Custom parts and enclosures

The git repository for this project

Schematics
