Maximise fabrication precision with Gunna Engineering’s custom punch and die sets, engineered specifically for agricultural tankers and trailers.

Strengthening Agricultural Tankers

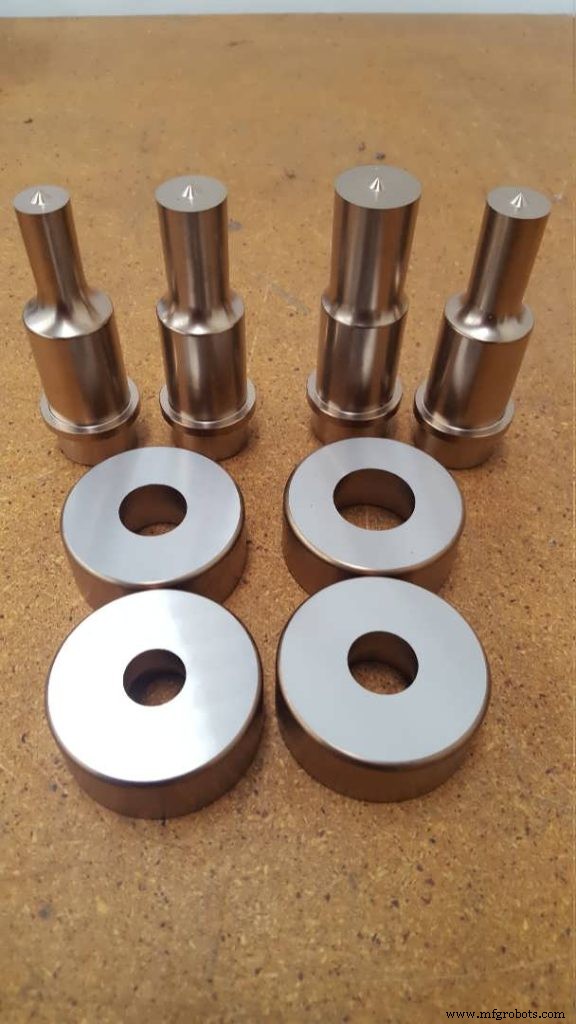

Our punch and die sets give metal fabricators the accuracy needed to shape high‑strength components such as tank ends, flange plates, and internal divisions. Each set guarantees consistent part dimensions, facilitating efficient alignment, reducing rework, and ensuring uniform weld preparation.

Controlled edge detailing and reinforced intersection points enable the production of tankers that can withstand fluid movement and field‑induced vibration, providing stability and extended performance in pressure‑variable environments.

Tailored Tooling for Trailer Frames and Brackets

Fabricating structural components for agricultural trailers demands precise and repeatable tooling. Our custom punch and die sets deliver accurate hole placement, plate dimensions, and form geometry essential for brackets, supports, and mounting fixtures that endure harsh farming conditions.

Precision‑aligned cuts and defined mounting points result in reliable part orientation and load distribution, ensuring stable integration of structural members across trailer frames. This reduces assembly time and enhances long‑term performance on variable terrain.

Versatile Design Support for Agricultural Machinery

Built to accommodate both standardised and application‑specific builds, our punch and die sets provide the flexibility required for complex fabrication across diverse machinery frameworks.

• Adjustable hose mounting flanges: Precision‑punched profiles align exactly with custom pipe layouts in slurry and fluid handling systems, guaranteeing leak‑free operation under varying flow pressures.
• Strengthened tank baffles: Consistent form geometry stabilises liquid load movement inside mobile tanks, reducing internal stress on weld seams during field travel.
• Precision‑formed mudguard brackets: Manufactured to strict dimensional tolerances for reliable fitment on agricultural trailers, ensuring uniform clearance and durability in debris‑heavy conditions.
• Custom rear light enclosures: Formed to exact cutouts and recess depths to house electrical fittings securely, protecting components against dust, vibration, and moisture during extended field use.
• Variable support arm slots: Punched to specification for mounting versatility in drawbar and frame assemblies, enabling custom linkage setups without compromising mechanical balance.
• Bolted skid plate holes: Positioned with calibrated spacing to ensure correct installation on undercarriage components, protecting vital systems against terrain contact in uneven paddock conditions.
• Reinforced drawbar supports: Cut and shaped for maximum load‑handling capacity, enhancing structural integrity at trailer hitch points during repeated towing cycles and off‑road manoeuvring.

Reliable Output from Precision Manufacturing

Backed by refined tooling practices, Gunna Engineering delivers custom punch and die sets engineered to meet the structural demands of agricultural tanker and trailer fabrication. Each component is produced on CNC platforms using powder metallurgy to ensure precision, consistency, and durability in every application.

Order your custom punch and die sets from Gunna Engineering, precisely manufactured to support your agricultural tanker and trailer fabrication requirements.
