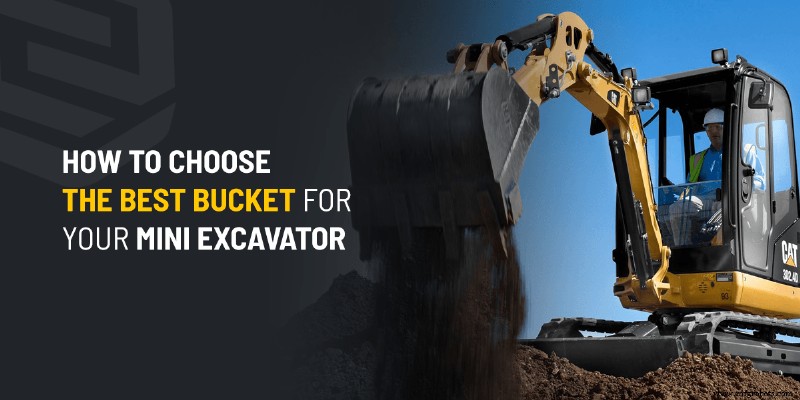

Choosing the Ideal Bucket for Your Mini Excavator

After winning a bid, the next step is to equip your crew with the right tools. A correctly matched bucket is key to efficient, safe work on any site.

Key Factors When Selecting a Mini Excavator Bucket

Many contractors assume a single bucket will work everywhere, but this can compromise performance. Consider these questions before you decide:

1. What Material Will You Move?

The soil type dictates the bucket’s durability needs. For abrasive or mixed soils—clay, gravel, sand, shale—a heavy‑duty, abrasion‑resistant bucket will keep your machine running longer.

Severe‑duty buckets are ideal for hard, rocky terrain. They are built to handle the rigors of aggressive digging, ensuring higher uptime and lower maintenance.

2. How Large Does the Bucket Need to Be?

A larger bucket holds more material, but it also means slower cycles, especially with heavy loads. Match the bucket size to your excavator’s capacity and your daily workload to maximize efficiency.

3. Which Bucket Features Matter?

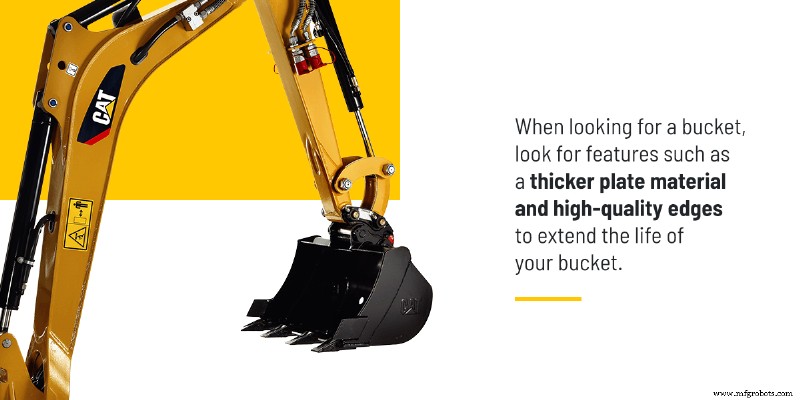

Look for a thick plate and high‑quality edges. These attributes extend the bucket’s life and reduce the need for frequent replacements.

4. Will You Add Accessories?

Teeth, edge configurations, and protective plates can be added to tailor the bucket for specific soils. Accessories not only improve performance but also protect the bucket from wear.

Types of Mini Excavator Buckets

Once you know your job requirements, selecting the right bucket type is straightforward. Below are the most common options:

Standard Buckets

These are versatile, short‑tooth buckets suitable for general excavation. Ideal for:

• Dirt
• Sand
• Topsoil
• Soil with small stones
• Clay

Heavy‑Duty Buckets

Designed for tough jobs, heavy‑duty buckets can carry larger loads. Accessories such as wear plates extend their lifespan. Best for:

• Blasted rock
• Stone
• Shale

Severe and extreme heavy‑duty buckets tackle even heavier materials like:

• Limestone
• Sandstone
• Basalt

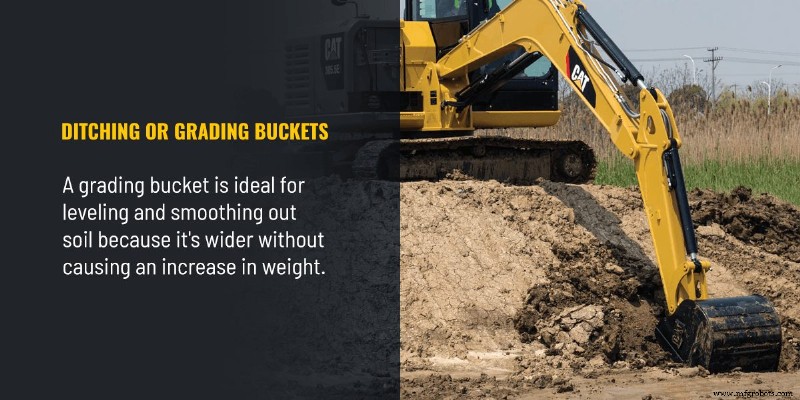

Ditching or Grading Buckets

These buckets share the same design; the name reflects the job. Grading buckets level and smooth the ground, while ditching buckets maintain ditches and drains. They feature a smooth front edge, making them ideal for root‑free or rock‑free soil.

Tilting Buckets

Tilting up to 45° allows for efficient grading without repositioning. Common uses include trenching, clearing snow, finishing work, and accessing tight spaces.

Cemetery Buckets

Low capacity but wide, these buckets are perfect for graves, flat‑bottom trenches, and basements. They’re not suited for general construction.

Rock & Coral Buckets

Heavily armed with teeth and wear pads, these buckets excel at excavating hard rock, frozen ground, and layered geology.

Rent vs. Buy

For one‑off projects, renting is cost‑effective. If you’ll use the bucket regularly, buying a used bucket can be economical—just inspect carefully.

1. Cracks or Dents: Check welds for fractures and rust fringes.
2. Rust: Heavy rust may be refinished, but extensive corrosion is a red flag.
3. Scalloping: Teeth that have worn to a half‑moon shape reduce efficiency.
4. Fit: The bucket must match your excavator’s weight limits and attachment system. Test opening/closing and a sample dig before finalizing.
