Mastering Rigid Tapping on Sinumerik 840D/810D with G331 & G332 Codes
CNC Rigid Tapping

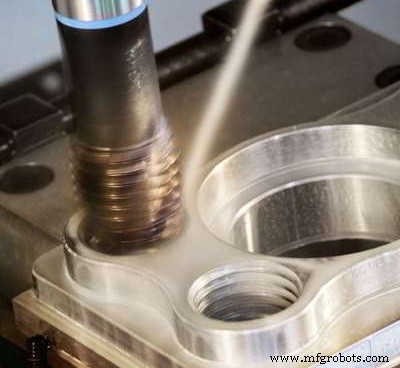

Most CNC machine tools now offer rigid tapping capability as a standard feature. During rigid tapping, the machine’s spindle rotation and feed are synchronized to match a specific thread pitch as the rigidly- mounted tap is quickly driven in and out of a hole.
Rigid Tapping
Rigid Tapping on Sinumerik 840D/810D with G331/G332
On Sinumerik 840D / Sinumerik 810D rigid tapping is done with G331/G332 G-codes.
G331 Tapping
G332 Tapping with retraction. The spindle changes direction of rotation automatically.
Programming

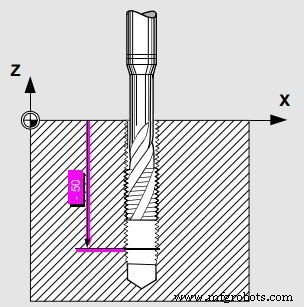

N50 G331 Z-50 K2 S500 N60 G332 Z5 K2
Rigid Tapping on Sinumerik 840D 810D with G331 G332
G331 Tapping
X, Y, Z : Thread end point
I, J, K : Thread lead. Positive lead (e.g. K4) right-hand thread, negative lead (e.g. K-4) left-hand thread.
G332 Tapping with Retraction.
The spindle changes direction of rotation automatically
X, Y, Z : Thread retraction end point.
I, J, K : Thread lead. Positive lead (e.g. K4) right-hand thread, negative lead (e.g. K-4) left-hand thread.
For this function, the spindle must be equipped with a pulse generator.
