Fanuc G68 Coordinate Rotation: Practical Subprogram Example for CNC Machining

CNC program example code to show how Fanuc G68 Coordinate rotation g-code can be used in a subprogram to take most benefit from it’s functionality.

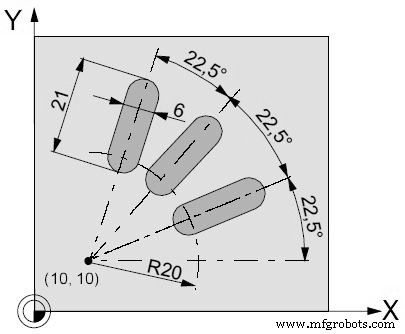

G68 Coordinate Rotation Example

Fanuc G68 Coordinate Rotation: Practical Subprogram Example for CNC Machining

Main-program

N5 G54
N10 G43 T10 H10 M6
N15 S2000 M3 F300
M98 P030100   ; Subprogram call
N25 G0 Z50
N30 M30

Subprogram

O0100
N10 G91 G68 X10 Y10 R22.5
N15 G90 X30 Y10 Z5
N20 G1 Z-2
N25 X45
N30 G0 Z5
N35 M17
