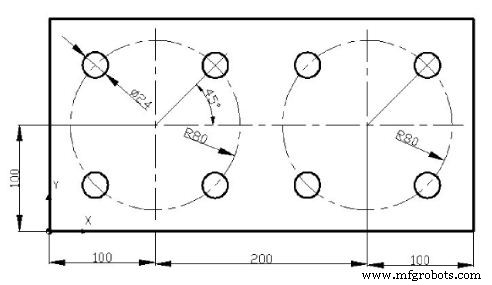

Fanuc CNC Program Example: G52 Local Coordinate & G15/G16 Polar Coordinates

G68 Coordinate RotationFanuc G68 Coordinate Rotation G-Code makes it easy for cnc machinist to run a pattern of operations in a rotated angle.In short: By designating a rotation angle with G68 in the program, actual machining will be performed on the rotated coordinate.You can specify the Center-poi

Here is a Fanuc subprogram example which shows, how cnc machinists can make their cnc programs easier to write and maintain by useing sub-programming method.CNC Sub ProgramsSub-programming is a way in which cnc machinists can call other cnc programs stored in cnc machines from their programs (called

Submit by: Brian Drawing/Image CNC Program 0 BEGIN PGM 1 MM1 BLK FORM 0.1 Z X+0 Y+0 Z-202 BLK FORM 0.2 X+110 Y+80 Z+03 TOOL DEF 1 L+0 R+3.54 TOOL CALL 1 Z S 22005 L X+30 Y+15 Z+2 R0 FMAX M036 L Z-5 R F40 M7 L X+80 Y+60 R F M8 L Z+20 R F M9 L X-40 Y+60 R F M0210 END PGM 1

Submit by: BEATA Summary CNC program example to show how dirct Angles can be given in a cnc program Drawing/Image CNC Program O0012;N10 G10 P0 Z-200;N20 T303; (PROFILING)N30 G50 S2200;N40 G96 G99 S230 F0.12 M4 M8 M200;N50 G0 X0 Z3;N60 G1 Z0 ; (P1)N70 ,A90 R6;
