Precision 40mm Brass Drilling with CNC G74 Cycle – Detailed Lathe Program

Submit by: CNC Programmer

Summary

CNC lathe program to drill a piece of brass material at a depth of 40mm with a drill 22mm of diameter.

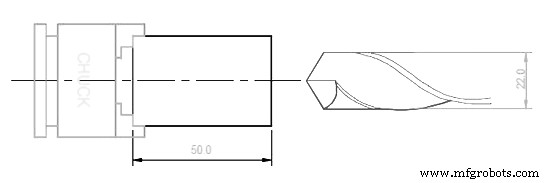

Drawing/Image

Precision 40mm Brass Drilling with CNC G74 Cycle – Detailed Lathe Program

CNC Program

G97 S1446 M03
G00 T0101
G00 X0.
Z2.
G74 R2.
G74 Z-40. Q5000 F0.1
G00 Z5.
M05
T0100
G28 W0.
G28 U0.
M30
