CNC Milling Example: G74 Scaling & G77 Subroutine Call
Submit by: BEATA
Summary
Num CNC program example using G-Codes G74 G77 G59 etc.
G74 Scaling factor enable
G77 Unconditional branch to a subroutine or block sequence with return
G59 Programme origin offset

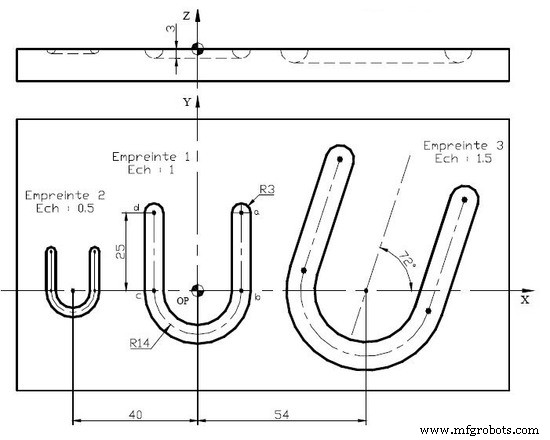

Drawing/Image
CNC Program
Main Program %21 (FRAISAGE DE TROIS EMPREINTES) N10 G90 G80 G40 G71 N20 G0 G52 Z0 N30 T1 D1 M6 (FRAISE SPHER DIAM = 6) N40 G94 F212 N50 G97 S1061 M3 N60 G59 X0 Y0 (DECALAGE ORIGIN NUL) N70 G74 E69000 = 1000 (ECH = 1) N80 G77 H2121 N90 G0 G52 Z0 M5 N100 T2 D2 M6 (FRAISE SPHER DIAM = 3) N110 G94 F318 N120 G97 S2123 M3 N130 G59 X-80 N140 G74 E69000 = 500 (ECH = 0.5) N150 G77 H2121 N160 G0 G52 Z0 M5 N170 T3 D3 M6 (FRAISE SPHER DIAM = 9) N180 G94 F177 N190 G97 S707 M3 N200 G59 X36 ED-18 N210 G74 E69000 = 1500 (ECH = 1.5) N220 G77 H2121 N230 G0 G52 Z0 M5 N240 M2 Subroutine %2121 (FORME EN U) N10 G0 X14 Y25 verticale de a N20 G0 Z2 approche sur Z N30 G1 Z-3 M8 a N40 G1 Y0 b N50 G2 X-14 Y0 R14 c N60 G1 Y25 d N70 G0 Z2 M9 dégagement
