Master Fanuc G17, G18, G19 Plane Selection for Precise CNC Control
Fanuc G17 G18 G19 Plane Selection
With G17 G18 G19 the plane will be defined, in which circular interpolation and polar coordinate interpolation can be proceeded and in which the cutter radius compensation will be calculated.
In the vertical axis to the active plane the tool length compensation will be proceeded.

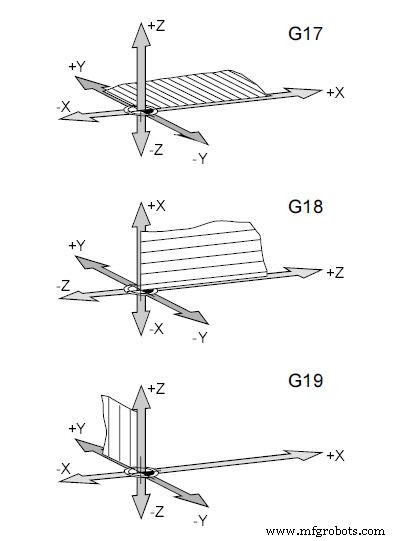

G17 XY-Plane
G17 XY-Plane
Programming
G17
G18 ZX-Plane
G18 ZX-Plane
Programming
G18
G19 YZ-Plane
G19 YZ-Plane
Programming
G19
