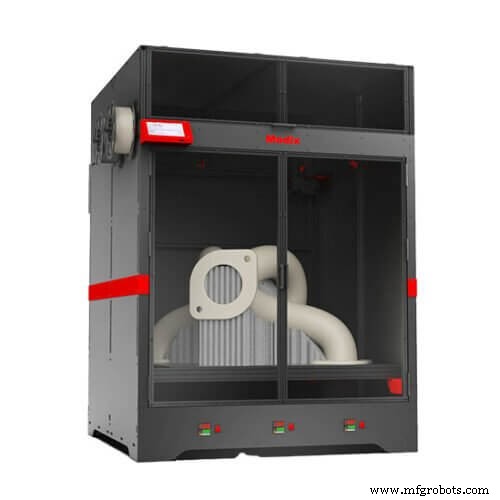

Modix BIG Meter – 1 m³ DIY Large‑Scale FDM Printer for Prototyping & Manufacturing

• Fully DIY self‑assembly kit
• Maximum build volume: 1010 × 1010 × 1010 mm (39.8 × 39.8 × 39.8 in)
• Overall dimensions: 1300 × 1470 × 1830 mm (51.2 × 57.9 × 72.0 in)
• Shipping weight: 200 kg
• Includes dual print head with E3D Aero & Volcano 1.75 mm hot‑end set‑up
• Runs Reprap firmware, officially supported by Duet3D
• 7‑inch touchscreen controller from Duet3D
• Extrusion system: E3D Titan Aero extruder paired with E3D Volcano hot‑end
• Automatic bed‑tilt calibration for precise first layers
• Power: 32 A, single‑phase, 208‑240 V

With the Modix BIG Meter, manufacturers can produce objects up to 1010 mm on a side in a single print run, eliminating the need for multi‑part assembly.

Specifications

• Manufacturer: Modix
• Applications: Mold making, prototyping, R&D, restoration
• Industries served: Art, automotive, construction, consumer products, education, signage & graphics
• Technology: FFF (Fused Filament Fabrication)
• Printer type: Large‑scale filament deposition
• Launch year: 2020
• Assembly: DIY kit

Supported Materials

• PLA, PETG, PVA, ABS, ASA, PC, Nylon, TPU/TPE, Wood‑fil, Copolyester, Carbon composite
• Open material system – swap or upgrade filament without firmware changes

Build Size

• Metric: 1010 × 1010 × 1010 mm
• Imperial: 39.8 × 39.8 × 39.8 inches

Key Features

• Extrusion diameter: 1.75 mm
• Layer height: 40 – 800 µm
• XYZ accuracy: 4 × 10 × 0.5 µm
• Fully enclosed, temperature‑controlled chamber
• Direct‑drive feeder system
• Dual‑extruder setup
• Heated bed with PEI build surface
• Fully automatic bed leveling
• LCD display (7‑inch)
• Connectivity: SD card, USB; optional Wi‑Fi and camera

Slicing Software

• Cura, Simplify3D, Slic3r

Physical Dimensions & Weight

• Dimensions (metric): 1300 × 1470 × 1830 mm
• Dimensions (imperial): 51.2 × 57.9 × 72.0 inches
• Shipping weight: 200 kg
