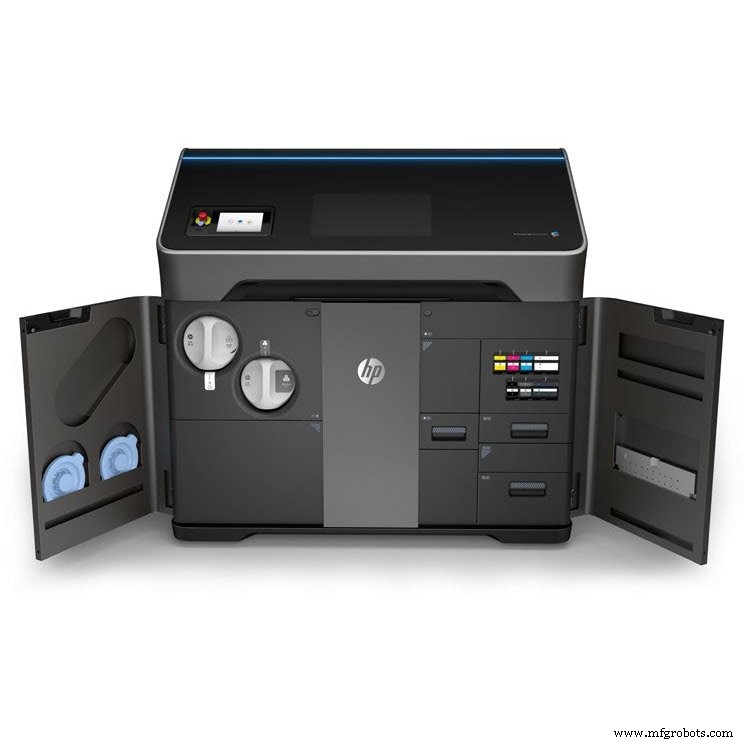

HP Jet Fusion 580 Color: Full‑Color 3D Printing for Rapid Production
The HP Jet Fusion 580 is a turnkey, full‑color 3D printer that combines material mixing, loading, printing, and reclaiming into a single, fully enclosed system. Designed for rapid production, it delivers high‑volume, high‑quality parts while keeping operating costs low.
Key strengths
- Intuitive, touchscreen‑based user interface
- Full‑color capability with voxel‑level control for precise color placement
- Production‑grade throughput – up to 100 parts per week
Specifications
- Company: HP
- Application: Production, Prototyping, Research & Development
- Industry: Automotive, Consumer Products
- Technology: Multi‑Jet Fusion (MJF)
- Printer type: Full‑color, Polymer Powder
- Launch year: 2018
Material
- HP 3D HR CB PA 12 (high‑reliability, color‑stable polymer powder)
Build Volume
- 332 × 190 × 248 mm (13.1 × 7.5 × 9.8 in)
Print Performance
- Layer thickness: 80 µm
- Build rate: 1817 cm³ / hr
- Closed, fully enclosed print chamber
- Connectivity: Ethernet
- Camera: None
- Operating sound: ≤ 80 dB
Software & Connectivity
- HP SmartStream workflow and cloud services
Machine footprint & weight
- Dimensions: 1565 × 955 × 1505 mm (61.6 × 37.6 × 59.3 in)
- Weight: 650 kg (1433 lb)
