STMicroelectronics Launches 2‑Axis IIS2ICLX Inclinometer with Embedded Machine Learning for Ultra‑Low‑Power Precision Sensing

STMicroelectronics introduces the IIS2ICLX, a cutting‑edge 2‑axis digital inclinometer that integrates a programmable machine‑learning core directly into the sensor. This design delivers high‑accuracy tilt measurement while cutting power consumption and minimizing cloud data traffic.

Unlike most precision inclinometers that provide single‑axis data, the IIS2ICLX measures pitch and roll simultaneously, or combines the two axes for a highly repeatable, ±180° tilt measurement. The all‑digital output streamlines system architecture and reduces BOM cost by eliminating external ADCs or filters.

Built on MEMS accelerometer technology, the sensor offers selectable full scales of ±0.5/±1/±2/±3 g and outputs via I²C or SPI. Embedded compensation guarantees temperature stability within 0.075 mg/°C, ensuring consistent accuracy even in extreme thermal environments. Its ultra‑low noise density of 15 µg/√Hz supports high‑resolution tilt sensing and low‑frequency vibration detection, essential for structural‑health monitoring.

The sensing element is fabricated using ST’s dedicated micromachining process for silicon‑based inertial sensors, while the CMOS‑based IC interface allows for tight integration and trimming to match sensor characteristics precisely.

These attributes make the IIS2ICLX ideal for industrial applications such as antenna alignment, platform leveling, forklift and construction machinery, precision leveling tools, equipment installation, solar‑panel sun tracking, and Industry 4.0 use cases—including robotics and autonomous guided vehicles (AGVs).

In structural‑health monitoring, accurate tilt and vibration data help assess the integrity of critical infrastructure such as towers, bridges, and tunnels. The IIS2ICLX’s affordability and battery‑powered operation enable widespread deployment, surpassing the cost constraints of legacy technologies.

Embedded Machine Learning and Sensor Hub Capabilities

The IIS2ICLX can trigger interrupts based on user‑defined motion patterns and supports a sensor hub that connects external accelerometers, gyroscopes, and pressure sensors. Up to 16 independent finite‑state programs can run concurrently, each with its own memory space. An interrupt is generated upon reaching a defined state or executing a specific command.

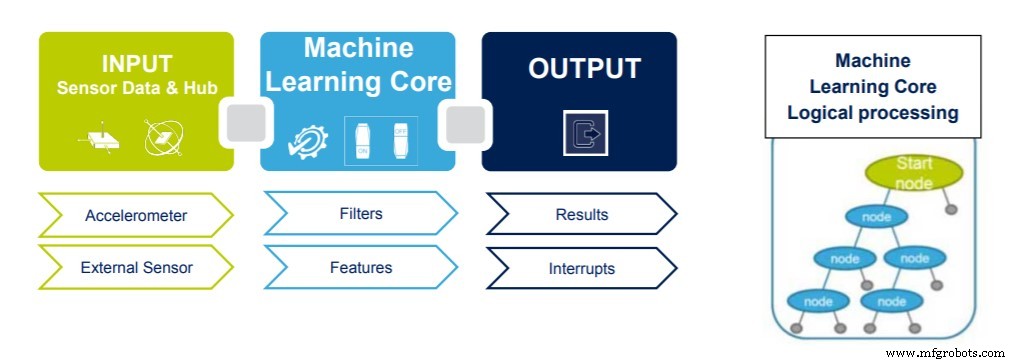

The dedicated machine‑learning core allows real‑time pattern recognition—identifying motion, pressure, temperature, or magnetic signatures that match user‑defined classes. Typical applications include anomalous vibration detection, complex motion classification, and activity monitoring. While the core processes accelerometer data internally, it can also ingest external sensor data via the sensor hub. Results are accessible through dedicated registers read by the host processor.

ST supplies comprehensive software libraries for calibration and real‑time tilt computation as part of the X‑CUBE‑MEMS1 expansion package for STM32Cube.

The IIS2ICLX comes in a robust 5 mm × 5 mm × 1.7 mm ceramic‑cavity LGA package, operating from –40 °C to +105 °C, and is now available in sample quantities.
