Renesas Launches RYZ014A LTE‑Cat‑M1 IoT Module for Global Cellular Connectivity

Renesas Electronics has introduced its first cellular IoT module, the RYZ014A, which implements the LTE Cat‑M1 standard to enable devices to connect directly to the world’s mobile networks without an intermediate gateway. This eliminates the need for local infrastructure and leverages the robust communication systems already owned by operators.

The RYZ014A is built on Sequans Communications’ Monarch LTE Cat‑M1 platform, combining proven hardware with a carrier‑grade software stack. Renesas delivers the module through a web‑based portal managed by ONE Tech, giving developers instant, remote access to sensor data and SIM‑card management—cutting operating costs and simplifying deployment.

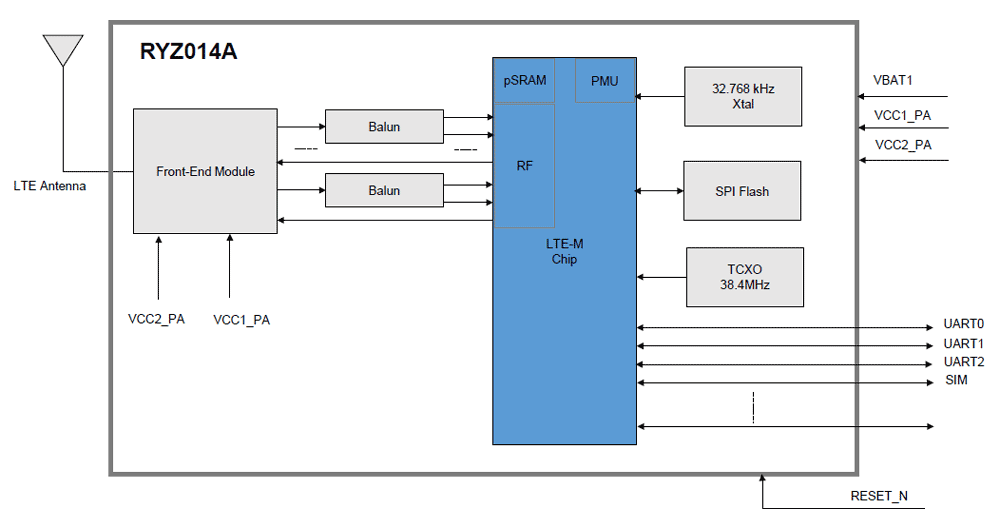

Cellular IoT’s advantage lies in its global reach and roaming capability, making it cost‑effective for large‑scale deployments that demand a low cost per unit. The RYZ014A is a single‑mode, all‑in‑one LTE Cat‑M1 modem: an optimized transceiver, a complete RF front‑end covering worldwide bands, and integrated interfaces—all housed in a compact LGA package.

Certified under RF regulatory standards, PTCRB/GCF, and carrier‑specific tests, the module is ready for use with any network operator worldwide. Renesas’ connectivity portfolio also spans Bluetooth Low Energy, ultra‑wide band, and Wi‑SUN, but the RYZ014A is a cornerstone of its IoT strategy.

“Building global IoT networks can be expensive and time‑consuming,” says Roger Wendelken, Senior VP of Renesas’ IoT and infrastructure unit. “The RYZ014A has already attracted strong interest from metering, smart‑home, infrastructure, and industrial customers who need seamless, cost‑effective cellular connectivity.”

Partnering with Sequans—an industry leader in 4G/5G IoT chips—Renesas has combined Sequans’ Monarch hardware with its own MCU expertise. Georges Karam, CEO of Sequans, notes, “The Monarch technology complements Renesas’ unmatched MCU capabilities, delivering a highly integrated solution.”

ONE Tech’s web portal further simplifies management, offering embedded AI and cloud services that let users scale from a handful to thousands of devices with minimal effort. Yasser Khan, CEO of ONE Tech, emphasizes, “Our platform turns the RYZ014A into a turnkey, end‑to‑end solution for next‑generation smart machines.”

Cat‑M1 for Low‑Power, Global Coverage

Operating on a 1.4 MHz bandwidth (down from 20 MHz), Cat‑M1 delivers upload speeds of 200–400 kbps, transmit power up to 23 dBm, and can sustain battery life up to a decade. Its features—wide coverage, robust security, and efficient spectrum use—make it ideal for low‑to‑medium data applications such as smart homes, industrial monitoring, asset tracking, healthcare, retail, and wearables.

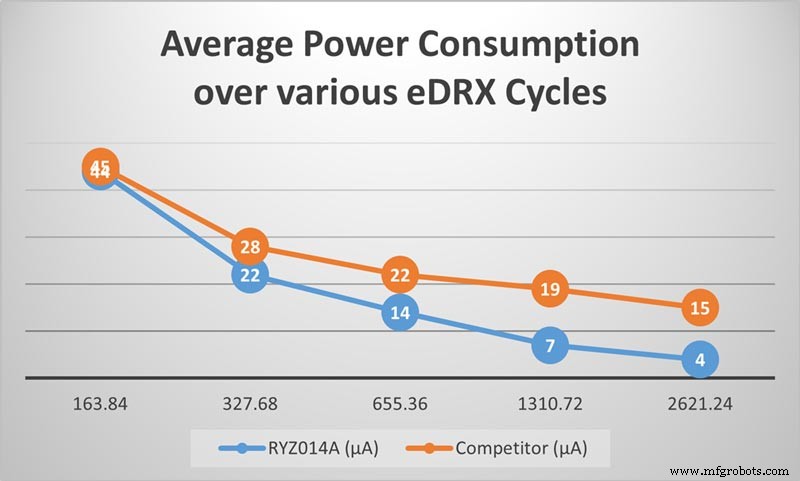

Key to its longevity is the extended discontinuous reception (eDRX) feature, which lets a device stay in a low‑power sleep state for 320 ms to 43 minutes before checking for network messages. In power‑saving mode (PSM), the RYZ014A draws just 1 µA—one of the lowest in the market.

Rapid, Ready‑to‑Deploy Solutions

Renesas bundles the RYZ014A with power ICs, Li‑ion chargers, light‑to‑digital sensors, and RA‑family MCUs to produce certified “winning combos.” Over 200 solutions exist, enabling quick deployment of applications like remote industrial monitoring and automated plant watering—all via LTE.

Highlights of the RYZ014A include worldwide frequency support in a single design, dual‑class transmit power (20/23 dBm), and an ultra‑low 1 µA current draw in PSM. The module and its RYZ014A‑EVK evaluation kit are available today.
