Master Cable Duct Installation in Electrical Panels Using E3.series

In this article you can learn how to add ducts for routing an electrical panel in E3.series. The creation is fast and allows for different parameter configurations and duct dimensioning. See the full video article and optimize your processes!

Panel Sheet and Component Insertion

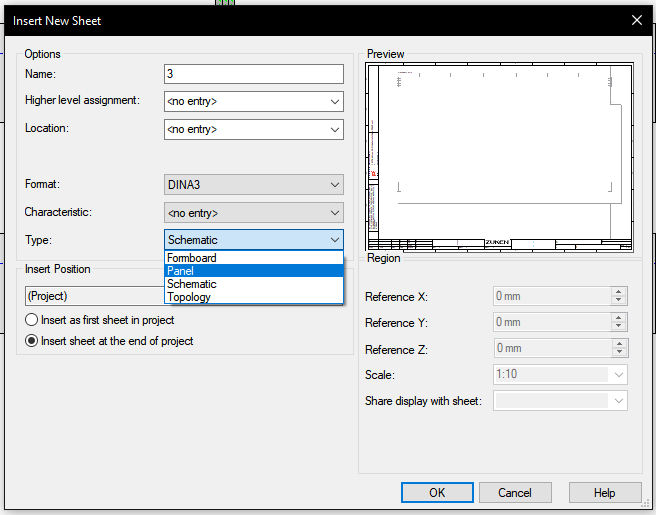

Initially, a panel-like sheet is added to the project. To do this, by right-clicking on the project name, the option "New Sheet..." is selected and the option "Panel" is chosen in the field "Type".

Panel Type Sheet Insertion

Then the components "3RV1011-0AA10" and "280-601" are added to the schematic sheet, where the addition of connections and wires takes place.

In the panel sheet the devices are added and it is possible to visualize the connection lines made in the electrical schematic.

Try NOW the industry-leading E-CAE E3.series tool in the world with technical training courses!

Click on the banner below

Cable Duct Insertion

The ducts are added in the "Insert Cable Duct" button and a parameter settings window opens with some possible adjustments:

• Height
• Width
• Fill Limit
• Warning Limit
• Backplane Wiring
• Among others

Button for inserting ducts in the panel design

The "Height" and "Width" parameters are set to 80mm each and the ducts are added to the top and bottom of the device.

Watch the Full Video



Subscribe to our Youtube channel here for more technical videos.

Smart Autoconnect

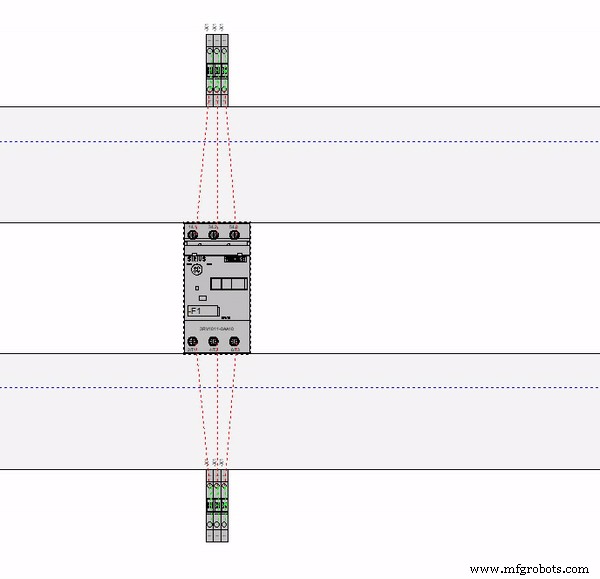

At the end, it is possible to route the connections made in the schematic sheet automatically in the panel sheet, by clicking the right mouse button on the device "3RV1011-0AA10" and selecting the option "Panel Autoconnect".

E3.series Automatic Connection Routing

Auto-connect follows the red lines previously shown.
