Understanding DIP Gate Packaging: Types, Pin Counts, and Part Numbers
Digital logic gates are fabricated as integrated circuits—transistors and resistors etched onto a single semiconductor wafer. For engineers, technicians, and hobbyists who need a small number of gates, the Dual Inline Package (DIP) remains the most accessible and cost‑effective solution.
DIP ICs feature evenly spaced pins at 0.100‑inch intervals, ensuring seamless compatibility with standard PCB layouts. Common pin counts include 8, 14, 16, 18, and 24.
Part Numbers
Industry‑standard part numbers describe the gate type and quantity. For example, a 74LS02 from any major manufacturer will perform identically, guaranteeing interchangeability across suppliers.
Manufacturer prefixes (e.g., SN74LS02 from Motorola or DM74LS02 from Fairchild) identify the vendor but do not alter the underlying circuitry.
Logic Family
- 74xx series: Commercial‑grade TTL.
- 54xx series: Military‑grade, offering wider temperature ranges and more tolerant supply voltages.
- LS: Low‑power Schottky variants that reduce power consumption; non‑Schottky versions switch faster.

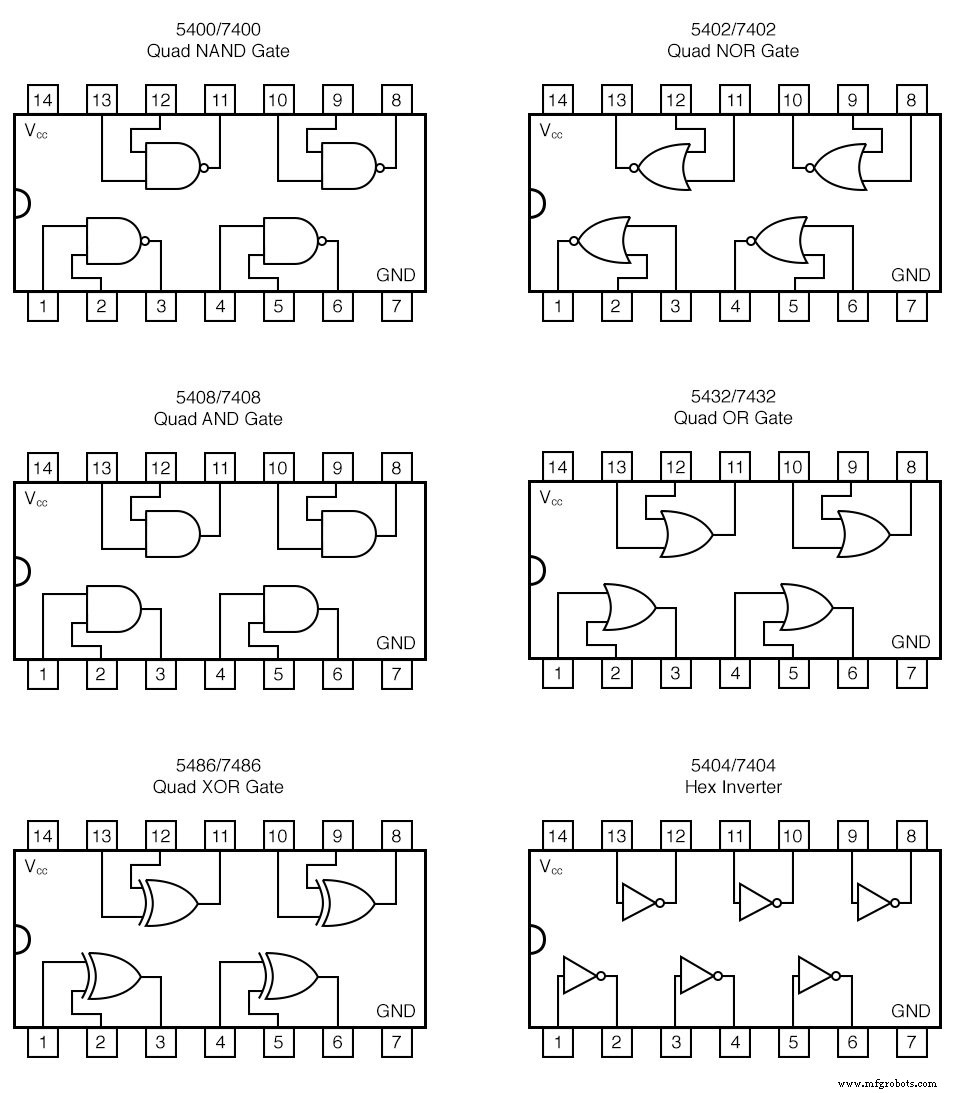

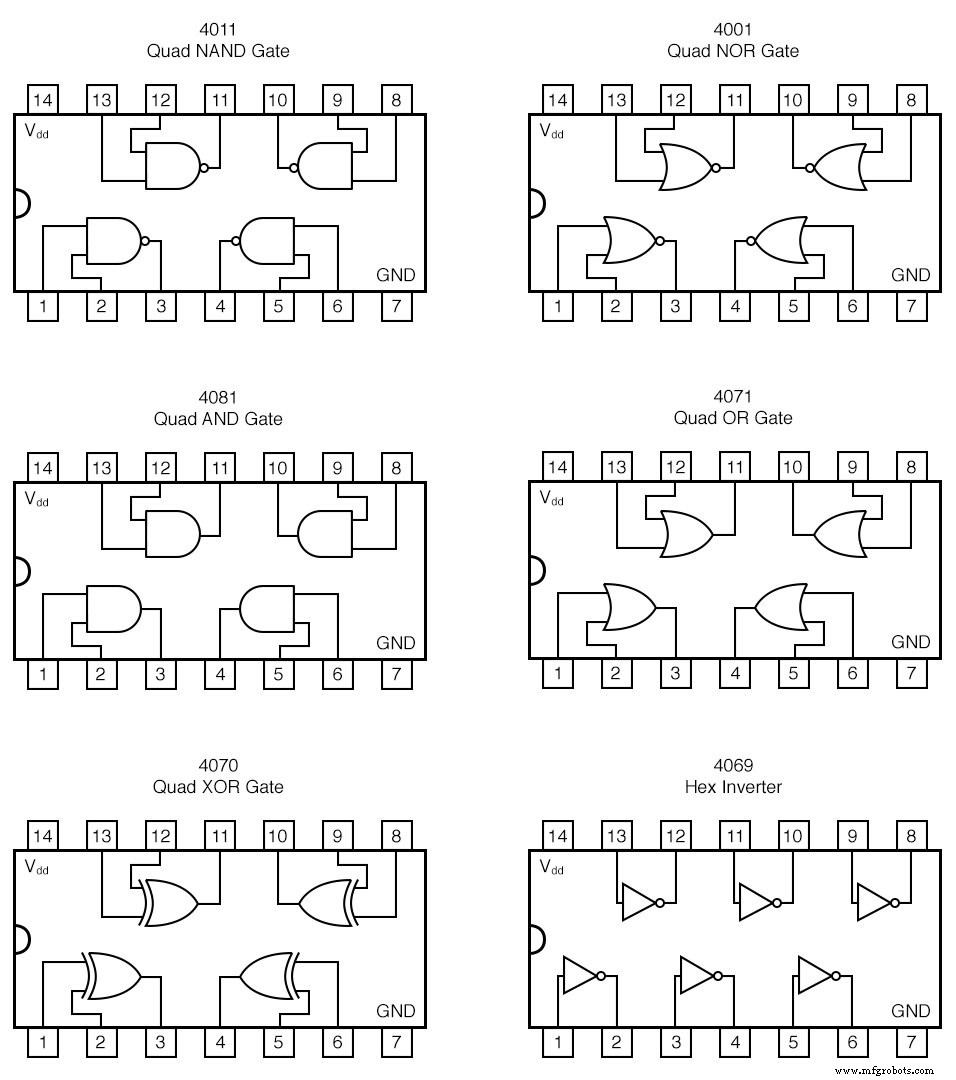

Common TTL DIPs
Below are representative images of frequently used TTL DIP packages.
