LM393 Comparator Overview: Pinout, Features, Applications & Operation

A voltage comparator is an electronic component that compares two currents or voltages, then determines which is greater at the output. Generally, the comparators are miniature voltmeters that have switches. There are a variety of comparators, such as LM311, LM393, etc., but we’ll focus on the latter.

Comparators

What is lm393?

LM393 is an integrated circuit with two internally inbuilt operational amplifiers that use a single power supply to perform different tasks. Additionally, they can also apply a split power supply in their working, and it’s a dual package comparator IC.

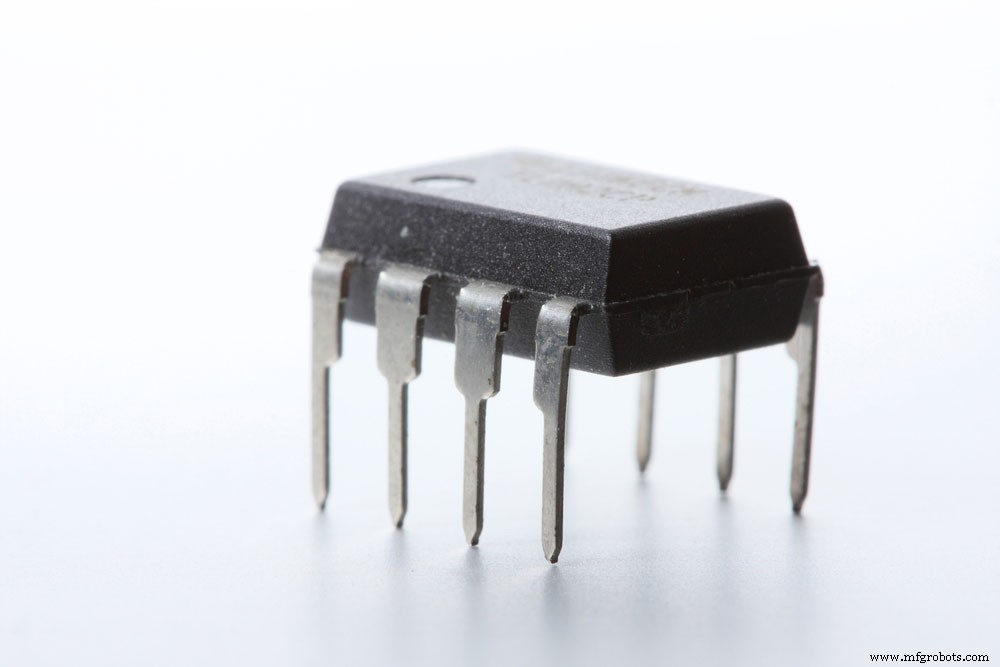

IC LM393

2. lm393 Pinout Configuration

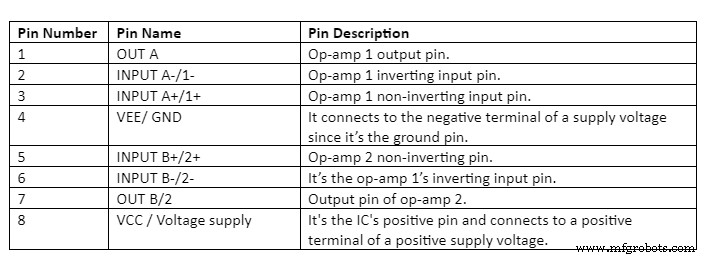

An IC LM393 comparator has a total of two independent voltage comparators in its single 8-pin package. So, the table below will further explain its pinout and the functions of each pin in the 8-pin package.

lm393 Features and Specifications

The features of LM393 IC have the following parameters and values;

• Single voltage supply – 2V to 36V,
• Differential i/p voltage – 36V,
• Package – DIP and SOIC 8 pin,
• Drain current – 0.4mA,
• Storage temperature – -65°C/W to 150°C/W,
• Lead temperature – 260°C,
• Power dissipation – 660mW,
• Split supply – ±1V to ±18V, and
• Input offset voltage.

How to use LM393

Let’s use an example whereby the IC LM393 receives a +5V supply voltage circuit.

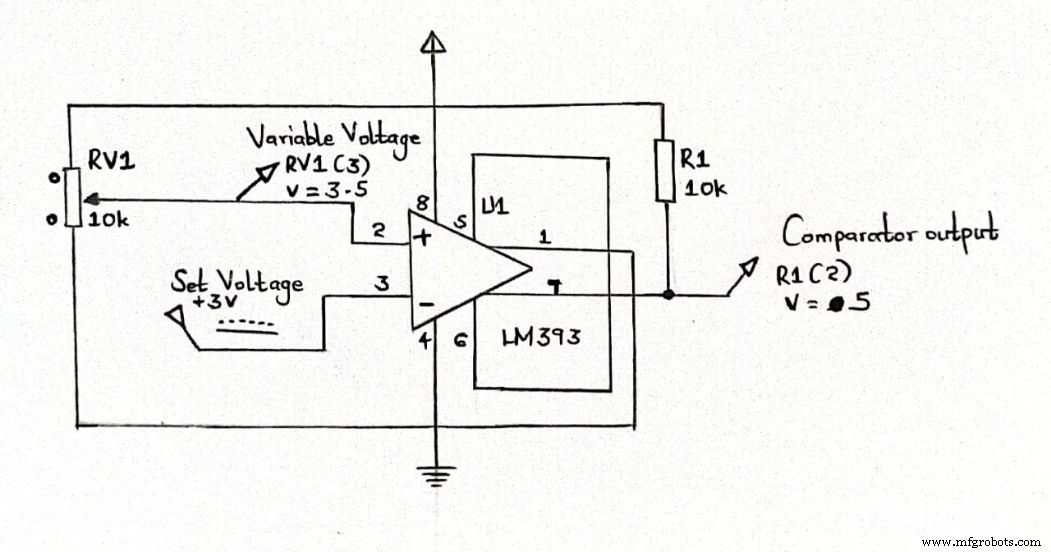

Circuit diagram with +5V power supply

• Here, pin8 (voltage supply pin) connects to +5V supply voltage. Then, pin4 remains grounded to keep the circuit at 0V potential.
• From the sample circuit below, we can see a high output voltage when pin7 has a lesser voltage than pin2. Furthermore, a potentiometer varies the non-inverting terminal voltage while the inverting terminal voltage is 2.5V.
• Then, Pin6 and pin5 help in balancing the voltage in case there’s a need to adjust the DC-Offset voltage manually. Under normal circumstances, they may be inactive and shorted since the Input Offset current has better control.
• Lastly, we have a grounded pin1 and a transistor’s pin7 (collector pin) that achieves the output. The two pins contribute to a circuit design called collector output circuit.

Note

If you can’t help an IC LM393, you can use its equivalents or alternatives. For example, we have LM358, LM311, LM741, LM193, TL082, LM339, LM293, and LM2903.

4. LM393 IC-based Automatic Night Light Circuit

In this lm393 IC-based night light circuit, we’ll start with the voltage comparator principle. We’ll also get a photoresistor that often controls a voltage divider circuit.

Components list

• IC LM393,
• Potentiometer (ranging from 1KΩ – 20KΩ),

A potentiometer

• LED,
• Resistors – 330Ω and 33Ω (can be any value that approximates the mentioned values),
• DC power supply or 3 ‘AA’ batteries,
• Light sensor/photoresistor.

Circuit diagram

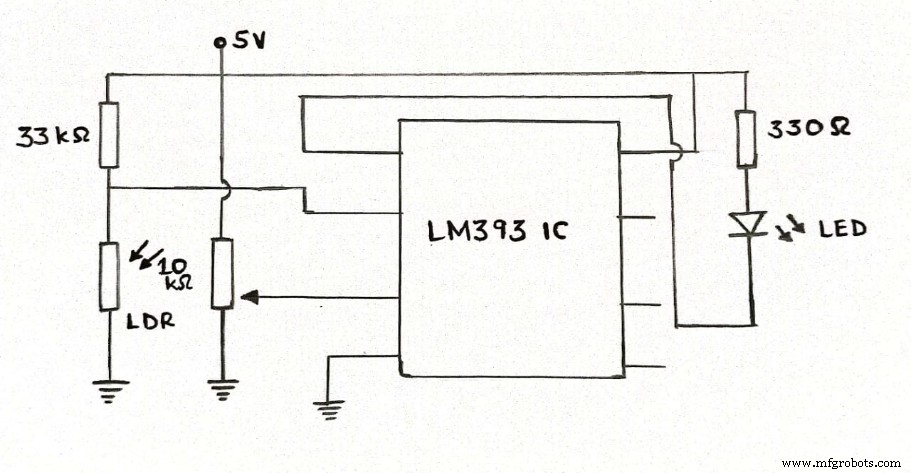

Automatic night light circuit using LM393 IC

Circuit working explained

First, we need to understand that LM393 IC has two power inputs, GND and Vcc. GND is the ground wire of the voltage source, while Vcc is the positive voltage supply reaching approximately 36V. The two power terminals complete a power lane and enable the circuit operation.

The operational amplifier ICs work separately and produce independent outcomes in a typical situation. 6The LM393 IC comprises two internal op-amps. Further, each op-amp contains two outputs and inputs.

(operational amplifier).

But in this case, one op-amp will have no connection since IC LM393 uses only one op-amp. Also, the circuit here only checks one voltage/current level. Therefore, one op-amp is ideal.

Steps to consider

• After applying power to the IC, compare the values of the voltage. A high inverting terminal voltage than non-inverting voltage causes the op-amp output to fall to the ground. Because of that, the current will flow from the positive supply to GND.
• Conversely, a higher non-inverting voltage maintains the output of op-amp output at Vcc (positive power supply voltage). Subsequently, there’s no current flow since no potential differs crossway the load.
• A high voltage at the inverting terminal turns ON the load (LED). Contrarily, low voltage at inverting terminal turns OFF the LED.
• The circuit uses a photoresistor for light detection other than the LED as load. The photoresistor has resistance, which depends on the light hitting its surface. That is to say, and its resistance decreases when exposed to bright light and increases when exposed to darkness.
• So, we can connect a voltage divider circuit with a fixed resistor and photoresistor. If the photoresistor detects darkness, it’ll use more voltage because of less resistance. However, in bright light, increased resistance results in low voltage use.
• Finally, we’ll have a comparator circuit that ensures the LED is ON during darkness and remains OFF in bright light. Briefly, the input of non-inverting terminal voltage can act as the reference voltage. The reference voltage becomes lower than photoresistor voltage in darkness and vice versa in light.

(automatic night light).

lm393 Application

You’ll find the LM393 IC in a wide variety of applications like:

• Peak voltage detector,
• Battery-powered applications,
• Time-delay generators,
• Analog to digital converters (ADC),
• Oscillator circuits,
• Logic system applications,
• It can also drive motor, relay, lamps, etc.,

(street lamp)

• Voltage comparator circuits,
• High voltage protection or warning, and
• Zero crossing detector.

Conclusion

In summary, the LM393 IC is a single-supply, double, low-power, low-offset voltage, and differential voltage comparator. Currently, it is widely applicable in automotive, You’llrial, or educational applications, among others.

Still, have questions? Worry not because our team of professionals will be ready to help you if you contact us.
