15 Essential PCB Components Every Electronics Enthusiast Should Know

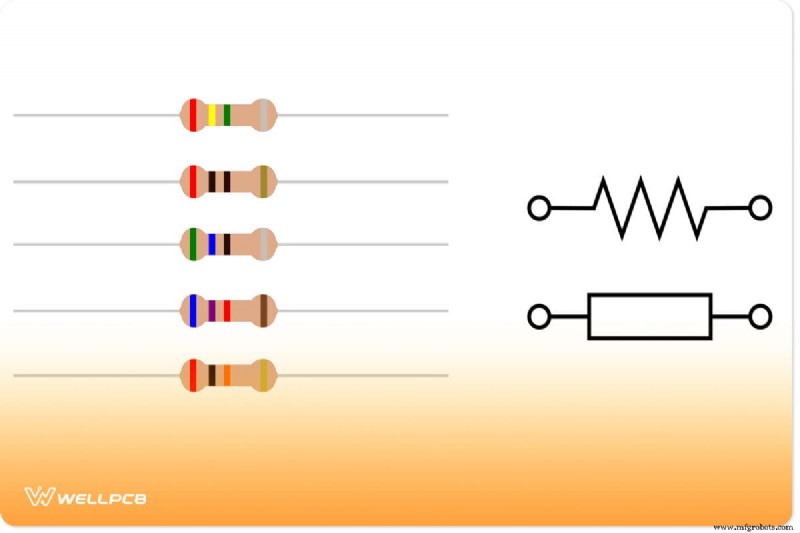

Resistors

Resistors are the backbone of any printed circuit board (PCB). They limit current flow by dissipating electrical energy as heat. The most common hobby‑friendly resistors have two leads and a colored band code that indicates their resistance value. While a wide variety of materials and sizes exist, the standard through‑hole and surface‑mount types are adequate for most beginner and intermediate projects.

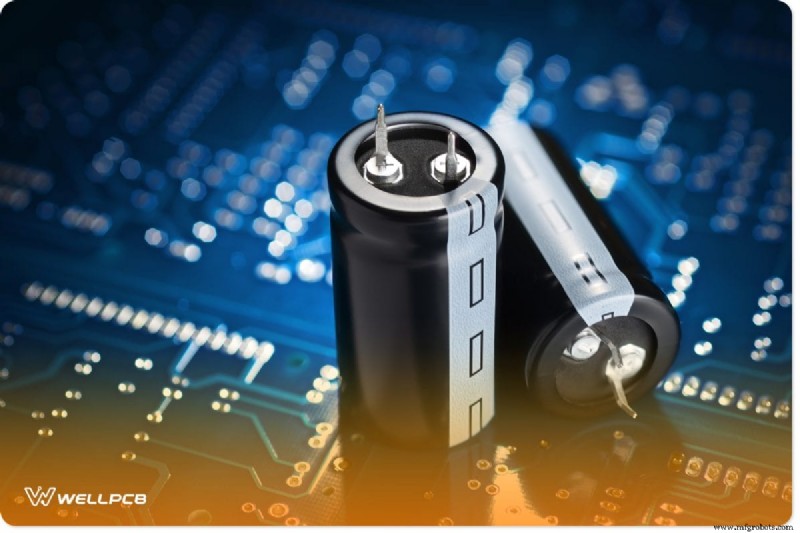

Capacitors

Capacitors store and release charge, smoothing voltage spikes and filtering noise. They come in ceramic, electrolytic, film and tantalum varieties, each chosen for its capacitance, voltage rating and physical size. Unlike resistors, which typically outnumber them on a board, capacitors are essential for timing, filtering and energy storage.

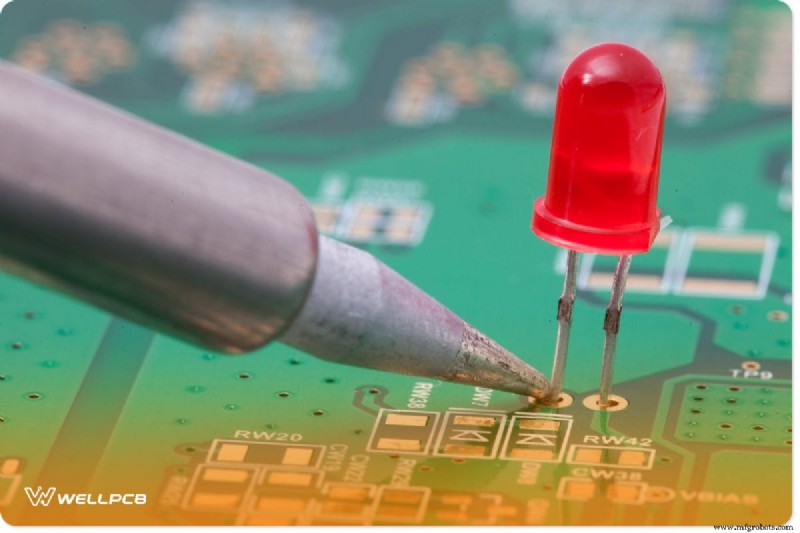

Light‑Emitting Diodes (LEDs)

LEDs convert electrical current into light via electron–hole recombination in a semiconductor junction. They are ubiquitous in indicator lights, displays, and decorative lighting. Understanding forward voltage and current ratings is key to preventing premature failure.

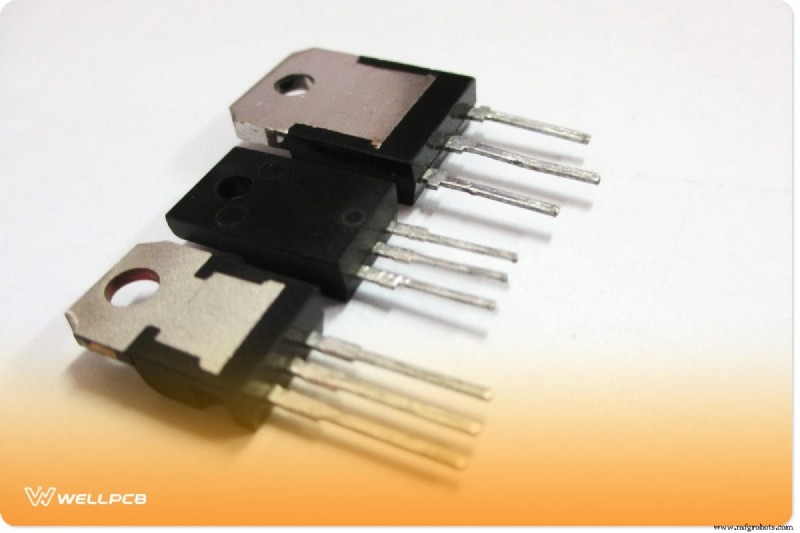

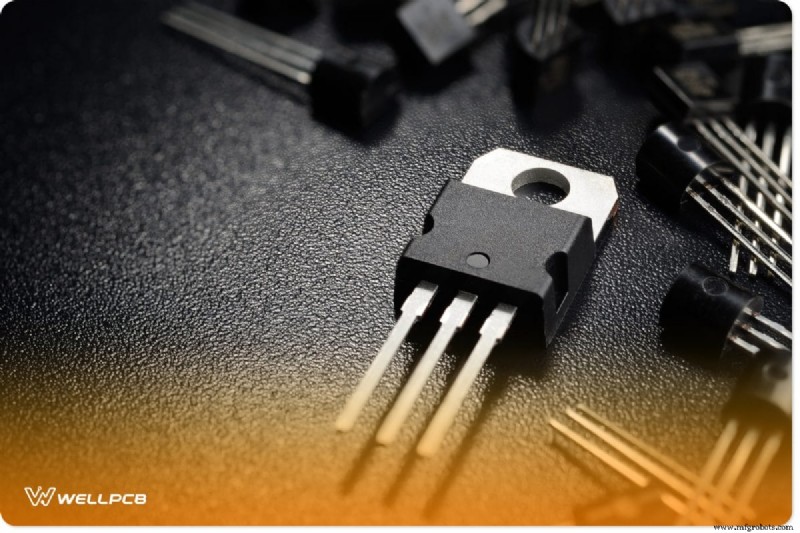

Transistors

Transistors are the fundamental building blocks of modern electronics, acting as switches or amplifiers. Bipolar Junction Transistors (BJTs) – PNP and NPN – have three pins (collector, base, emitter). Field‑Effect Transistors (FETs) use an electric field to control current flow, offering high input impedance and low power consumption.

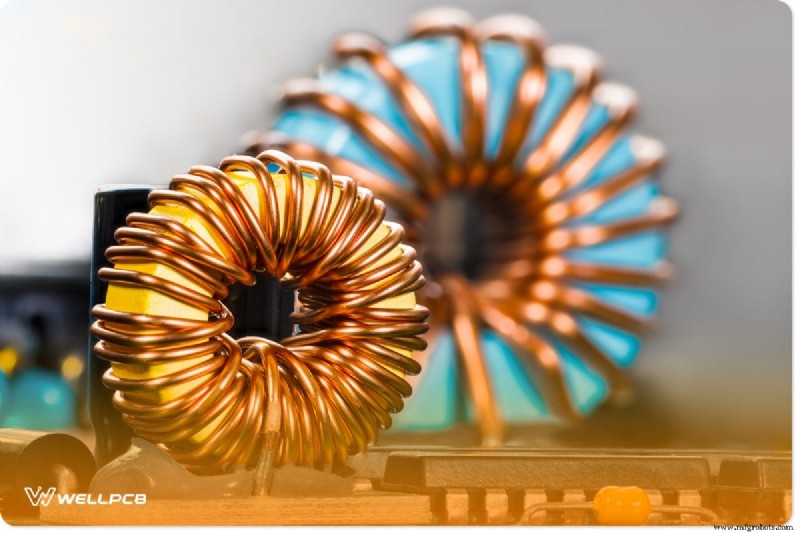

Inductors

Inductors store magnetic energy when current flows through them. Their inductance increases with the number of turns in the coil. In power supplies and radio frequency (RF) circuits, inductors filter unwanted signals and form resonant circuits with capacitors.

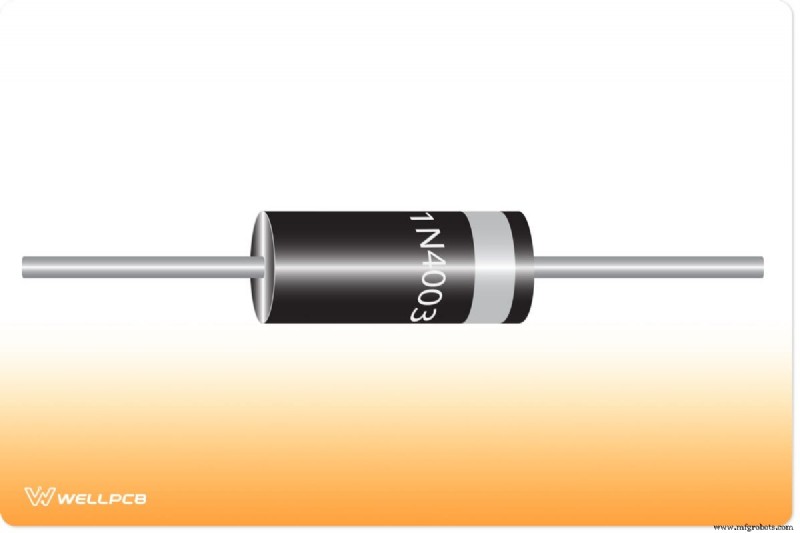

Diodes

Diodes allow current to flow in one direction only, providing protection against reverse polarity and rectification. Standard silicon diodes are used for voltage regulation, while Schottky diodes offer lower forward voltage drop for high‑speed switching.

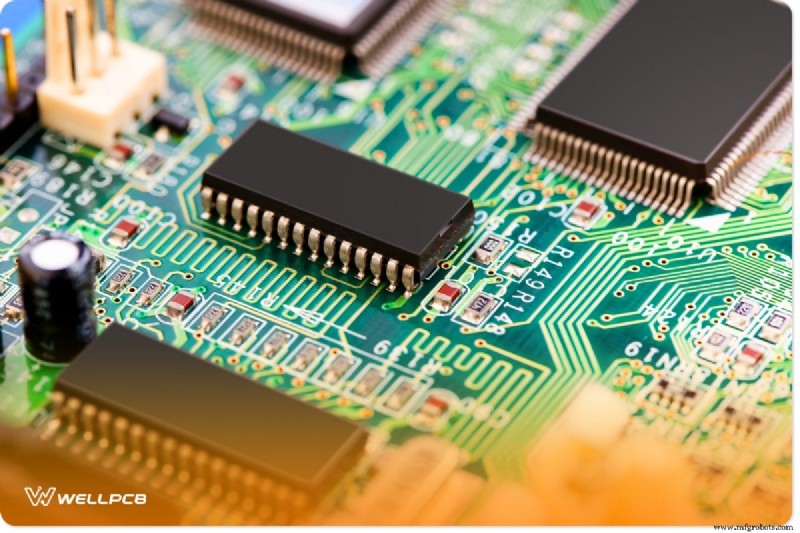

Integrated Circuits (ICs)

ICs condense complex logic or analog functions onto a single semiconductor wafer. They range from microcontrollers and digital signal processors to discrete amplifiers and power regulators. Their compactness and reliability make them indispensable in modern PCBs.

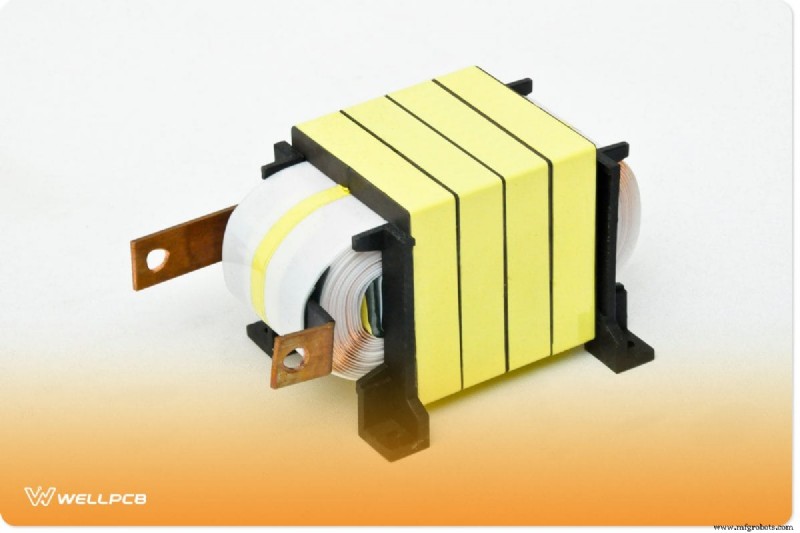

Transformers

Transformers adjust voltage levels between circuits while maintaining electrical isolation. They consist of primary and secondary windings on a shared iron core. Industrial and residential power supplies rely on transformers to step down high‑voltage transmission lines to usable household voltages.

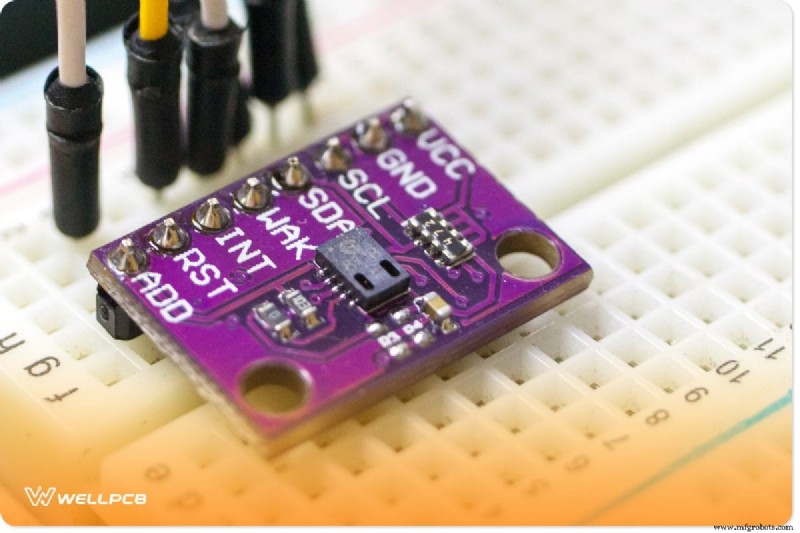

Sensors

Sensors translate physical phenomena—light, temperature, humidity, motion, sound—into electrical signals. They are the first line of interaction between electronics and the environment, enabling responsive devices from smartphones to autonomous vehicles.

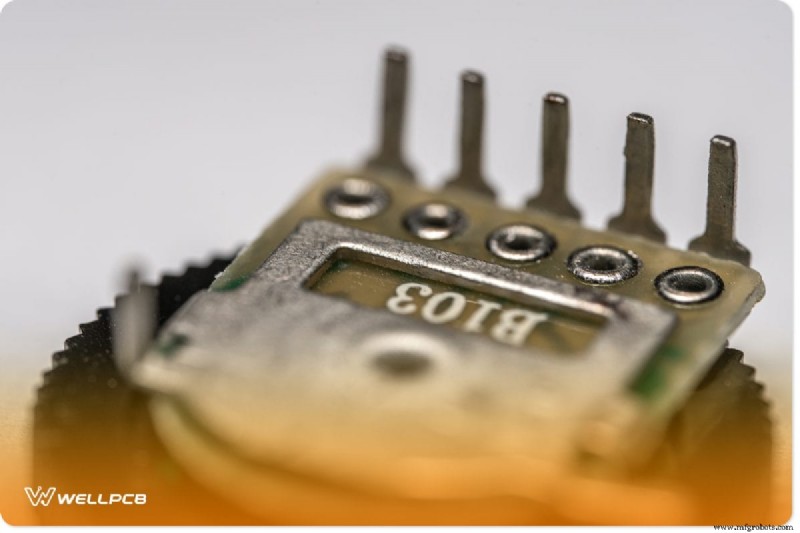

Potentiometers

Potentiometers are variable resistors that allow users to adjust resistance manually. Rotary knobs adjust a sliding contact across a resistive track, while linear versions provide precise, straight‑line control. Common applications include volume controls and calibration adjustments.

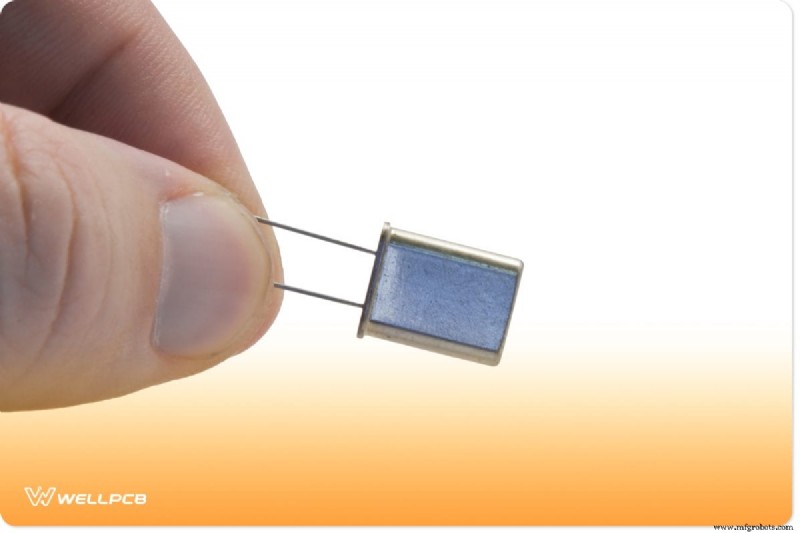

Crystal Oscillators

Crystal oscillators generate highly stable clock signals using the piezoelectric effect of quartz. Their precision—often down to a few parts per million—makes them ideal for timing in microcontrollers, communication systems and watches.

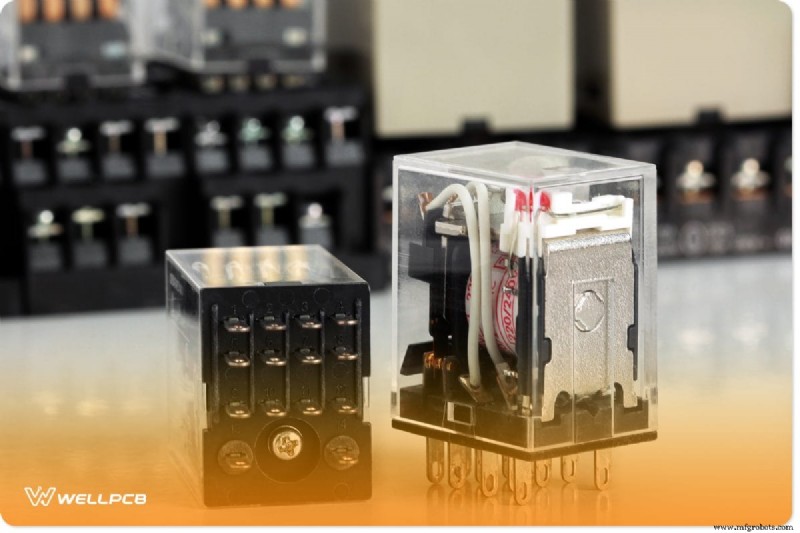

Switches and Relays

Switches mechanically open or close a circuit, while relays use an electromagnet to actuate a contact set, enabling one low‑power control signal to drive a high‑power load. Their variety—rotary, push‑button, slide, and latching—offers flexibility for every design requirement.

Silicon‑Controlled Rectifiers (SCRs)

SCRs, or thyristors, combine diode and transistor functions into a single device with four silicon layers and three terminals (anode, cathode, gate). Once triggered by a gate pulse, they conduct until the current falls below a holding value, making them ideal for high‑power control such as motor drives and power converters.

Passive Devices

Passive components—including resistors, capacitors, inductors and diodes—store or dissipate energy without generating it. They are classified as lossless (e.g., inductors, capacitors) or dissipative (e.g., resistors). Proper selection and layout of passive devices are critical for signal integrity and power efficiency.

Wires

Wires provide the physical pathway for current flow between components. Copper conductors dominate due to their excellent conductivity, but aluminum is used in high‑current bus bars. Specialty wires—ribbon, coaxial, shielded—serve specific purposes such as data transmission, EMI shielding, or flexible harnesses.

Conclusion

Understanding these 15 core components equips you to design, troubleshoot, and innovate on PCBs. Whether you’re prototyping a hobby project or scaling a commercial product, the knowledge of how each part behaves is essential.
