DIY 3D-Printed Jet Turbine: Arduino, BLDC Motor & ESC – Quick Build Guide

Components and supplies

Arduino UNO

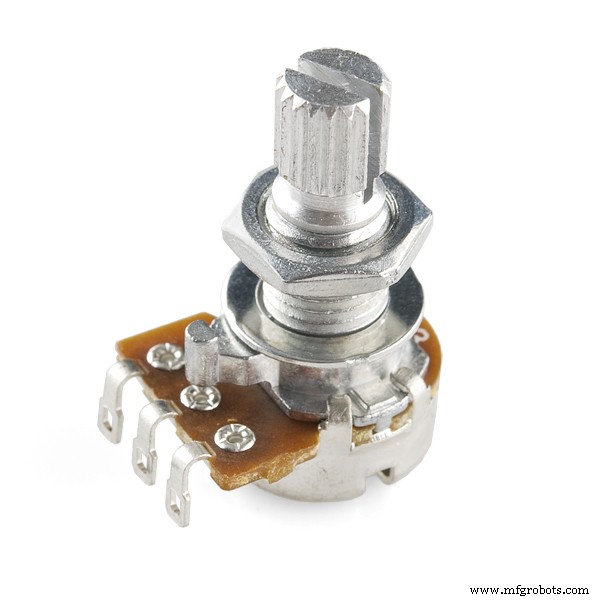

Rotary potentiometer (generic)

ESC

BLDC MOTOR

UTSOURCE Electronic Parts

everything above can be found here for a low price

About this project

Watch the video and see how I created this jet turbine with few components.

Thanks UTSOURCE.net to offer electronic components for this project!

you can check UTSOURCE.net, they deal in all kinds of electronic components, for example, Arduino board, BLDC motor, and many more.

Watch and check out part 2 or version 2 of this project

https://www.hackster.io/Oniichan_is_ded/3d-printed-jet-turbine-v2-1dfc31

To download the STL files, visit:

https://www.thingiverse.com/thing:3503806

Code

code

codeC/C++

#include <Servo.h> //Use the Servo librarey for generating PWM
Servo ESC; //name the servo object, here ESC

void setup()
{
ESC.attach(6); //Generate PWM in pin 6 of Arduino
}

void loop()
{
int throttle = analogRead(A0); //Read the voltage from POT
throttle = map(throttle, 0, 400, 0, 180); //Map the values of 0-102 from pot to 0-180 bcs servo works only from 0-180
ESC.write(throttle); //based on the value of throttle generate PWM signal
}

Custom parts and enclosures

thingiverse link

CAD file on thingiverse.com

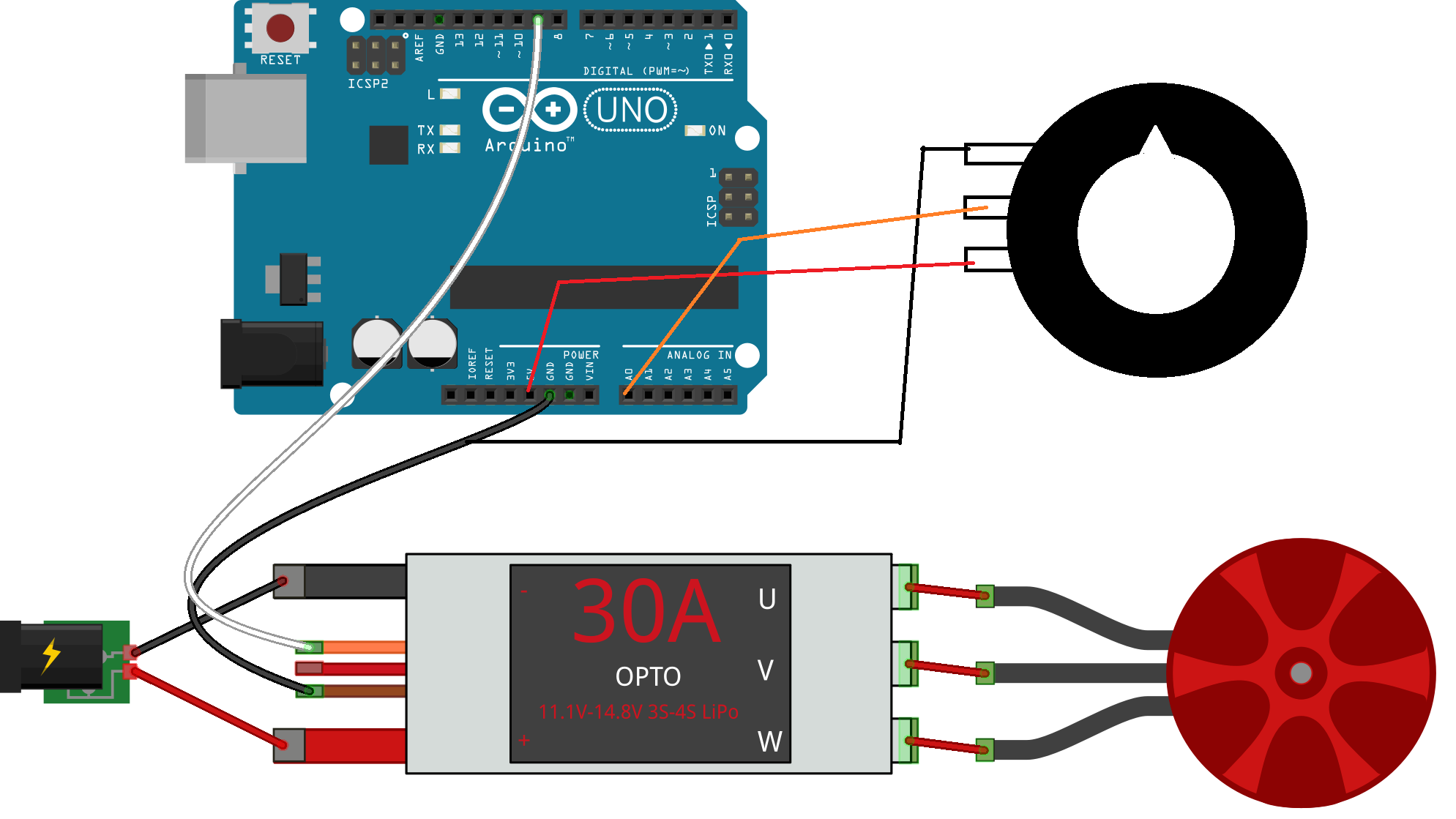

Schematics
