Master Selca S3000/S4000 CNC Programming: Exercise Profile 1
Submit by: BEATA

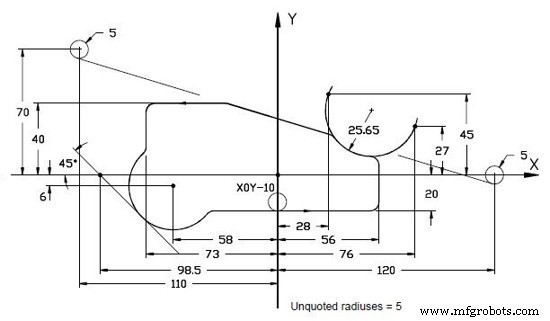

Drawing/Image
CNC Program
N1 [PROFILE 1 N2 $1M0X-93.1I63.5Y-40.5J59.5 N3 G17 N4 O1 N5 T1 N6 F1000S1200M3 N7 G49I3 N8 Z100R N9 X0Y-10R N10 Z2R N11 Z-10 N12 G41K2 N13 G13Y-20J0 N14 G21I5 N15 G13X56J90 N16 G21 N17 E1=G20X76Y27,G21I-25.65,G20X28Y45 N18 E1 N19 G21I5 N20 G10X120Y0I-5 N21 G11X-110Y70I-5 N22 G21 N23 G13Y40J180 N24 G21 N25 G13X-73J-90 N26 G21I-5 N27 E2=G21X-58Y-6,G13X-98.5Y0J-45 N28 E2 N29 G21 N30 G13Y-20J0 N31 G40X0Y-10K2 N32 Z100R N33 M30
