LoRaWAN Link‑Layer Update Boosts Global Deployment and Device Compactness

LoRa, one of the leading low‑power, wide‑area network (LPWAN) technologies, has recently benefited from two key advances that could accelerate its global adoption. A refreshed link‑layer specification streamlines worldwide deployment, while a novel passive‑component packaging solution shrinks device footprints.

The LoRaWAN TS1‑1.0.4 Link‑Layer (L2) Specification consolidates multiple components into a single package. It supplies a reference implementation that manufacturers can adopt as a baseline, a clear certification pathway beginning with the TS009 Certification Protocol, a certification program and requirements document, an updated LoRaWAN Certification Test Tool (LCTT) for pre‑certification and regression testing, and reference firmware that satisfies all certification criteria.

The update resolves ambiguities that previously hindered interoperability, simplifying network design, deployment, and management. It also introduces enhanced security provisions—clarifications around counter handling and persistent parameters—fortifying the protocol’s already robust security architecture.

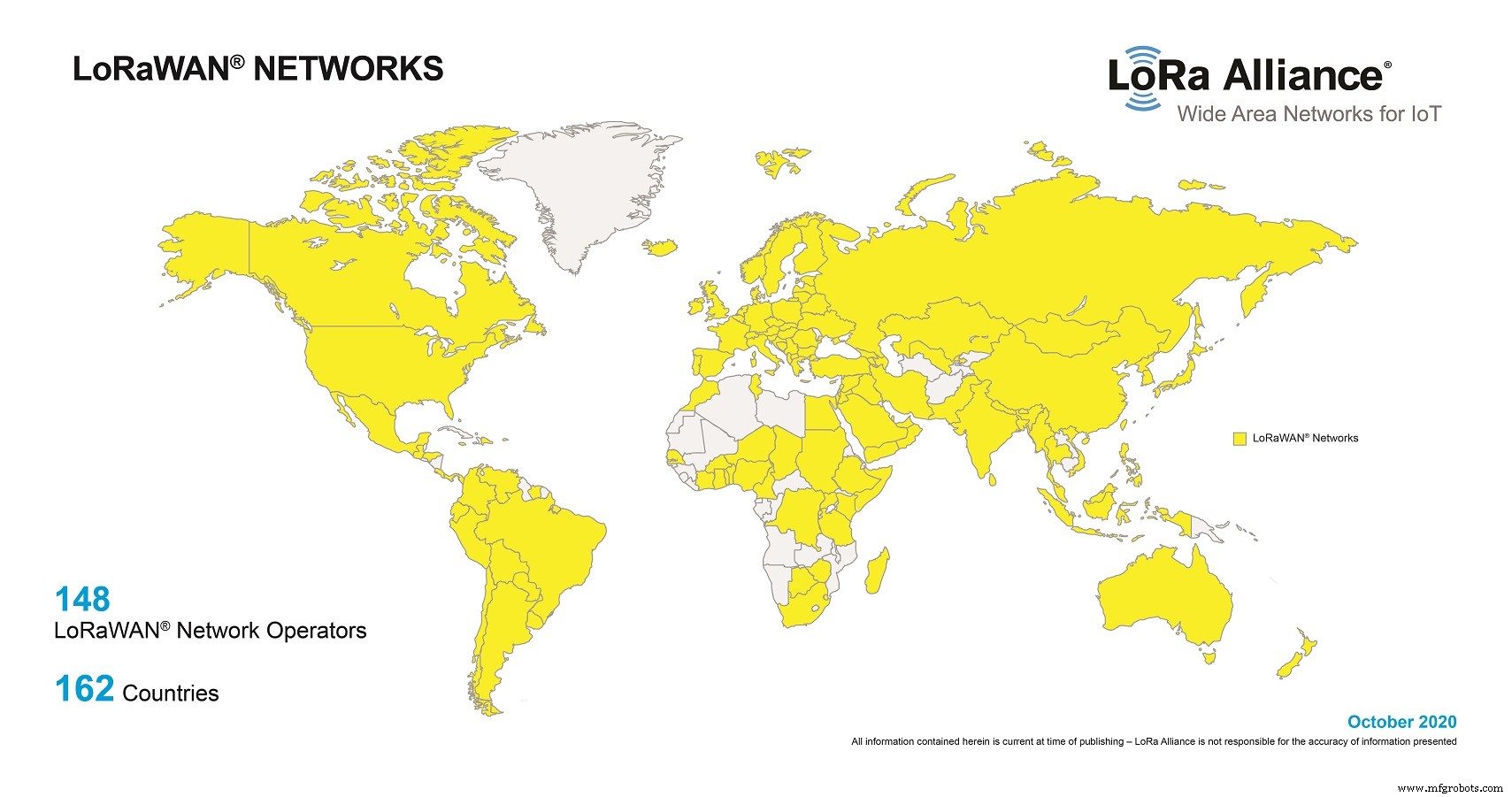

Figure 1. LoRaWAN already sees widespread adoption, which its latest Link Layer specification aims to augment. Source: LoRa Alliance

Standards are only one piece of the puzzle; readily available development platforms accelerate adoption. Senet, Inc. has joined forces with distributor Symmetry Electronics to provide a suite of modules, gateways, and sensors compatible with Senet’s carrier‑grade LoRaWAN network. Symmetry’s customers can also tap into the Senet network during prototyping and production, simplifying onboarding and testing.

Parallel to software advances, passive‑component innovation is reshaping LoRa hardware. Johanson Technology unveiled an Integrated Passive Device (IPD) that consolidates the front‑end capacitors, inductors, impedance‑matching network, balun, and filter into a single 2.0 × 1.25 mm surface‑mount package. The IPD replaces up to 40 discrete RF components and is fabricated using low‑temperature co‑fired ceramic (LTCC) technology.

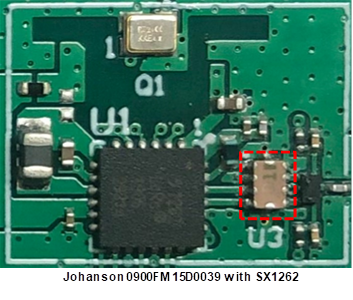

Figure 2. A single SMT package contains all the passive circuitry needed to implement an impedance‑matched balun filter for LoRa. Source: Johanson Technology

Developers benefit in multiple ways: the IPD is roughly 40 % smaller and lighter than a discrete‑component assembly, enabling tighter device form factors. Its monolithic construction eliminates fragile PCB traces and vias, enhancing reliability and reducing performance variability.

Continued product innovations, such as the IPD, drive LoRaWAN’s momentum. While LoRa’s modest data rates limit its suitability for bandwidth‑intensive use cases, they make it ideal for sensors and other applications that prioritize low power and extended range. In these domains, every advancement strengthens global adoption.

Rich Quinnell is a retired engineer and writer, and former Editor‑in‑Chief at EDN.
