Tiny PM2.5 & VOC Sensors Deliver Real‑Time Personal Air‑Quality Monitoring

Air pollution is invisible, yet its impact on our health is profound. In both indoor and outdoor settings, elevated levels of fine particulate matter (PM2.5) and volatile organic compounds (VOCs) can trigger respiratory, cardiovascular, and even neuro‑degenerative conditions. This article explores breakthrough sensor technologies that bring high‑precision PM2.5 and VOC monitoring into everyday devices, empowering users to protect their well‑being.

Personal PM2.5 Monitoring

Exposure to PM2.5—particles 2.5 µm or smaller—has been linked to an increased risk of stroke, heart disease, lung cancer, and asthma, according to the World Health Organization (WHO). Recent research from Harvard University suggests a possible connection between chronic PM2.5 exposure and heightened susceptibility to viral infections, including SARS‑CoV‑2.³

Conventional monitoring stations provide aggregated outdoor data and lack the granularity needed for real‑time, individual exposure assessment. Portable, low‑power sensors embedded in smartphones or wearables can fill this gap, delivering instant feedback on the air you breathe. Bosch Sensortec’s latest PM2.5 sensor makes this possible by operating with natural airflow, eliminating the need for bulky fans.

The sensor’s design borrows from smartphone camera technology: three Class 1 eye‑safe lasers illuminate a small sample volume behind a glass cover, allowing the device to count and size particles with unprecedented precision. Its form factor—roughly the size of a match head—represents a 0.2 % reduction in volume compared to conventional sensors, making it ideal for integration into consumer electronics.

When paired with an application such as BreezoMeter’s Dosimeter, users can view real‑time exposure levels and historical trends, enabling them to adjust outdoor activities or indoor ventilation to stay within WHO’s recommended limits.⁴

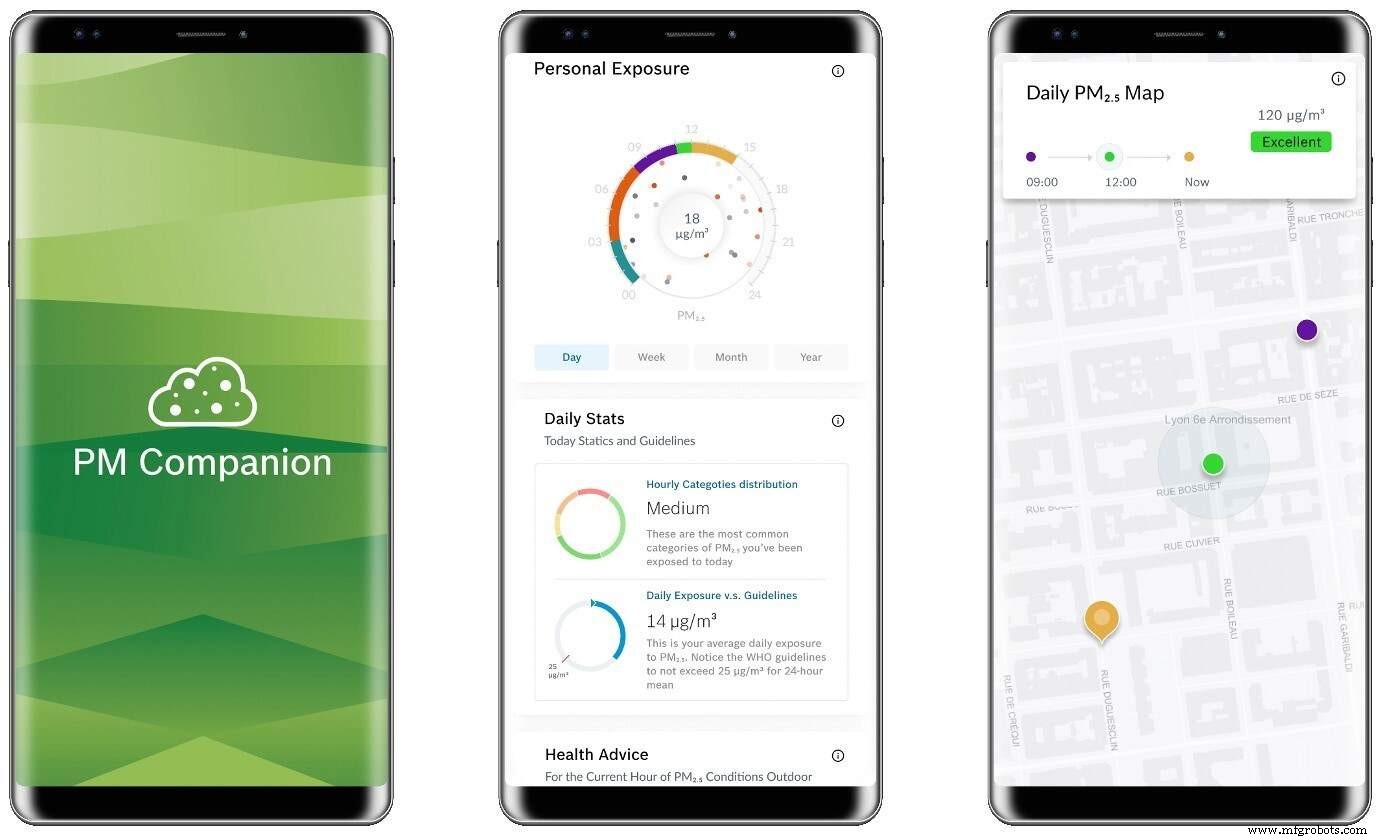

Figure 1: PM2.5 Dosimeter in action

Detecting VOCs for Indoor Comfort and Safety

While outdoor pollution often dominates headlines, indoor VOCs—released by paints, cleaners, and household appliances—affect up to 90 % of our daily life. Elevated VOC concentrations can cause headaches, dizziness, and long‑term health issues. The BME680 sensor, the world’s smallest four‑in‑one solution, measures temperature, humidity, pressure, and gas composition in a 3 × 3 × 0.93‑mm package, drawing less than 0.1 mA of power.

Beyond detecting hazardous gases, the BME680 can differentiate between fresh and stale air, providing actionable data for smart ventilation systems and reducing airborne disease transmission risk. While VOC sensors cannot directly detect viruses, their ability to quantify exhaled breath constituents helps optimize airflow in shared spaces.⁵

Advanced analytics and edge AI further transform raw sensor readings into user‑friendly insights. For example, a machine‑learning model can assess wildfire risk by correlating VOC patterns with temperature and humidity, or a simple status indicator can alert parents when a diaper needs changing—information distilled from complex sensor data into a single, clear signal. A new generation of gas sensors will even recognize specific odor signatures, enabling applications such as food spoilage detection or public‑space cleanliness monitoring.⁶

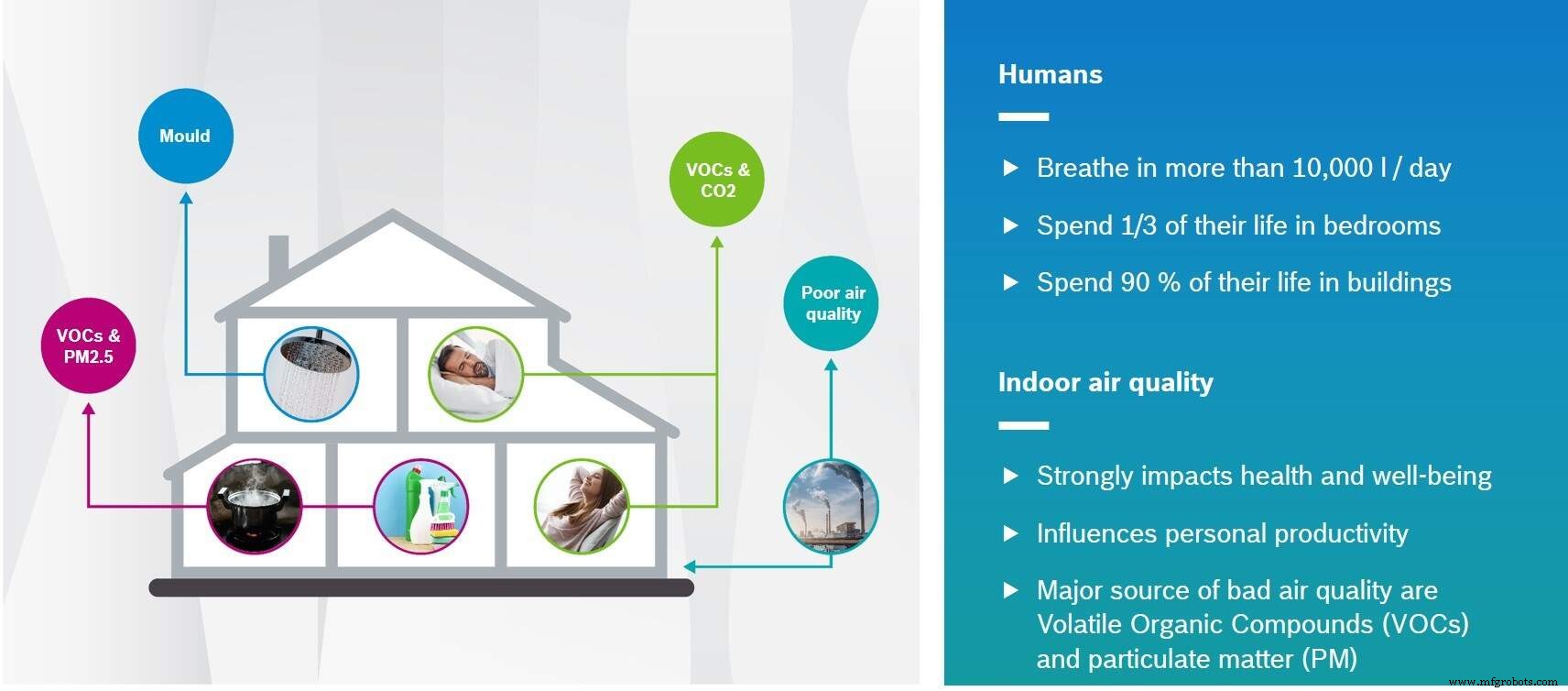

Figure 2: VOCs and PM2.5 together shape air quality

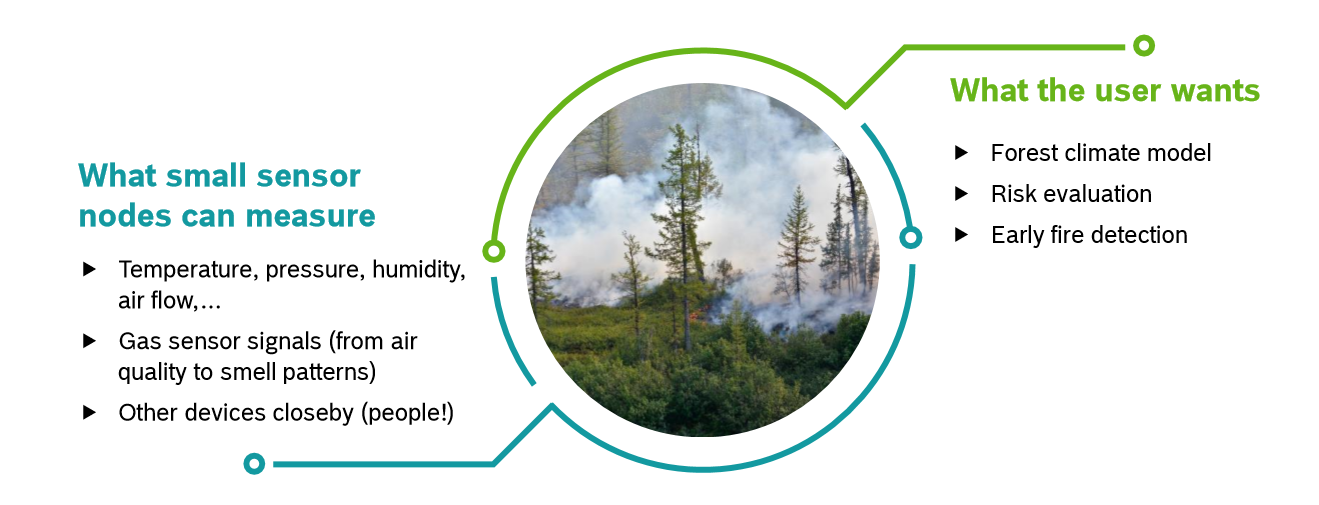

Figure 3: AI‑powered forest climate monitoring

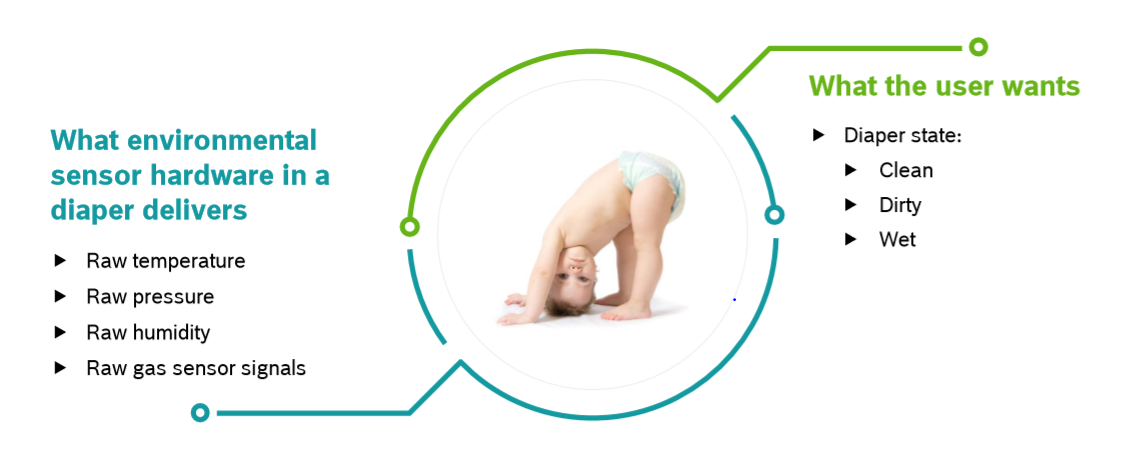

Figure 4: Baby diaper status from sensor data

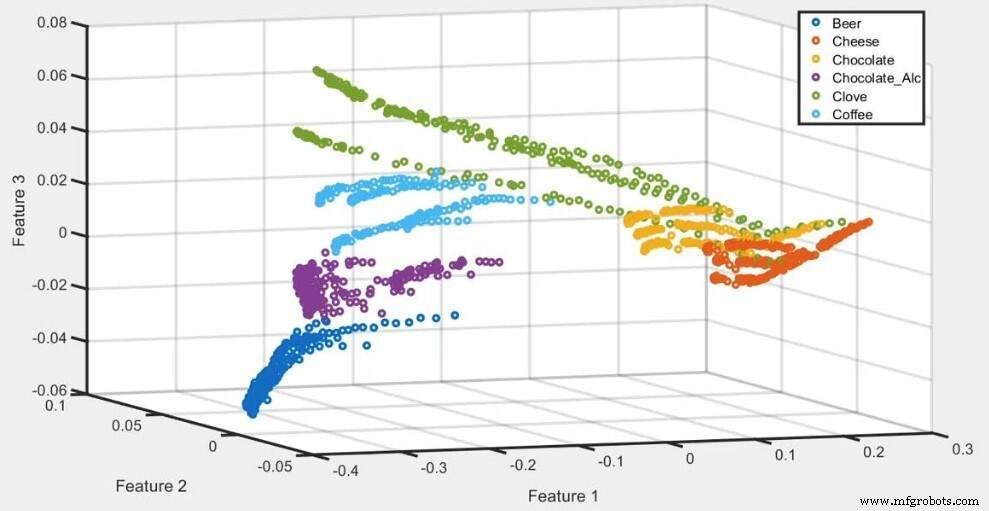

Figure 5: Gas‑composition analysis for odor detection

Conclusion

By delivering accurate, real‑time, personalized air‑quality metrics, these sensor innovations transform how we monitor and respond to our environment. Whether you’re planning a run, setting up a smart home, or deciding on a vacation destination, instant feedback on PM2.5 and VOC levels empowers informed choices that protect health and enhance quality of life. As demand for air‑quality awareness grows, Bosch’s compact, low‑cost sensors position them as a cornerstone of next‑generation personal environmental monitoring.

References

¹ WHO, ‘Ambient (outdoor) air pollution’, https://www.who.int/news-room/…

² DEFRA, ‘Sources and Effects of PM2.5’, https://laqm.defra.gov.uk/publ…

³ Harvard University, ‘Linking Air Pollution to Higher Coronavirus Death Rates’, https://www.hsph.harvard.edu/b…

⁴ WHO, ‘Ambient (outdoor) air‑quality and health’, https://www.who.int/news-room/fact-sheets/detail/ambient-(outdoor)-air-quality-and-health

⁵ Environment International, ‘Airborne transmission of SARS‑CoV‑2’, 2020, https://www.sciencedirect.com/science/article/pii/S016041202031254X

⁶ Harvard Medical School, ‘Smell disorders: When your sense of smell goes astray’, 2018, https://www.health.harvard.edu/blog/smell-disorders-when-your-sense-of-smell-goes-astray-2018121215539
