Optimizing MAPbI3 Perovskite Solar Cells with Oblique-Angle Sputtered ITO Electrodes

Background

Indium tin oxide (ITO) remains the most widely used transparent conductive oxide (TCO) in optoelectronic devices, offering ~96 % visible transmittance and ~10 Ω/sq sheet resistance ^[1–5]. Tailoring ITO’s optical and electrical characteristics—through annealing, gas‑ratio control, or glancing‑angle deposition (GLAD)—has yielded anisotropic films with columnar microstructures and direction‑dependent properties ^[9–10]. Perovskite solar cells (PSCs) based on CH₃NH₃PbI₃ (MAPbI₃) have achieved remarkable efficiencies ^[11–18], yet most devices employ isotropic TCO substrates. This study explores the use of oblique‑sputtered ITO as a substrate for planar MAPbI₃ PSCs, examining how surface anisotropy impacts film growth and device performance.

Methods

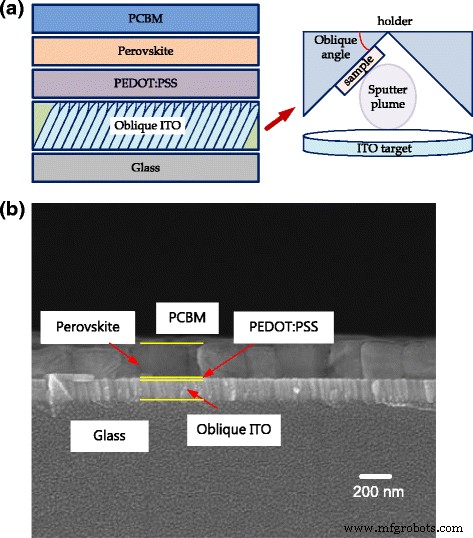

ITO glass (1.5 × 1.5 cm²) was cleaned sequentially with acetone, ethanol, and deionized water (5 min ultrasonication) and dried with nitrogen. A 100 nm ITO layer was sputtered at 5 mTorr Ar, varying the deposition angle (0°, 15°, 30°, 45°, 60°, 80°) and time (5–30 min). Post‑deposition, films were annealed at 300 °C for 30 min. PEDOT:PSS (Clevios™ PH 1000) was spin‑coated on the oblique ITO (5000 rpm, 30 s) and annealed at 110 °C for 10 min. MAPbI₃ was deposited via a two‑step spin‑coating process (1000 rpm, 10 s; 5000 rpm, 20 s) with a 1 mL DMSO/GBL (1:1) precursor solution (1.25 mmol PbI₂, 1.25 mmol MABr). During the 5000 rpm step, 100 µL anhydrous toluene was dripped to induce rapid crystallization. Films were annealed at 100 °C for 10 min. A 50 nm PCBM layer (20 mg mL⁻¹ chlorobenzene) was spin‑coated (3000 rpm, 30 s), followed by 20 nm Ag evaporation under vacuum. Devices had a 0.5 × 0.2 cm² active area defined by a shadow mask. Structural analysis used XRD (Cu Kα) and FESEM; wettability was assessed via water contact angle. J‑V characteristics were measured with a Keithley 2420 under 1000 W m⁻² AM 1.5G illumination.

Results and Discussion

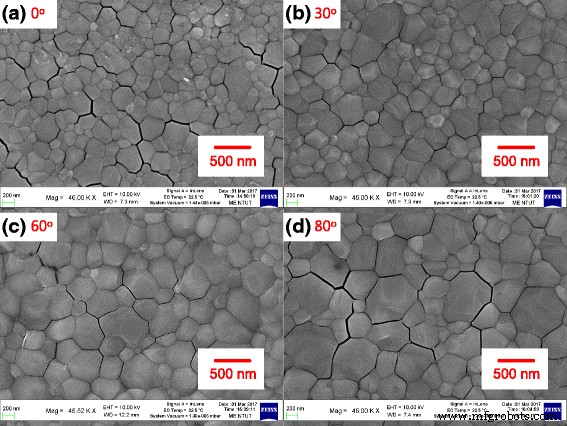

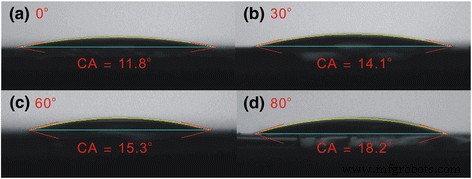

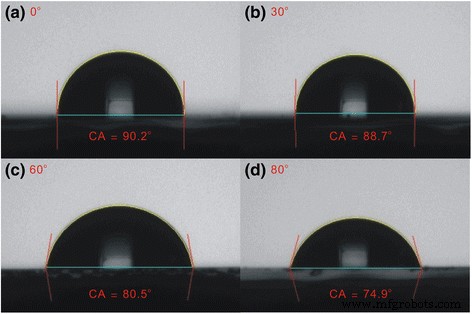

Crystallinity of MAPbI₃ films remained unchanged across sputtering angles; XRD peaks at 14.28°, 28.5°, 30.61°, and 31.93° matched (110) MAPbI₃, (220) MAPbI₃, (110) SnO₂, and (222) In₂O₃ respectively, with domain sizes ≈71.8 nm (Scherrer). FESEM revealed grain growth with increasing sputtering angle, confirming that ITO surface roughness and wettability modulate PEDOT:PSS wetting and perovskite nucleation. Water contact angle measurements showed a linear correlation between the angle and grain size, indicating that a more hydrophobic PEDOT:PSS surface (achieved via higher oblique angles) promotes larger perovskite grains.

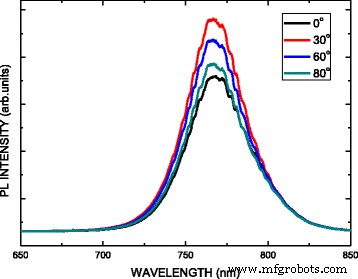

Photoluminescence spectra displayed a dominant emission at 768 nm, unaffected by the underlying ITO. PL quenching intensified with higher sputtering angles, evidencing improved exciton separation at the PEDOT:PSS/perovskite interface—most pronounced at 80° due to optimal wettability.

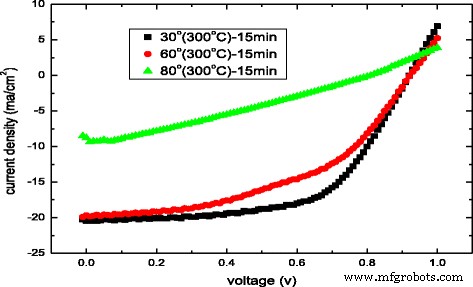

Device performance peaked at a 30° sputtering angle. The 15‑min deposition yielded the best conductivity while maintaining sufficient light scattering. Table 1 lists the key performance metrics: J_SC = 20.46 mA cm⁻², V_OC = 0.92 V, FF = 60 %, and Eff = 11.30 %. Increasing the angle beyond 30° raised sheet resistance and diminished efficiency, illustrating the trade‑off between optical and electrical properties.

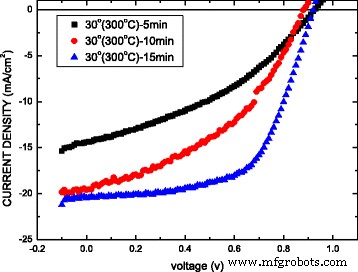

Varying sputtering time further optimized performance (Table 2). A 15‑min deposition provided the optimal film thickness and conductivity, achieving the same 11.3 % efficiency as the 30° angle.

Conclusions

We demonstrated that oblique‑sputtered ITO substrates modulate MAPbI₃ film morphology and PSC performance. The optimal configuration—a 30° sputtering angle and 15‑min deposition—delivers 11.3 % efficiency, balancing conductivity and light‑scattering. Beyond 30°, increased sheet resistance outweighs optical benefits, reducing device yield. These findings highlight the importance of tailoring TCO microstructure to enhance perovskite photovoltaic performance.
