Significantly Boosted Solar Cell Efficiency Using GaAs/InAs Nanowire–Quantum Dot Hybrid Arrays

Abstract

This study introduces a GaAs/InAs nanowire–quantum dot (NW–QD) hybrid solar cell that achieves a remarkable extension of the absorption spectrum to 950 nm. By depositing five layers of InAs quantum dots on the sidewalls of 500‑nm GaAs nanowires, the device benefits from simultaneous spectral broadening and light‑trapping. The resulting power‑conversion‑efficiency (PCE) gain exceeds the enhancement obtained in conventional thin‑film cells by a factor of six, underscoring the superior role of the nanowire array in quantum‑dot solar‑cell performance.

Background

Quantum dots (QDs) have long been identified as a promising route to elevate solar‑cell efficiencies by engineering effective bandgaps and extending absorption into the sub‑bandgap regime. When integrated into the active region, QDs can generate an intermediate band, allowing photons with energies below the host bandgap to contribute to photocurrent. However, realizing a net efficiency improvement requires a substantial increase in absorption—either by adding more QDs, enhancing their optical coupling, or both.

A recent breakthrough involves growing Stranski‑Krastanov QDs directly on the sidewalls of vertically aligned nanowires (NWs). This hybrid approach offers two synergistic benefits: (1) the NW geometry permits a high density of multilayer QDs, and (2) the array’s intrinsic light‑trapping capability amplifies QD absorption. Such NW–QD hybrids can be fabricated on inexpensive silicon substrates, making them attractive for scalable, high‑efficiency photovoltaics. While the structural and optical properties of NW–QD hybrids have been well documented, their full photovoltaic potential has yet to be quantified.

Here we present a coupled optoelectronic simulation that evaluates the performance of a GaAs/InAs NW–QD solar cell. The device features a radial pin junction, with all five QD layers situated in the intrinsic region. We compare the NW array to an equivalent thin‑film structure to isolate the advantages conferred by the nanowire geometry.

Methods

The NW–QD hybrids were fabricated using a Thomas Swan Close‑Coupled Showerhead (CCS) MOCVD system with trimethylgallium, trimethylindium, and arsine precursors. After catalyst formation on an Au‑coated GaAs substrate, GaAs NWs were grown. Subsequent temperature ramps and precursor toggling deposited the first InAs QD shell, followed by a GaAs spacer. Repeating this sequence produced five concentric QD layers along the NW sidewalls.

Device geometry (Fig. 1a) consists of periodic GaAs/InAs NWs with a 500‑nm height, 100‑nm radius, and 360‑nm pitch. The p‑type shell and n‑type core were doped at 3×10¹⁸ cm⁻³ and 1×10¹⁸ cm⁻³, respectively. The QD layers, wetting layers (WLs), and surrounding GaAs were treated as an effective medium with a 2‑nm thickness, using volume‑weighted refractive indices (Eq. 1).

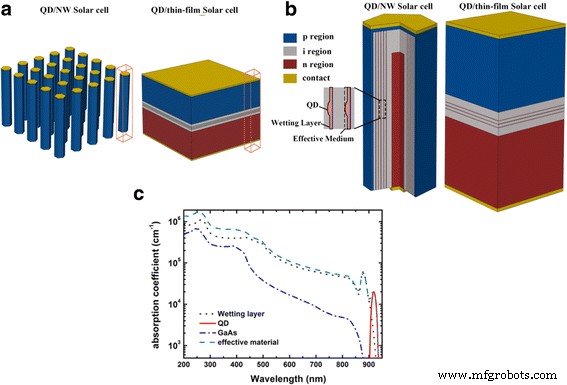

a Schematic of the NW–QD hybrid cell and its thin‑film counterpart. b Detailed unit cell cross‑section. c Effective‑medium absorption coefficient; volume fractions are 0.0029 (QD), 0.649 (WL), and 0.348 (GaAs).

Optical simulations employed 3D‑FDTD (Lumerical) with periodic boundary conditions and the AM1.5G spectrum discretized into 87 wavelengths. The resulting generation profiles were imported into a finite‑element device solver (Lumerical Device) that self‑consistently solves carrier continuity and Poisson equations, accounting for radiative, Auger, and Shockley‑Read‑Hall recombination. Carrier capture from GaAs into WLs and subsequent relaxation to QDs were modeled with 100‑meV band offsets, reflecting experimental activation energies. Barrier mobilities of 2500 cm²/Vs (electrons) and 150 cm²/Vs (holes) and a surface recombination velocity of 3000 cm/s were used.

Results and Discussion

Figure 3 demonstrates that QD layers dramatically enhance absorption beyond 450 nm and extend the spectrum to 950 nm. As NW length increases, the absorption advantage of QDs diminishes above the GaAs bandgap because bulk GaAs absorption becomes dominant. However, below the bandgap, the QD contribution grows with longer NWs, producing two pronounced peaks at 876 nm and 916 nm—consistent with the effective‑medium absorption profile (Fig. 1c). Thin‑film structures saturate quickly with thickness; their lower QD volume fraction limits absorption benefits, especially above the bandgap.

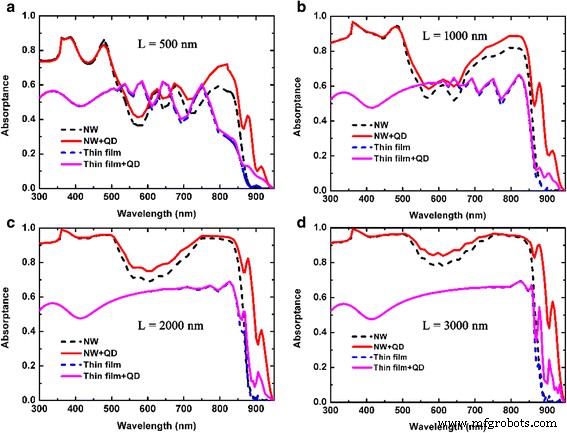

The absorption spectra of the NW–QD hybrid and thin‑film devices for NW lengths of 500, 1000, 2000, and 3000 nm.

Optical generation maps (Fig. 4) reveal that carriers generated in the effective medium outnumber those in GaAs, confirming the QD absorption boost. In short NWs, carriers distribute throughout the structure, whereas in long NWs they concentrate near the top, where guided‑mode resonance at long wavelengths enhances QD absorption. Electric‑field plots at 876 nm and 916 nm show strong overlap with QD layers, illustrating the light‑trapping advantage of the NW array. By contrast, the thin‑film generation profile is markedly weaker, underscoring the limited role of QDs in planar devices.

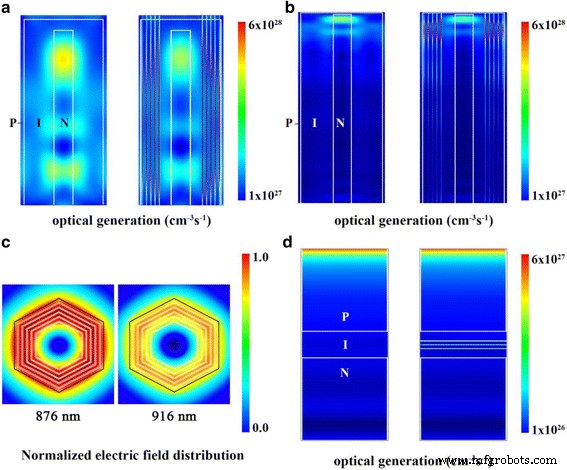

a Generation in short NWs. b Generation in long NWs. c Field distributions at 876 nm and 916 nm. d Thin‑film generation.

Device performance calculations (Fig. 5) show that incorporating QDs raises the short‑circuit current density (J_sc) by 1.09 mA/cm² (short NWs) and 1.22 mA/cm² (long NWs), but reduces the open‑circuit voltage (V_oc) by 0.017 V and 0.021 V, respectively. Consequently, the overall efficiency improvement is 0.67% for short NWs and 0.45% for long NWs. The increased V_oc penalty arises from a three‑order‑of‑magnitude rise in radiative recombination within QD layers (Fig. 5c). Thin‑film devices exhibit only a 0.11% efficiency gain under identical QD loading, confirming that the nanowire geometry is pivotal for harnessing QD absorption.

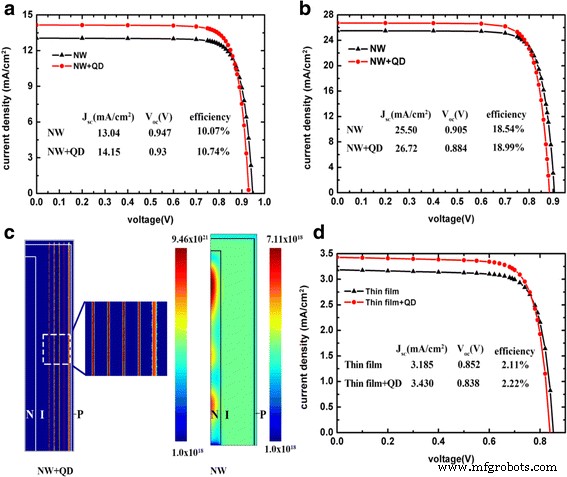

a I‑V of short NWs. b I‑V of long NWs. c Radiative recombination cross‑section. d I‑V of thin‑film devices.

Future work can mitigate V_oc losses by optimizing QD size, density, and spatial distribution, potentially yielding higher absorption coefficients and better carrier extraction. The present results, however, convincingly demonstrate that NW–QD hybrids provide a six‑fold advantage over thin‑film analogues, positioning them as a promising architecture for next‑generation quantum‑dot photovoltaics.

Conclusions

We have shown that multilayer InAs QDs on GaAs nanowires extend absorption to 950 nm and amplify the PCE by a factor of six relative to thin‑film designs. While QDs boost J_sc, they also introduce additional recombination that degrades V_oc; careful engineering can offset this trade‑off. The GaAs/InAs NW–QD hybrid structure therefore represents a compelling platform for high‑efficiency quantum‑dot solar cells.

Abbreviations

3D‑FDTD:

Three‑dimensional finite‑difference time‑domain

AsH₃:

Arsine

CCS:

Close Coupled Showerhead

I‑V:

Current density versus voltage

J_sc:

Short‑circuit current

MOCVD:

Metal organic chemical vapor deposition

NWs:

Nanowires

QDs:

Quantum dots

S‑K:

Stranski‑Krastanov

SRH:

Shockley‑Read‑Hall

TE:

Transverse electric

TM:

Transverse magnetic

TMGa:

Trimethylgallium

TMIn:

Trimethylindium

V_oc:

Open‑circuit voltage

WLs:

Wetting layers
