Metal‑Substrate‑Induced Line‑Width Compression of the Magnetic Dipole Resonance in a Silicon Nanosphere Excited by a Focused Azimuthally Polarized Beam

Background

Dielectric nanoparticles with high refractive indices and diameters between 100 and 250 nm support distinct Mie resonances across the visible and near‑infrared spectrum, making them attractive building blocks for optical metamaterials [1–7]. The simultaneous presence of electric dipole (ED) and magnetic dipole (MD) modes and their coherent coupling give rise to phenomena such as directional scattering and Kerker’s conditions [8–12], as well as enhanced forward or backward scattering [13–15].

Both the electric and magnetic resonances of high‑index particles can be tuned by altering size, shape, or surrounding environment [16–31]. Importantly, the supporting substrate can strongly influence optical response, particularly in particle–film hybrids where a dielectric particle sits on a metal film, creating new hybrid modes from interactions between the particle’s multipoles and their mirror images [26–32]. Under linear‑polarized illumination, the ED of a Si NS and its mirror image on a Au film generate a surface‑enhanced MD at the contact point, amplifying the magnetic field [26–29]. For oblique incidence, the MD linewidth can be tuned by changing the incident beam’s polarization [30].

Structured light, such as cylindrical vector beams, provides an additional degree of freedom to selectively excite multipolar resonances in dielectric nanoparticles [33–42]. Radially polarized beams favor ED excitation, whereas azimuthally polarized beams suppress EDs and selectively excite MDs, owing to the vanishing electric field along the beam axis [38–42]. This property enables the excitation of magnetic‑type anapole modes using dual AP beams [42], and offers a clean platform to tailor MD transitions [43, 44].

Previous studies of Si NSs illuminated by focused AP beams have considered particles suspended in air or on SiO₂ substrates [38–42]. However, the MD linewidths remain too broad for practical applications that require high‑Q resonances. A modest increase in Q can substantially enhance nonlinear processes such as two‑ and three‑photon absorption in Si nanoparticles, enabling femtosecond laser‑induced photoluminescence [45]. Here, we investigate a Si NS on a metal substrate under AP illumination. Owing to the rotational symmetry of both the beam and the particle, only magnetic multipoles are excited. We find that the MD and its metal‑induced image are out of phase, resulting in a ~20 nm linewidth (≈2.5× narrowing) and a Q factor of ~37.25. The sharp MD resonance achieved with this configuration holds promise for nanoscale sensing and color display technologies.

Numerical Methods

Scattering spectra were obtained using the finite‑difference time‑domain (FDTD) method [46]. The AP beam’s focal‑plane field was first calculated via the k-space beam‑profile definition [47] and then fed into the FDTD simulation. The Si NS radius was fixed at R = 100 nm; the substrate was modeled as a perfect electric conductor (PEC) for the “Results and Discussion” and “Image Theory” sections, and as 50‑nm Au for the “Practical Applications” section. Optical constants for Si and Au were taken from Palik and Ghosh [48] and Johnson and Christy [49], respectively. The surrounding medium was air (n = 1.0). A 3‑nm mesh was used in the illuminated region, and perfectly matched layers terminated the simulation domain.

Results and Discussion

Figure 1a shows the electric‑field distribution of a focused AP beam at the focal plane. The AP beam’s rotational symmetry produces a zero electric field along the optical axis, matching the MD resonance of the Si NS. Figures 1b and 1d display the scattering spectra for a Si NS suspended in air and for one placed on a PEC substrate, respectively. In both cases, only the MD and magnetic quadrupole (MQ) modes are excited; all electric resonances are suppressed, consistent with previous findings [38–42]. The PEC substrate induces a pronounced narrowing of the MD resonance—from ~53 nm to ~20 nm—resulting in a Q factor increase from ~14.62 to ~37.25.

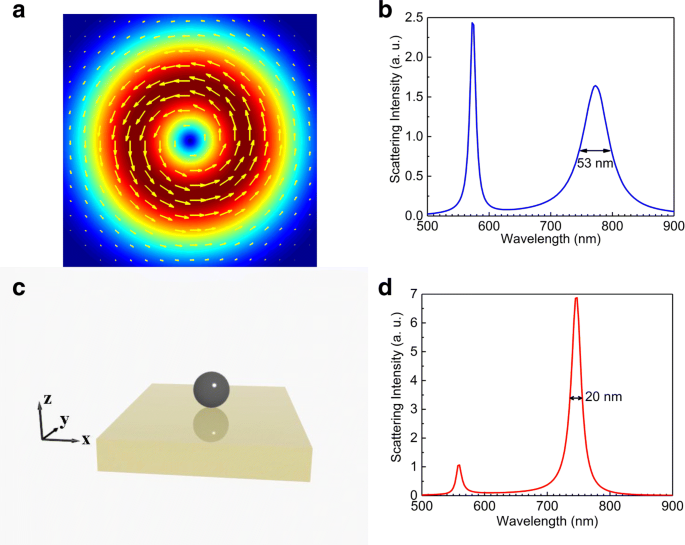

a Electric‑field distribution of a focused AP beam at the focal point. b Scattering spectrum of the Si NS in air (MD linewidth 53 nm). c Si NS with R = 100 nm on a metal substrate. d Scattering spectrum on a PEC substrate.

To dissect the origin of the linewidth compression, we performed a multipole decomposition in Cartesian coordinates [16, 25]. The induced polarization is P = ε₀(ε_p – ε_d) E, where ε₀ is the vacuum permittivity, ε_p the relative permittivity of the Si NS, ε_d that of the surrounding medium, and E the internal electric field. The magnetic dipole moment and MQ tensor are given by equations (1) and (2) above. The corresponding scattering cross sections are expressed in equations (3) and (4).

Figure 2 compares the multipole contributions for the Si NS with and without the PEC substrate. In both cases, the total scattering originates solely from MD and MQ modes, but the MD linewidth narrows only when the substrate is present. Figures 2c and 2d show the electric and magnetic field distributions at the MD resonances (775 nm in air, 745 nm on PEC). The MD in both configurations points along +z, and the presence of the PEC substrate markedly enhances the electric and magnetic fields.

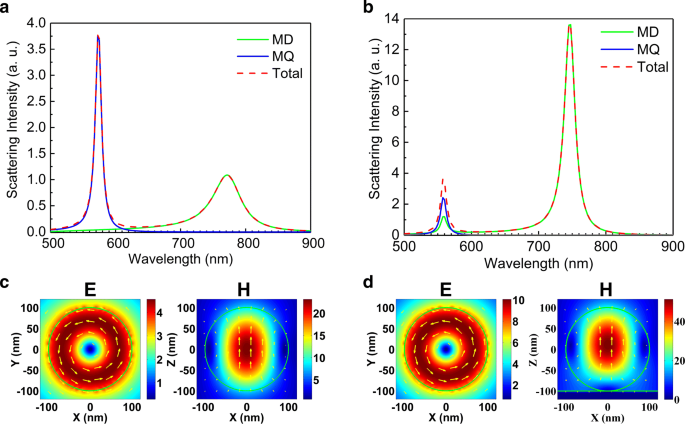

Multipole decomposition of the total scattering of the Si NS with R = 100 nm suspended in air (a), placed on a PEC substrate (b), and illuminated by a focused AP beam. Corresponding electric and magnetic field distributions at the MD resonances (775 nm in a, 745 nm in b) are shown in c and d.

Image Theory of the Out of Plane MD

The MD linewidth narrowing can be rationalized via image theory and Green’s‑function analysis [27, 30]. Consider an MD located at r₀ = (x₀, y₀, z₀) above an air/PEC interface at z = 0. The magnetic moment is m = α̂_m H₀, where α̂_m = α_h/(1 – α_h G_M) and G_M = (2i k₀ z₀ – 1)/(16π z₀³) [30]. The Si NS polarizability is α_h = 6iπ b₁/k₀³, with b₁ the Mie coefficient. The magnetic field at the MD center is H₀ = [0, 0, cos(k₀ z₀)]. The MD extinction cross section is σ_m = (ω/2 P_in) Im({m H₀^*}) [27].

Because of the AP beam’s symmetry, the Si NS hosts an MD oriented along +z; the PEC substrate induces a mirror MD along –z, out of phase with the original. The anti‑phase interaction suppresses radiative loss, compressing the MD resonance in the scattering spectrum. Figure 3b compares MD resonances calculated with and without the PEC substrate using the Green’s‑function method. In addition to linewidth narrowing, a blue shift and a ~3× increase in scattering intensity are observed, in excellent agreement with the FDTD results.

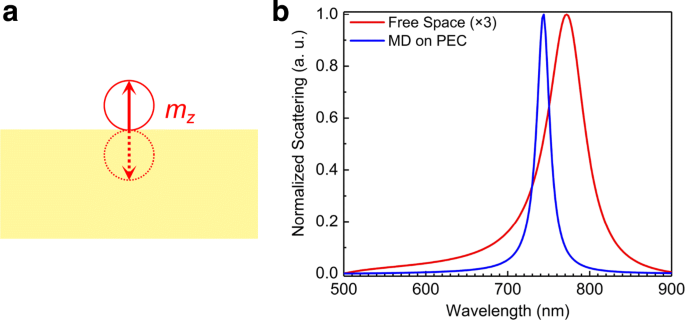

a Schematics of the z component of the MD in the Si NS and its mirror image induced by the metal substrate, highlighting their phase relationship. b Normalized scattering spectra computed with the dyadic Green’s‑function method for the Si NS with R = 100 nm in air and on a PEC substrate.

Practical Applications

The sharp MD resonance engineered by combining a metal substrate and an AP beam offers immediate opportunities in nanoscale sensing and color‑display technologies. In our simulations, the metal substrate is a 50‑nm Au film—an established platform in our earlier work [28]. The underlying mechanism—coherent interaction between the MD and its image—requires a conductive substrate but is not limited to gold.

Sensor

Intensity‑shift sensors based on Si NS dimers have already outperformed plasmonic sensors in terms of sensitivity [51]. The high‑Q MD resonance of the Si NS on a metal substrate, excited by an AP beam, is especially suited for sensing. Because the MD resonance depends on both the particle and its image, any change in the surrounding refractive index perturbs the resonance, broadening and red‑shifting it (Fig. 4a,b). This sensitivity is retained even when ligands are attached to the nanoparticle surface, making the sensor robust for detecting small biomolecules.

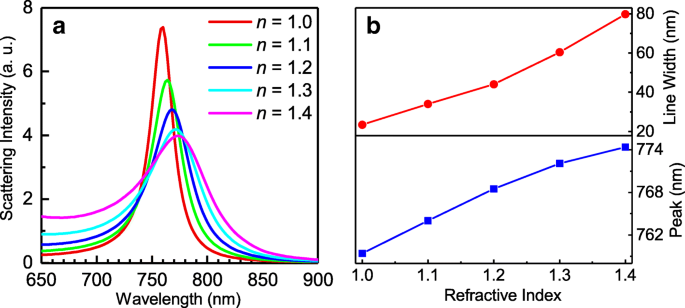

a Evolution of the scattering spectrum for the Si NS on a 50‑nm Au substrate as the surrounding refractive index increases. b Dependence of the MD linewidth (top) and peak wavelength (bottom) on the refractive index.

Color Display

Dielectric nanoparticles with large refractive indices enable color generation without the losses associated with plasmonics [52–55]. However, simultaneous excitation of ED and MD modes in bright‑field illumination yields broadband scattering. By selectively exciting the MD with an AP beam, we achieve a narrow MD resonance that can be tuned via particle size, enabling high‑chromaticity color pixels. Figure 5a shows normalized scattering spectra for Si NSs of varying radii on a 50‑nm Au film; Figure 5b plots the resulting CIE color coordinates, all falling within the RGB gamut. For practical displays, an array of Si NSs is required. Inter‑particle coupling remains negligible when the separation exceeds 400 nm, a spacing easily realizable in fabrication [56].

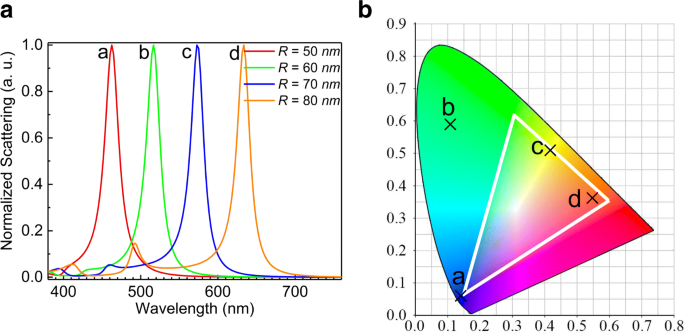

a Normalized scattering spectra for Si NSs of different radii on a 50‑nm Au film. b CIE color indices derived from the spectra in (a).

Conclusion

We have shown, both theoretically and numerically, that placing a Si NS on a metal substrate and illuminating it with a focused AP beam compresses the MD resonance linewidth from ~53 nm to ~20 nm, raising the quality factor from ~14.62 to ~37.25. The phenomenon arises from destructive interference between the MD and its metal‑induced image. The resulting sharp MD resonance offers a platform for high‑sensitivity nanosensors and high‑chromaticity, high‑resolution color displays.
