Metal 3D Printing Applications: Advanced Use Cases – Part 2

Metal 3D printing, especially metal fused filament fabrication (metal FFF), is revolutionizing the production of functional metal parts for businesses of all sizes. Unlike conventional manufacturing, metal FFF combines the strength of metal with the flexibility of additive processes, delivering faster time‑to‑market, lower tooling costs, and unprecedented design freedom.

Key application areas include:

• Forming, cutting and bonding
• Low‑volume custom parts
• Maintenance tools/fixtures
• Replacement parts

For a comprehensive dive into the diverse 3D‑metal printing applications, download our Metal 3D Printing Applications white paper.

Forming, Cutting and Bonding

Plastic and composite tools often struggle with hard‑metal forming tasks. By exploiting the inherent hardness and strength of metal, 3D‑printed tools can achieve highly customized geometries that traditional methods cannot produce.

Punch dies and stamp dies. Metal FFF can fabricate custom tool steel punch and stamp dies. The printed parts require post‑hardening and machining for precision, but the complex geometries can be produced economically, making them ideal for bespoke die applications.

Cutting tools. 3D‑printed metal allows the creation of highly customized cutting tools with internal cooling channels or intricate geometries. Carbide tips can be brazed onto printed tool‑steel bodies, delivering repeatable, reliable cutting performance. Examples include custom CNC cutters and other conventional cutting tools.

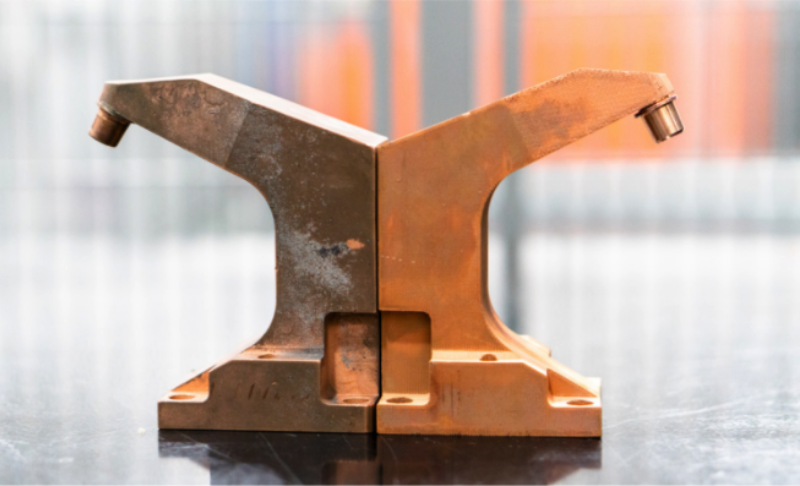

Weld shanks and induction coils. These copper‑based applications benefit from the conductive properties and geometric flexibility of 3D printing. Weld shanks can incorporate internal cooling channels for enhanced performance, while induction coils can be precisely shaped to achieve uniform heating in specialized parts. Because machining copper is costly, metal FFF offers a cost‑effective alternative.

Low‑Volume Custom Parts

While mass production dominates many industries, a growing segment of parts is manufactured in low volumes where high customizability and specialty materials are essential. Metal FFF excels in these scenarios by enabling complex, near‑net‑shape components without the overhead of traditional tooling.

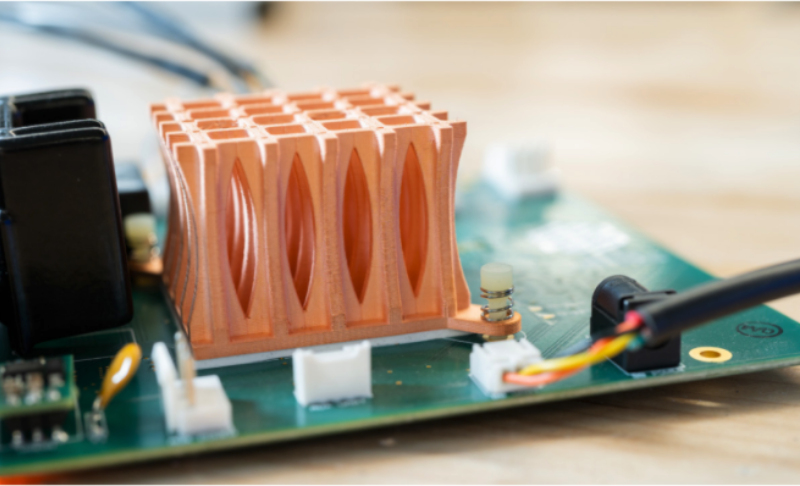

Busbars and heat sinks. Copper’s machinability challenges make busbars and heat sinks expensive to produce. Metal FFF can unlock custom geometries that enhance thermal performance or fit unconventional spaces, delivering superior functionality at a lower cost.

Custom Inconel parts. Inconel’s high‑temperature strength comes with significant fabrication costs. For low‑volume applications—such as aerospace or chemical processing—metal FFF offers a cost‑competitive and rapid solution.

High‑mix, low‑volume parts. Parts that require bespoke design or intricate features are ideal candidates for metal FFF, which supports both prototyping and final production on the same platform.

Maintenance Tools/Fixtures

Metal’s hardness and wear resistance—absent in composite 3D printing—make it ideal for maintenance tools that must endure demanding field tasks. 3D‑printed metal tools can be highly customized to meet unique operational requirements.

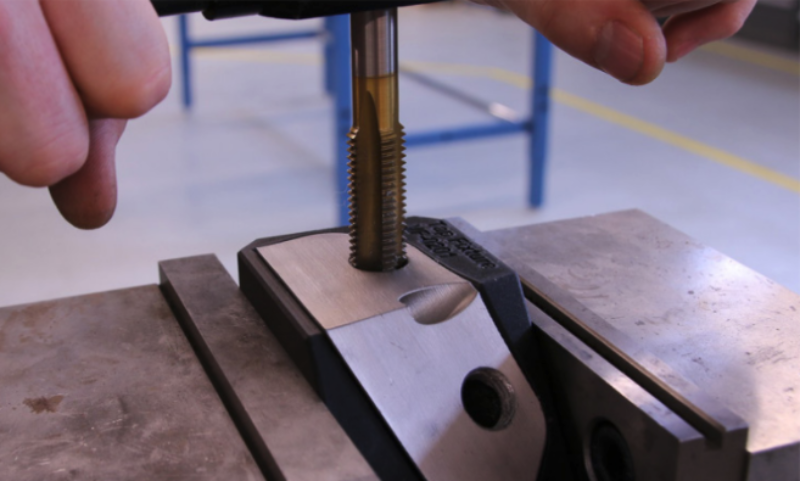

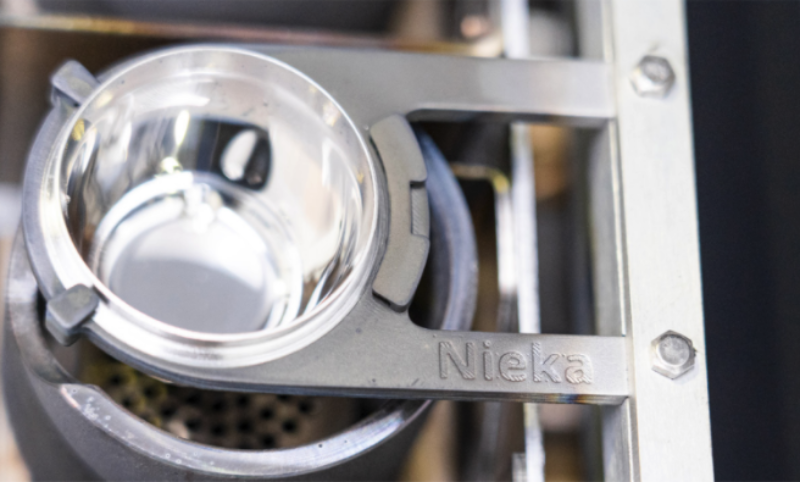

Custom hand tools & inserts. Hybrid tools that combine a composite body with a metal wear surface allow rapid production of durable, functional tools across a range of applications. Interchangeable inserts further expand a single tool’s versatility.

Replacement Parts

Metal FFF provides a powerful alternative for fabricating replacement parts that are hard or impossible to source through traditional manufacturing. The technology’s near‑net‑shape precision and complex geometry capability make it ideal for restoring legacy components.

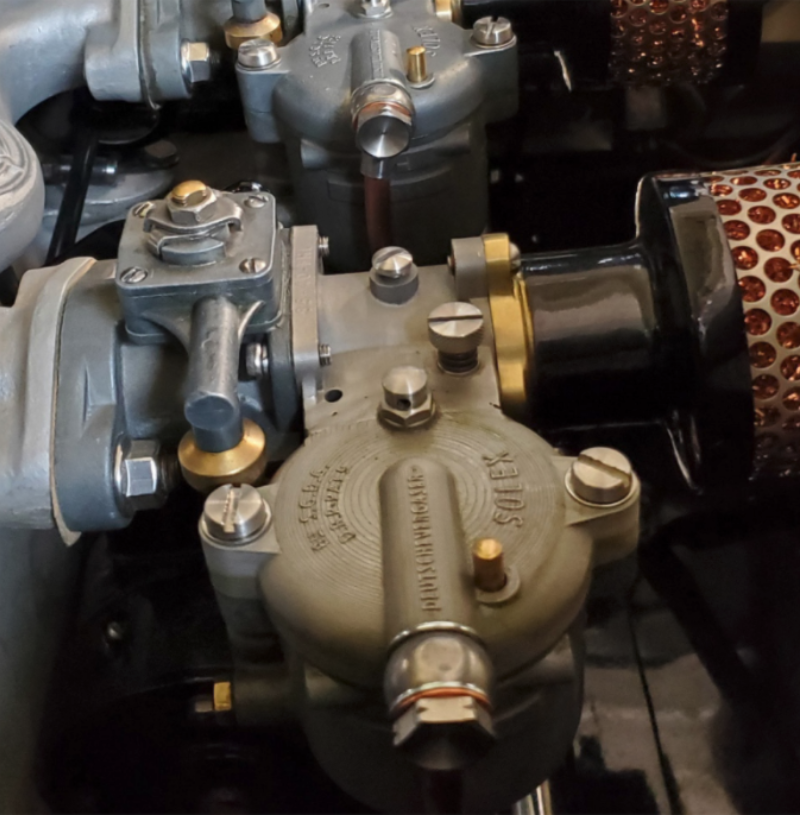

Cast part replacements. Casting new parts often requires costly tooling. Metal FFF eliminates that requirement, offering a no‑tooling solution that is especially valuable in automotive restoration and other industries where bespoke replacements are essential.
