Master Electrical Design: Optimize Projects with E3.schematic Features

In this article you can check out some smart features of the E3.schematic module, such as inserting connectors automatically and configuring wires in the project's connections. See the full video article and optimize your projects!

Preview in the Project

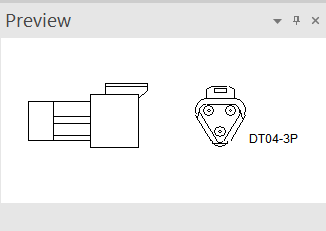

Components are dragged from the database and added to the project sheet where they become devices. In this selection, E3.series allows a preview in the window below.

If you haven't enabled it, just right click on a region of the top menu and select 'Preview'.

Try NOW the industry-leading E-CAE E3.series tool in the world with technical training courses!

Click on the banner below

Multi-Connection and Automatic Compatible Connectors

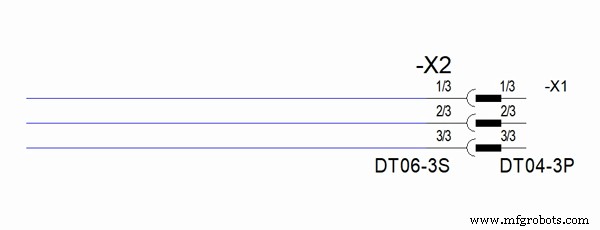

Connections are then made together to all connectors simultaneously. For this, the connection option used is 'Multi-Connection'. Thus, when selecting the region where you want to insert the connections, the compatible connectors are automatically generated by E3.series, and are already available in the project's 'Devices' table.

Once the connections are made, the wires are quickly inserted using the 'Insert Default Wire' option.

All wires added by this method are specified by the following windows:

In other words, in this case we are using the H07V-K/1,5-BK type.

Watch the Full Video



Subscribe to our Youtube channel here for more technical videos.

Segment Size and Configurations

The segment size can be viewed by right-clicking on the connection and 'Segment Diameter'.

At the end, it is possible to dimension and change the properties of the wire inserted in the table of 'Devices' -> 'Wires' and with the right click select 'Wire Properties...'. The new yarn selected was of the FLR4Y-A/2,5-RD type.
